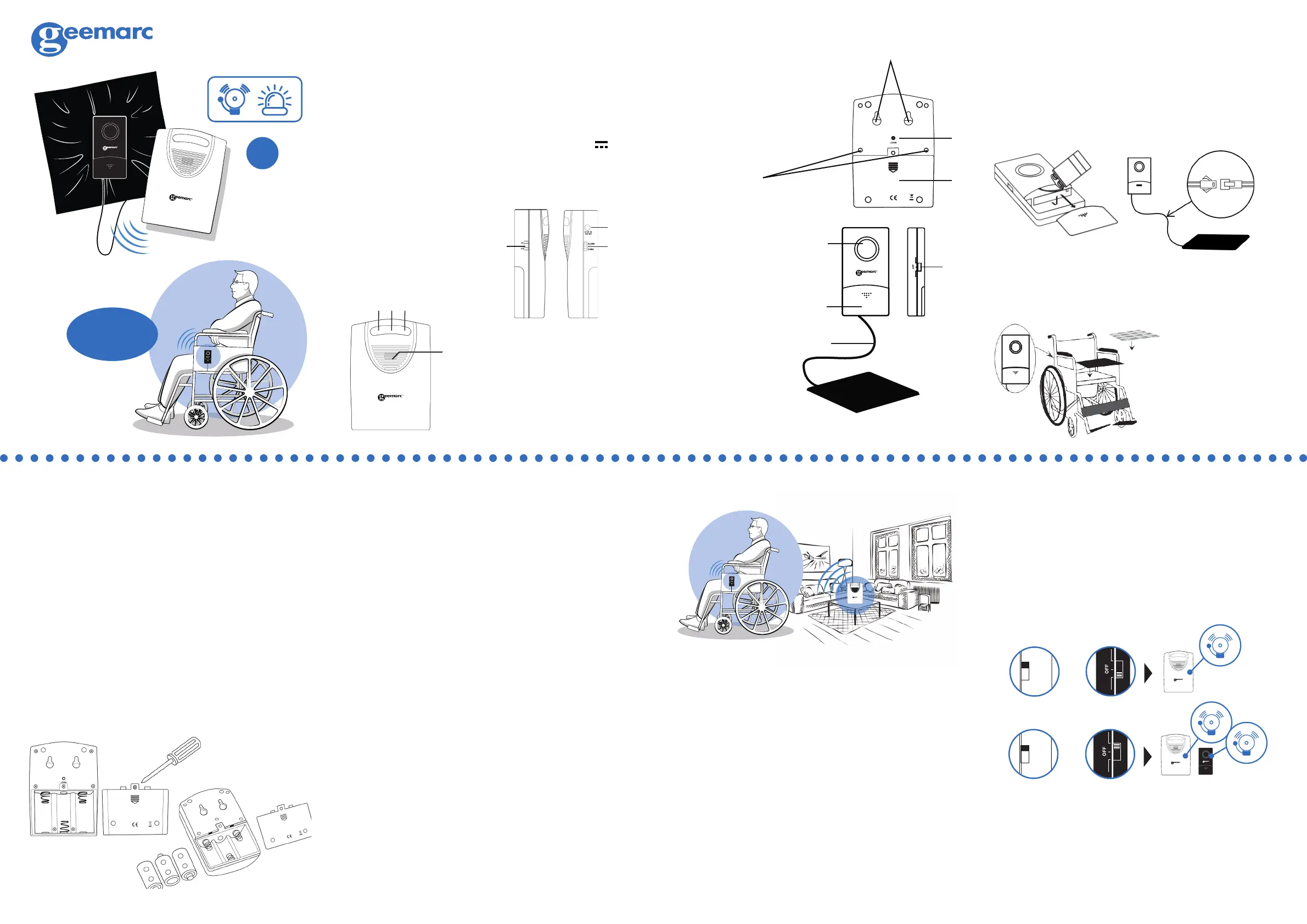

Transmitter

1. Loudspeaker

2. Battery cover

3. Power slide switch

(Alert/o󰀨/arm)

4. Pressure sensor mat

2 3 4

Pressure sensor mat and alarm

DESCRIPTION

INSTALLATION

Inside your gift box you should nd the below elements:

- 1 user guide

- 1 pressure sensor mat and its transmitter

- 1 wireless receiver

- Batteries are not included.

- A mains adapter is available as a spare part (6V 0.3A)..

(Fig1) (Fig 2)

(Fig3)

(Fig 4)

(Fig 5)

FEATURES

AMPLICALL PSA 200

Box Content

Wireless receiver

1. Volume control (HI/LO)

2,4. Visual indicators (Flash when

triggered by transmitter)

3. Visual indicator (Flashes when

triggered by transmitter/ Lights up

when batteries are low)

5. Loudspeaker

8. “Learn” paring button

9. Battery cover

10. Screw

11. Holes to mount device onto a wall

6. Power slide switch (Alarm/

o󰀨/chime)

7. DC adaptor socket (6V

DC/0.3A)

Setting up the transmitter and placing

the pressure sensor mat.

Setting up the receiver

1. Slide open the transmitter’s battery compartment

and place a 9V battery type PP3 (not included) while

observing the correct polarity before replacing the

battery cover. (Fig1)

2. Connect the transmitter’s wire to that of the

pressure sensor pad. (Fig2)

3. Place the pressure sensor mat under the cushion

of the wheelchair of the person you are caring for.

(Fig3)

Note: The transmitter

can be installed

onto a wall. To

do so the bellow

instructions should

be followed.

4. Drill two holes horizontally, 44 mm apart.

5. Insert two wall plugs xing into the two holes.

6. Screw two screws into the plugs, hang the

transmitter on the support and slide it down to lock it.

1. Unscrew the screw that is on the back of the wireless

receiver and that holds the cover of the battery

compartment in place before sliding open the battery

compartment. (Fig4)

2. Place three 1.5V batteries ( type LR14 ) in the battery

compartment while observing the correct polarity, and

place the battery compartment back in place. (Fig5)

3. You can connect an AC adapter 6V DC 0.3A (not

included); plug length: 12mm; inside positive ID: 2.1mm;

outside negative OD: 5.5mm) to the alert, and install the

batteries as backup in case of power failure.

Note: The receiver is wall mountable.

A. Drill two holes horizontally, 36 mm apart.

B. Insert two wall plugs xing into the two holes.

C. Screw two screws into the plugs, hang the receiver on the

support and slide it down to lock it.

The Amplicall PSA200 consist of a battery powered pressure

sensor mat connected to a signal transmitter, and a wireless

signal receiver.

As soon as pressure stops being applied to the sensor mat, the

transmitter it is connected to will send a signal to the wireless

receiver which will immediately start ringing and ashing. The

receiver’s alarm volume can be set to high or low. The distance

between the transmitter and the receiver should not exceed 30

meters in open eld.

The pressure sensor mat, which is powered by a 9V battery

(not included) was designed to be placed on the wheelchair or

mattress of a person with reduced mobility. The alarm it needs to

be paired with, which can work either with batteries (not included)

or plugged into the mains (adaptor not included), alerts the

caregiver whenever the person p1-he or she cared for appears to no

longer be sitting or lying on the pressure sensor mat.

Extremely easy to use our product is suitable for households that

count a member with reduced mobility, nursing homes, hospitals

and other places where patients or residents are being cared for.

Distance in between cannot exceed 30 meters.

EVERYDAY USE

You need to sit on the pressure sensor mat before turning on the

transmitter, otherwise the alarm will start ringing.

When sitting on the pressure sensor mat, move the power slide

switch of the transmitter to the “ ” position. The transmitter will ALERT

sound 4 seconds later to indicate it is now working. As soon as the

transmitter detects that no pressure is being applied to the sensor

mat, it will send a signal to the wireless receiver to trigger its alarm

and ashing light. It will keep sending a signal every 40 seconds

until pressure is once again applied on the sensor mat.

When the power slide switch of the receiver is placed on the

“CHIME” position, the receiver will ring and ash for 5 seconds

every 30 seconds each time it receives a signal from the transmitter

alerting it that no pressure is being applied on the sensor mat. The

receiver will keep ringing until it is turned o󰀨 or pressure is once

again applied on the sensor mat.

When the power slide switch of the receiver is placed on

the “ALARM” position, the receiver will ring and ash for 30

seconds every 10 seconds each time it receives a signal

from the transmitter alerting it that no pressure is being

applied on the sensor mat. The receiver will keep ringing

until it is turned o󰀨 or pressure is once again applied on the

sensor mat.

Note: when not used, the power switch of both the

receiver and transmitter should be moved to the “OFF”

position to prevent them from ringing and save battery

life.

OFF

CHIME

ALARM

ALERT ARM

OFF

CHIME

ALARM

ALERT ARM

PAIRING

The pressure sensor mat and wireless receiver are

delivered already paired. When setting them up for the

rst time, you should apply pressure on the sensor mat

to make sure this triggers the alarm, which ought to be

placed less than 30 meters away.

Material :

Plastic PVC

UGEnACPSA200

ALERT ARM

The middle LED (3) will start ashing to warn you that

the battery needs to be replaced.
