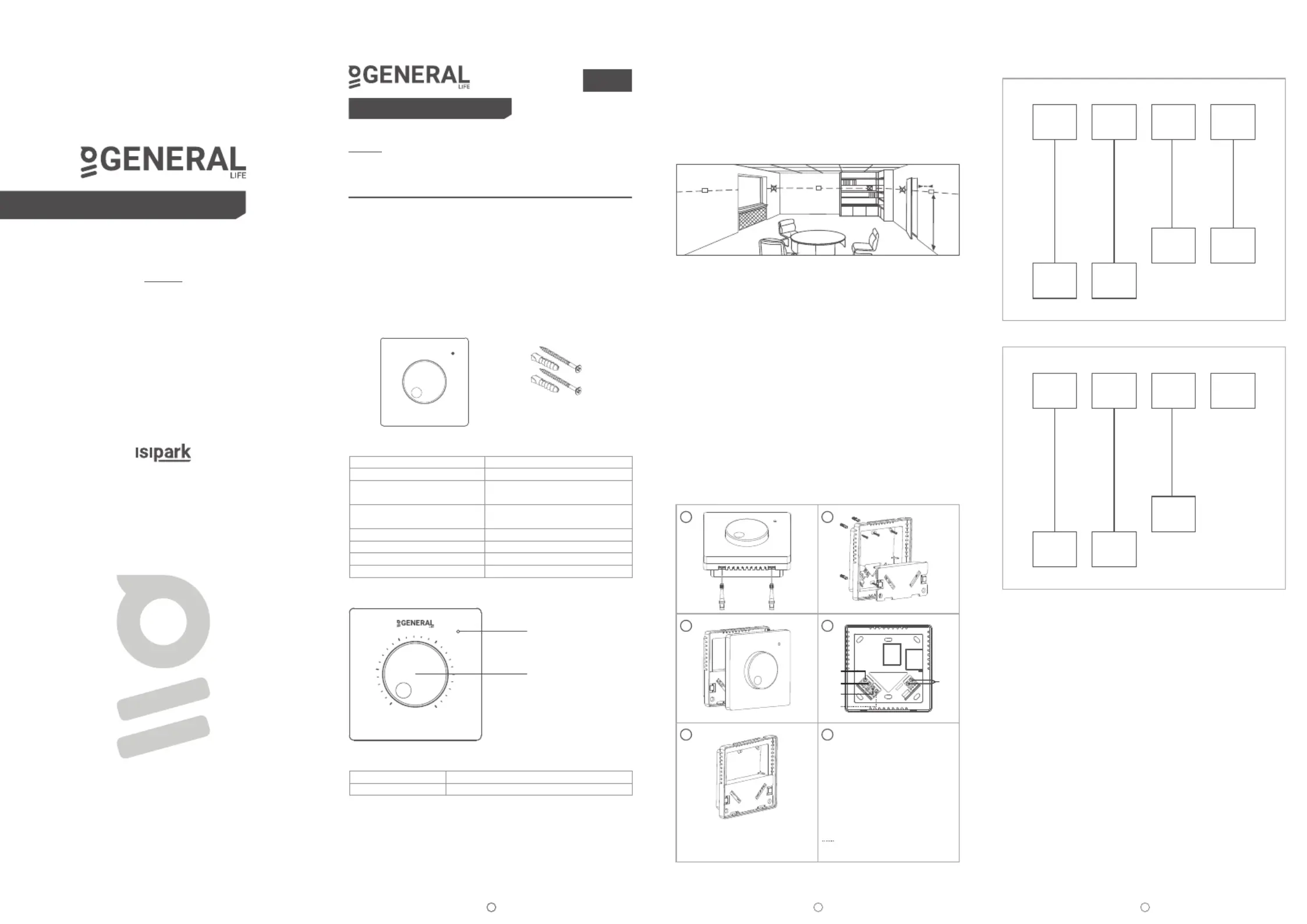

ROOM THERMOSTAT PLACEMENT
Place your Room Thermostat in a room you use frequently in your
living space. For example; like the hall or living room of your home.
Avoid installing the Room Thermostat in places where there is a lot of
air circulation, such as at the doorway or by the window. Also, do not
place it close to heating units (heater core, fireplace, etc.) and in direct
sunlight. We recommend that the room thermostat is placed at a
height of 150 cm from the floor.
ROOM THERMOSTAT WORKING PRINCIPLE
As soon as you energize your Room Thermostat, it will start working.
Your Room Thermostat measures the temperature of the
environment it is in every 5 seconds. If the ambient temperature rises
0.5 degrees above the temperature you set, your Room Thermostat
turns off the heating unit, and if it falls below 0.5 degrees, it turns on
the heating unit.
If the floor sensor measures temperature above 28°C, it turns off the
heating unit. The floor sensor operating sensitivity is ±1°C.*
Thus, it is ensured that the ambient temperature remains within a
certain range.
*External floor sensor is only active when it is connected.
Note: If a floor sensor is installed with Room Thermostat, only
GENERAL Life floor sensor should be installed. Otherwise, the
product will be out of warranty.
ROOM THERMOSTAT WIRING DIAGRAM
GENERAL SPECIFICATIONS
FH10/FH10S is a floor heating room thermostat. User provides more
comfortable and affordable heating by setting needed room
temperature.
Sensitive Temperature Measurement
Wired Connection
ON / OFF Control
FH10/FH10S AND EQUIPMENTS
TECHNICAL DATA
ROOM THERMOSTAT
Room Thermostat Indicator LED Descriptions
1
Room Thermostat
85.7mm / 85.7mm / 33.5mm
230V AC
7A (240VAC – Resistive load)
10A (120VAC – Resistive load)
o
0.1 C
o
0.5 C
o o
(5 C) – (30 C)
o o
(-10 C) – (+50 C)
o o
(-20 C) – (+60 C)
Dowels and
Screws
Dimensions ( H / L / W )
Operating Current
Relay NO Switching Current
Temperature Measurement
Accuracy
Operating Sensitivity
Operating Temperature Range
Operating Temperature
Storage Temperature
150 cm
min. 20 cm
1 4
2
3
1 2 3
ENGLISH
generallife.com.tr
UNDERFLOOR HEATING THERMOSTAT
Set Button
Indicator LED
Heating unit is working
Heating unit is not working
LED light is on
LED light is off
generallife.com.tr
UNDERFLOOR HEATING THERMOSTAT
WIRING DIAGRAM FOR ACTUATOR
WIRING DIAGRAM FOR WIRING CENTER
WARNING!
Operations related to the control panel, heating unit or electrical
installation must be carried out by persons with professional
qualifications.
6
5
NTC
L
L1
N
N1
WARNING!
The assembly of product
should be done according to
the image above.
For electrical connection,
please see diagram 5.
Should not be used in case
the usage of a wiring center.
N L L1 N1
230V AC
ACTUATOR
N L L1 N1
230V AC
WIRING
CENTER
15
20
25
30
10
5
FH10/FH10S
USER MANUAL
FH10/FH10S USER MANUAL
SERIES:
MITRA, ADEN, ARUNA, CERES, GAIA, ILLONA, NORA, SENNA, TERRA,
THERMA
SERIES:
MITRA, ADEN, ARUNA, CERES,
GAIA, ILLONA, NORA, SENNA,
TERRA, THERMA
