Side 1/4

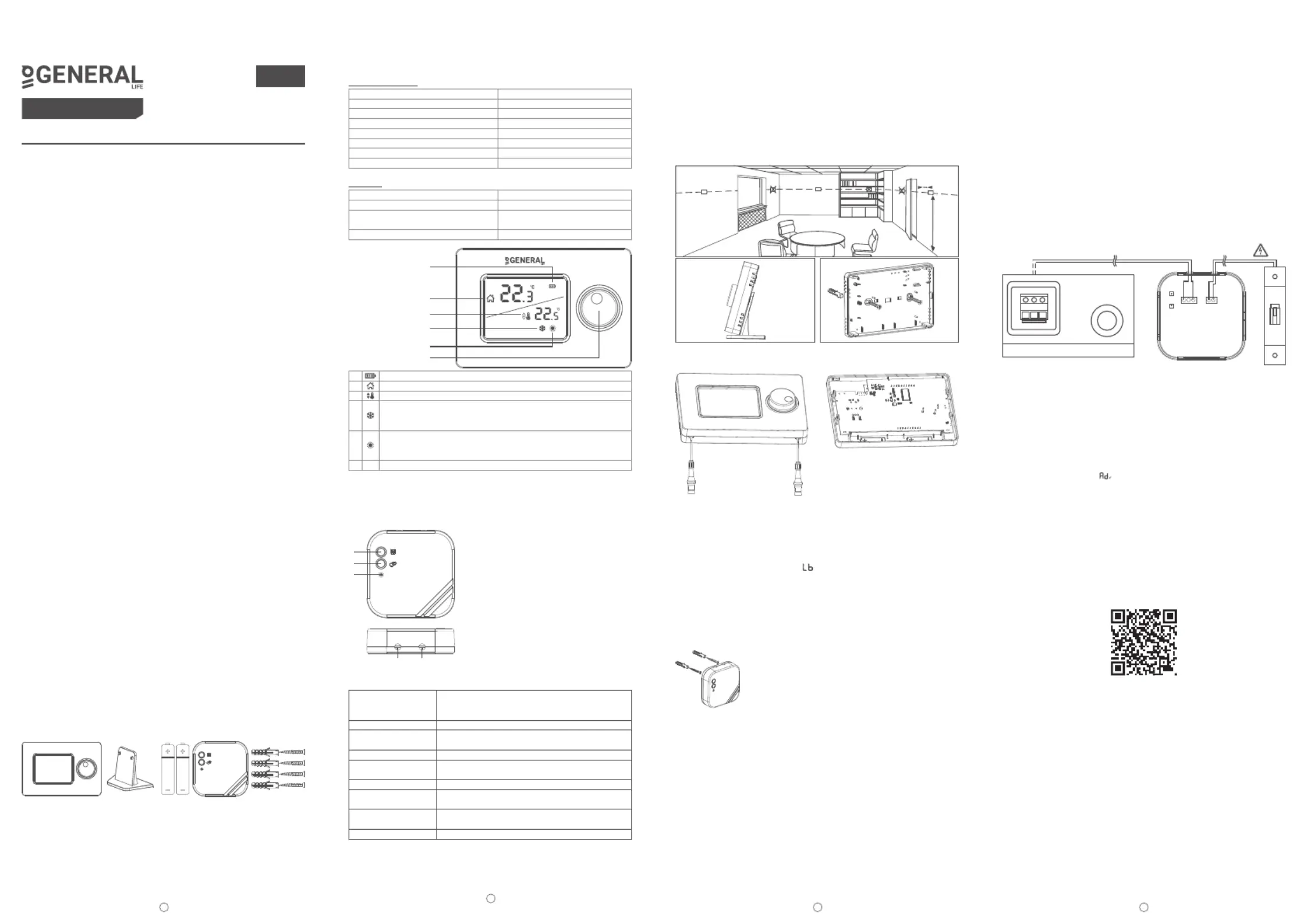

ROOM THERMOSTAT PLACEMENT
The room thermostat needs to be placed in the room which is used most
frequently. For instance; the living room or lounge. Placing the room
thermostat in a spot that has air circulation like the entrance of a room or the
side of the window should be avoided. Also anywhere close to
heating/cooling units such as a radiator, stove, and spots that get direct sun
lights would not be suitable. The room thermostat needs to be located
above the floor 150 cm in height. Few trials may be made to find the most
convenient spot.
BATTERY PLACEMENT
Press the screwdriver forward from the space at the bottom of the room
thermostat, bend the tabs and separate the front cover. Insert 2 new AAA
alkaline batteries in the battery housing with the correct battery direction.
Replace both batteries at the same time. Align the front part of your room
thermostat with the corresponding slot on the back, and then push gently
until the thermostat snaps into place.
Low Battery Warning: When the “ ” icon appears on the screen, it means
“low battery warning”. It is recommended to replace the batteries when this
warning appears.
Warning: When the product is not used for a long period (more than 15 days),
remove the batteries. Otherwise, malfunctions that may occur would be out of
warranty. Please throw your dead batteries into the waste bin for batteries.
RECEIVER PLACEMENT
The important things to note for the Receiver placement
are avoiding physical contact between the receiver and
the heating/cooling unit, and protecting it against
materials such as liquid, dust, etc.
The devices should be placed to minimize the damage to the received and
transmitted signals by paying attention to the following points;
The devices should not be mounted on metal surfaces.
The devices should not be installed close to electrical cables and
electronic equipment such as computers and television units.
The devices should not be installed near large metal structures or other
building materials using fine metal meshes such as special glass or
special concrete.
Distance between the room thermostat and the Receiver should not
exceed 20 meters or 2 floors.
The receiver must be installed at least 50 cm away from the
heating/cooling unit.
TECHNICAL DATA
Room Thermostat
Receiver
ROOM THERMOSTAT
Note: During active use of the room thermostat, the symbols indicated by 3,
4 and 5 will not appear on the screen.
RECEIVER
RECEIVER LED DESCRIPTIONS
WHAT IS A SMART ROOM THERMOSTAT?
A smart room thermostat is a device that allows you to control your heating
equipment via APP with the internet even when you are not at home.
HOW DOES HT250 SMART WORK?
HT250 SMART is a smart wireless room thermostat. You can control it with
the mobile application after you pair your room thermostat with the receiver,
and complete the installation of the smart receiver.
WHAT ARE THE ADVANTAGES OF THE HT250 SMART?
You can control your home's temperature via its mobile application, no
matter where you are in the world.
You can easily create daily and weekly schedules via its mobile
application.
You can place the room thermostat anywhere in your home, thanks to its
use with batteries.
It ensures that your living space stays at the desired temperature at any
time. In this way, you can save up to 30% on your bills by preventing your
heating unit from working unnecessarily.
RULES THAT NEED TO BE OBSERVED FOR SAFETY
1- Be sure to read the user manual before using the device and its
equipment.
2- Opening, disassembly, or use of plastic parts of the product and
equipment other than the intended purpose are out of warranty.
3- Please make sure that the sockets to which you connect your devices and
equipment are at the recommended voltage value in the user manual.
4- Keep away and protect your product and its equipment from all kinds of
external substances such as liquid, dust, heat, etc.
5- Do not expose the device cables to any jamming and pressure. Take care
to connect the devices' energy connection to the sockets you can always
reach.
6- Turn off the electrical power to prevent damage to your device and
apparatus in case of lightning and thunderstorms.
7- Turn off the electrical power when your device is not used for a long time.
8- Your devices and equipment should be used by paying attention to the
matters stated in the user manual. In case of damage and malfunctions,
arising from improper use (contact with liquid, falling to the ground, etc.)
definitely ask for the installer's help.
9-Call our service for maintenance and repair of HT250 SMART and its
equipment. Maintenance and repair of the device and equipment should be
carried out only by the technical service of ISIPARK A.S. and its authorized
services, spare parts, and accessories specified by the company should be
used.
HT250 SMART and EQUIPMENT
1
2
3 4
150 cm
min. 20 cm
ENGLISH
generallife.com.tr
SMART ROOM THERMOSTAT
HT250 SMART USER MANUAL
RECEIVER INSTALLATION
First, shut down your heating/cooling unit and your heating/cooling unit's
power source with all electrical current (fuse, socket, etc.)
As shown in the connection diagram, connect one end of the
heating/cooling unit connection cable to the COM and the other to the NO
input of the receiver.
Connect the other ends of the cable -which you connected to the receiver-
to the room thermostat connection terminal as shown in your
heating/cooling unit's user manual.
You must first connect the receiver power cable to the receiver and then to
the fuse to which the heating/cooling unit is connected.
After completing the cable connection process, first, turn on your fuse and
then your heating/cooling unit.
Finish the installation of the room thermostat to pair the receiver with the
room thermostat.
RECEIVER WIRING DIAGRAM
Warning!
Operations within the heating/cooling unit or the electrical installation must
be carried out by professionally qualified persons.
PAIRING THE ROOM THERMOSTAT WITH THE RECEIVER
To pair the room thermostat with the receiver, press the “Manual
Operation Button” and “Wi-Fi Pairing Button” together at the same time
and see the receiver's fast blinking red LED.
Press the button for 3 seconds while your device is turned off.
Press the button until “ ” the pairing menu appears.
Turn your room thermostat's button while the LED is fast blinking red.
If the pairing is successful, the fast red flashing LED on the receiver will be
steady.
The receiver and room thermostat have been paired with each other.
SMART RECEIVER SETUP
For smart receiver setup, download the application from App Store or
Google Play or scan the QR code below with your smartphone. In this way,
you will be able to download the mobile application from App Store or
Google Play to your smartphone. (You may be required to have a QR code
reader application depending on the brand and model of your phone, for
this process.)
Complete the user registration process by opening the mobile application
that you downloaded.
Open the Bluetooth from your mobile phone's settings.
After you completed the user registration process, press the “+” button in
the top-right corner of the main screen of the application, Press the
receiver's Wi-Fi pairing button for 5 seconds.
The LED on the receiver will start to blink green.
Setup will begin with Bluetooth in the application. When the device is
found, press the “Add” button.
Press the “+” button near the W Modem device and press the “ ” Next
button after making sure that you entered the correct Wi-Fi information.
Wait until the setup process is completed. When you saw the green
approval symbol on the W Modem, press the “ ” button in the top-right Done
corner.
AA
AA
AA
AA A
A
A
A
AA
AA
AA
AA A
A
A
A
85mm / 125mm / 24mm
3V DC (2 x AAA Alkaline Battery)
o
0.1 C
o o
(-2.0 C) – (+2.0 C)
o o
(5 C) – (40 C)
1 Year (2 x AAA)
o o
(-10 C) – (+50 C)
o o
(-20 C) – (+60 C)
Dimensions (H/L/W)
Operating Current
Temperature Measurement Accuracy
Operating Sensitivity
Operating Temperature Range
Battery Life
Operating Temperature
Storage Temperature
Dimensions (H/L/W)
Operating Current
Relay NO Switching Current
Storage Temperature
HT250 SMART
Room Thermostat Alkaline
Battery
Holder Dowels and
Screws
Receiver
Battery Indicator
Room Temperature
Set Temperature
Cooling Indicator
- If the Cooling Indicator is blinking, the cooling unit is working.
- If the Cooling Indicator is steady, the cooling unit is not working.
Heating Indicator
- If the Heating Indicator is blinking, the heating unit is working.
- If the Heating Indicator is steady, the heating unit is not working.
ON/OFF and Temperature Setting Button
1
2
3
4
5
6
1-Manual Operation Button:
Deactivates the receiver and allows users
to manually use the heating/cooling unit.
2-Wi-Fi Pairing Button:
Makes the receiver ready for smart
installation.
3-Receiver LED Light
4- Receiver Power Cable Input
5- Heating/Cooling Unit Connection Cable
Input
4
1
2
3
5
Blinking Red
Fast Blinking Red
Steady Red
Blinking Green
Steady Green
Steady Turquoise
3 Short Red Blinking
3 Short Green Blinking
Blinking Red and Green
The receiver did not get any signal from the
heating/cooling unit for 22 minutes or longer and
the heating/ cooling unit has shut down.
Waiting for a pairing signal from the room thermostat.
The receiver and the room thermostat have been paired.
Smart installation has not been completed.
The receiver is in Bluetooth searching mode.
Smart installation has been completed.
The heating/cooling unit is not working.
The heating/cooling unit is working.
Shut the heating/cooling unit down signal has
reached the receiver.
Operate the heating/cooling unit signal has
reached the receiver.
The heating/cooling unit is working in manual mode.
90mm / 90mm / 25mm
230V AC
7A (240VAC – Resistive Load)
10A (120VAC – Resistive Load)
o o
(-20 C) – (+60 C)
COM
NO
AC
(230V)
HEATING/COOLING UNIT
5
4
1
2
6
3
Click to download.

Produkt Specifikationer

Mærke: GENERAL Life
Kategori: Termostat
Model: HT220

Har du brug for hjælp?

Hvis du har brug for hjælp til GENERAL Life HT220 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Termostat GENERAL Life Manualer

GENERAL Life

GENERAL Life FH10 Manual

5 September 2024
GENERAL Life

GENERAL Life HT220S Manual

5 September 2024
GENERAL Life

GENERAL Life FC100 Manual

5 September 2024
GENERAL Life

GENERAL Life HT270 Manual

5 September 2024
GENERAL Life

GENERAL Life HT300 Manual

5 September 2024
GENERAL Life

GENERAL Life HT270S Manual

5 September 2024
GENERAL Life

GENERAL Life FH25S Manual

5 September 2024
GENERAL Life

GENERAL Life HT220 Manual

5 September 2024
GENERAL Life

GENERAL Life HT330S Manual

5 September 2024
GENERAL Life

GENERAL Life HT250S Manual

5 September 2024

Termostat Manualer

Nyeste Termostat Manualer

Vemer

Vemer ThermoPro Wi-Fi Manual

6 November 2024
Siemens

Siemens RDG100T Manual

15 Oktober 2024
Junkers

Junkers TA 21E Manual

14 Oktober 2024
Dimplex

Dimplex 6181 Manual

7 Oktober 2024
Danfoss

Danfoss RA 2982 Manual

6 Oktober 2024
Theben

Theben RAM 811 Top - 811 9 901 Manual

5 Oktober 2024
Renkforce

Renkforce MH-850T Manual

5 Oktober 2024
Siemens

Siemens DESIGO RXA Manual

5 Oktober 2024
Drayton

Drayton RTS10 Manual

5 Oktober 2024
Honeywell

Honeywell Day Night Round T8700A Manual

4 Oktober 2024
