INSTALLATION INSTRUCTIONS:
REPLACING A LOST OR DAMAGED PART:

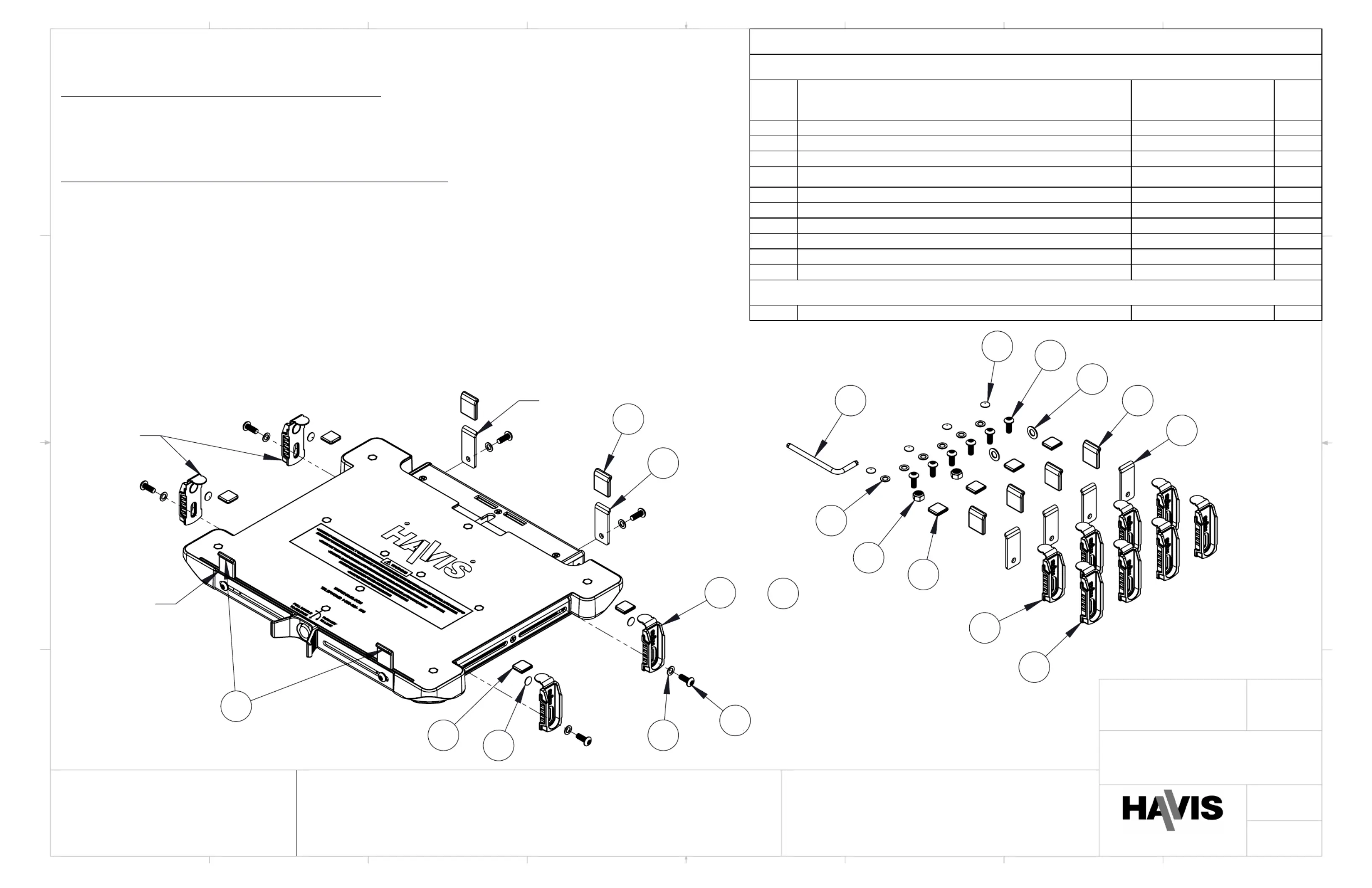

Refer to UT-X exploded view shown below and identify item number of lost or damaged part(s).
1.
Select appropriate part from UT-X-KIT1 Hardware Contents and replace accordingly.
2.
Once replaced, adjust side hold downs and front/rear fences as needed according to the set-up
3.
instructions outlined in the owner's manual supplied with this kit.
CONVERSION OF A UT-X-SD OR UT-X-T TO A UT-X:
Remove all side hold downs and front/rear fences from the current product.
1.
NOTE: In the case of the UT-X-T, the front fences are not removable and may be retained for the
conversion to a UT-X.
Refering to the exploded UT-X view shown below, choose the appropriate parts from the UT-X-KIT1
2.
and re-assemble all side hold downs and front/rear fences.
NOTE: When converting a UT-X-SD to a UT-X, the front fences should be replaced with Items #3 &
#5 from the UT-X-KIT1 and secured using Items #9 & #10.
Once replaced, adjust side hold downs and front/rear fences as needed according to the set-up
3.
instructions outlined in the owner's manual supplied with this kit.
NOTE: Retain all unused hardware for future use.
UT-X-KIT1 HARDWARE CONTENTS
REPLACEMENT PARTS
ITEM
NO.
DESCRIPTION
HAVIS PART
NUMBER
QTY.
1
HOLD DOWN LUG, LARGE
UT-0029-SA
4
2
HOLD DOWN LUG, SMALL UT-0026-SA
4
3
BRACKET, FRONT AND REAR FENCE
UT-0023-SM
4
4
CAP, VINYL, BLACK, 0.45" X 0.5"
HW-CA-0001/GSM41120
4
5
CAP, VINYL, BLACK, 0.69" X 0.875"
HW-CA-0002/GSM41121
4
6
BUMPER, HOLD DOWN LUG
HW-RB-3608/GSM21101
4
7
SCREW, BUTTON HEAD, T25 PIN-IN-TORX, #10-32 X 0.5" LONG
HW-BH-0079/GSM33330
6
8
WASHER, BELLEVILLE, SERRATED, #10 SCREW SIZE
HW-SW-1262/GSM31089
6
9
NUT, HEX LOCK, NYLON INSERT, #10-32
HW-NN-0902/GSM30015
2
10
WASHER, FLAT, 1/4" SCREW SIZE
HW-SW-1206/GSM31085
2
TOOLS
11
TAMPER-RESISTANT T25 PIN-IN-TORX KEY
HW-AW-0006/GSM50261
1
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
UT-X REPLACEMENT KIT1
03-18-11
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
UT-X-KIT1_INST
PRODUCT DESCRIPTION
PARTS REPLACEMENT KIT FOR UT-X
UNIVERSAL TRAY
MAY ALSO BE USED TO CONVERT EXISTING
UT-X-SD AND UT-X-T INTO A UT-X
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
PRODUCT I.D.
DATE
WEIGHT: (LBS)
PRODUCT NAME
REV. DATE
03-25-11
DRAWING NUMBER:
UT-X-KIT1
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER,
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
WWW.HAVIS.COM
1-800-524-9900
F-730-019 REV A
