Elettromedia - 62018 Potenza Picena (MC) Italy - T +39 0733 870 870 - F +39 0733 870 880 - elettromedia.com
hertz-audio.com
All Specifications Subject to Change Without Notice_22.A
1. Up to 85% efficiency thanks to ADC (Advanced D-Class) output stage
2. USS (Universal Speakers Simulators) allows SP 4.900 to work with head units
featuring the “speaker load detection” circuit
3. 160 W RMS x 4 (4Ω) with ultra-compact size 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9
(mm/inch)
4. IP55 aluminium chassis for maximum protection against humidity and external
agents
5. No cooling fan to prevent internal accumulation of dirt
6. Sealed power cord, line inputs and speaker outputs to prevent oxidation
7. Crossovers filters and controls on a single side to facilitate calibration when the
product is installed

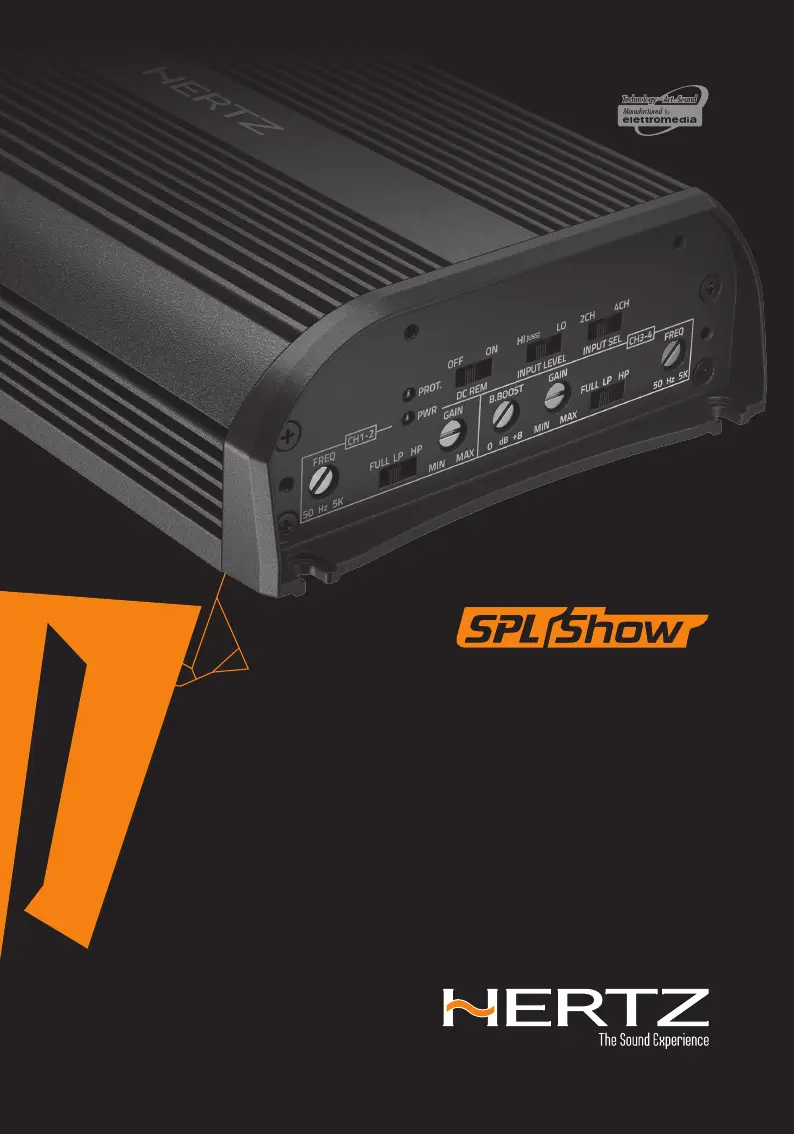

SP 4.900
D-CLASS FOUR CHANNEL AMPLIFIER
1000 W
A205 mm 8.07 in.
B211.6 mm 8.33 in.
C107 mm 4.212 in.
D130 mm 5.118 in.
E49 mm 1.929 in.
POWER SUPPLY
Nominal power supply voltage 11 15 VDC ÷
Pulse Operating voltage 6 16 VDC÷
Idling current 1.1 A
Idling current when off 0.03 mA
Consumption @ 14.4 VDC, MIN load
impedance (Max Musical Power) 50 A
Remote IN 6 15 VDC (9 mA)÷
DC-REM - Remote Turn on by SPK DC
from OUTPUT BTL speakers 3.5 7 VDC÷
AMPLIFIER STAGE
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0,02%
Damping factor @ 1 kHz, 4Ω, 2 VRMS 200
Bandwidth @ -3 dB 10 Hz 35 kHz÷
S/N ratio (A weighted @ 1 V Input) 105 dBA
Pre-In sensitivity 0.6 6 VRMS ÷
Speaker-In sensitivity 2.2 22 VRMS÷
Minimum load impedance
@ 4Ch: 2Ω
@ 3Ch: 2Ω + 2Ω + 4Ω
@ 2Ch: 4Ω
Output power (RMS) @14.4 VDC, 1% THD:
4Ch 160 W x 4 (4Ω)
4Ch 250 W x 4 (2Ω)
3Ch 160 W x 2 (4Ω) + 500 W x 1 (4Ω)
3Ch 250 W x 2 (2Ω) + 500 W x 1 (4Ω)
2Ch 500 W x 2 (4Ω)
INPUTS / OUTPUTS / FILTERS
Inputs Pre IN / Speaker IN
Ch 1-2 Filters:
Full
Hi-pass: 50 5k Hz @ 12 dB/Oct÷.
Lo-pass: 50 5k Hz @ 12 dB/Oct.÷
Ch 3-4 Filters:
Full
Hi-pass: 50 5k Hz @ 12 dB/Oct÷.
Lo-pass: 50 5k Hz @ 12 dB/Oct.÷
Bass Boost 45Hz (adjustable) OUT 3 -4 (0 8 dB) [LP = ON only]÷
CEA SPECIFICATION
Output power @ 4Ω
1% THD+N, 14.4 V 145 W x 4 Ch
SN ratio (ref. 1 W output) 81 dBA
SIZE / WEIGHT
Max size (mm/inch) 211.6 x 130 x 49 8.33 x 5.118 x 1.929/
Weight (kg/lbs) 2.15 4.74/
GENERAL
IP Rating IP55
Operating Temperature Range 0°C (32°F) to 55°C (131°F)
Sealed connectors
Maximum versatility
E
