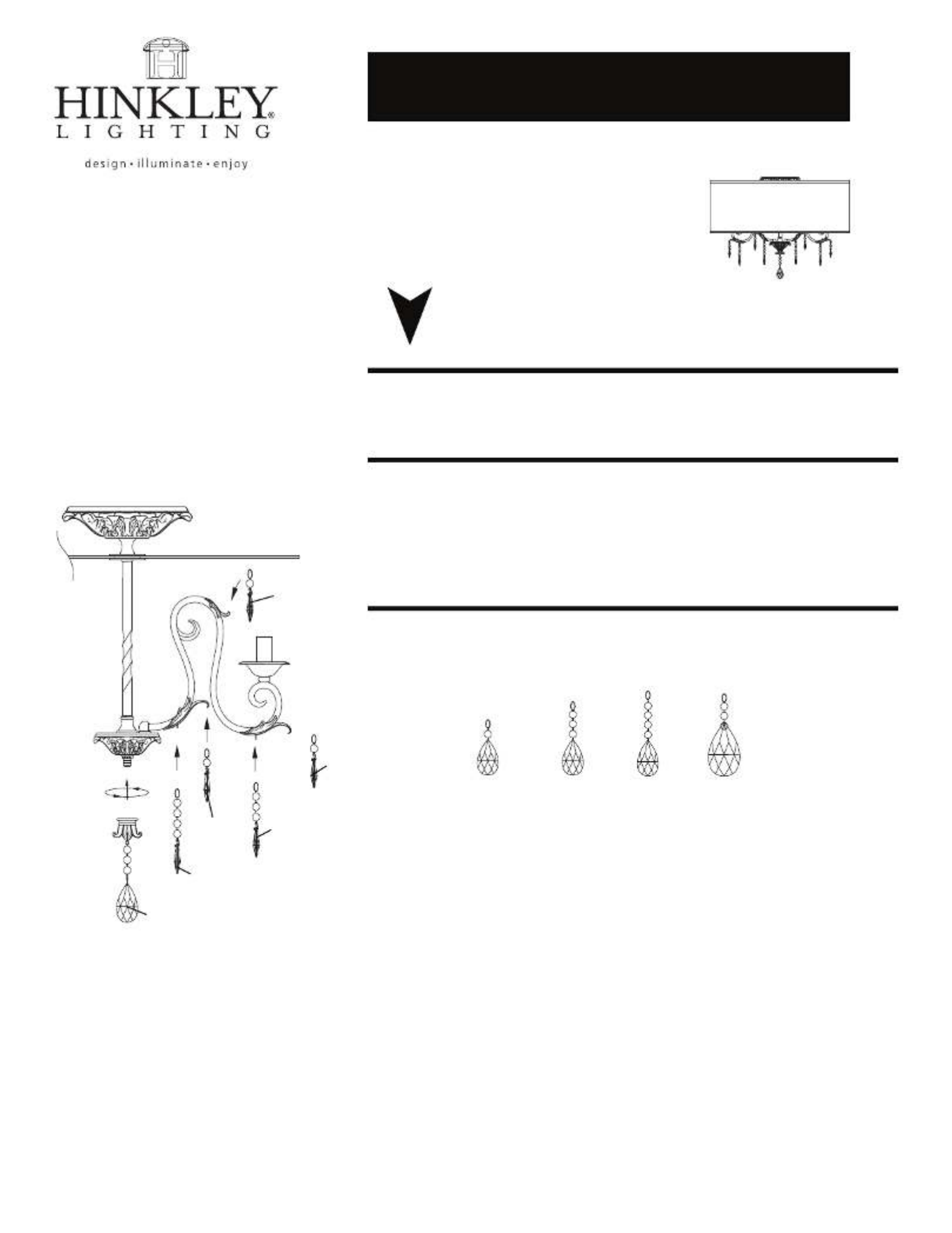

assembly instructions
Item No. 4771
1. Find a clear area in which you can work.
2. Unpack fixture and glass from carton.
3. Carefully review instructions prior to assembly.
*** The construction of this fixture will be accomplished by first assembling the
main body of the fixture, making all necessary electrical connections, hanging
the fixture from the ceiling, and then installing the shade and crystals.
4771
SAFETY WARNING: READ WIRING AND GROUNDING INSTRUCTIONS (I.S. 18)
AND ANY ADDITIONAL DIRECTIONS. TURN POWER SUPPLY OFF DURING
INSTALLATION. IF NEW WIRING IS REQUIRED, CONSULT A QUALIFIED
ELECTRICIAN OR LOCAL AUTHORITIES FOR CODE REQUIREMENTS.
Drawing 2 - Fixture Assembly
01.01.13
1. Rotate arms until they are approximately degrees apart - see(A) 90 Drawing 1
and 3.
2. Fixture can be installed at this time.
A A
A
A
90º
Drawing 1 - Fixture Assembly
s r reta t he
33000 Pin Oak P ark w ay, Avon Lak e , OH 4 4 0 1 2 800.446.5 5 3 9 / 440.653.5 5 0 0 h i n k leyl ighting.com
Drawing 3 - Fixture Mounting
Drawing 2 - Strap Detail
J
B
AG
D
E
C
1. Prepare mounting strap for mounting by installing screws into mounting (B) (A)
plate - see .(B) Drawing 2
• Be sure the holes into which the screws are threaded match the spacing of holes (C)
in the canopy - see .(1) Drawings 2 and 3
2. Attach mounting plate to junction box , using screws provided and slip (B) (J) (G)
supply wires through large center hole.
Make electrical connections from supply wire to fixture lead wires. Refer to instruction
sheet and follow all instructions to make all necessary wiring connections. (I.S. 18)
Then return back to this sheet to continue installation of this fixture.
5
51. Hang the fixture by slipping canopy over screws and hold in position - see (D) (B)
Drawings 2 and 3.
2. Thread ball knobs onto end of screws and tighten to secure fixture to ceiling.(E) (B)
61. To install shade , slip shade over fixture installed fixture body and place tab (1) (T)
on top of crossbar and align holes in tab with holes in crossbar -see .(S) Drawing 4
2. Slip screw through holes in tab and crossbar and thread on ball knob to (2) (3)
secure shade to fixture.
3. See page 2 of instruction for crystal installation.
page 1
12
3
Produkt Specifikationer
| Mærke: | Hinkley Lighting |
| Kategori: | Lys |
| Model: | Carlton 4771SL |
