Side 1/4
Key Features:
Weather-Resistant, All Fiberglass
Enclosure
60° x 60° Coverage
2265H Differential Drive®Low-
Frequency Driver
2432H High Frequency Compression
Driver
Large PT™ Progressive Transition
waveguide for excellent pattern control
and low distortion
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included
Applications:
Sports Facilities
Themed Entertainment Venues
Outdoor Entertainment Centers
Cruise Ships
Water Parks
The AW566 is a high power,
lightweight, 2-way, full-range
loudspeaker system comprised of the
JBL Differential Drive dual voice coil
and dual magnetic gap 2265H 380 mm
(15 in) low-frequency driver and 2432H
high-frequency 38 mm (1.5 in) exit, 75
mm (3 in) voice-coil compression
driver. The large format Progressive
Transition wave-guide provides
excellent 60° x 60° coverage. The
loudspeaker system can used in either
the vertical or horizontal orientation.
The enclosure is constructed of
multilayer glass composite and is
heavily braced to maximize low-
frequency performance. The 16-gauge
stainless steel grille, backed with open
cell foam and stainless steel mesh,
provides excellent protection in the
harshest environments. The system is
equipped with a 400 W 70/100V
transformer.
A corrosion-resistant extra-thick zinc-
plated polyester powder coated U-type
mounting bracket is included.
The AW566 is part of JBL’s AE Series,
a versatile family of loudspeakers
intended for a wide variety of
applications.

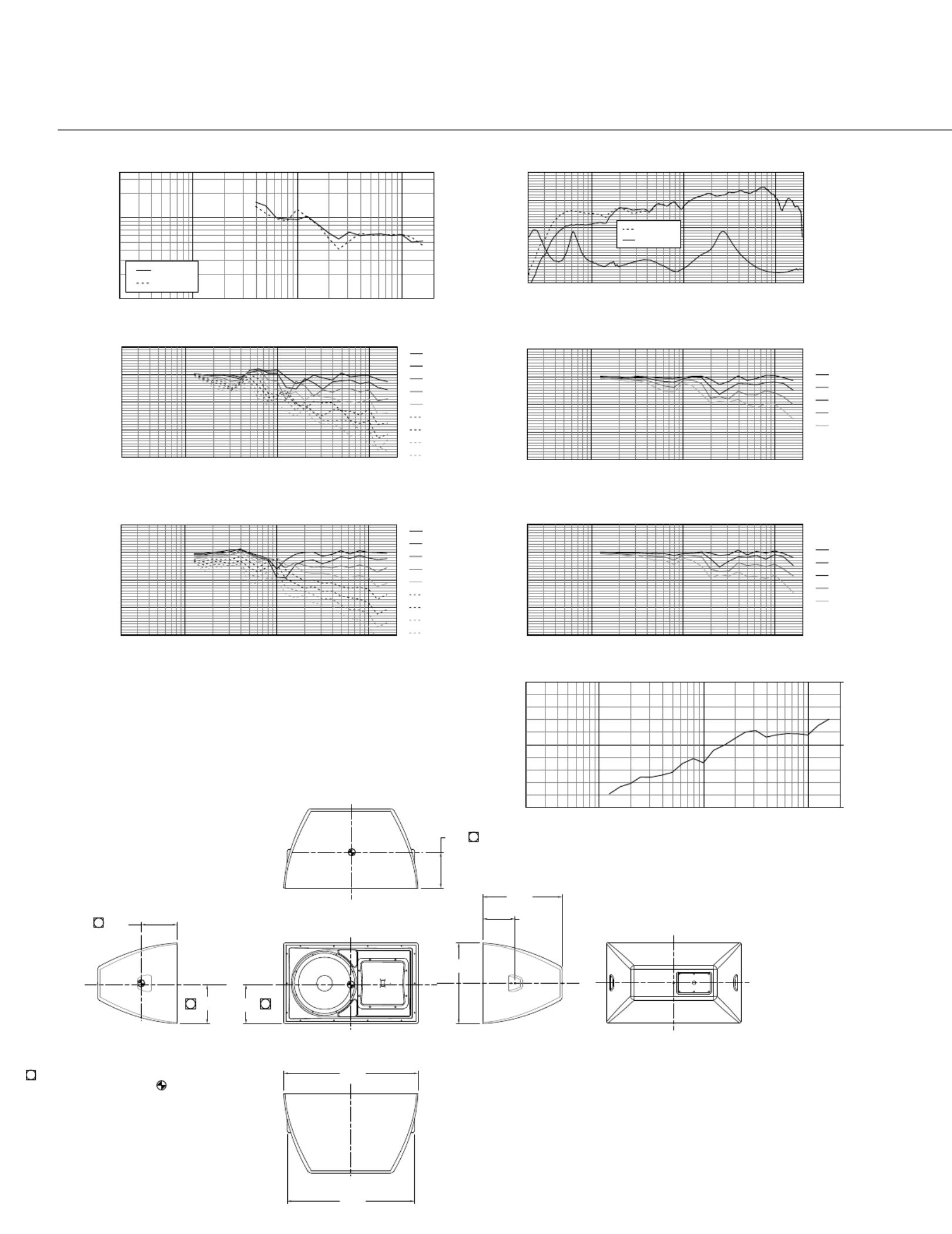

Specifications:
System:
Frequency Range (-10 dB): 35 Hz – 20 kHz
Frequency Response (±3 dB): 54 Hz – 18 kHz
Coverage Pattern: 60° x 60°, rotatable waveguide
Directivity Factor (Q): 15.8
Directivity Index (DI): 12 dB
Crossover Frequency: 1.1 kHz
Long-Term System Power Rating (IEC)1 : 600 W (2400 W peak), 100 hrs
Maximum SPL2 : 128 dB-SPL cont avg (134 dB peak)
System Sensitivity (1W @ 1m)3 : 100 dB SPL
70V/100V Transformer Taps: 70V: 400 W, 200 W, 100W
100V: 400W, 200W
Transducers:
Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in) Differential Drive®driver with 75 mm
(3 in) dual voice coil
Nominal Impedance: 8 ohms
Sensitivity3 (1W @ 1m, 98 dB SPL
within operational band):
High Frequency Driver:
JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Nominal Impedance: 8 ohms
Sensitivity3 (1W @ 1m): 113 dB SPL
Waveguide: PT-H66HF-1
Physical:
Enclosure: Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C),
available in black (-BK)
Suspension Attachment: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization,
1 x M10 on rear for safety.
Grille: Three layer grille assemblies consisting of 16-gauge powder coated
stainless steel, backed with open cell foam and stainless steel mesh.
Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept
up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade
lugs.
Environmental Specifications: IP56 per IEC 529
Dimensions (H x W x D in 485 x 810 x 478 mm
horizontal cabinet orientation): (19.1 x 31.9 x 18.8 in)
Net Weight: 28.3 kg (62.5 lb)
1IEC standard, full bandwidth pink noise with 6 dB crest factor, 100 hours.
2Calculated based on power rating and sensitivity, exclusive of power compression.
3Anechoic sensitivity in free field, no additional sensitivity gain from boundary loading.
JBL continually engages in research related to product improvement. Changes introduced into existing products without notice
are an expression of that philosophy.
Professional Series
AW566
High Power 2-Way All Weather Loudspeaker
with 1 x 15" LF & Rotatable Horn
