JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
JBL PRX415M REV A
PACKAGE WIRING DIAGRAM
03-12
Technical Manual
JBL PRX415M
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
Nominal Impedance: 8 Ohms
System Power Rating,
Pink Noise: 300W / 600W / 1200W, 2 hrs
(Continuous/Program/Peak)
Frequency Response (±3 dB): 66 Hz 16 Hz
Frequency Range (–10 dB): 55 Hz – 19 kHz
Maximum SPL: 122 dB SPL peak (128 dB SPL peak)
System Sensitivity: 98 dB SPL 1 watt @ 1 meter
• Crossover Frequency: 2.2 kHz
SYSTEM COMPONENTS:
Cabinet: Enclosure (Not For Sale)
• Grille: 444773-002
Low Frequency M115-8A, 380 mm (15 in)
Transducer: Differential Drive
®woofer
D.C. Resistance: 5.3 ohm
High Frequency 2414H-C, 25 mm polymer diaphragm
Transducer:
D.C. Resistance: 3.60 ohm +/- 0.2 ohm
• Input Cup Assembly: 5011407
AURAL SWEEP TEST SPECIFICATIONS:
A. System. Aural Sweep Test: 7V Input, 40 Hz to 20 kHz
B. L.F. Aural Sweep Test: 6V Input, 20 Hz to 200 Hz
C. H.F. Aural Sweep Test: 0.75 Input, 500 Hz to 1.5 kHz
PHYSICAL SPECIFICATIONS:
Enclosure Dimensions: 650 x 429 x 457 mm D
(H x W x D) (25.6 x 16.9 x 18 in. D)
Net Weight: 46 lb (21 kg)
WARRANTY INFORMATION:
Refer to Warranty Statement packed with each product.
Manual
5011443
Carton
5011446
Filler
5011447
Filler, Bottom
5011448
PKG, Microfoam (4)
49790P
Input Cup
Assembly
5011407
Driver, Low Freq.
M115-8A
(124-67001-01X) Driver, High Freq.
2414H-C
(5000169X)
Warranty Card 59660

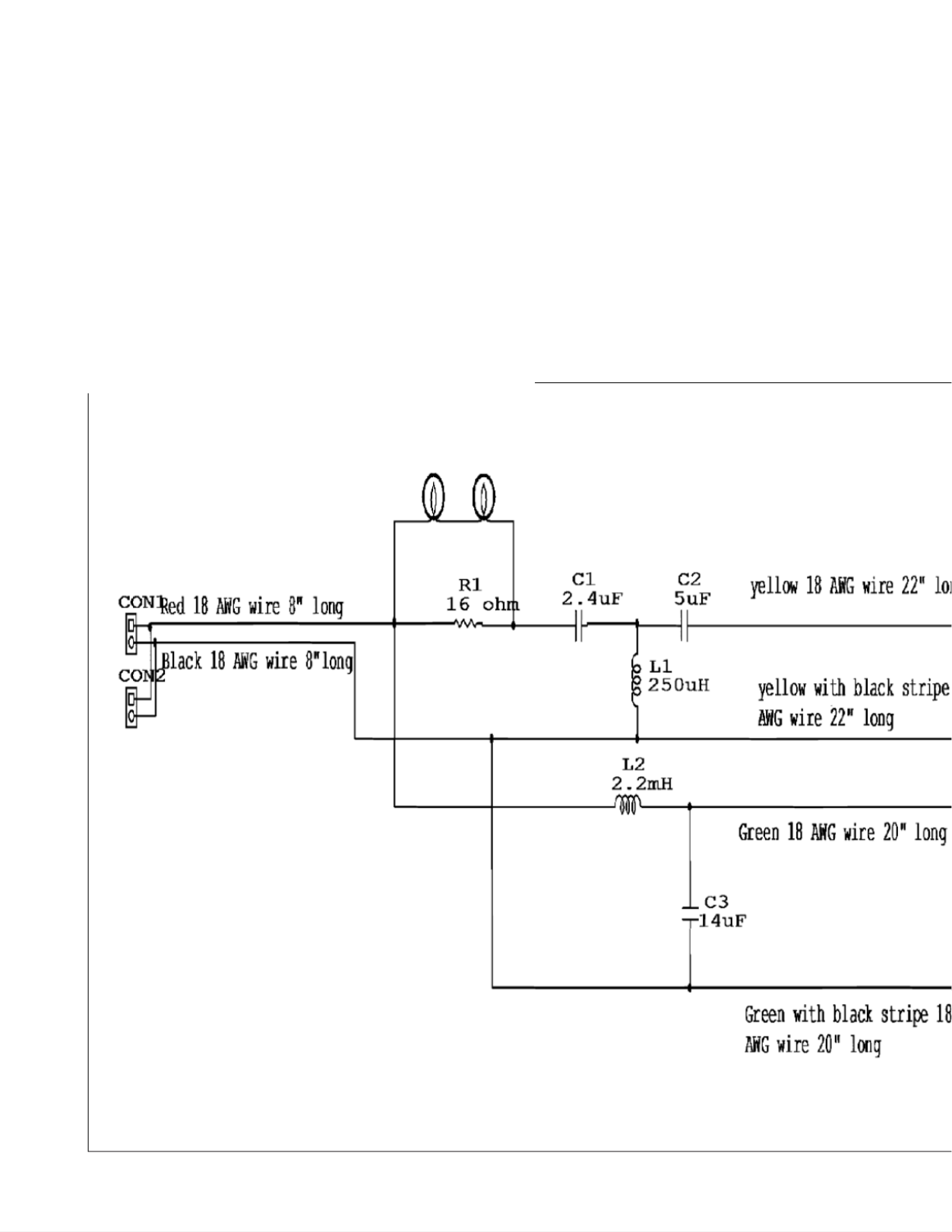

SEE NETWORK SCHEMATIC (5011407) PAGE 2
NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.
A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.
YEL/BLK
YEL
GRN
GRN/BLK
