Remote control for central locking CL-301SL 4/4 MCK51104 Remote control for central locking CL-301SL 1/4 MCK51104
Pneumatic central locking system: Program duration of output pulses 4 seconds.

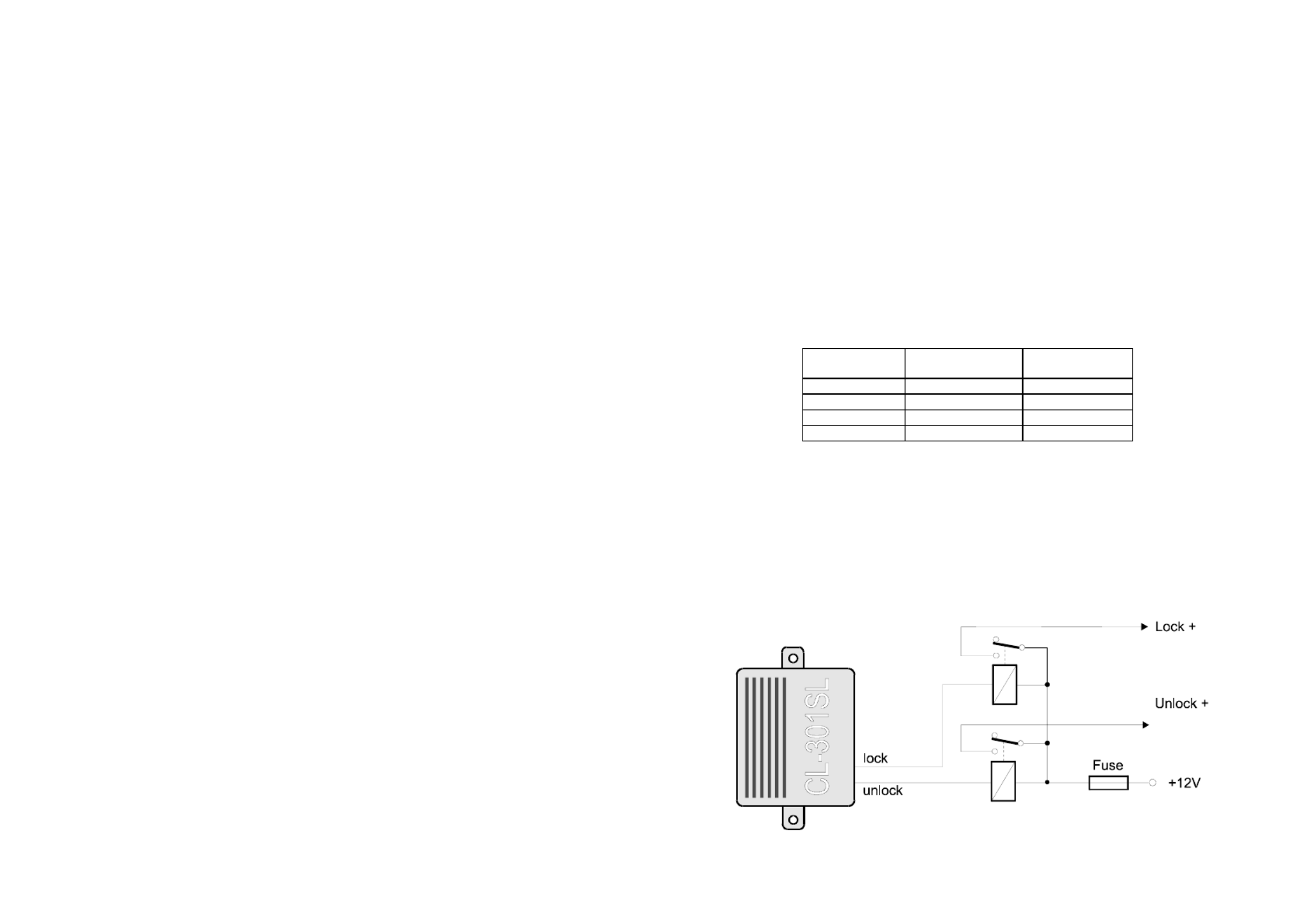

Simplified additional installation of central locking system: When manual operation of the
whole system from the driver's door is not requested, you can use the following easy solution. Install two-
wires actuator (recommended type CM-2) to each door of your car. Connect them as shown in the
following diagram. Program duration of CL-301SL output pulses 0.3 seconds. This way all actuators are
operated with the remote control.
REMOTE CONTROL FOR CENTRAL LOCKING CL-301SL
Description: The CL-301SL can be connected to various kinds of central locking systems. It also provides
a separate signal to release a trunk (or a 5th door). The CL-301SL offers an economical solution for remote
control, especially for cars equipped with an immobilizer from the manufacturer.
The receiver unit is controlled by a remote RF control. Communication is protected by a special "HOPPING"
digital code that is changed after each transmission. Additional protection is offered by an ANTI-SCAN
feature. This type of system provides a much higher safety level than other systems using only a fix code.
An optional re-lock function checks if the car was entered within 1 minute after unlocking. If not, it will lock
automatically again. This prevents the car from being accidentally unlocked and left unprotected. Protection of
accidental locking while driving is also an optional function of this device.
There are two remote controls in each CL-301SL set. The device can be operated with a maximum of three
remote controls. A new remote control can be added to the CL-301SL when necessary (in learning mode of the
receiver unit). The CL-301SL is preset by the manufacturer to interface with an electromechanical central
locking system which requests negative control signals. However, optional signal settings can be easily set.
Specifications:
operating voltage 10 - 16VDC
stand by consumption 8mA
built-in fuse 15A
working distance up to 20m
working frequency 433.92MHz
coding system digital floating code, max. 3 remote control
built in transmitter type TX-9
built in receiver type REC-5
output signals negative pulses (GND), max. 200mA, programmable duration
(0.3 - 4 - 60 sec.). Manufacture initial setting 2 sec.
turn indicators outputs 2 x +12V/5A
trunk (5. door) release output pulse +12V/15A, duration 0.5 sec.
Can be operated according to ERC REC 70-03
Hereby, Jablotron Ltd., declares that this CL-301SL is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. Original of the conformity assessment can be found at the web page
www.jablotron.cz, section Technical support.
Max 3
remote controls
lock
lock
unlock
antenna
"15"
TURN LIGHTS
OUTPUTS
IGNITION
KEY
GND Fuse 15A
DOOR
SWITCHES
supply +12V
WHITE-BLUE
WHITE-BLACK
BLUE
VIOLET
VIOLET
RED
BLACK
WHITE
trunk (5. door)
release actuator
1 9
Control unit
of central
locking
Control unit
of powered
windows
Note: Dispose of batteries safely depending
on the type of the batteries and local
regulation. Although this product does not
contain any harmful materials we suggest you
to return the product to the dealer or directly to
the producer after usage
