Side 1/4
– 1 –
INSTRUCTION MANUAL
Swing-type gathering device
S159・S160
S161・S162
No.03
29114915
1. Name
Swing-type gathering device for the MO-3000, MO-6000 series of overlock/safety stitch machine
S159 : Swing-type gathering device for safety stitch machines (pedal-operated)
S160 : Swing-type gathering device for safety stitch machines (lever-operated)
S161 : Swing-type gathering device for overlock machines (pedal-operated)
S162 : Swing-type gathering device for overlock machines (lever-operated)
2. Applicable models
MO-3 △04E-0E6 MO-3 △04E-0F6 MO-6 △14-BE6
MO-3 △12E-DF6 MO-3 △14E-BE6 MO-6 △16-DE4
MO-3 △14E-BD6 MO-3 △16E-DE4 MO-6 △16-FF6
MO-3 △14E-BF6 MO-3 △16E-FF6
MO-3 △16E-DD4 MO-3 △43E-FBD6
MO-3 △16E-DF6 MO-3 △16E-RH6
3. Specications

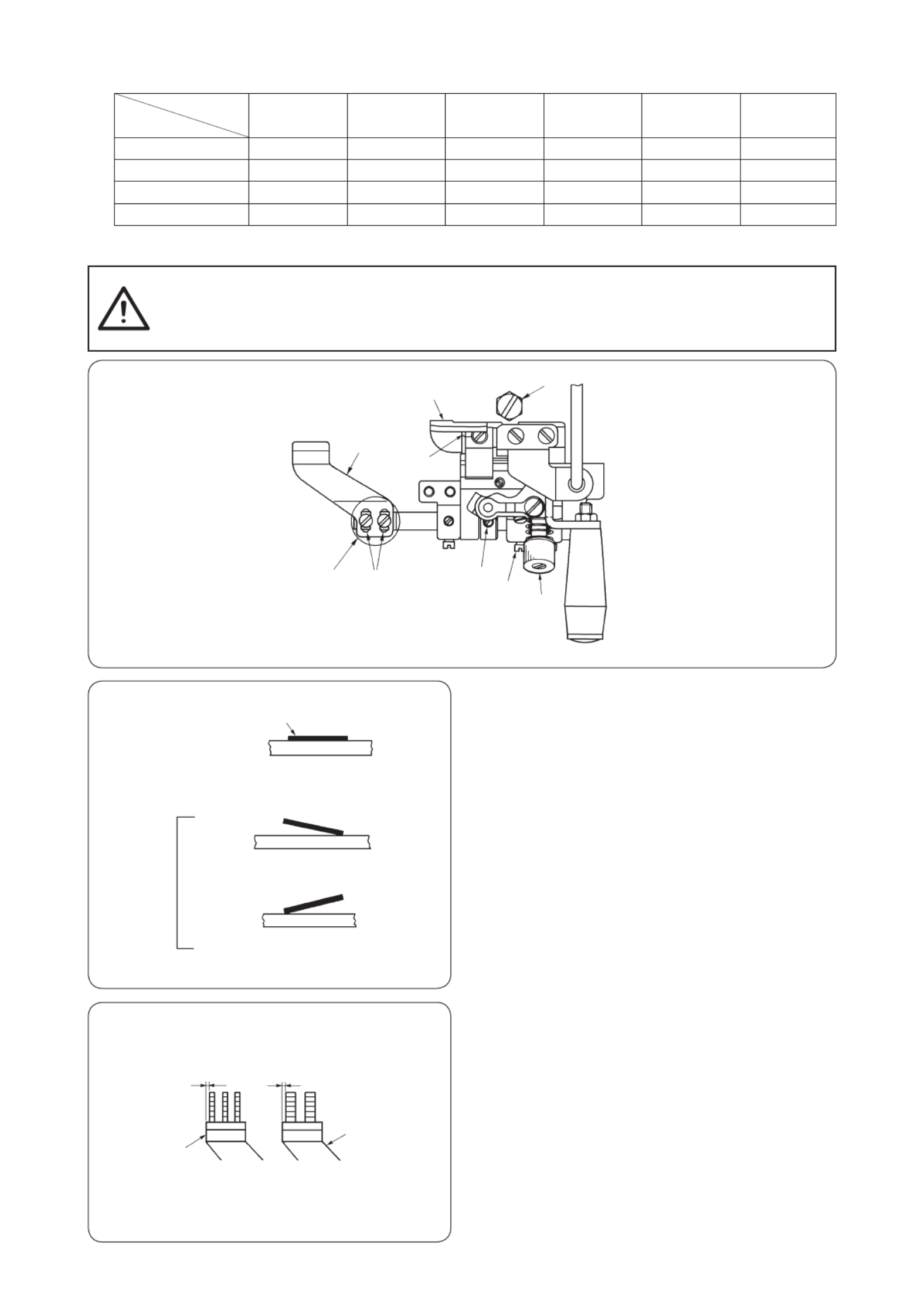

4.
Parts to be replaced when the gathering device is used with the overlock/safety stitch machine
To operate an overlock/safety stitch machine in combination with the S159, S160, S161 or S162 gathering device, the gauge
components need to be changed accordingly. Choose the appropriate parts from among those listed in the table below.
(1) Safety stitch machines (MO-3 △16E, 3 △43E, 6 △16) S159 or 161
Read safety instructions carefully and understand them before using.
Retain this Instruction Manual for future reference.
CAUTION :
This Instruction Manual is intended for the S159/S160/S161/S162. Read and fully understand the
instructions given under “IMPORTANT SAFETY INSTRUCTIONS” in the Instruction Manual the MO-
3000, MO-6000 series before putting the machine into service when this device is installed to the
MO-3000, MO-6000 series.
In addition, to emphasize the S159/S160/S161/S162, some illustrations of the MO-3000, MO-6000
seriesaresimplied.Also,illustrationsofthesafetydevicesarepartiallyomitted.
＊ Use the gathering foot onry when the RH6 gauge set is used.
Application For continuous gathering and partial shirring on light-weight materials including
knnitted fabric, light-weight knits and broadcloth.
Sewing speed Up to 7000 rpm
Differential feed ratio Overlock machines 1 : 3 Safety stitch machines 1 : 3
(Adjust appropriately in accordance with the type of material to be used.)
Lift of the presser foot Overlock machine : 6 mm Safety stitch machine : 6 mm
(5 mm only for RH6)
Gauge size
DD4 DE4 DF6 FF6 RH6 FBD6
Name
Presser joint 12154654 12154654 12154753 12154852 12154951 11975950
Main feed dog 12170700 12170700 12170809 12170908 12170908 11884806
Differential feed dog 12172904 12172904 12173407 12173407 12173407 11885902
Throat plate R4508J0DD0B R4508J6ED0B R4608J0FD0A R4612J6FD0A R4617J0HD0A R4612J0DE02
＊Gathering foot ーーーー
＊MAS0510800A
ー
