Side 1/28

Operating and installation instructions

fridge/freezer with BioFresh

20210407 7088339 - 00

CBN(be/bs)

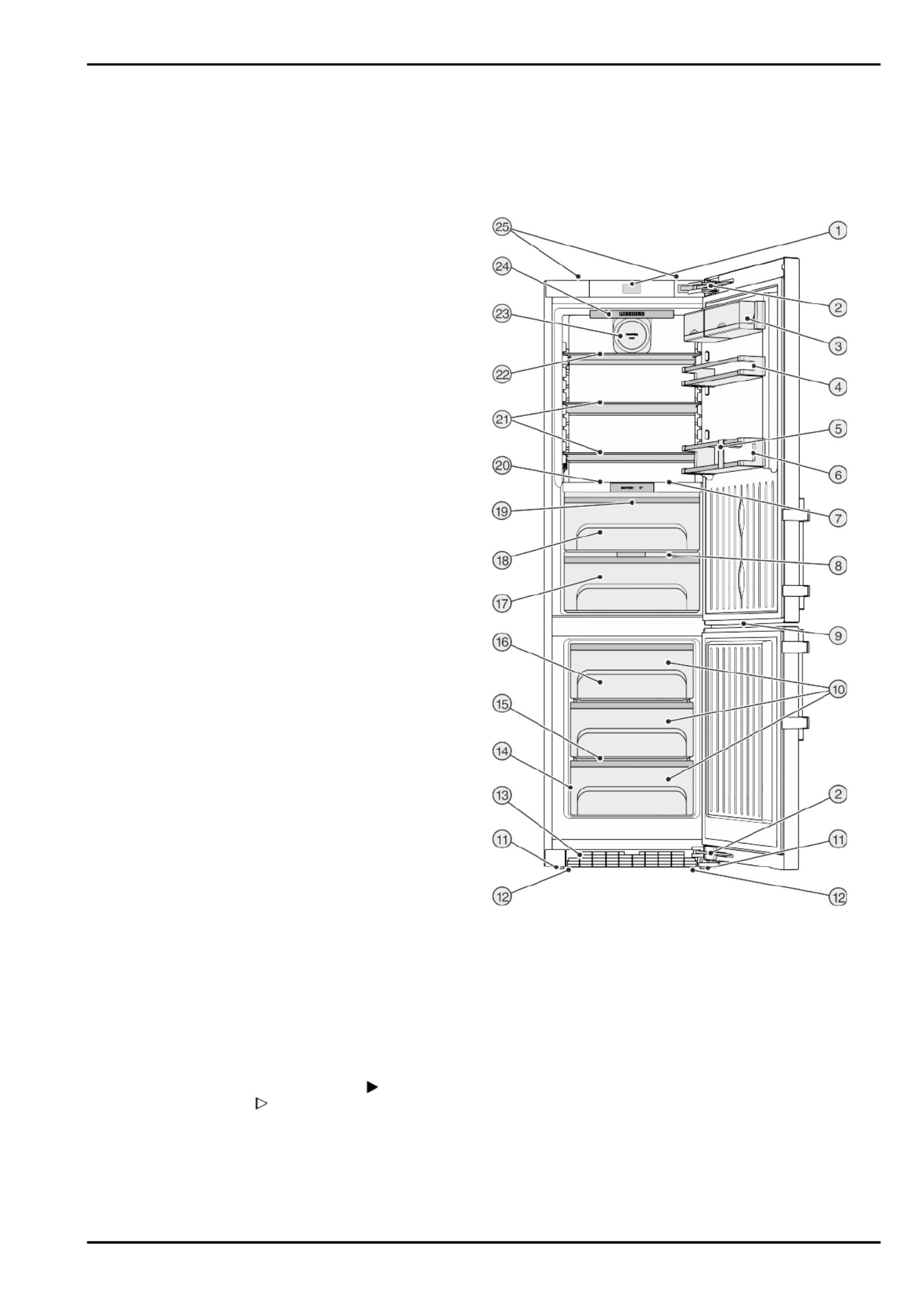

(12) Front transport handles,

rear transport castors

(25) Rear transport handles

(13) Ventilation grid

Note

uShelves, drawers and baskets are arranged for optimum

energy efficiency on delivery.

1.2 Appliance range of use

Intended use

The appliance is only suitable for cooling food

products in a domestic or household-like envi-

ronment. This includes, for example, use:

-in staff kitchens, bed and breakfast establish-

ments,

-by guests in country houses, hotels, motels

and other accommodation,

-for catering and similar services in the whole-

sale trade.

The appliance is not suitable as a built-in unit.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly

forbidden:

-Storing and refrigerating medicines, blood

plasma, laboratory preparations or similar

substances and products based on the

Medical Device Directive 2007/47/EC

-Use in areas at risk of explosions

-Use on moving substrates, such as ships, rail

travel or aeroplanes

-Storing live animals

Misusing the appliance may lead to damage to

the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the

appliance is designed to operate in restricted

ambient temperatures. The climate classifica-

tion applying to your appliance is printed on the

rating plate.

Note

uKeep to the specified ambient temperatures

in order to guarantee that the appliance works

properly.

Climate classi-

fication

for ambient temperatures of

SN 10 °C to 32 °C

N 16 °C to 32 °C

ST 16 °C to 38 °C

T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. This appliance

complies with the applicable safety stipulations and with direc-

tives 2014/35/EU, 2014/30/EU, 2009/125/EG, 2011/65/EU and

2010/30/EU.

The BioFresh compartment meets the requirements of a cold

storage compartment as set out in DIN EN 62552:2020.

1.4 EPREL database

Details about energy labelling and ecodesign requirements will

be available on the European product database (EPREL) from

1st March 2021. You can access the product database at the

following link: https://eprel.ec.europa. eu/ You will be asked to

enter the model ID. You can find the model ID on the name-

plate.

1.5 Installation dimensions

Fig. 2

Model a

[mm]

h [°]

CBN(b

e/es)

57..

700 2010 600 x665 x709 x1323

740 90

CBN(e

s/bs)

48..

600 1223

640

x Using wall spacers adds 15 mm (see 4.2 Installing the appli-

ance) to the dimensions.

1.6 Saving energy

-Pay attention to good ventilation. Do not cover ventilation

holes or grids.

-Always keep the fan air slits clear.

Appliance at a glance

* Depending on model and options 3

-Do not install the appliance in direct sunlight, next to an

oven, radiator or similar.

-Energy consumption depends on the installation conditions,

e.g. the ambient temperature (see 1.2 Appliance range of

use) . A warmer ambient temperature can increase the

energy consumption.

-Open the appliance for as short a time as possible.

-The lower the temperature is set the higher the energy

consumption.

-Sort your food: home.liebherr.com/food.

-Keep all food properly packed and covered. This prevents

frost from forming.

-Only take food out for as long as necessary so that it doesn’t

warm up too much.

-Inserting warm food: allow to cool down to room temperature

first.

-Thaw frozen food in the refrigerator.

-If you intend to be on holiday for a long time empty the

refrigerator and switch it off.

1.7 Example of food arrangement

Fig. 3

1.8 Smart device

The appliance is ready for integration into a smart

home and for extended services. With a SmartDe-

vice Box, you can activate this and other options.

This is activated via the MyLiebherr customer

portal.

Note

The SmartDevice Box is available for purchase from the

Liebherr Household Store (home.liebherr.com).

You will find more information about availability and prerequi-

sites and the individual options on the website, www.smartde-

vice.liebherr.com.

2 General safety information

Danger for the user:

-This device can be used by children and

people with impaired physical, sensory or

mental abilities or with a lack of experi-

ence and knowledge provided that they are

supervised or have received instruction in

the safe use of this device, and about the

resulting hazards. Children must not play

with this appliance. Cleaning and user main-

tenance work must not be carried out by chil-

dren without adult supervision. Children aged

between 3 and 8 are allowed to load and

unload the appliance. Children below the age

of 3 must be kept away from the appliance

unless they are under continuous adult super-

vision.

-When disconnecting the appliance from the

supply, always take hold of the plug. Do not

pull the cable.

-In the event of a fault pull out the mains plug

or deactivate the fuse.

-Do not damage the mains power cable. Do

not operate the appliance with a defective

mains power cable.

-Only customer service or other specially

trained staff may repair or perform other oper-

ations on the appliance.

-Only assemble, connect and dispose of the

appliance according to the instructions.

-Please keep these instructions in a safe place

and pass them on to any subsequent owners.

Fire hazard:

-The coolant used (information on the model

plate) is eco-friendly but also flammable. Any

leaking coolant may ignite.

•Do not damage the refrigerant circuit pipes.

•Do not handle ignition sources inside the

appliance.

•Do not use electrical appliances inside the

appliance (e.g. steam cleaners, heaters, ice

cream makers, etc.).

•If the refrigerant leaks: remove any naked

flames or ignition sources from the vicinity

of the leakage point. Properly air the room.

Inform customer services.

-Do not store explosives or sprays using

combustible propellants such as butane,

propane, pentane, etc. in the appliance. To

identify these spray cans, look for the list

of contents printed on the can, or a flame

symbol. Gases possibly escaping may ignite

due to electrical components.

General safety information

4 * Depending on model and options

Fig. 7

(1) Freezer compartment

symbol

(2) Freezer compartment

temperature display

The freezer compartment temperature is displayed in the

freezer compartment field.

The following settings can be entered:

-Temperature settings

-Switch appliance on/off

The fridge and BioFresh compartment are also turned off when

the freezer compartment is turned off.

Menu field

Fig. 8

(1) (2)Main menu Option selected

The menu field gives access to the appliance options and

settings. Selected options are also displayed.

3.3 Navigation

Touch the menu to access the individual options. An audible

signal sounds after confirming an option or a setting. The

display switches to the home screen.

The appliance is operated using the following symbols:

Standby:

Switches the appliance or tempera-

ture zone on.

Menu:

Calls up options.

Minus / Plus:

Changing settings (e.g. adjusting

temperatures).

Left/right navigation arrow:

Selects options and navigates

through the menu.

You can scroll through the individual

options using the navigation arrows.

The first option is displayed again

after the last one.

Back:

Cancels the selection.

The display switches to the next

higher level or to the home screen

OK:

Confirms the selection.

After confirmation the display

switches to the home screen.

ON / OFF, START / STOP

Starts/ stops options.

After selecting or cancelling an option

the display switches to the home

screen.

RESET:

Resets timer.

Access to customer service

Note

If no selection is made after 1 minute the display switches to

the home screen.

3.4 Display symbols

Display symbols provide information on the current appliance

status:

Up arrows:

The temperature increases.

Down arrows:

The temperature reduces.

Standby:

The appliance or temperature zone is

switched off.

Messages:

There are active error messages and

reminders.

3.5 Appliance options

You can select or set the following options; explanations and

setting options, (see 5 Control) :

Symbol Option

SuperCoolx

SuperFrost x

SabbathMode

Child safety device x

Temperature unit

BioFresh

x If the option is selected, the relevant symbol is displayed in

the menu field.

If more than 6 selected options are selected only 4 options are

displayed in the menu field. The other options are displayed by

pressing the bottom navigation arrow. Pressing the navigation

arrow repeatedly takes you back to the home screen.

The symbol disappears if the option ends or is disabled.

Controls and displays

6 * Depending on model and options

CAUTION

Risk of injury or damage from the appliance tipping or the door

falling open!

If the additional adjustable foot on the base support is not

correctly positioned on the floor, there is a risk of the door

falling open or the appliance tipping. This can lead to injury or

property damage.

uUnscrew the additional adjustable foot on the support until it

reaches the floor.

uThen turn it another 90°.

uAlign the appliance so that

it stands firmly and on a

level by applying the accom-

panying spanner to the adjust-

able-height feet (A) and using

a spirit level.

uThen support the door:

Extend the adjustable foot at

the turn hinge (B) until it rests

on the floor and then make a

further 90° turn.

Note

uClean the appliance (see 6.4 Cleaning the appliance) .

If the appliance is installed in a very damp environment,

condensate may form on the outside of the appliance.

uAlways see to good ventilation at the installation site.

4.3 Reversing the door

If necessary, you can change the way the door opens:

Ensure that the following tools are available:

qTorx® 25 (T25)

qTorx® 15 (T15)

qSlotted screwdriver

qOpen-ended wrench SW10

qSpirit level

qOpen-ended wrench supplied with the T25 tool

qIf necessary, a cordless screwdriver

qGet a stepladder if necessary

qIf necessary, a second person for assembly

4.3.1 Removing the top door

Note

uRemove any food from the door racks before removing the

door, so that no food falls out.

Fig. 10

uOpen the door.

NOTICE

Risk of damage!

If the door seal is damaged, the door may fail to close properly

and the cooling will be inadequate.

uDo not damage the door seal with the screwdriver!

uRemove the outer cover.

Fig. 10 (1)

uDisengage and release the bearing bracket cover. Remove

the bearing bracket cover.

Fig. 10 (2)

uUnlatch the panel with a slotted screwdriver and swivel it to

one side.

Fig. 10 (3)

Fig. 11

Putting into operation

8 * Depending on model and options

CAUTION

Risk of injury if the door tips!

uTake good hold of the door.

uSet down the door carefully.

uCarefully remove the protective cover.

Fig. 11 (1)

uUndo the bolt a little with a T15 screwdriver.

Fig. 11 (2)

uHold the door and remove the bolts with your fingers.

Fig. 11 (3)

uPull the bearing bush out of the guide. Insert from the other

side and click into place.

Fig. 11 (4)

uLift the door and set it aside.

uCarefully lift the plugs out of the door bearing bush with a

slotted screwdriver and remove.

Fig. 11 (5)

4.3.2 Removing the lower door

Fig. 12

CAUTION

Risk of injury if the door tips!

uTake good hold of the door.

uSet down the door carefully.

uPull out the bolts towards the top.

Fig. 12 (1)

uSwing the door out, pull it upwards and set it aside.

Fig. 12 (2)

4.3.3 Moving the upper bearing parts to the

other side

Fig. 13

uRemove both screws with the T25 screwdriver.

uLift and remove the bearing bracket.

Fig. 14

uRelease the cover and remove from the side.

Fig. 14 (1)

uRotate the cover 180° and clip onto the other side from the

right.

Fig. 14 (2)

uClick the cover into place.

Fig. 14 (3)

uPosition the screw with a T25 screwdriver.

Fig. 14 (4)

uPosition the upper bearing bracket.

Fig. 14 (5)

wPlace the pins in the provided screw holes.

uTighten the screw.

Fig. 14 (4)

uInsert the screw with a T25 screwdriver and tighten.

Fig. 14 (6)

Putting into operation

* Depending on model and options 9

4.3.4 Moving the central bearing parts to the

other side

Fig. 15

uRemove the washer.

Fig. 15 (1)

uRemove the screws with the T25 screwdriver.

Fig. 15 (2)

uRemove the cover carefully.

Fig. 15 (3)

uScrew the bearing bracket and the film rotated 180° firmly

onto the other side.

Fig. 15 (4)

uAttach the cover rotated 180° onto the other side.

Fig. 15 (5)

uPush the washer in from the front.

Fig. 15 (6)

4.3.5 Moving the lower bearing parts to the

other side

Fig. 16

uLift the bearing pin completely upward and remove.

Fig. 16 (1)

uUndo the screws with a T25 screwdriver and remove the

bearing bracket

Fig. 16 (2)

Fig. 17

uLoosen the screw using a T25 screwdriver.

Fig. 17 (1)

uLift the door closure aid and turn it 90° to the right in the

hole.

Fig. 17 (2)

uTighten the screw using a T25 screwdriver.

Fig. 17 (3)

Fig. 18

uRemove the cover and fix it on the other side.

Fig. 18 (1)

uPlace the bearing bracket on the other side and screw in

with the aid of a T25 screwdriver. Start with screw 2 at the

bottom in the middle.

Fig. 18 (2)

uScrew in screws 3 and 4.

Fig. 18 (3, 4)

uInsert the bearing pin completely. Make sure that the catch

mechanism is pointing to the rear.

Fig. 18 (5)

4.3.6 Moving the door bearing parts to the

other side

Bottom door

Putting into operation

10 * Depending on model and options

4.3.7 Moving the handles to the other side

Fig. 21

uPull off the cover.

Fig. 21 (1)

uRemove the screws with the T15 screwdriver.

Fig. 21 (2)

uRemove the handle.

Fig. 21 (3)

uCarefully lift up the side plugs with a slotted screwdriver and

pull them out.

Fig. 21 (4)

uInsert the plugs again on the other side.

Fig. 21 (5)

Fig. 22

uPosition the handle on the other side.

Fig. 22 (1)

wThe screw holes must be exactly above each other.

uTighten the screws with the T15 screwdriver.

Fig. 22 (2)

uPosition the covers on the side and push in.

Fig. 22 (3)

wEnsure that it clicks into place.

4.3.8 Fitting the bottom door

Fig. 23

Putting into operation

12 * Depending on model and options

uCarefully lift up the plugs with a slotted screwdriver and

remove them.

Fig. 23 (1)

uInsert the plugs again on the other side of the door.

Fig. 23 (2)

uPosition the door from above onto the lower bearing pins.

Fig. 23 (3)

uInsert the centre bearing pin through the centre bearing

bracket into the lower door. Make sure that the catch mecha-

nism is pointing to the rear.

Fig. 23 (4)

4.3.9 Fitting the upper door

Fig. 24

uPlace the door on the centre bearing pins.

uAlign the top of the door with opening in the bearing bracket.

Fig. 24 (1)

uInsert the bolt and tighten with a T15 screwdriver.

Fig. 24 (2)

uFit the protective cover to protect the door: Insert the protec-

tive cover and check that it is attached to the door. If not,

insert the bolt fully.

Fig. 24 (3)

uInsert the plugs.

Fig. 24 (4)

4.3.10 Aligning the doors

WARNING

Risk of injury due to the door dropping out!

If the bearing parts are not screwed into place firmly enough,

the door may drop out. This may lead to severe injuries. What is

more, the door may not close and therefore the appliance may

fail to cool properly.

uScrew the turn hinges firmly into place with 4 Nm.

uCheck all of the screws and retighten if necessary.

uAlign the doors flush with the appliance housing using the

two oblong holes in the lower bearing bracket and centre

bearing bracket if needed. To do this undo the middle screw

in the bottom bearing bracket with the T25 tool supplied.

Undo the remaining screws a little with the T25 tool or with a

T25 screwdriver and align using the slotted holes. Undo the

screws in the middle bearing bracket with the T25 tool and

align the middle bearing bracket using the slotted holes.

uSupport the door: Take off the adjustable foot on the bearing

bracket using the open-ended wrench SW10 until it comes

into contact with the floor, then turn an additional 90°.

4.3.11 Fit the covers

Fig. 25

The door is open 90°.

uPosition the bearing bracket and engage. If necessary push

apart carefully.

Fig. 25 (1)

uPosition the panel on the side and click into place.

Fig. 25 (2)

Fig. 26

uSlide on the external cover.

Fig. 26 (1)

uClose the upper door.

Fig. 26 (2)

4.4 Sliding into the row of units

Fig. 27

For 600 mm-wide appliances:*

Putting into operation

* Depending on model and options 13

A [mm]* B [mm]* C [cm2]* D [mm]* E [mm]*

665 x65 min. 300 min. 50 min. 46

For 700 mm-wide appliances:*

A [mm]* B [mm]* C [cm2]* D [mm]* E [mm]*

665 x65 min. 300 min. 50 min. 46

x If using wall spacers, add 15 mm (see 4.2 Installing the appli-

ance) .

These dimensions apply to an opening angle of 90 °. Clear-

ances vary depending on the opening angle.

The appliance can be built into kitchen units. A top cupboard

Fig. 27 (2)

can be added above the appliance in order to bring

the appliance

Fig. 27 (1)

up to the height of the fitted kitchen

units.

The appliance can be installed right next to the kitchen cabinet

Fig. 27 (3)

. The appliance must protrude by depth

Fig. 27 (B)

from the front of the cabinet so that the doors can be opened

fully. The appliance may protrude further depending on the

depth of the kitchen cabinets and whether wall spacers are

used.

NOTICE

Danger of overheating due to insufficient air ventilation!

The compressor may be damaged if there is insufficient air

ventilation.

uTake care to ensure adequate air ventilation.

uObserve the ventilation requirements.

Ventilation requirements:

-There are spacer fins at the back of the appliance to provide

adequate ventilation. Make sure these do not end up in

recesses or openings.

-At the back of the top cabinet, there must be an air outlet

shaft with depth

Fig. 27 (D)

, spanning the entire width.

-The ventilation shaft

Fig. 27 (C)

must be observed under the

ceiling.

-The wider the ventilation clearance, the more efficiently the

appliance will run.

If the appliance is installed with the hinges next to a wall

Fig. 27 (4)

, the distance

Fig. 27 (E)

between the appliance and

the wall must be observed. This is how far the handle protrudes

when the door is open.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

uDo not allow children to play with packing material.

The packaging is made of recyclable materials:

-corrugated board/cardboard

-expanded polystyrene parts

-polythene bags and sheets

-polypropylene straps

-nailed wooden frame with polyethylene panel*

uTake the packaging material to an official collecting point.

4.6 Connecting the appliance

WARNING

Failure to connect properly

Fire hazard.

uDo not use an extension cable.

uDo not use distributor blocks.

NOTICE

Failure to connect properly

Damage to the electronics.

uDo not use a standalone inverter.

uDo not use an energy saving plug.

Note

Only use the power connection lead supplied.

uA longer power connection lead can be ordered from

Customer Service.

Fig. 28

For 600 mm wide appliances:*

a* b* c* d* G*

~ 1800 mm ~ 1400 mm ~ 2100 mm ~ 200 mm Appliance

plugs

For 700 mm wide appliances:*

a* b* c* d* G*

~ 1750 mm ~ 1350 mm ~ 2100 mm ~ 200 mm Appliance

plugs

Ensure that the following conditions are met:

- The type of current and voltage at the installation site corre-

spond to the information on the model plate (see 1 Appli-

ance at a glance) .

- The socket is earthed according to the regulations and

fused.

- The fuse tripping current is between 10 and 16 A.

- The socket is easily accessible.

- The socket is outside the back of the appliance area in the

specified area

Fig. 28 (a, b, c)

uCheck the electrical connection.

uInsert the appliance plug

Fig. 28 (G)

into the back of the

appliance. Ensure that it clicks into place.

uConnect the power plug to the power supply.

wThe Liebherr logo appears on the screen.

wThe display switches to the standby symbol.

4.7 Switching on the appliance

Note

If the appliance is in demo mode, DEMO appears on the home-

screen.

uDisable demo mode (see 7 Malfunctions) .

Putting into operation

14 * Depending on model and options

Note

The manufacturer recommends:

uStore frozen produce at -18 °C or colder.

Connect and switch on appliance approx. 2 hours before

loading for the first time.

4.7.1 Switch on appliance

If the standby symbol is displayed over the whole screen:

uPress the standby symbol.

wThe appliance is switched on. The display switches to the

home screen.

wThe appliance is set to the displayed temperatures. This is

shown by down arrows.

If the standby symbol is displayed in the fridge compart-

ment field, the BioFresh compartment field and the

freezer compartment field:

uPress the Standby symbol in the freezer compartment field

or the fridge compartment field.

wThe appliance is switched on.

wThe appliance is set to the displayed temperatures. This is

shown by down arrows.

If the screen is black:

uTouch the screen.

wThe standby symbol appears on the whole screen.

uPress the standby symbol.

wThe appliance is switched on. The display switches to the

home screen.

wThe appliance is set to the displayed temperatures. This is

shown by down arrows.

4.7.2 Switching the fridge and BioFresh

compartments on

If the standby symbol is displayed in the fridge compartment

and the BioFresh compartment fields

uPress the standby symbol in the fridge compartment field.

wThe fridge and BioFresh compartments are switched on.

wThe fridge and BioFresh compartments are set to the

displayed temperature. This is shown by down arrows.

4.8 SmartDevice box

SmartDevice box: Start-up instruc-

tionswww.smartdevice.liebherr.com/install

If the (SDB) is inserted correctly the menuSmartDevice box

below appears. The device is supplied with WLAN activated.

To use more WiFi options,

open the WIFI menu.

Fig. 29

uPress .WIFI

wThe menu opens.WIFI

Turning on/off WiFi

Fig. 30

uUse the slider at the bottom right to turn on/off WIFI

wSlider to OFF = is disabled.WIFI

wSlider to ON = is enabled.WIFI

WIFI INFO

Call up the status of the

SmartDevice box.

Fig. 31

uPress the button.OK

wThe screen opens.WIFI INFO

wThe following statuses

can be displayed:

Fig. 32

wSSID: ***WPS*** = The is in SmartDevice box WPS mode

for 3 minutes. An automatic connection to the SmartDevice

box can be established via the router.

wSSID: LHSDB_xxxxxxxxx = the SmartDevice box is in

manual connection mode SmartDe- for 30 minutes. The

vice box transmits a private network to which you can

connect to send WLAN data.

wSSID: empty = The SmartDevice box sleep mode is in .

Please reset the and connect your WIFI SmartDevice box

to the home network.

wSSID: TP-LINK_2D43A2 or Fritz!Box7069 = The SmartDe-

vice box is connected to the home network.

WIFI RESET

Resetting the SmartDevice

box to the default settings.

Fig. 33

uConfirm with .OK

wThe SmartDevice box is reset to the default settings.

Showing the WiFi status on the Home screen

Status: WiFi on & connected

Fig. 34

uThe is white.WiFi indicator

wWiFi is on.

wThe home network and the Liebherr server are connected.

Status: WiFi on & connecting

uThe showsWiFi display

a clock.

Fig. 35

wWiFi is on.

wThere is no connection to the home network and/or the

Liebherr server.

Status: WiFi on & disconnected

Putting into operation

* Depending on model and options 15

uThe showsWiFi display

a warning sign.

Fig. 36

wWiFi is on.

wThe SmartDevice box is either not connected to a network

or the is connected to a network but theSmartDevice box

network cannot be found, e.g. switched off at night.

4.9 Inserting the FreshAir filter.

The supplied FreshAir filter can be used for optimum air quality.

The intake is located at the top of the appliance, (see 1 Appli-

ance at a glance)

uRemove cover.

Fig. 37

uFreshAir-Insert the filter in the cover and turn it clockwise.

uEnsure that the filter clicks into place.

uReplace the cover again.

Setting the timer

uPress menu.

uPress the navigation arrows until the FreshAir filter is

displayed.

uPress the FreshAir filter symbol.

uPress ON.

wThe timer is set. After the interval has expired a message

prompts you to change the FreshAir filter.

4.10 Setting the clean ventilation grid

timer

The ventilation grid must be cleaned at least once a year for

sufficient ventilation. The timer can be set as a reminder.

uPress menu.

uPress the navigation arrows until the ventilation grid

is displayed.

uPress the ventilation grid symbol.

uPress ON.

wThe timer is set. After the interval has expired a message

prompts you to clean the ventilation grid.

5 Control

5.1 Changing the temperature unit

The temperature display can be switched from °C to °F.

uPress menu.

uPress the navigation arrow until °C is displayed.

uPress °F.

wThe temperature is displayed in °F.

Switch from °F to °C in the same way.

5.2 Child proofing

The child-proofing function enables you to make

sure that the appliance is not inadvertently

switched off by playing children.

5.2.1 Switching on the child safety device

uPress menu.

uPress the navigation arrows until the child safety

device is displayed.

uPress ON.

wThe child safety device is switched on.

5.2.2 Switching the child safety device off

uPress menu.

uPress the navigation arrows until the child safety

device is displayed.

uPress OFF.

wThe child safety device is switched off.

5.3 SabbathMode

This function meets the religious requirements on the Sabbath

or Jewish festivals. Turn on SabbathMode to switch off certain

controls. After setting up SabbathMode, you no longer need to

worry about indicator lights, figures, symbols, displays, alarms

or fans. The thawing cycle only works for the specified time

without taking account of fridge use. After a power cut the

appliance automatically returns to SabbathMode.

There is a list of Star-K certified appliances at www.star-k.org/

appliances.

WARNING

Danger of food poisoning.

If there is a power cut while the appliance is in SabbathMode,

this message is not saved. Once power is restored, the appli-

ance continues in SabbathMode. When this mode is over no

message about the power cut is displayed on the temperature

display.

If there was a power cut during SabbathMode:

uCheck the food for quality. Do not eat the food if it has

thawed.

-All functions are locked until SabbathMode is switched off.

-If functions such as SuperFrost, SuperCool, Ventilation, etc.

are activated when SabbathMode is on, they remain active.

-No audible signals are emitted and the temperature display

does not indicate any warnings or settings (such as a

temperature alarm or door alarm).

-The internal light is off.

5.3.1 Switching SabbathMode on.

uPress menu.

uPress the navigation arrow until SabbathMode is

displayed.

Control

16 * Depending on model and options

Produkt Specifikationer

Mærke:	Liebherr
Kategori:	Køleskab
Model:	CBNes 5775 Premium
Vekselstrømsindgangsspænding:	220 - 240 V
Vekselstrømsindgangsfrekvens:	50 Hz
Bredde:	700 mm
Dybde:	665 mm
Højde:	2010 mm
Vægt:	113000 g
Produktfarve:	Rustfrit stål
Kontroltype:	Berøring
Lampe type:	LED
Indbygget skærm:	Ja
Skærmtype:	TFT
Strøm:	1.4 A
Pakkevægt:	120000 g
Pakkedybde:	751 mm
Pakkebredde:	715 mm
Pakkehøjde:	2087 mm
Årligt energiforbrug:	148.92 kWh
Husmateriale:	Rustfrit stål
Placering af apparat:	Fritstående
Dørhængsel:	Højre
Tilsluttet belastning:	190 W
Støjniveau:	35 dB
Børnesikring:	Ja
Døråbningsvinkel:	115 °
Energieffektivitetsskala:	A til G
Vandfilter:	Ingen
Luftfilter:	Ja
Støjemissionsklasse:	B
Energieffektivitetsklasse:	B
Vendbare døre:	Ja
Fryser, netto rumindhold:	112 L
Frysekapacitet:	9 kg/24t
Opbevaringstid under strømafbrydelse:	16 t
Klimaklasse:	SN-T
Køleskab antal hylder/kurve:	4
Antal grøntsagsskuffer:	2
Æggebakke:	Ja
Køleskabsdøre:	5
Køleskab, netto rumindhold:	281 L
Total netto kapacitet:	393 L
No Frost (køleskab):	Ingen
Køleskab indvendigt lys:	Ja
Stjernebedømmelse:	4*
Fryser position:	Bottom-placeret
Skærmplacering:	Indvendig
Hylder, materiale:	Glas
Ismaskine:	Ingen
Multi-Airflow-system (køleskab):	Ingen
Flaskeholder:	Ja
No Frost (fryser):	Ja
Hurtig frys funktion:	Ja
Fryser antal hylder/kurve:	3
Åben dør alarm:	Ja
Super Cool funktion:	Ja
Isterning bakke:	Ja
Frisk zone, aflukke:	Ja
Energiforbrug:	0.408 kWh/24t
Feriefunktion:	Ja
Automatisk afrimning (køleskab):	Ja
Køleskab temperaturområde:	3 - 9 °C
Konservesholdere:	Ja
Antal aftagelige hylder:	3
Fryser temperatur (min.):	-26 °C
Fejlalarm:	Ja
Bruttokapacitet i FreshZone rum:	112.6 L
Fryser, indvendigt lys:	Ja
