Metra 70-1721 Manual


Læs nedenfor 📖 manual på dansk for Metra 70-1721 (2 sider) i kategorien Ikke kategoriseret. Denne guide var nyttig for 9 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/2
*120701721*

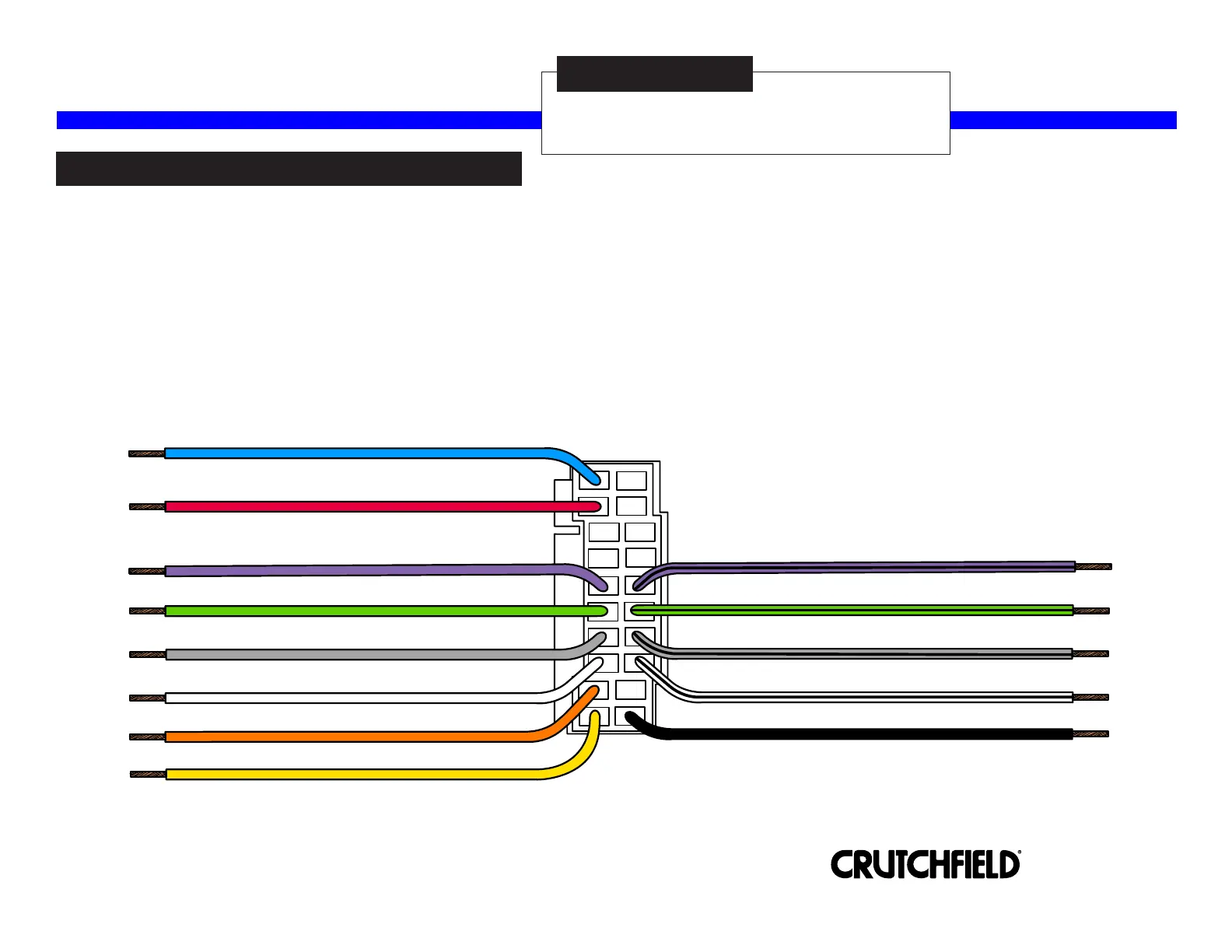

White - Left Front Speaker Positive
Violet/Black - Right Rear Speaker Negative
Red - 12 Volts Switched Power
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Yellow - 12 Volts Constant Power
Gray - Right Front Speaker Positive Gray/Black - Right Front Speaker Negative
Green/Black - Left Rear Speaker Negative
Orange - Illumination
White/Black - Left Front Speaker Negative
Black - Chassis Ground
Blue - Power Antenna or Amplifier Remote
Receiver Wiring Adaptor
120 70-1721
Revision 10/07/13
STEP 1 -- MATCH & CONNECT WIRES
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
If your receiver does not have an Illumination wire, tape off the Orange wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.
Copyright 2013 Crutchfield Corporation
