Metra 70-9220 Manual


Læs nedenfor 📖 manual på dansk for Metra 70-9220 (2 sider) i kategorien Ikke kategoriseret. Denne guide var nyttig for 5 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/2
Receiver Wiring Adaptor
120 70-9220
Revision 01/11/17
STEP 1 -- MATCH & CONNECT WIRES
*120709220*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2017 Crutchfield Corporation

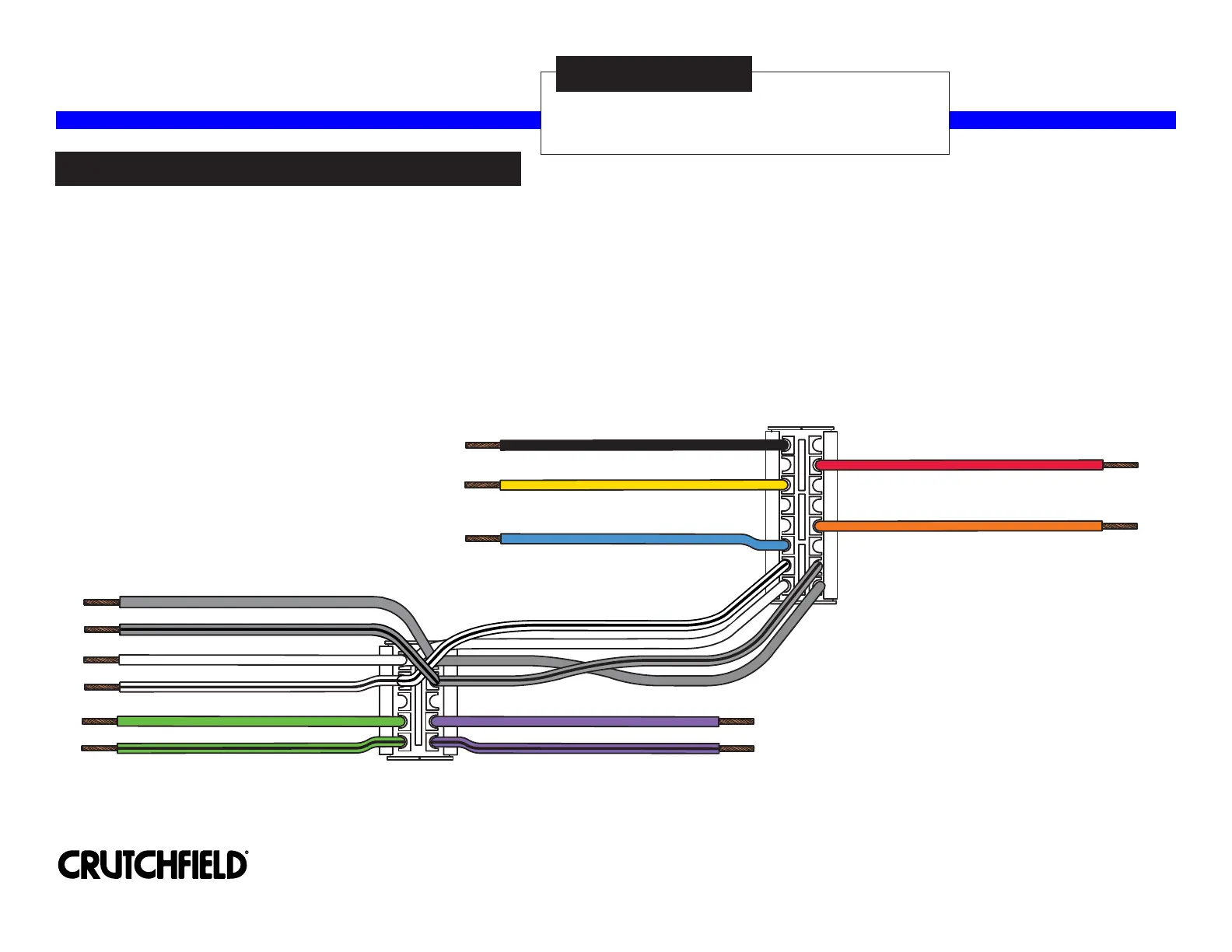

Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness
by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.
A.
B.
C.
D.
Orange - Illumination
Yellow - 12 Volts Constant Power
Red - 12 Volts Switched Power
White - Left Front Speaker Positive
Blue - Power Antenna
Violet - Right Rear Speaker Positive
Green - Left Rear Speaker Positive
Gray - Right Front Speaker Positive
Gray/Black - Right Front Speaker Negative
White/Black - Left Front Speaker Negative
Black - Chassis Ground
Violet/Black - Right Rear Speaker NegativeGreen/Black - Left Rear Speaker Negative
