Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your
new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by
function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
Individually tape off any unused wires.
Make final wiring connections following instructions on the next page.

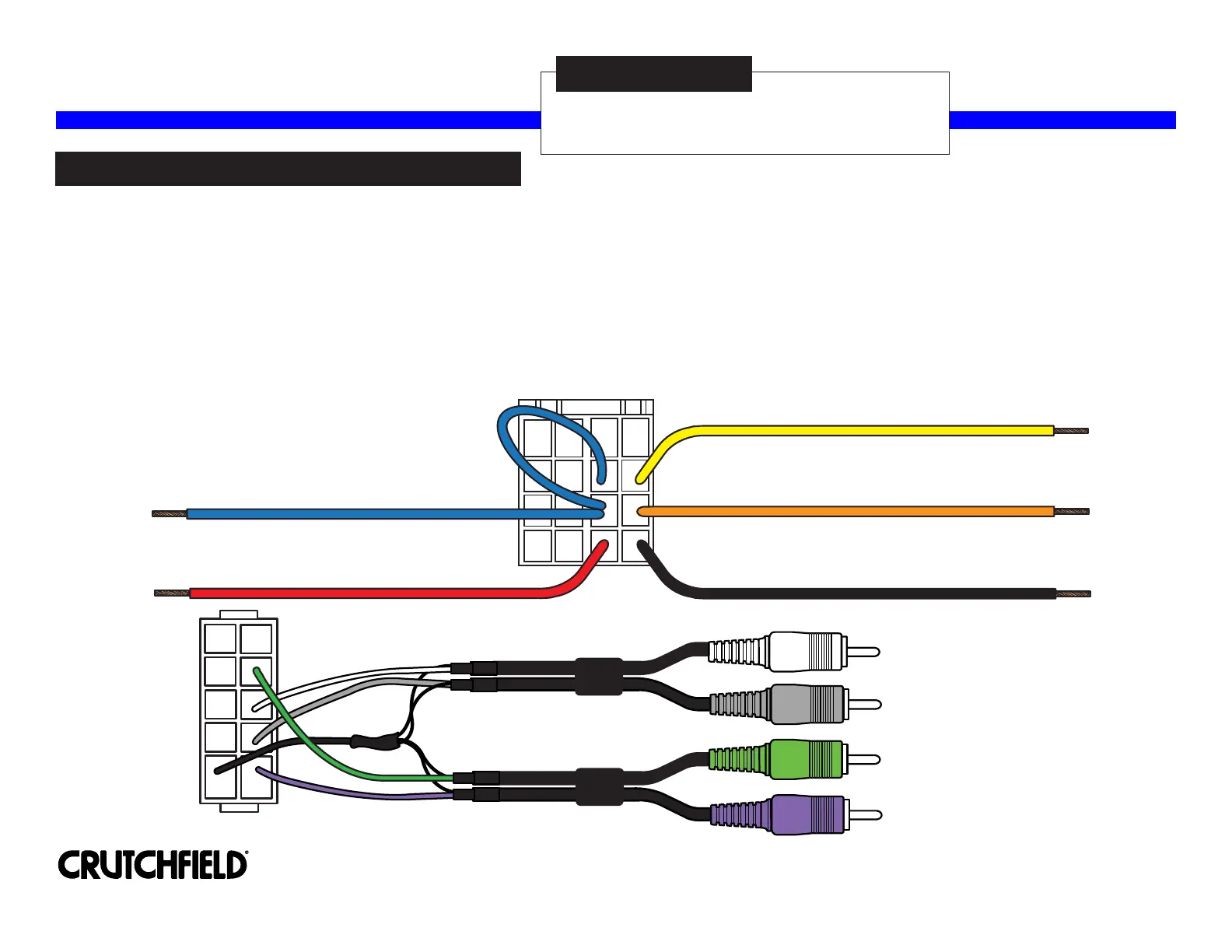

Blue - Amplifier Turn-On
Receiver Wiring Adaptor
120 70-9400
Revision 04/21/15
STEP 1 -- MATCH & CONNECT WIRES
*120709400*
IMPORTANT
Before starting, compare items on your invoice with items
received. Thoroughly check packing materials. If an item
is missing, please call Crutchfield at 1-888-955-6000.
Copyright 2015 Crutchfield Corporation
Black - Chassis Ground
A.
B.
C.
D.
Yellow - 12 Volts Constant Power
Red - 12 Volts Switched Power
Orange - Illumination
Green - Left Rear Channel
Violet - Right Rear Channel
White - Left Front Channel
Gray - Right Front Channel
POWER HARNESS
AMP INPUT HARNESS
