Side 1/2
1,000 lb. [453kg] weight capacity
1/
8
" [3mm] thick structural steel internal braces
22” [559mm] OD width, 25” [635mm] OD depth
1/
2
" , 3/4", 1” & 1-1/
2
" electrical knockouts on removable
rear plates top and bottom, easily removable for cable pass-through
Top plate additionally includes UHF / VHF knockouts
Standard front, optional rear 11-gauge 10-32 threaded
rackrail with numbered rackspace increments
Optional front doors available
Configurable top options
Durable black textured powder coat finish
UL Listed in the US and Canada
Models available with or without locking rear door
ERK Series Ready-to-Assemble enclosure ships flat
for simplified shipping and storage
ERK-4425KD
ERK Series
Ready-to-Assemble Enclosure
96-01051 / rev 4b / 01-13-11
ENCLOSURE ACCESSORIES
ADDITIONAL RACKRAIL KIT
CASTER BASE
COPPER BUSS BAR
CRATING SERVICE
DOCUMENT POCKET
DOOR LATCH
LEVELING FEET
CONFIGURABLE TOPS
TOP RAILS
UNIVERSAL FRONT DOORS
VENTED REAR DOORS
WRINKLE TOUCH-UP PAINT
RISER BASES
for details - see Master Catalog
or visit middleatlantic.com
96-01051 / rev 4b / 01-13-11 / ERK Series Ready-to-Assemble Enclosure
EIA compliant 19" ready-to-assemble equipment rack shall be Middle Atlantic Products model
# ERK-__25KD (refer to chart). Overall dimensions of rack shall be __H x 22" [559mm]
W x 25" [635mm] D (refer to chart). Useable height shall be __ rackspaces, useable depth
shall be 23.47" [596mm] (refer to chart). Weight capacity shall be 1,000 lbs. [453kg].
Rack shall be constructed of the following materials: top and bottom shall be 14-gauge steel,
horizontal braces shall be 16-gauge steel welded to integral structural side panels of 16-gauge
steel giving an 1/8" [3mm] thick structure, all structural elements shall be finished in a
durable black powder coat. Rack shall include a locking, latching rear door. Rack shall come
equipped with one pair of 11-gauge steel rackrail with tapped 10-32 mounting holes in
universal EIA spacing, black e-coat finish and numbered rackspaces. Rack shall include solid
locking rear door standard, solid side panels with vertical slotted vent pattern at top and
bottom and laser knockouts for cable pass-through. Top and bottom of rack shall feature
vertical slotted vent pattern. Rack shall have a removable rear knockout panel with 1/2",
3/4", 1" and 1-1/2" electrical knockouts and BNC knockouts for UHF/VHF antennas installed
in top. Grounding and bonding stud shall be 1/4-20 threaded, installed in base of enclosure.
Rack shall be UL Listed in the US and Canada. ERK-_25KD shall be GREENGUARD Indoor Air
Quality Certified for Children and Schools. ERK-_25KD shall be RoHS EU Directive 2002 / 95 /
EC compliant. ERK-_25KD shall be manufactured by an ISO 9001 and ISO 14001 registered
company. Rack shall be warrantied to be free from defects in material or workmanship
under normal use and conditions for the lifetime of the product.
OPTIONS
Front doors shall be 16-gauge steel & available as model #FD-XX (solid), VFD-XX (vented),
PFD-XX (plexi) PVFD-44 (vented plexi), (X=# of rack spaces of ERK rack)
Vented rear doors shall be 16-gauge steel & available as model #ERK-VRD-XX,
(X=# of rackspaces of ERK rack)

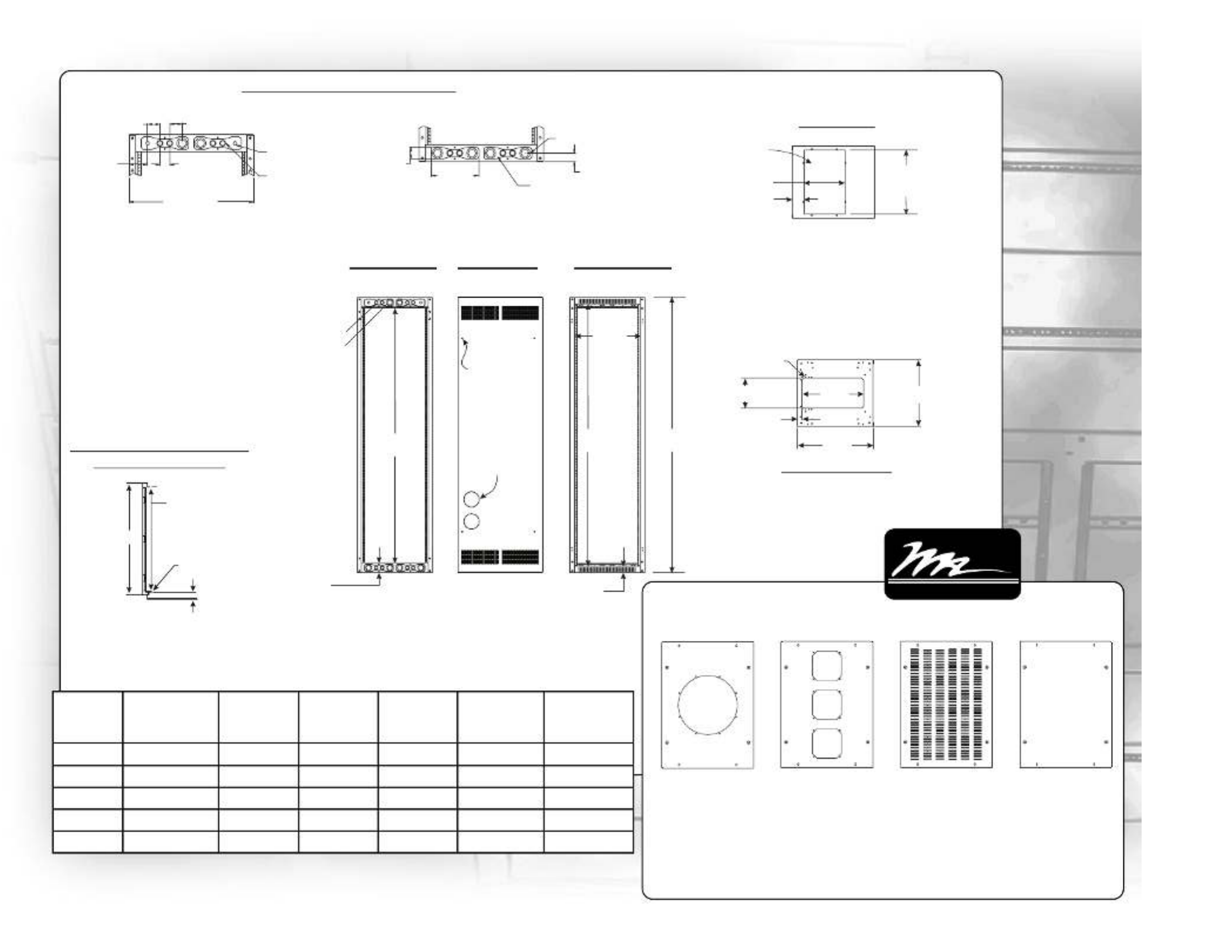

Top panels shall be 16-gauge steel, in 6 styles - model #ERK-ST (blank), #ERK-10FT (10"
[254mm] fan), #ERK-4FT (three 4-1/2" [114mm] fans), #ERK-VT (vented), #ERK-10FT-FC
(10” [254mm] fan with integrated fan control), #ERK-4QFT-FC (three 4-1/2” [114mm]
fans with integrated fan control)
Caster base, four casters shall have a total weight capacity of 1300 lbs. [590 kg], model
# CBS-ERK-YY (Y= cabinet depth)
Leveling feet model # LF, shall be 3/8" [10mm] threaded steel, adjustable from top or bottom
Keyless Latch, replaces keylock & fits front & rear doors, model # LATCH
Lacer strip, heavily perforated, 78" [1981mm] long, 11-gauge steel, model # LACE
Rear rail kit, 11-gauge, 10-32 threaded, sold in pairs, hardware included,
model # ERK-RRXX (X=# of rackspaces)
Ships flat
EIA/TIA Compliant
C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.
Features
EXCEPTIONAL SUPPORT & PROTECTION
C U S T O M I Z A B L E S P E C I F I C AT I O N C L I P S A VA I L A B L E AT M I D D L E AT L A N T I C C O M.
US: New Jersey California Illinois • Voice: 973-839-1011 Fax: 973-839-1976 • middleatlantic.com
Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: 613-836-2690 • middleatlantic.ca
Architects and Engineers Specifications


Produkt Specifikationer

Mærke: Middle Atlantic
Kategori: Ikke kategoriseret
Model: ERK-RR27
Type: Stativskinne
Bredde: 35.7 mm
Dybde: 35 mm
Højde: 1200.15 mm
Antal pr. pakke: 1 stk
Produktfarve: Sort
Husmateriale: Stål
Certificering: Greenguard
Harmoniseret systemkode (HS): 85389099
Kapabilitet: ERK
Rackkapacitet: 27U
