HARDWARE KIT INCLUDES
THANK YOU
Thank you for purchasing the L5 Series Shockmount XLR Mount. Please read these instructions
thoroughly before installing/operating this product. Refer to I-00627 L5 Series AV Ready Lectern
Instruction Sheet for additional information.
6-32 Flange Nuts
6-32 x 1/2” Pan Head Phillips Screws
QTY DESCRIPTION
4
4
INSTALLATION
1) Remove rear panel. (FIGURE A)
2) For ease of installation, remove (4) screws
securing accessory panel to frame and
remove from frame. (FIGURE A)
3) If neccessary, refer to manufacturer’s
instructions for additional hookup and operation details.
TOOLS REQUIRED
Phillips Screwdriver
5/16” Socket Wrench
Accessory
Panel
Screws
(4)
Rear Panel
Pan Head Phillips
Screws 6-32 x 1/2”
(2)
4) Remove knockouts in accessory panel
as needed.
5) Install shockmount using (4) 6-32
flange nuts and (6) 6-32x1/2” pan head
Phillips screws. (FIGURE B)
6) Re-install accessory panel in reverse
manner.
7) Re-install rear panel.

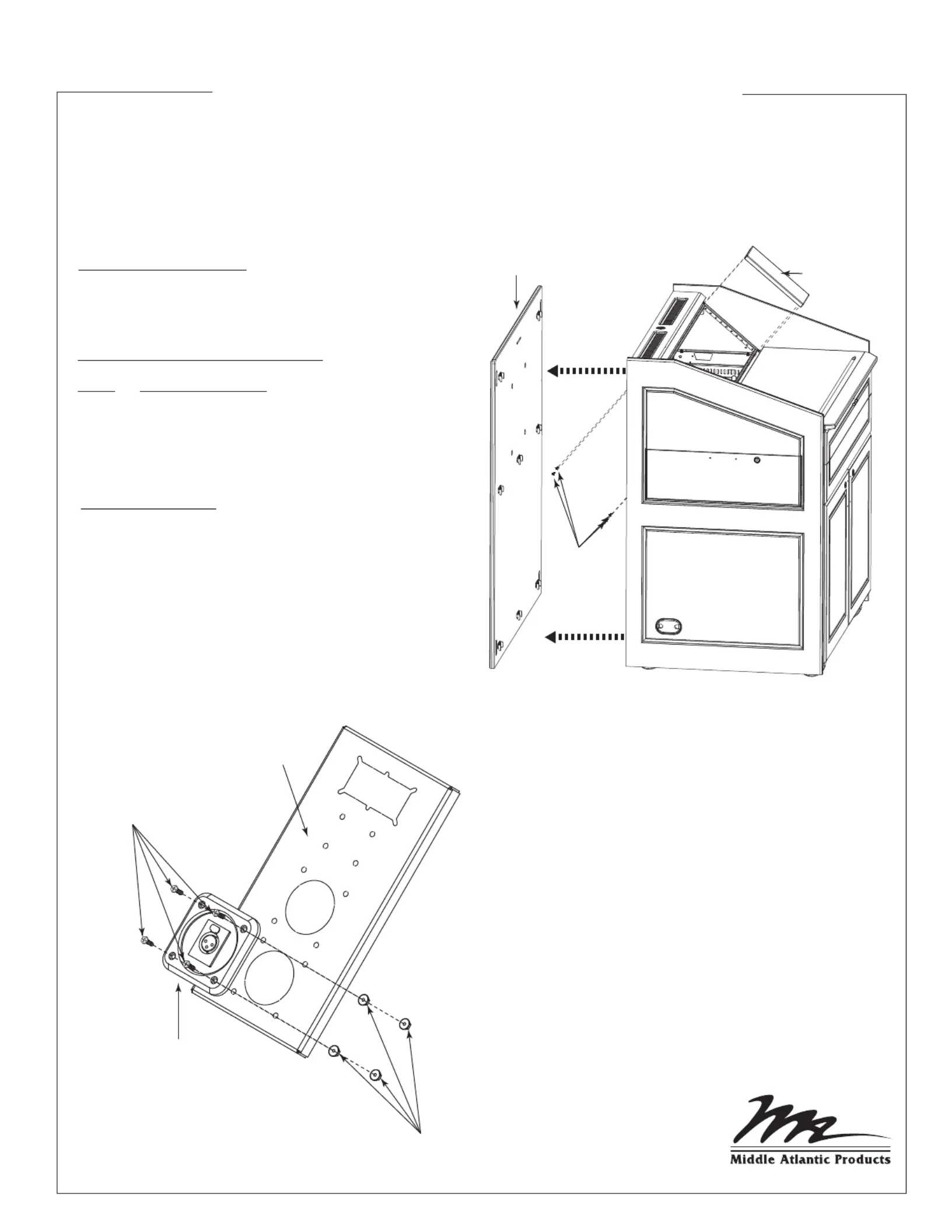

FIGURE A
FIGURE B
Accessory
Panel
Flange Nuts
6-32 (4)
Shockmount
