middleatlantic.com | middleatlantic.ca

what are built on.great systems ™

SNE Series Hybrid

security network enclosure

conﬁgured speciﬁcally to address the needs

of hybrid security systems consisting of a

mix of analog and digital equipment and

cabling

• Fully welded construction provides the following weight capacities:

· UL Listed load capacity – 3,000 lbs.

· Caster load capacity – 1,600 lbs.

· Seismic certiﬁed capacity – 1,050 lbs.

• Conﬁgurations available with active top (660 CFM) or rear (1,760 CFM) ventilation

• Ships fully conﬁgured, and includes

· 70% open area vented front door

· Split solid rear doors

· Pair of split ﬂush mount locking side panels

· (2) vertical 10” wide Lever Lock™ accessory mounting plates

· 6” wide vertical wire grid lace

· 4 space cage nut rail adapter

· Casters

· Leveling feet

• Available in 24”, 27.6” and 30” widths

• 36” and 42” overall depths

• Includes 2 pairs of 10-32 threaded fully adjustable rackrail

• Doors accommodate industry standard electronic door locks

EIA compliant 19” gangable hybrid security network enclosure shall be Middle Atlantic Products

model # SNE__H-__-A_ (refer to chart). Overall dimensions shall be __”H x __”W x __”D (refer

to chart). Useable height shall be __ rackspaces, useable depth shall be __” (refer to chart). Fully

welded construction shall provide a UL Listed load capacity of 3,000 lbs., and casters shall provide a

capacity of 1,600 lbs. SNE shall come equipped with two pairs of fully adjustable steel rackrail with

tapped 10-32 mounting holes in universal EIA spacing, black e-coat ﬁnish and numbered rackspaces.

SNE shall include 70% vented front door, split 3-point solid rear door, and ﬂush locking split side

panels. SNE shall include two 10” wide patent-pending Lever Lock™ tool free accessory mounting

plates. SNE shall include one 6” wide vertical grid lace and 4 space cage-nut rail adapter. SNE shall

have pre-threaded 5/16”-18 ganging holes. SNE shall be capable of ganging while fully loaded, us-

ing bolts only. SNE shall have active cooling, top mounted (660 CFM) or rear door mounted (1,760

CFM), refer to chart. SNE shall have marked rackrail depth indicators. SNE shall be of fully welded

construction. SNE shall be ﬁnished in an environmentally friendly, durable black powder coat. SNE

Series enclosures shall satisfy the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005

Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas

of high seismicity, Seismic Use Group III, Zone 4 or Seismic Design Category (SDC) “D” with lateral

force requirements for protecting 1,050 lbs. of essential equipment in locations with the highest level

of seismicity and top ﬂoor or rooftop installations with an Importance factor (Ip) of 1.5 when used with

SNE-Z4 seismic ﬂoor anchor bracket. SNE shall be UL Listed in the US and Canada to the UL-2416

(NWIN) category. SNE shall be GREENGUARD Gold Certiﬁed. SNE enclosure shall be RoHS EU Direc-

tive 2002 / 95 / EC compliant. SNE shall be manufactured by an ISO 9001 and ISO 14001 registered

company. SNE enclosure shall be warrantied to be free from defects in material or workmanship

under normal use and conditions for the lifetime of the rack.

Customizable speciﬁcation clips available at middleatlantic.com

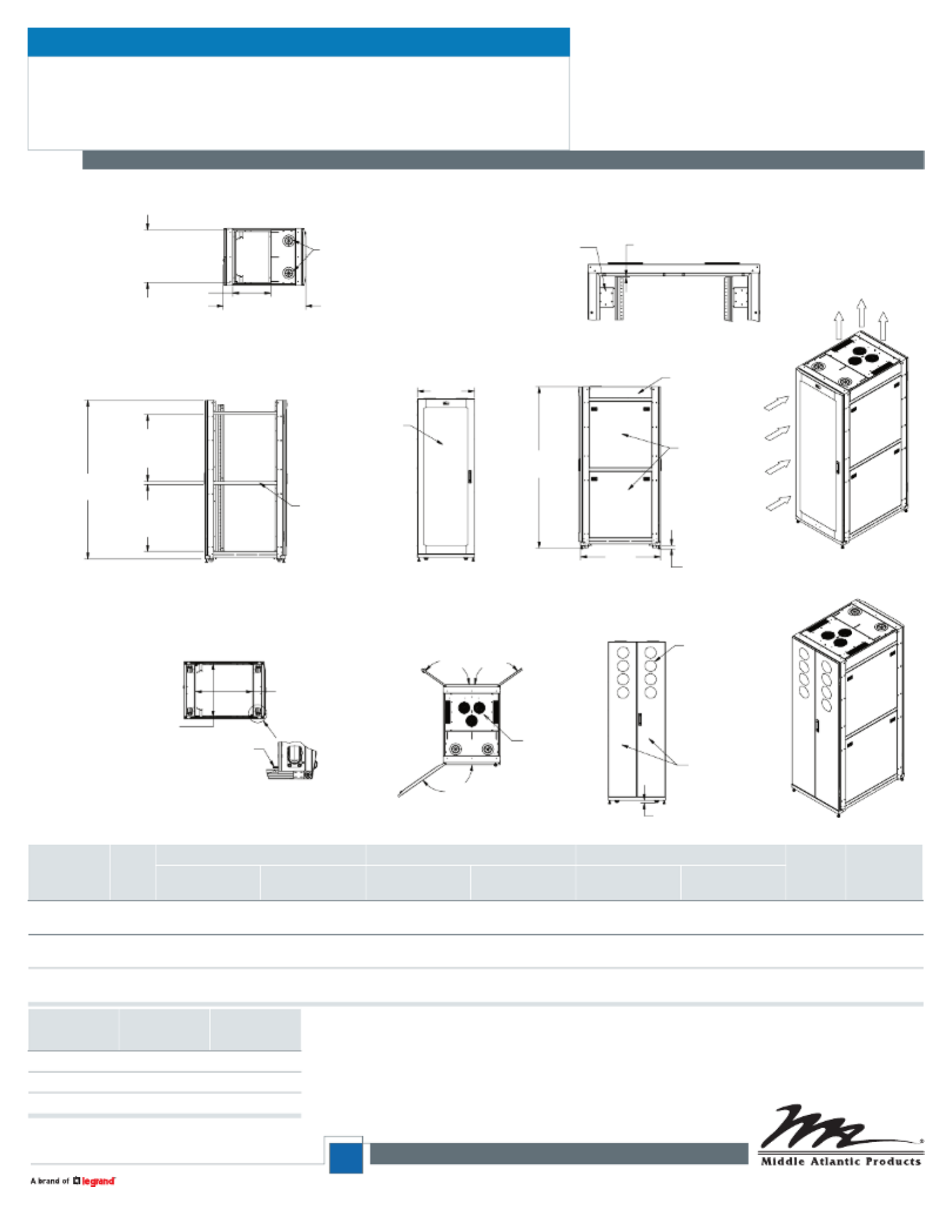

features:speciﬁcations:

options:

• Split lift-off cable chase shall be 4.4” wide and mount

in-between enclosures, model # SNE-CC-__LT (refer

to drawing for model number)

• Cable duct shall be model # SNE-__DUCT-4x6-__

and be available packaged or installed (refer to chart)

• Cable chase shall be model # SNE-__-CC12-45__

(refer to chart), and shall be 12” wide x __” deep x

83.33” high

• Front air dam/zero-U panel mount shall be model

# SNE-__-FAD-PM-__ (refer to drawing for model #)

• Bracket for top cable pass-through enclosure to

enclosure shall provide the ability to pass cables from

enclosure to enclosure when ganged together, and

shall be model number SNE-TCB-__ (36, 42, 48)

• 6” wide wire type vertical lace shall be model number

LACE-WB6-__ (24, 42, 45)

• Seismic Zone-4 and Seismic Use Group III compliancy

ﬂoor anchor kit shall be model # SNE __-Z4 (24,27,30)

96-01192 / rev g / 4-23-18

EI A / T I A C O M P L I ANT

Produkt Specifikationer

Mærke:	Middle Atlantic
Kategori:	Ikke kategoriseret
Model:	LACE-WB6-24
Type:	Kabelsnorebar
Bredde:	150 mm
Antal pr. pakke:	1 stk
Produktfarve:	Sort
Husmateriale:	Stål
Certificering:	Greenguard
Harmoniseret systemkode (HS):	85389099
Bæredygtighedscertifikater:	RoHS
Rackkapacitet:	24U
