Middle Atlantic LL-RFR Manual


Læs nedenfor 📖 manual på dansk for Middle Atlantic LL-RFR (2 sider) i kategorien Ikke kategoriseret. Denne guide var nyttig for 3 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/2
I-00549 Rev B
TOOLS REQUIRED
#2 Phillips screwdriver
PARTS
Brackets
#10 x 5/8” Phillips Wood Screws
QTY DESCRIPTION
2
6

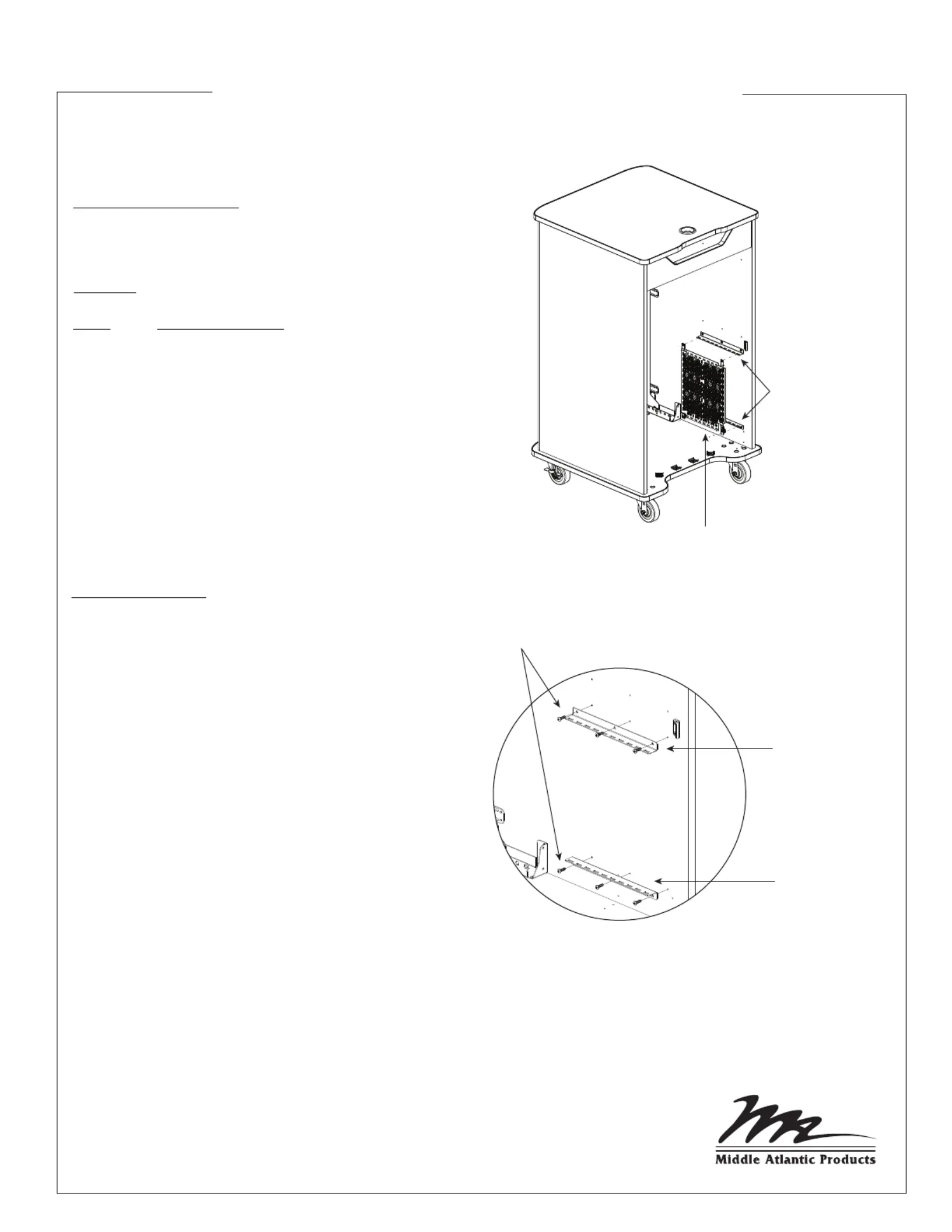

INSTALLATION
1) Select mounting area for Lever Lock™
brackets from one of three pre-drilled
mounting locations (two provided on
side wall, one provided on opposing
wall).
2) Align three (3) wood screws with
pre-drilled holes in RFR and secure
upper bracket with mounting
flanges face down. (FIGURE A)
3) Align three (3) wood screws with
pre-drilled holes in RFR and secure
lower bracket with mounting
flanges face up. (FIGURE A)
4) Install Lever Lock™ accessories as per
instructions provided with product.
Upper Bracket
(Flange Down)
Lower Bracket
(Flange Up)
Wood Screws
(3 per bracket)
Vertical 10” Deep Plate
LL-VP1710 (Sold Separately)
Lever Lock™
Brackets
FIGURE A


Produkt Specifikationer

Mærke: Middle Atlantic
Kategori: Ikke kategoriseret
Model: LL-RFR
