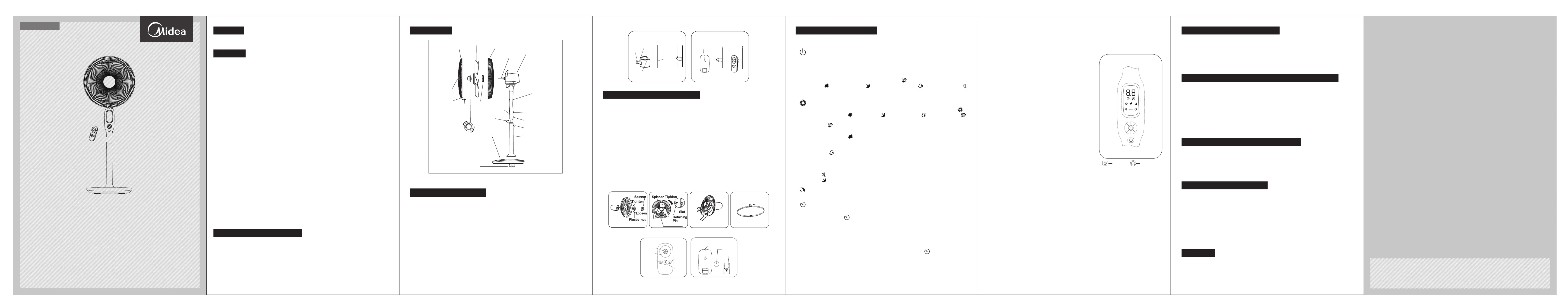

Lowing: lift up the head with a hand, unscrew the fastening knob counterclockwise

with the other hand, slowly lower the head to an appropriate height, and tighten the

knob clockwise. Rising: lift up the head with a hand, unscrew the fastening knob

counterclockwise slowly with the other hand, rises up the head to a proper height,

and tighten the knob clockwise.

IV. Height Adjustment

When adjust the pivoting angle, fix the guards with hands and reverse the head of fan.

Note: Do not forcibly twist the fan in order to avoid damage to the fan.

V. Pivoting Angle Adjustment

Press the “On/Off" button for three seconds, the screen will turn off and the fan is still

running. Press any button [not include "On/Off” button), the screen will light up.

Remote control does not have this feature.

VI. Screen-off Function

The fan will be turned off when there is no operation of the control within 12 hours.

VII. Forced Shutdown

Batteries should be installed before using the remote control. It uses a 3 -volt button

battery.

(1) Open the battery cover;

(2) install a new battery, pay attention to the battery polarity (+ and -);

(3) Close the battery cover.

BATTERIES INSTRUCTIONS (Fig.8)

The windings of the motor have a thermal-fuse that burns out and the fan switches

off and temperature of the motor is no longer going up so that plastic parts of the fan

don’t subject to deformation so far so to be burned by the overheat if the motor is

overheat for any unexpected reason.

OVERHEAT PROTECTION OF THE MOTOR

1. The remoter controller must point to the receiving window of the fan box when it

is used;

2. The remoter controller can be normally used within five meters and 30 degrees

from the fan;

3. Avoid direct sunlight on the receiving window, so as not to affect the receiver's

effect;

4. Remove the built-in batteries when do not use the remote control for a long time

or before the batteries are leaked.

HOW TO USE THE REMOTE CONTROLLER CORRECTLY

PART FIGURE

GUARD & FAN BLADE ASSEMBLY

1. Unscrew and remove the spinner clockwise (or obtain from parts bag), and the

plastic nut counterclockwise. You may have to hold the shaft in place with one

hand to unscrew the spinner with the other. Position the rear guard against the

motor face so that the two pins on the motor face fit through the matching holes

in the rear guard. Tighten the rear guard into place with the plastic nut. (Fig.3)

2. Mount the blade set onto the motor shaft through the center hole in the blade

set. Insert the pin on the motor shaft into the notches on the back of the blade

set. Turn the spinner counterclockwise onto the shaft to tighten the blade set

into place. (Fig.4)

3. Remove the small screw from the clear plastic clasp on the bottom of the front

guard and set aside. Place the front guard over the rear guard so that the tab

at the top of the front guard fits over the rear guard rim (Fig.5). Push the two

guards together. Close the clasp at the front guard bottom over the rear guard

rim, and re-insert and tighten the small screw (Fig.6) removed earlier.

To adjust the air flow upward or downward, push

the guards lightly to the desired direction.

III. Tilt Adjustment

Fig.9

• On/Off button

Same as them on remote control.

• Function button

1. Under working state, short press the function

button, the fan will alternate between oscillation

and fix; Long press the button, the fan enters

into the timing function, refer to the operating

instructions of PRO button on remote control

(To cancel the timer, long press function button).

2. Under standby mode, short press of the function

button is invalid; Long press the function button,

the fan enters into the appointment starting

function, refer to the operating instructions of

PRO button on remote control (To cancel the

timer, long press function button).

II. Control Panel (Fig.9)

Function buttonOn/Off button

Front Guard

Center Piece

Circlip

Clip Plastic Nut

Control Part

Remote Control Hook

Round Base

Butterfly Screws For

Fixed Base Tube

Tighten

Loosen

Spinner

Rear Guard

Shaft

Motor

Fan Box

Female Terminal

Fastening Screw

Fastening Knob

Tube

Blade

Note: All the pictures in this manual are for explanation purpose only. Any discrepancy between

the real object and the illustration in the drawing shall be subject to the real subject.

1. Take out the base tube, three butterfly screws for fixed base tube and the round

base from the packing carton;

2. Insert the tube to the round base, be sure to make the positioning screw align

with the base;

3. Screw and tighten the three butterfly screws into the holes on the tube;

4. Loosen the fastening knob, adjust the height of inner tube and tighten the knob.

5. Take out the control part of the fan from the packing carton, loosen the fastening

screw at the back of the box, insert the inner tube into the bottom hole, make sure

that the fastening screw and the fastening knob in the same position.

6. Usage of the remote control hook: make the straight face of hook up, clip the hook

to the inner tube along with the opening, the hook can be moved up and down

along the tube (Fig.1). The hook of the remote control may be linked to the

hole for storage when not in use. (Fig.2)

ASSEMBLY INSTRUCTION

Fig. 1 Fig. 2

Straight face

Hook

Opening

Inner tube

Hook hole

Fig.7 Fig.8

On/Off

Drive plate

OSC

Mode

PRO/Timer

Remote controller

Battery

Battery cover

OPERATING INSTRUCTIONS

“ ” ON/OFF KEY

Press this button under standby mode, the fan starts at normal wind of level 10, then

the panel displays "normal wind, level 10". Press this button during working, the fan

turns off to standby mode.

After start, rotate the drive plate clockwise, the fan increases from the current level

circulation in the following manner: standard mode 01 to wind 26→ stimulating

natural mode 00→ sleep mode 00 → intelligent mode 00 → silent mode

01 to wind 09. Rotate the drive plate counterclockwise, the fan will decrease from

the current level in the above manner.

I. Remote Controller (Fig.7)

“ ” MODE KEY

Repeat press this button, the wind will be switched in order of “standard mode -

stimulating natural mode - sleep mode - intelligent mode - standard mode -

... ".

Standard mode : the wind speed is constant set by the wind level, when the

"standard mode" icon is lit, 01 - 26 levels are standard mode;

Stimulating natural mode : Fan will simulate natural wind according to

preprogrammed manner, the wind speed changes in accordance with the program,

which makes people feeling idle, naturally and it likes to be in the nature.

Intelligent mode :based on the temperature and wind speed when it starts, its

speed changes according to the temperature. When the temperature is below 20°C,

the fan stops, when the temperature rises to 20°C, it continues automatically at the

stopped level.

Plug in the power adapter, after a "beep" tone, the fan is on standby.

Silent mode : fan blows in silent mode; it has a total of nine levels for adjustment.

Sleep mode : fan blows in sleep mode; it is sultable for sleep.

“ ” PRO KEY

Under power-on state, timed power-off can be set. Press the PRO button; it starts the

timing power-off state. icon displayed on the fan display will flash once

per second, the rotate the drive plate clockwise, the fan display will display 0.5 → 1.0

→ ...... → 7.5 → 8.0 → 00 → 0.5 → ...... in cycle, rotate the drive plate counter-

clockwise, it cycles as 8.0 → 7.5 → ...... → 0.5 → 0 0 → 8.0 → .......

When set a time, 5 seconds without any operation, the timing on the display flashes

twice and beep to refer successfully settings, if the timing button is pressed in five

seconds then timing is cancelled. If there is time setting, then icon is lit, if not, it is

off. When setup is successful, the display returns to display the wind level.

Under power-off mode, press the PRO button to set power-on time, "PRO" and icon

is lit, the operation mode will refer to timed power-off; rotate the drive plate to

adjust the time. After adjustment, the set time will be displayed on the screen. To

cancel a time setting, only need to press the PRO button once again.

“ ” OSC KEY

After the fan starts, repeatedly touch this button to start or stop oscillation.

Fig.3 Blade Set

Fig.4 Fig.5 Fig.6

screw

The fan requires little maintenance. Do not try to fix it by yourself. Refer it to

qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.

2. To ensure adequate air circulation to the motor, keep vents at the rear of the

motor free of dust. Do not disassemble the fan to remove dust.

3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.

4. Do not use any abrasive detergent or solvents to avoid scratching the surface.

Do not use any of the following as a cleaner: gasoline, thinner.

5. Do not allow water or any other liquid into the motor housing or interior parts.

MAINTENANCE INSTRUCTION

CLEANING

1. Be sure to unplug from the electrical supply source before cleaning.

2. Plastic parts should be cleaned with a soft cloth moisten with mild soap.

Thoroughly remove soap film with dry cloth.

Read Rules for Safe Operation and Instructions Carefully.

CAUTION

1. If the supply cord is damaged, it must be replaced by manufacturer

or its service agent or a similarly qualified person in order to avoid

a hazard.

2. To protect against the risk of electrical shock, do not immerse the

unit, cord or plug in water or other liquid.

3. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety. Young children should be

supervised to ensure that they do not play with the appliance.

4. When the appliance is not in use and before cleaning, unplug the

appliance from the outlet.

5. Keep electrical appliances out of reach from Children or infirm

persons. Do not let them use the appliances without supervision.

6. When the fan was assembled, the rotor blade guard shall not be

taken off anymore

- Prior cleaning unplug the fan.

- The rotor guard shall not be dissembled/opened to clean the

rotor blades.

- Wipe the fan enclosure and rotor blade guard with a slightly

damp cloth.

WARNING

1. Never insert fingers, pencils, or any other object through the grille when fan is

running.

2. Disconnect fan when moving from one location to another.

3. Be sure fan is on a stable surface when operating to avoid overturning.

4. DO NOT use fan in window, rain may create electrical hazard.

5. Household use only.

RULES FOR SAFE OPERATION

Inquiry: Under working state, press forward/timing button to enter the timing status,

user can check the set time, and user can re-set the time within five seconds; if no

operation within five seconds, the time shown on the screen flashes twice and

returned to the wind level.

MIDEA.COM | 4008899315

ELECTRIC FAN

OWNER’S MANUAL

STAND FAN

MODEL:FS40-12AR

Please read the instruction manual carefully before use and safekeeping.

GD Midea Environment Appliances Manufacturing CO.,LTD.

Midea Industrial Park, Dongfu Road, Dongfeng Town, Zhongshan, Guangdong, China

Produkt Specifikationer

Mærke:	Midea
Kategori:	Ventilator
Model:	FS40-12AR

Har du brug for hjælp?

Hvis du har brug for hjælp til Midea FS40-12AR stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ventilator Midea Manualer

Midea FTS30-9AR Manual

14 December 2024

Midea FTS35-9AR Manual

14 December 2024

Midea FTS30-13AR Manual

14 December 2024

Midea MAM060CPBPBH Manual

9 December 2024

Midea MSAF421DWW Manual

5 December 2024

Midea MSFS07RW6GB Manual

5 December 2024

Midea MSFT42RW6BL Manual

5 December 2024

Midea MF-16FW15KRA Manual

5 December 2024

Midea FTS30-9BR Manual

16 November 2024

Midea FS40-11NR Manual

2 September 2024

Ventilator Manualer

Nyeste Ventilator Manualer

Panasonic FV-0510VS1 Manual

21 December 2024

Yamazen FCR-D408 Manual

20 December 2024

Yamazen FCT-D408 Manual

20 December 2024

Yamazen FCR-J401 Manual

20 December 2024

Livoo DOM510 Manual

20 December 2024

SVAN SVP401600OBA Manual

20 December 2024

SVAN SVP401600MOBA Manual

20 December 2024

Proline Mini Manual

19 December 2024

Panasonic F-48DFL Manual

19 December 2024

Panasonic F-M14CF Manual

19 December 2024
