NEC NP-U300X Manual
NEC
Videoprojektor
NP-U300X
Læs nedenfor 📖 manual på dansk for NEC NP-U300X (8 sider) i kategorien Videoprojektor. Denne guide var nyttig for 28 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/8
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/da/nec/np-u300x/html/bg1.png)
NEC Display Solutions of America, Inc.
U300X Installation Guide
Desktop and Ceiling Mount v1.0
www.necdisplay.com U300X Page 1 of 8
Contents
Product Description, Lens Specs, Notes and Formulas Page 1

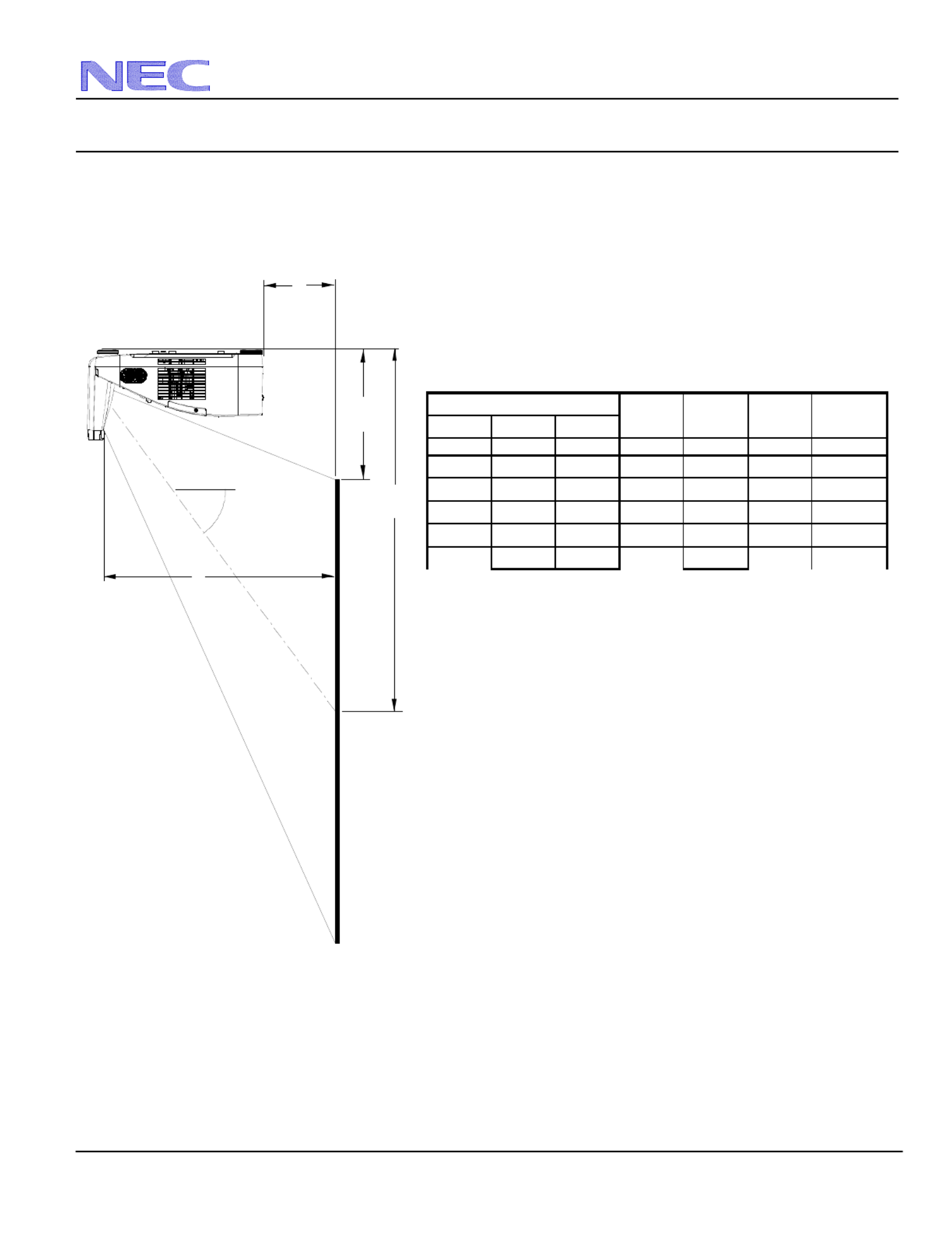

Diagrams and Distance Charts
Ceiling Mounted Installation Page 2
Desktop Setup Page 3
Cabinet Dimensions
Top, Front and Right Side Page 4
Bottom, Back and Left Side Page 5
Optional Wall Mount Dimensions Page 6
Optional Wall Mount Dimensions cont. Page 7
Input Panel and Control Codes Page 8
Product Description
Type: 1 chip DMDTM Ultra Short Throw projector Dimensions: 16.8”(W) x 7.9”(H) x 16.0”(D)
Weight: 14.3 lbs
Native Resolution: 1024 x 768 (1024x576 for 16:9 screens) Screen Range: 63” – 85” Diagonal (4:3)
Brightness: 3000 lumens Fan Noise: 36 dB / 32dB @ 1 meter
Power Consumption: 360W (max) BTU’s: 1228 BTU/hour
Screen/Aspect Ratio_
Both 4:3 and 16:9 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. By selecting the screen type in the menus, Aspect Ratio control is reconfigured for that screen type.
Notes
For screen sizes not indicated on the projection charts, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
All calculations are based on 4:3 aspect ratio.
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
Formulas
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug the screen width in for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3.
Definitions: 4:3 Screen Formulas:
W
= Screen width
W = H x 4/3
H
= Screen height H
= W x 3/4 A = Distance between projector cabinet and screen Screen Diagonal = W x 5/4
B
= Vertical distance between projector
foot and screen center
C = Throw distance 16:9 Screen Formulas:
D W = Vertical distance between projector foot and screen bottom = H x 16/9
(screen top for ceiling mounted application) H = W x 9/16
Screen Diagonal = W x 18.868/16
Projection Formulas:
A = C-13.48
B = 0.59W
C = 0.377W
D = 0.21W
Produkt Specifikationer
Mærke: | NEC |
Kategori: | Videoprojektor |
Model: | NP-U300X |
Vekselstrømsindgangsspænding: | 100 - 240 V |
Vekselstrømsindgangsfrekvens: | 50 - 60 Hz |
Vægt: | 6500 g |
Produktfarve: | Hvid |
Wi-Fi: | Ingen |
Bluetooth: | Ingen |
Understøttede videotilstande: | 1080i,1080p,480i,576i,720p |
3D: | Ja |
Indbyggede højttaler(e): | Ja |
Opbevaringstemperatur (T-T): | -20 - 50 °C |
Relativ luftfugtighed ved drift (H-H): | 20 - 80 % |
Format til analogt signal: | NTSC,NTSC 4.43,PAL,PAL 60,PAL M,PAL N,SECAM |
Udgangseffekt (RMS): | 10 W |
Antal HDMI-porte: | 1 |
DVI-port: | Ingen |
Ethernet LAN-porte (RJ-45): | 1 |
Antal USB 2.0-porte: | 1 |
Ethernet LAN: | Ja |
Strømforbrug (standby): | 3 W |
Strømforbrug (typisk): | 360 W |
Driftstemperatur (T-T): | 5 - 40 °C |
Dimensioner (BxDxH): | 427 x 200 x 406 mm |
Kabler inkluderet: | VGA |
Batterier inkluderet: | Ja |
Understøttede grafikopløsninger: | 1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),640 x 480 (VGA),800 x 600 (SVGA) |
Sammensat videoindgang: | 1 |
Støjniveau: | 36 dB |
Fjernbetjening inkluderet: | Ja |
Forbindelsesteknologi: | Ledningsført |
Certificering: | USA UL 60950-1 FCC Class B, Canada CSA 60950-1 (C-UL) |
Indbygget kortlæser: | Ingen |
Full HD: | Ingen |
Antal lamper: | 1 Lampe( r) |
Cardbus PCMCIA slot type: | Ingen |
Slot til kabellås: | Ja |
Billedformat: | 4:3 |
Fokus: | Vejledning |
Lyd (L, R) indgang: | 1 |
Kontrastforhold (typisk): | 2000:1 |
Horisontal scanningsområde: | 15 - 91.1 kHz |
Antal VGA-porte (D-sub): | 3 |
AC (strøm) indgang: | Ja |
Kabellåseslids type: | Kensington |
Brændviddeområde: | - mm |
Projektor lysstyrke: | 3000 ANSI lumens |
Projektionsteknologi: | DLP |
Projektor indbygget opløsning: | XGA (1024x768) |
Skærmstørrelse kompatibilitet: | 63 - 85 " |
Projiceringsafstand: | 0.48 - 0.65 m |
Trapezkorrektion, vertikal: | -15 - 15 ° |
Matrix størrelse: | 0.55 " |
Vertikalt scanningsområde: | 50 - 120 Hz |
RS-232-porte: | 1 |
Levetid for lyskilde: | 2500 t |
Lampeeffekt: | 280 W |
Levetid for lyskilde (økonomisk tilstand): | 3000 t |
Lyskilde type: | Lampe |
3D Ready: | Ja |
Antal af S-video-indgange: | 1 |
Seriel grænsefladetype: | RS-232 |
Optisk diskafspiller type: | Ikke inkluderet |
Zoomforhold: | 1.1:1 |
Støjniveau (økonomisk tilstand): | 32 dB |
HD-Ready: | Ja |
Maksimal analog opløsning: | 1600 x 1200 pixel |
