WT610™ Installation Guide
Desktop and Ceiling Mount v1.7
www.necvisualsystems.com WT610 Page 1 of 7
Contents
Product Description, Lens Specs, Notes and Formulas Page 1
Diagrams and Distance Charts

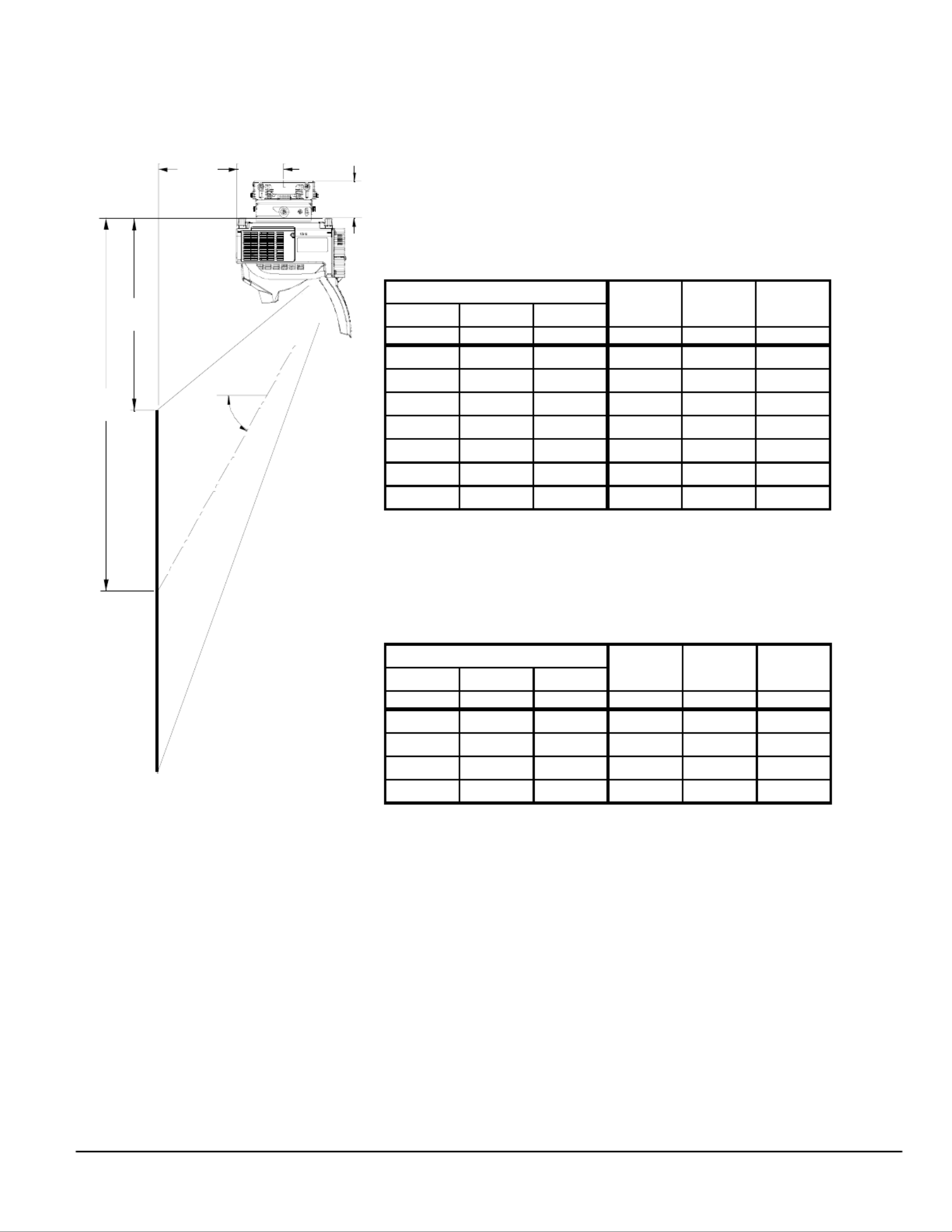

Ceiling Mounted Installation Page 2
Desktop Setup Page 3
Cabinet Dimensions
Top, Front and Right Side Page 4
Bottom, Back and Left Side Page 5
Optional Ceiling Mount Dimensions Page 6
Control Codes Page 7
Product Description
Type: 1 chip DMDTM Lens-less projector Dimensions: 15.0”(W) x 12.3”(H) x 12.3”(D) w/final mirror up
4 mirror bounce optical system Weight: 14.1 lbs
Native Resolution: 1024 x 768 (1024x768 for 16:9 screens Screen Range: 40” – 100” Diagonal (4:3)
Brightness: 2000 lumens (1500 ANSI)
Screen/Aspect Ratio_
Both 4:3 and 16:9 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. By selecting the screen type in the menus, Aspect Ratio control is reconfigured for that screen type.
• For a 4:3 screen; select “4:3” in the “Screen” menu for proper aspect ratio control of 4:3 and 16:9 sources.
• For a 16:9 screen; select “16:9” in the “Screen” menu for proper aspect ratio control of 4:3 and 16:9 sources.
Factory default “Screen” setting is “4:3”.
Notes
For screen sizes not indicated on the projection charts, use the formulas below.
The ceiling must be strong enough to support the projector and the installation must be in accordance with any local
building codes.
• Distances are in inches, for millimeters multiply by 25.4.
• ± Distances may vary 5%.
Formulas
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug the screen width in for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3.
Definitions: 4:3 Screen Formulas:
W = Screen width W = H x 4/3
H = Screen height H = W x 3/4
B = Vertical distance between projector foot and screen center Screen Diagonal = W x 5/4
C = Throw distance
D = Vertical distance between projector foot and screen bottom
(screen top for ceiling mounted application) 16:9 Screen Formulas:
= H x 16/9 W
= W x 9/16 H
Projection Formulas: Screen Diagonal = W x 18.358/16
B = 0.6882W + 3.935
C = 0.4874W - 13.056
D(4:3) = 0.3132W + 3.935
D(16:9) = 0.407W + 3.935
Vertical Position for a 16:9 screen: The Vertical Position adjustment moves the 16:9 image up and down in the unused portion of
the 4:3 DLP panel. This adjustment is only available when the projector is set for 16:9 in the “Screen” menu. The range of Vertical
Position is dependent on aspect ratio and 3D Reform used. If 3D Reform is not used, the approximate range of vertical position is
+/-0.167H (H=Screen Height) when using a 16:9 screen. (See “Screen Type” and “Position” in user manual)
Produkt Specifikationer
Mærke: | NEC |
Kategori: | Videoprojektor |
Model: | WT610 |
Vægt: | 6400 g |
Synsvinkel, horisontal: | 55 ° |
Udgangseffekt (RMS): | 1 W |
DVI-port: | Ja |
Antal USB 2.0-porte: | 1 |
Komponentvideo (YPbPr/YCbCr) indgang: | 1 |
Strømforbrug (standby): | 12 W |
Strømforbrug (typisk): | 370 W |
Dimensioner (BxDxH): | 380 x 313 x 318 mm |
Sammensat videoindgang: | 1 |
Fjernbetjening inkluderet: | Ja |
Certificering: | CE; TÜV GS; RoHS |
Effektkrav: | 100-120 V/220-240 V AC; 50 - 60 Hz |
Pc lydindgang: | Ja |
Plug and play: | Ja |
Lyd (L, R) indgang: | 1 |
Kontrastforhold (typisk): | 3500:1 |
Horisontal scanningsområde: | 15 - 100 kHz |
Antal VGA-porte (D-sub): | 1 |
Lyd (L, R) udgang: | 1 |
Brændviddeområde: | 3.5 - 14.9 mm |
Projektor lysstyrke: | 2000 ANSI lumens |
Projektionsteknologi: | DLP |
Projektor indbygget opløsning: | XGA (1024x768) |
Vertikalt scanningsområde: | 48 - 120 Hz |
Lampeeffekt: | 275 W |
Levetid for lyskilde (økonomisk tilstand): | 4000 t |
Lyskilde type: | Lampe |
Antal af S-video-indgange: | 1 |
Netværksfunktioner: | W-LAN (IEEE 802.11b/g), LAN PC Card |
Objektiv brændvidde: | F= 3.5 |
Ekstra tilbehør: | IR Remote Control (RD-407E) |
Emission af akustisk tryk: | 32 dB |
