!2 Dome cover

!3 Video output cable with BNC connector

Connects with the video connector of the

monitor.

!4 Camera power cable

Supplies 24 V AC or 12 V DC from an exter-

nal power source.

!5 Heater power cable

Supplies 24 V AC from an external power

source to an optional heater.

!6 Camera mounting bracket

Only WV-CW244S (surface mount type) is

supplied with a mounting bracket for ceiling

installation.

■ Installation Plans & Preparations

● WV-CW244F

“F” stands for flash mounting. This model can be mounted on a two-gang junction box (4“ x 4“) pre-

installed in the wall or ceiling.

1. Space

Prepare a space larger than ø160 mm.

2. Junction box

Procure and install a junction box that meets the dimensions in the figure.

3. Camera Fixing Screws

Procure four screws (M4) suitable for the junction box.

4. Cable route

Cables will go behind the junction box.

5. Waterproof Process

When necessary, apply waterproof process to the camera and relevant portions.

Be sure to apply silicone rubber to the camera fixing screws in case of outdoor installation.

INSTALLATION

Camera fixing screw x 4 (procured locally)

46mm

(1-13/16")

83.5mm (3-5/16")

● WV-CW244S

“S” stands for surface mounting. This model can be installed on the surface of the wall or ceiling

using the supplied bracket.

1. Space

Prepare a space larger than ø160 mm.

2. Bracket Fixing Screws

To fix the bracket, procure four M4 screws suitable for the surface and structure of the wall/ceil-

ing.

3. Camera Fixing Screws

Four screws are supplied as standard accessories.

4. Cable route

• When routing cables through the wall/ceiling, drill a hole as shown in the figure.

• When routing cables sideway, open the sideway cable exit unscrewing the lid by use of a hexa-

gon wrench. Screw the detached lid to the cable access hole on the bottom of the bracket.

5. Waterproof Process

When necessary, apply waterproof process to the camera and relevant portions.

If you use camera fixing screws that are locally procured, be sure to apply silicone rubber to the

screws.

85 mm

(3-3/8")

85 mm

(3-3/8")

51 mm

(2")

Camera fixing screw x 4 (supplied)

Bracket fixing screw x 4

(procured locally)

Bracket center

Cable access hole

for 3/4" pipe

2nd transport

protection screw

2. Remove the two red-colored screws provid-

ed for transport protection using a Philips

screwdriver.

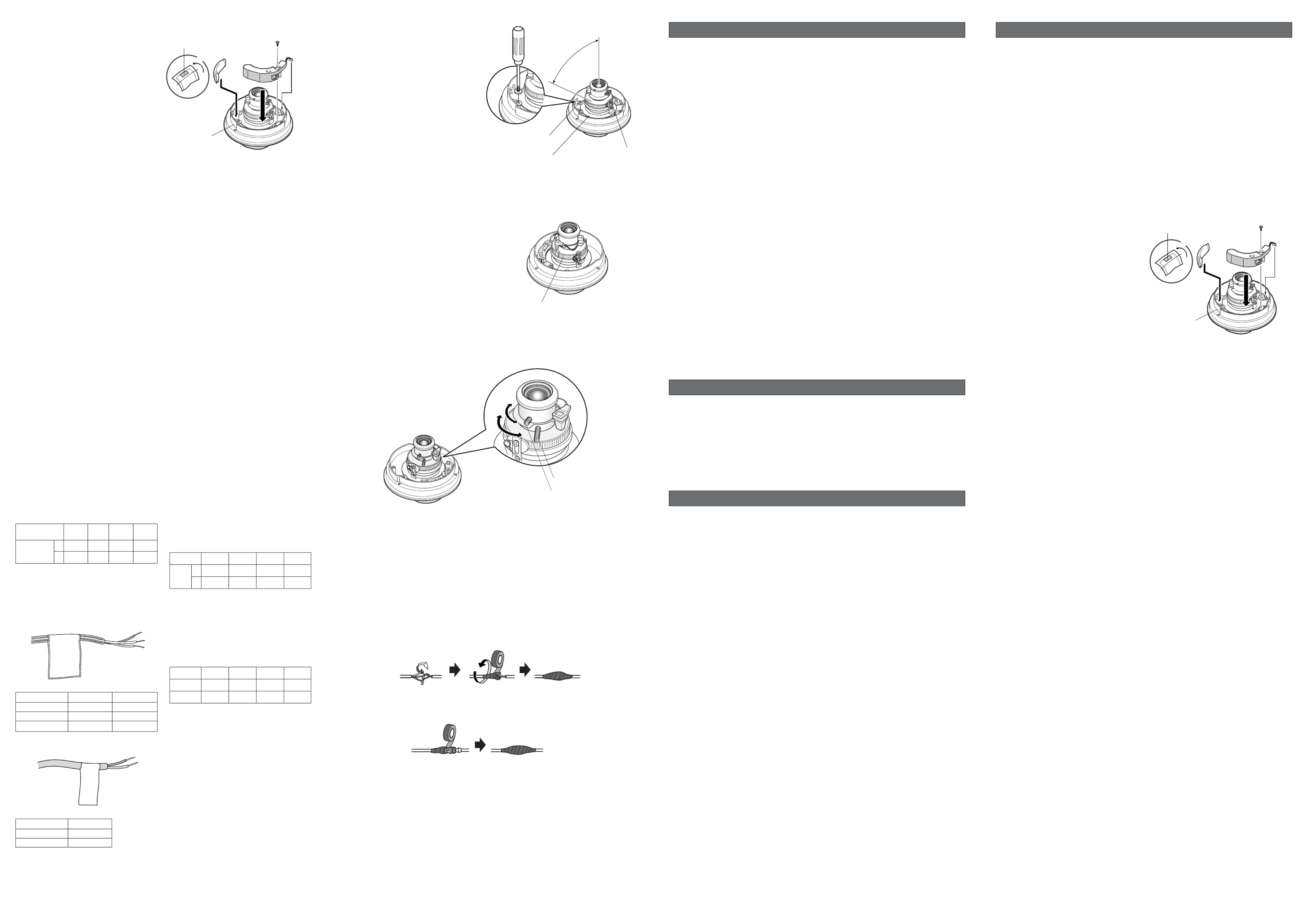

■ Mounting the Camera

● Disassembly of the camera

1. Remove the dome cover by loosening three

tamper-proof screws using the supplied bit.

Color CCTV Camera

Operating Instructions

Model No.WV-CW244F

WV-CW244S

Before attempting to connect or operate this product,

please read these instructions carefully and save this manual for future use.

N0803-1093 3TR001693BAA Printed in Japan

PREFACE

The WV-CW244 series is a 1/3” CCD color cam-

era designed for use in a video surveillance

system. The camera features a high picture

The exclamation point within an

equilateral triangle is intended to

alert the user to the presence of

important operating and mainte-

nance (servicing) instructions in the

literature accompanying the appli-

ance.

The lightning flash with arrowhead

symbol, within an equilateral trian-

gle, is interned to alert the user to

the presence of uninsulated "dan-

gerous voltage" within the product's

enclosure that may be of sufficient

magnitude to constitute a risk of

electric shock to persons.

The serial number of this product may be found on

the top of the unit.

You should note the serial number of this unit in the

space provided and retain this instruction as a per-

manent record of your purchase to aid identification

in the event of theft.

Model No.

Serial No.

SA 1966

SA 1965

WARNING: To prevent fire or electric shock hazard, do not expose this appliance to rain or moisture.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such

as vases, shall be placed on the apparatus.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE. REFER SER-

VICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

NOTE: This equipment has been tested and found

to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed

and used in accordance with the instruction manu-

al, may cause harmful interference to radio com-

munications.

Operation of this equipment in a residential area is

likely to cause harmful interference in which case

the user will be required to correct the interference

at his own expense.

FCC Caution: To assure continued compliance,

(example - use only shielded interface cables when

connecting to computer or peripheral devices). Any

changes or modifications not expressly approved

by the party responsible for compliance could void

the user’s authority to operate this equipment.

For U.S.A

quality thanks to the use of digital signal pro-

cessing LSIs, and easy installation.

1. This product should be installed and con-

nected by qualified service personnel or

system installers in conformity with NEC.

2. Use a class 2 power source supplying 12 V

DC or 24 V AC.

3. To prevent fire or electric shock hazard, use

a UL listed cable (VW-1, style 1007) to con-

nect the power supply to the camera.

4. Be sure to use a ceiling board/wall having

enough strength to support this camera.

5. Handle the camera with care.

Do not abuse the camera. Avoid striking,

shaking, etc. The camera could be dam-

aged by improper handling or storage.

6. Do not use strong or abrasive

detergents.

Use a dry cloth to clean the camera body

when dirty.

In case the dirt is hard to remove, use a

mild detergent and wipe gently. Afterwards,

wipe off the remaining detergent with a dry

cloth.

7. Clean the lens faceplate with care.

Do not clean the lens with strong or abra-

sive detergents. Use lens tissue or a cotton

tipped applicator and ethanol.

8. Never face the camera towards the sun.

Do not aim the camera at bright objects.

Whether the camera is in use or not, never

aim it at the sun or other extremely bright

objects. Otherwise, blooming or smear may

be caused.

9. Do not operate the camera beyond its

specifications.

Use the camera under conditions where

temperature is between –10 °C to +50 °C

(14 °F to 122 °F), and humidity is below

90 %. The input power source is 24 V AC or

12 V DC.

10. Use a monitor whose resolution is at least

equal to that of the camera.

PRECAUTIONS

• Mounting method: Flash mounting/WV-

CW244F, Surface mounting/WV-CW244S

• Signal processing: Automatic Light Control

(ALC), Automatic Gain Control (AGC),

Automatic Tracing White Balance (ATW),

etc.

• Synchronization: Internal, Line-Lock (only

24 V AC), and Multiplexed Vertical Drive

(VD2)

• Minimum illumination: 2.4 lx (0.24 foot-can-

dle) at WIDE

• Signal-to-noise ratio: 50 dB (Equivalent to

AGC OFF)

• Horizontal resolution: 480 TV lines

• Optional heater unit available for the cam-

era used at temperatures between –10 ˚C

and –30 ˚C (14˚F and –22˚F).

FEATURES

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS

q Focus lock lever

Fixes the focus position after adjusting.

w Tilting lock screw

Fixes the tilting position after adjusting.

e Zoom lock lever

Fixes the zoom position after adjusting.

r Panning table

Adjusts the panning angle of the camera.

t Azimuth adjuster

Adjusts the azimuth angle to obtain a level

image.

y Pan lock screw

Fixes the panning position after adjusting.

u Heater power connector

Supplies power to the optional heater unit

when it is built in the camera. Connect here

a harness sticking out from the heater unit.

i Synchronization Mode Selector

Specifies a source for synchronization.

INT: Internal 2:1 interlace.

LL: Line-lock mode driven by 24 V AC.

The default setting is INT.

Note: Do not set the switch to LL (Line-

Lock) position when supplying 12 V DC

to avoid synchronization error.

o Back Light Compensation Selector

ON: Compensates the background if it is

brighter than the object.

OFF: Does not compensate.

The default setting is OFF.

!0 Aperture Level Selector

SHARP: Sharpens the image outline.

SOFT: Softens the image outline.

The default setting is SHARP.

!1 Video jack (3.5-diam. mini jack)

For connecting an LCD monitor to adjust

the camera images. Use an L-type plug to

save space.

123

OFF ON

LLSYNC INT*

OFF*BLC ON

SOFTAP SHARP*

2nd transport protection screw (Red)

Space for heater unit

q w

This Class A digital apparatus complies with cana-

dian ICES-003.

Cet appareil numérique de la classe A est

conforme à la norme NMB-003 du Canada.

For Canada

* Default setting
