Side 1/2

Step3

Fixing the camera

Step2

Making connections

WV-X6531N

ﬂes0217-2077 PGQX2158XA Printed in China

WV-X6531N

Network Camera

Model No. WV-X6531N / WV-X6511N

/ WV-S6530N

Installation Guide

Included Installation Instructions

• Before attempting to connect or operate this product, please read these instructions carefully and

save this manual for future use.

• Before reading this manual, be sure to read the Important Information(included in the CD-ROM).

• For information about how to perform the settings and how to operate the camera, refer to the

Operating Instructions on the provided CD-ROM.

• The model number is abbreviated in some descriptions in this manual.

For U.S. and Canada:

Panasonic System Communications

Company of North America,

Unit of Panasonic Corporation

of North America

www.panasonic.com/business/

For customer support, call 1.800.528.6747

Two Riverfront Plaza, Newark, NJ 07102-5490

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga,

Ontario, L4W 2T3 Canada

(905)624-5010

www.panasonic.ca

For Europe and other countries:

Panasonic Corporation

http://www.panasonic.com

Panasonic Corporation

Osaka, Japan

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation 2017

The model number and serial number of this

product may be found on the surface of the unit.

You should note the model number and serial

number of this unit in the space provided and

retain this book as a permanent record of your

purchase to aid identification in the event of

theft.

Model No.

Serial No.

NOTE: This equipment has been tested and found

to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial environ-

ment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed

and used in accordance with the instruction man-

ual, may cause harmful interference to radio com-

munications.

Operation of this equipment in a residential area is

likely to cause harmful interference in which case

the user will be required to correct the interfer-

ence at his own expense.

FCC Caution: To assure continued compliance,

(example - use only shielded interface cables

when connecting to computer or peripheral devic-

es). Any changes or modifications not expressly

approved by the party responsible for compliance

could void the user’s authority to operate this

equipment.

For U.S.A.

CAN ICES-3(A)/NMB-3(A)

For Canada

WARNING:

• To prevent injury, this apparatus must be secure-

ly attached to the wall/ceiling in accordance with

the installation instructions.

• All work related to the installation of this product

should be made by qualified service personnel

or system installers.

• The installation shall be carried out in accor-

dance with all applicable installation rules.

• The connections should comply with local elec-

trical code.

• This equipment is compliant with Class A of

CISPR 32. In a residential environment this

equipment may cause radio interference.

• Batteries (battery pack or batteries installed)

shall not be exposed to excessive heat such as

sunlight, fire or the like.

CAUTION:

• Any changes or modifications not expressly

approved by the party responsible for compli-

ance could void the user’s authority to operate

the equipment.

• The network camera is only intended for a con-

nection to an ethernet or PoE+ network without

routing to the outside plant.

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used

electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them

to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential

negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national

legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the

requirement set by the Directive for the chemical involved.

: Direct current symbol

: Alternating current symbol

Important safety instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

7) Only use attachments/accessories specified by the manufacturer.

8) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury

from tip-over.

S3125A

9) Unplug this apparatus during lightning storms or when unused for long periods of time.

10) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally,

or has been dropped.

Troubleshooting

Open Source Software

• This product contains open source software licensed under GPL (GNU General Public License), LGPL

(GNU Lesser General Public License), etc.

• Customers can duplicate, distribute and modify the source code of the software under license of GPL and/

or LGPL.

• Refer to the “readme.txt” file on the provided CD-ROM for further information about open source software

licenses and the source code.

• Please note that Panasonic shall not respond to any inquiries regarding the contents of the source code.

Before requesting service, refer to the Important Information (included in the CD-ROM) and “Troubleshooting”

in the Operating Instructions (included in the CD-ROM) and confirm the trouble.

The following notations are used when describing the functions limited for specified models. The functions

without the notations are supported by all models.

X6531

X6531 :The functions with this notation are available when using the model WV-X6531N.

X6511 :The functions with this notation are available when using the model WV-X6511N.

S6530 :The functions with this notation are available when using the model WV-S6530N.

About notations

Preparations

Other items that are needed (not included)

Prepare the required parts for each installation method before starting the installation. The following

are the requirements for the various installation methods.

Installation method

Mounting

screw

Minimum pull-out

strength*

AWhen hanging the camera from ceiling

Use the ceiling mount bracket (WV-Q121B

*2).

M10 screws/

4pcs.

1411 N {317 lbf}

BWhen installing the camera on a wall

Use the wall mount bracket (WV-Q122A*2).

M10 screws/

4pcs.

823 N {185 lbf}

IMPORTANT:

• Prepare four mounting screws (M10) to be mount-

ed on ceiling and wall separately.

• Select screws according to the material of the

location that the camera will be mounted to. In this

case, wood screws and nails should not be used.

• If the mounting location such as plaster board is

too weak to support the total weight, the area shall

be sufficiently reinforced.

IMPORTANT:

• The mount bracket (locally procured) should have the configuration that enables

fixation of safety wire from camera.

⇒Go to Step 1 【1】

WV-Q122AWV-Q121B

A B

Preparations before installation

【1】

Prepare the cables from camera side.

◆ When the only necessary connection to

camera is an Ethernet cable

Use only RJ45 network cable coming from camera.

Do not remove the cable case. Use it as it is.

◆When using 24 V AC, EXT I/O device, or

audio I/O device

Remove the cable case fixed by five screws on the

upper part of camera and pull out power cable,

audio I/O cable, and alarm I/O cable stored in it.

Note:

• Do not use the removed cable case and five

screws.

RJ45 (female)

Network

cable

Alarm input/

output·

Audio input/

output cable

Power

cable

Cable case

Main sunshield

rear cover

【2】Insert an SD memory card (locally

procured) as occasion demands.

* SDXC/SDHC/SD memory card is described as

SD memory card.

Insert an SD memory card following the procedure

shown below. For the detailed procedure, refer to

Important Information on the provided CD-ROM.

① Remove the main sunshield rear cover.

② Loosen two locking screws of water-resistant

cap and pull the water-resistant cap and

toward you.

③ Insert an SD memory card into the SD

memory card slot.

④ Attach water-resistant cap and sunshield rear

cover to the original position in order.

Recommended tightening torque of the water-

resistant cap locking screws:

0.69 N·m {0.51 lbf·ft}

SD memory

card slot

SD memory

card (with

label side

facing down)

Water-resistant cap

*1 The minimum pull-out strength is the value per screw.

*2 For details on procedure for attaching mount bracket

and camera, read the operating instructions of each

mount bracket.

◆When using Q121B (option) or Q122A (option)

⇒Go to Step 1

【3】

◆When using the mount bracket (locally procured).

Prepare a mount bracket.

The following ﬁgure shows an example of the camera mounted on a ceiling with a bracket.

R 1-1/2, 11crest, deep 30 MAX

(taper pipe thread)

RP 1-1/2, 11 crest,

deep 30 MAX

(parallel pipe thread)

60 mm {2-3/8 inches} 25 mm {31/32 inches}

85 mm {3-11/32 inches}

(ﬂ58)

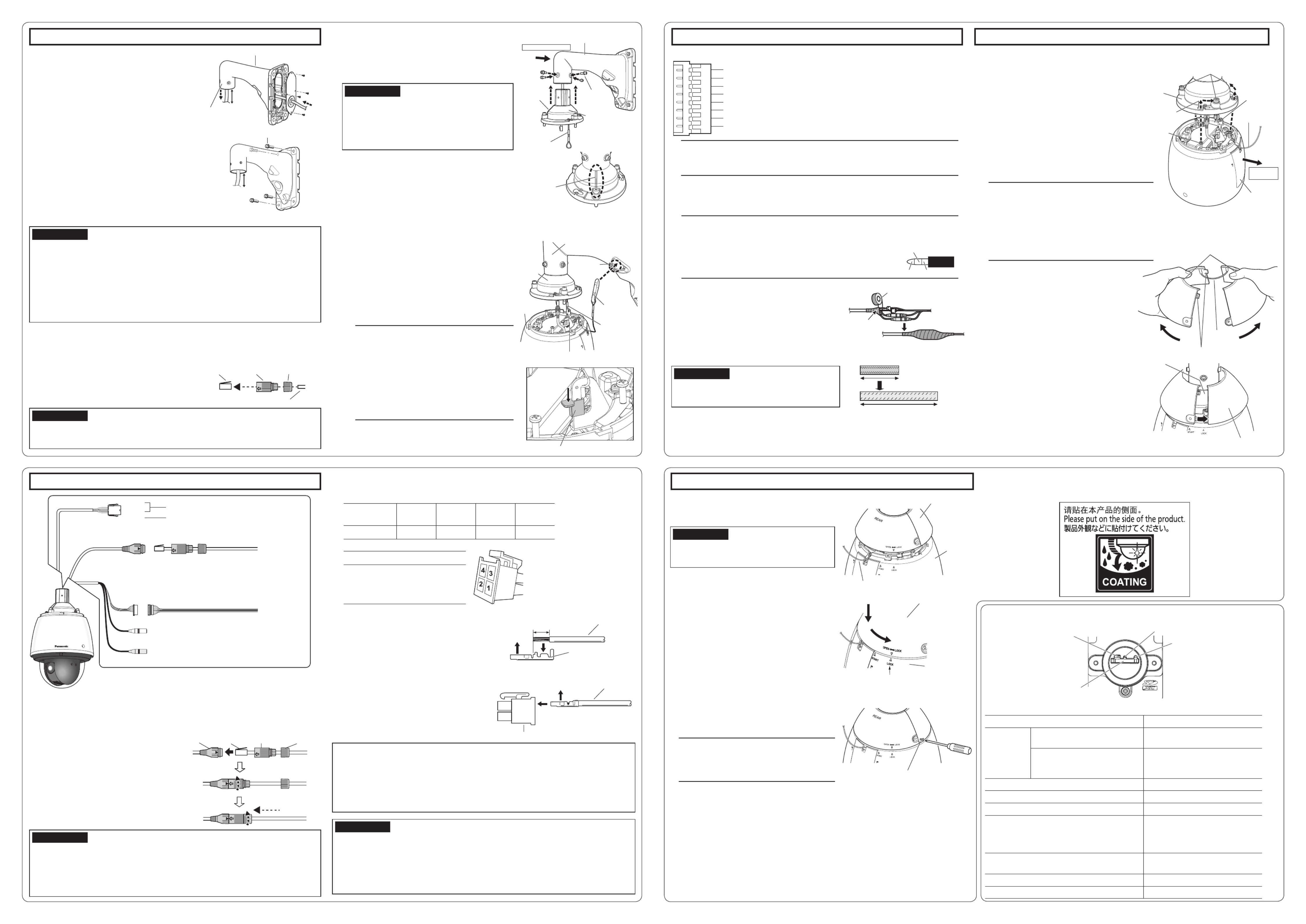

Installation

The installation tasks are explained using 4 steps.

⇨⇨

⇨

Step1

Fix the mount bracket

and hang the camera

Step4

Congure the network

settings

• Remove the camera using the reverse order of the installation procedures.

IMPORTANT:

• After waterproofing the hole for fixing mount

bracket and the port for pulling out the cable

on the installation surface, fix the mount

bracket on the installation surface.

• Adjust the length of cable from camera

attachment port of attachment pipe to cable

end to 150~160mm {5-29/32 inches~6-5/16

inches}. (If the cable that is pulled out is too

long, storage after wiring becomes difficult.

Adjust the cable length carefully.)

• For the number of fixing screws and the

minimum pull-out strength (per 1 pc.), refer to

the operating instructions of mount bracket

(locally procured).

• Ensure the minimum pull-out strength (per

1 pc.) that has sufficient allowance for total

mass of mount bracket (locally procured),

attachment pipe, and camera etc.

⇒Go to Step 1 【】5 .

Step1 Fix the mount bracket and hang the camera

The following explains an example of installation using mount

bracket (locally procured).

The right figure shows an example of the camera mounted on a ceiling with a

mount bracket (locally procured).

When waterproofing, use waterproof material to fill in gaps and holes

between the attachment pipe and the mount bracket.

【1】Fix the attachment pipe (accessory) to the mount bracket

(locally procured).

① Fix the attachment pipe to the mount bracket.

② Fill the gap between the mount bracket and attachment pipe with

waterproof material (locally procured) such as silicon clay.

③ Pass the cables from the ceiling through the mount bracket.

【2】

Fix the mount bracket (locally procured) on the installation surface.

Fix a mount bracket to the installation surface on the ceiling by using appropriate bolts,

nuts or the like (locally procured).

150~160mm

{5-29/32 inches~

6-5/16 inches}

About the user manuals

Product documentation is composed of the following documents.

• Installation Guide (this document and additional leaflet): -Explains installation, mounting, cable connec

tions, and network connections. This manual uses the WV-X6531N as an example in the explanations.

• Important Information (included in the CD-ROM):

Provides basic information about the product.

• Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate

this camera.

Adobe® Reader® is required to read these operating instructions on the provided CD-ROM.

When the Adobe Reader is not installed on the PC, download the latest Adobe Reader from the Adobe web site

and install it.

The external appearance and other parts shown in this manual may differ from the actual product within the

scope that will not interfere with normal use due to improvement of the product.

Standard accessories

Installation Guide

(this document and additional leaflet) 1 pc.

..................

IMPORTANT SAFETY INSTRUCTIONS 1 pc.

...............

Warranty card 1 pc.

.....................................................

CD-ROM*1 .......................................................... 1 pc.

Code label*2 ........................................................ 1 pc.

*1 The CD-ROM contains the operating instructions and different kinds of tool software programs.

*2 This label may be required for network management. Use caution not to lose this label.

Waterproof tape

*3 The screws are necessary when installing the camera on a separately sold mount bracket.

Cable cover 1 pc.

........................................................

Attachment pipe 1 pc.

.................................................

Front/rear sunshields 1 set ...........................................

Front/rear sunshields fixing screw

........................................ 2 pcs. (of them, 1 for spare)

Waterproof tape 1 pc.

..................................................

RJ45 waterproof connector cover 1 pc.

......................

RJ45 waterproof connector cap 1 pc. .........................

8P alarm cable 1 pc.

...................................................

24 V AC power supply connector kit 1 set ....................

(Power supply connector housing: 1 pc., Contact: 3 pcs.)

Hexagon screw (M5)*3 ........................................5 pcs.

(of them, 1 for spare)

Rain wash coating caution label 1 pc. ...........................

The following parts are used during installation procedures.

＊ For step 4, refer to

other leaﬂet

⇨ ⇨

②

150~160mm

{5-29/32 inches~

6-5/16 inches}

③①

Attachment pipe

(accessory)

Mount bracket

(locally procured)

Waterproof

material

Please read "Precautions for installation" of "Important Information" in the

provided CD-ROM closely before starting installation/connection of the camera.

Attachment

pipe

(accessory)

Produkt Specifikationer

Mærke:	Panasonic
Kategori:	Overvågningskamera
Model:	WV-X6511N
Kode for international beskyttelse (IP):	IP66
Type:	IP-sikkerhedskamera
Vekselstrømsindgangsspænding:	24 V
Højde:	393 mm
Vægt:	5200 g
Produktfarve:	Black,Grey
Kompatible hukommelseskort:	SD,SDHC,SDXC
Wi-Fi:	Ingen
Bluetooth:	Ingen
Formfaktor:	Kuppel
Understøttede videotilstande:	720p
Relativ luftfugtighed ved drift (H-H):	10 - 100 %
Ethernet LAN:	Ja
Understøttede videoformater:	H.264,H.265
Understøttede lydformater:	AAC-LC,ADPCM,G.711,G.726
Strømforbrug (typisk):	55 W
Driftstemperatur (T-T):	-50 - 60 °C
Maksimal opløsning:	1280 x 960 pixel
Husmateriale:	Aluminium
Understøttelse af sprog:	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,POR,RUS
Understøttede grafikopløsninger:	320 x 180,400 x 300,640 x 360,800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960
Forbindelsesteknologi:	Ledningsført
Kabelteknologi:	10/100Base-T(X)
Understøttede netværksprotokoller:	TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Strømkilde type:	AC,PoE
Monteringstype:	Loft/væg
Diameter:	229 mm
Indbygget kortlæser:	Ja
Indbygget HDD:	Ingen
Video komprimeringsformater:	H.264,H.265
Understøttet placering:	Indendørs
Antal brugere:	14 bruger(e)
Mikrofonindgang:	Ja
Hvidbalance:	Automatisk
Sensortype:	MOS
Samlet antal megapixels:	1.3 MP
Optisk zoom:	40 x
Digital zoom:	16 x
Grænseflade:	RJ-45
Hældningsvinkelområde:	-15 - 195 °
Voice codecs:	G.711,G.726
Infrarød (IR) cut-off filter:	Ja
IK kode:	IK10
Minimumsbelysning:	0.0003 Lux
Antal sensorer:	1
Optisk sensorstørrelse:	1/2.8 "
Zoom kapacitet:	Ja
Maksimale blænderåbning tal:	1.6
Nattesyn:	Ja
Billedhastighed:	60 fps
Justering af billedkvalitet:	Lysstyrke
Ethernet-grænsefladetype:	Hurtigt ethernet
Bevægelsessensor (video):	Ja
Antal kameraer:	1
Vekselstrømsadapterens udgangsstrøm:	3.4 A
Brændviddeområde:	4.25 - 170 mm
Kameraets lukkerhastighed:	1/30 - 1/10000 sek./side
PTZ-kontrol:	Ja
Hældningshastighed:	120 grader i sekundet
Panoreringshastighed:	360 grader i sekundet
Beskyttelse af privatlivets fred:	Ja
Dynamisk interval:	144 dB
Forudindstillede punkter:	Ja
Automatisk forstærkningskontrol:	Ja
Strømforbrug (Power over Ethernet (PoE)):	60 W
Antal sprog:	9
Objektivets synsvinkel, vandret:	65 °
Alarmindgang/-udgang:	Ja
Objektivets synsvinkel, lodret:	39 °
Forudindstillet hastighed:	300 grader i sekundet
PTZ-tilstande:	Forudindstillet punkt
Tilt forudindstillet hastighed:	300 grader i sekundet
