Pioneer HTP-3600 Manual

Pioneer Modtager HTP-3600

Læs nedenfor 📖 manual på dansk for Pioneer HTP-3600 (3 sider) i kategorien Modtager. Denne guide var nyttig for 20 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere

Side 1/3
1
RECEIVER
+
+
++
+
BASS
OFF SOUND TONE
MPX
AUTO
ROOM
SETUP TEST
TONE
SYSTEM
SETUP CH LEVEL
TUNING STATION
FM/AM TAPE/VCR TV CLASS
DIGITAL
INPUT SELECT OR
STB DVD/DVR
TUNER
EDIT
SLEEP STATUS DIMMER
STANDBY/ON MUTE
SURROUND
ENTER
VOLUME
STEREO
TREBLE
Check that you have all the
accessories.
Speaker cord (x6)
FM wire antenna
AM loop
antenna Non-skid pads (1x12)
Batteries (x2)
Remote control
* Before placing the speakers,
please refer to the speaker
manual for detailed assembly
instructions. Also check the
speaker manual for a complete
list of supplied accessories.
You should also have:
• Speakers*
• Subwoofer
• Operating instructions
• Warranty card
2
Surround speakers Center speaker
Put the batteries in the remote
control and stick the non-skid pads
to the base of the speakers.
1
Open the battery compartment on
the rear of the remote control.
Insert the supplied batteries
following the markings inside the
battery compartment to align
them correctly.
Replace the battery compartment
cover.
Stick the self-adhesive non-skid
pads to the underside of each
speaker. Use four pads per
speaker. Make sure to use a stable
surface when doing this, and lay
the speakers flat on their side.
2
3
4
5
DIGITAL
OUT
+
+
DIG ITAL IN PUT
(C OAXIAL)
DVD/D VR
OUT
R L
IN
T V IN
AUDIO
AUDIO
OUT
VIDEO
IN
VIDEO
OUT
RL
Connect the receiver to your DVD
player/ recorder.
1
Use a coaxial digital cord (not supplied) to connect the digital
output of your DVD player/ recorder to the DIGITAL INPUT
(COAXIAL) DVD/DVR jack.
2
Use a red/white stereo audio cord (not supplied) to connect the
AUDIO TV IN jack on the receiver to the audio output on your
TV.* This will allow you to listen to your TV through this
speaker system.
* Note that you must also connect the DVD player/ recorder's
video output to your TV's video input to watch a DVD video
(video cable is not supplied).
DVD player/ recorder
Receiver
TV
ANT EN NA
FM
UNBAL
75
AM
LOOP
AM loop
antenna
FM wire antenna
3/8 in.
(10mm)
4
Connect antennas
1
Connect the FM wire antenna and fully extend along a
window frame or another suitable place that gives good
reception.
2
To connect the AM loop antenna, twist the exposed wire
strands together and insert into the terminal, then snap
the connector shut as shown below.
Receiver
6
VIDEO 1
ST ANDBY/O N
STANDBY/ON
STANDBY/ON
STANDBY/ON
VIDEO SELECT
Plug the receiver, DVD player/
recorder and TV into a convenient
AC outlet.
1
Press STANDBY/ON to switch on the receiver.
2
Switch on your DVD player/ recorder and TV, and set the TV to
the correct video input.
DVD player/ recorder
Receiver
TV
7
+
VOLUME AUTO SURROUND STEREO
FM/AM TAPE/VCR TV
DIGITAL
INPUT SELECTOR
STB DVD/DVR
After switching on, make any
necessary settings required by the
DVD player/ recorder, then you're
ready to start enjoying your home
theater system.
Refer to the receiver's operating instructions for a detailed
explanation of this system's surround sound features.
HTP-3600 Quick Start Guide
For detailed instructions, see the Operating Instructions supplied and / or contact one of our knowledgeable Pioneer Customer Service Representatives at 1 - (800) 421-1404.
3

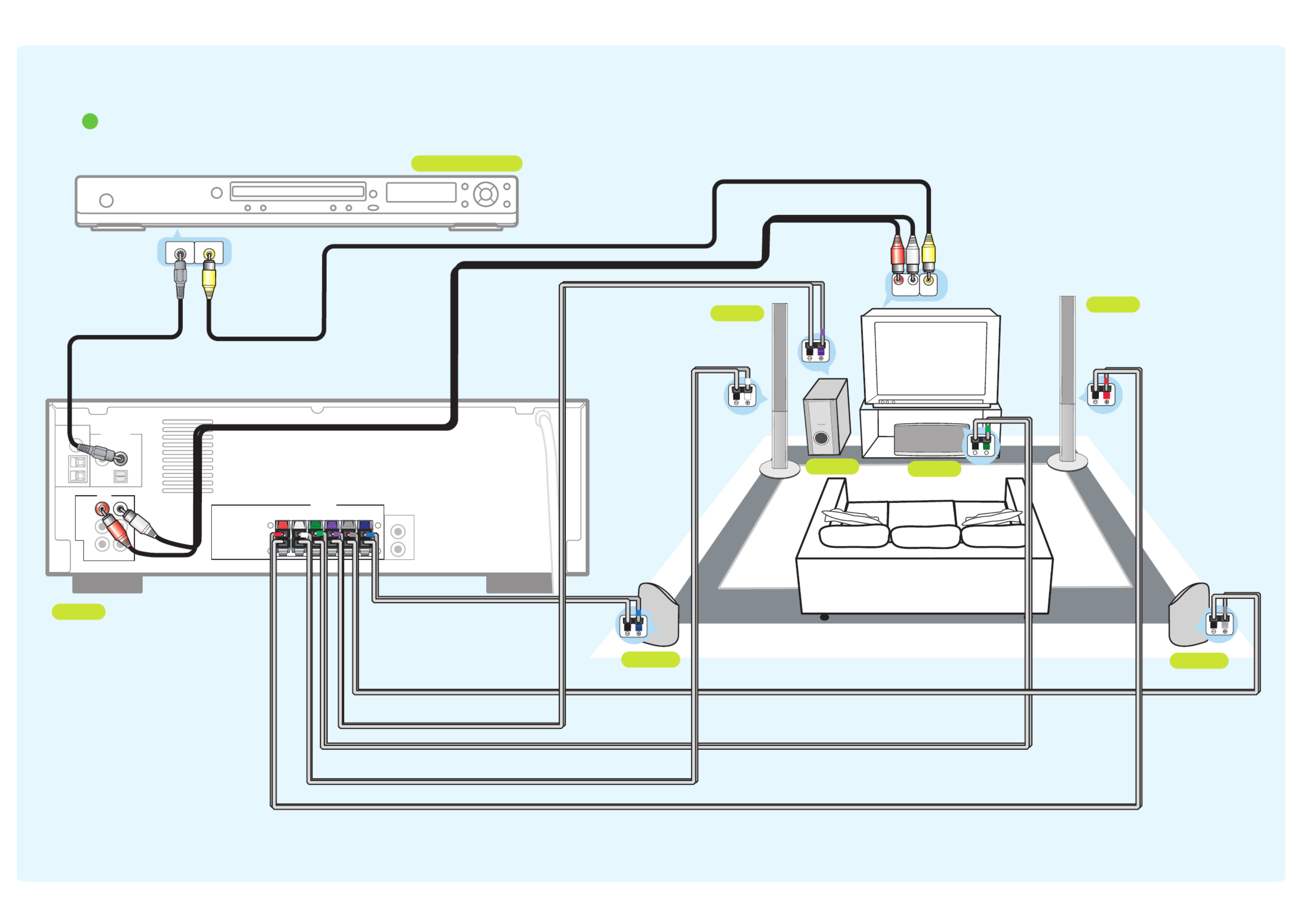

For the best surround sound, set up your
speakers like this. The front left and right
speakers should be about 6–9 feet apart.
Connect each speaker to the receiver using the
supplied speaker wires.
To connect, insert the colored wire into the matching colored
( ) tab and the other wire into the black ( ) tab as shown below.+
Note that the color-coded tabs are as follows:
Red : Front right speaker SubwooferPurple :
Front left speaker White : Grey : Surround right speaker
• • Center speaker Green : Surround left speakerBlue :
Listening position
SPEAKERS
+
+
R L R L
CENT ER
SUB
WOOFER
FRONT
SURROUND
Front left
Front right
Surround left
Surround right
Center
Subwoofer
Receiver
