Side 1/20
Single-Port 10/100/1000Mbps
802.3bt PoE Injector
POE-171A Series
Users Manual
Copyright
Copyright © 2018 by PLANET Technology Corp. All rights
reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any
form or by any means, electronic, mechanical, magnetic,
optical, chemical, manual or otherwise, without the prior written
permission of PLANET.
PLANET makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and
specically disclaims any warranties, merchantability or tness
for any particular purpose. Any software described in this
manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not PLANET,
its distributor, or its dealer) assumes the entire cost of all
necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software. Further,
PLANET reserves the right to revise this publication and to
make changes from time to time in the contents hereof without
obligation to notify any person of such revision or changes.
All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective
holders.
Trademarks
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will
work properly in all environments and applications, and makes
no warranty and representation, either implied or expressed,
with respect to the quality, performance, merchantability, or
tness for a particular purpose.
PLANET has made every effort to ensure that this User’s Manual
is accurate; PLANET disclaims liability for any inaccuracies
or omissions that may have occurred. Information in this
User’s Manual is subject to change without notice and does
not represent a commitment on the part of PLANET. PLANET
assumes no responsibility for any inaccuracies that may be
contained in this User’s Manual. PLANET makes no commitment
to update or keep current the information in this User’s Manual,
and reserves the right to make improvements to this Users
Manual and/or to the products described in this User’s Manual,
at any time without notice. If you nd information in this
manual that is incorrect, misleading, or incomplete, we would
appreciate your comments and suggestions.
FCC Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
Instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference, in which case the user
may be required to take adequate measures.
WEEE Warning
To avoid the potential effects on the environment
and human health as a result of the presence of
hazardous substances in electrical and electronic
equipment, end users of electrical and electronic
equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted
municipal waste and have to collect such WEEE separately.
Revision
PLANET POE-171A Series User’s Manual
Model: POE-171A-60, POE-171A-95
Revision: 1.1 (May, 2018)
Part No.: 2350-AF0620-001
Table of Contents
1. Package Contents ............................................................. 5
2. Product Features............................................................... 6
3. Product Specications .......................................................7
4. Product Outlook .............................................................. 10
5. Hardware Installation ...................................................... 14
5.1 Before Installation .................................................... 14
5.2 POE-171A series Installation ..................................... 14
5.3 POE-171A Series and POE-172S Installation ............... 15
5.4 POE-171A Series and POE-E304 Installation ............... 17
Customer Support ............................................................... 19
5

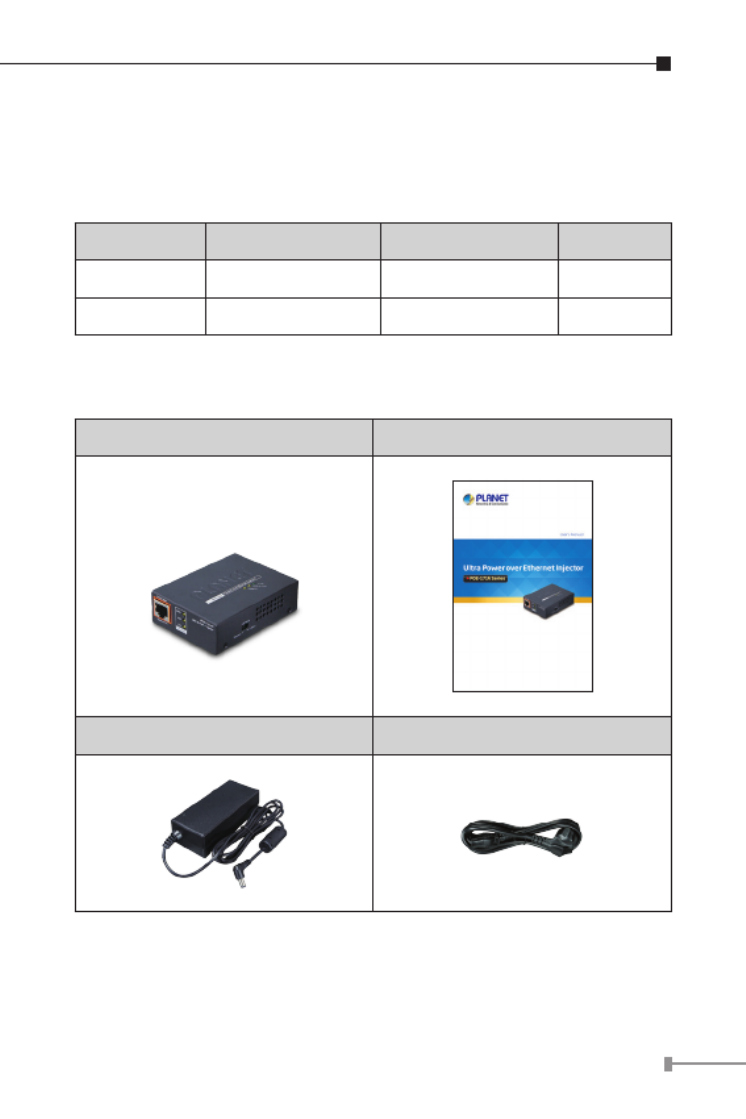

1. Package Contents
Thank you for purchasing PLANET POE-171A Single-port
10/100/1000Mbps series
Model LAN Port Speed PoE Standard PoE Budget
POE-171A-60 10/100/1000Mbps IEEE 802.3af/at/bt 60 watts
POE-171A-95 10/100/1000Mbps IEEE 802.3af/at/bt 95 watts
Please unpack the box of the device carefully, and the box
should contain the following items:
802.3bt PoE injector x 1 User’s manual x 1
Power adaptor x 1 AC power cord x 1
If any item is found missing or damaged, please contact your
local reseller for replacement.
6
2. Product Features
Interface
2 RJ45 interfaces
¾1-port Data + Power output
¾1-port Data input
1 DC 52~56V input power socket
1 PoE mode (Standard/Legacy) DIP switch
Power over Ethernet
Complies with IEEE 802.3af/at/bt PoE end-span/mid-span
PSE
Supports PoE power up to 60/95 watts for PoE port
Auto-detection of PoE IEEE 802.3af/at/bt equipment and
devices from being damaged by incorrect installation
Monitor the status of the total PoE usage in real time
Remote power feeding up to 100m
Auto-detection of DC input voltage
Note
PSE (power sourcing equipment) is a device
(switch, or hub for instance) that will provides
power in a PoE setup. Maximum allowed contin-
uous output power per such device in IEEE
802.3af is 15.4W, and in IEEE 802.3at is 30W.
PD (powered device) is a PoE-enabled terminal,
such as PoE IP phone, PoE IP camera, or PoE
wireless access point, whose power is supplied by
a PSE.
7
3.ProductSpecications
Product POE-171A-60 POE-171A-95
Hardware Specications
Interface
Input Port 1 x RJ45 STP
Data In
Output
Port
1 x RJ45 STP
PoE (Data + Power) Out
DC Socket 1 x 52~56V DC input socket
Network Cable*
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat5, 5e, 6
1000BASE-T: 4-pair UTP Cat5e, 6
LED Indicator
System: Power x 1 (Green)
PoE Port: PoE-in-Use x 1 (Orange)
Legacy Mode: Legacy x 1 (Orange)
PoE Usage: PoE Usage x 3 (Orange)
Data Rate 10/100/1000Mbps
Dimensions
(W x D x H) 94 x 70.3 x 26.2 mm
Weight 200g 250g
Unit Output Voltage DC 52~56V
Power Requirements DC 52-56V, 1.4A
max.
DC 52-56V, 2.5A
max.
Power Consumption 72 watts max. 130 watts max.
No. of Devices that
can be powered 1
Power over Ethernet
PoE Standard IEEE 802.3af/at/bt Ultra PoE PSE
8
PoE Power Output
Budget
DC 54V / 60-watt
PoE via 4-pair
DC 54V / 30-watt
PoE via 2-pair
DC 54V / 95-watt
PoE via 4-pair
DC 54V / 30-watt
PoE via 2-pair
PoE Power Output
Max. 60W for 1 m
cable
Max. 52W for 100
m cable
Max. 89.5W for 1 m
cable
Max. 72W for 100
m cable
PoE Power Supply
Type End-span + Mid-span
Power Pin Assignment Pair 1 End-span: 1/2 (-), 3/6 (+)
Pair 2 Mid-span: 4/5 (+), 7/8 (-)
PoE Mode
Standard: To provide power to the PD
devices that follow the IEEE 802.3af/at/bt
standard.
Legacy: To provide power to the PD devices
that do not fully follow the IEEE 802.3af/at/
bt standard.
Standards Conformance
Standards Compliance
IEEE 802.3 10BASE-T
Ethernet
IEEE 802.3u
100BASE-TX Fast
Ethernet
IEEE 802.3ab
1000BASE-T Gigabit
Ethernet
IEEE 802.3bt 4-pair
Power over Ethernet
IEEE 802.3at Power
over Ethernet Plus
IEEE 802.3af Power
over Ethernet
IEEE 802.3 10BASE-T
Ethernet
IEEE 802.3u
100BASE-TX Fast
Ethernet
IEEE 802.3ab
1000BASE-T Gigabit
Ethernet
IEEE 802.3bt 4-pair
Power over Ethernet
(Type 4)
IEEE 802.3at Power
over Ethernet Plus
IEEE 802.3af Power
over Ethernet
9
Regulatory
Compliance FCC Part 15 Class A, CE
Environment
Operating
Temperature 0 ~ 50 degrees C
Storage Temperature -10 ~ 70 degrees C
Operating Humidity 5 ~ 90%, relative humidity, non-condensing
Storage Humidity 5 ~ 90%, relative humidity, non-condensing
Caution
1. As the IEEE 802.3bt device provides high
power, please use high-quality network cable
and RJ45 connector.
2. The maximum PoE output power depends on
the cable length, the quality of cable, and DC
input voltage.
10

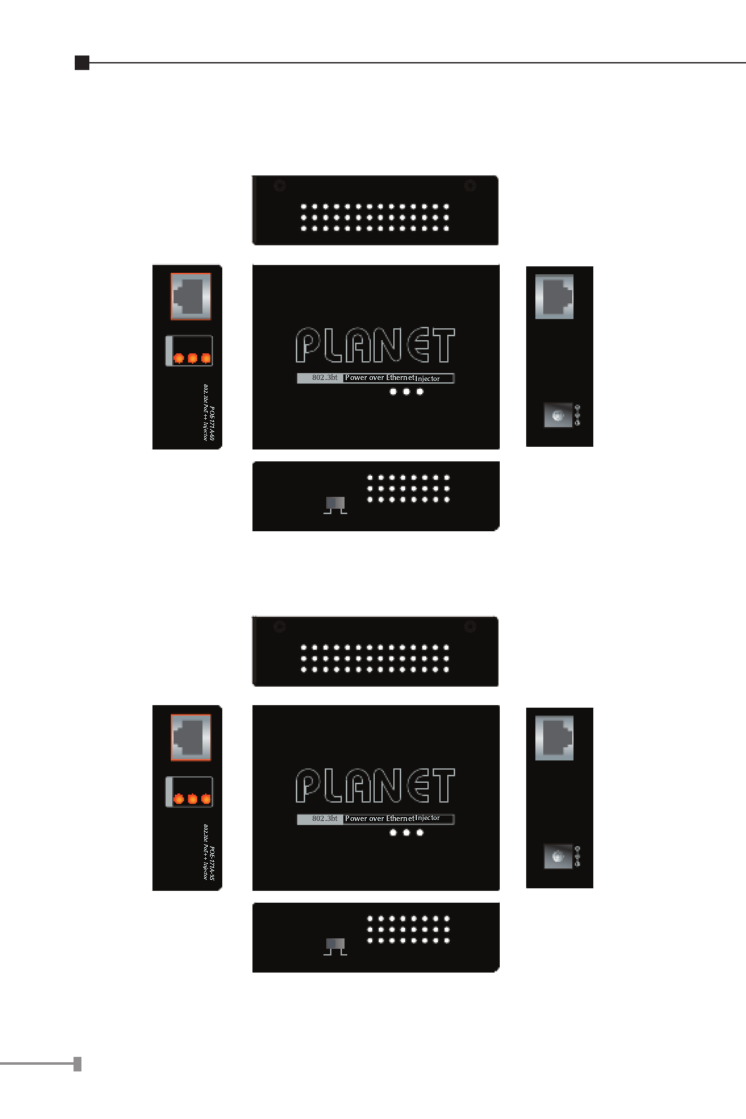

4. Product Outlook
Standard Legacy
PoE Mod e
Ethernet+DC
10/100/1000T
60W+
40W
20W
PoE Usage
PWR
PoE-in-Use
Legacy
Ethernet
10/100/1000T
52~56V DC IN
Figure 1: POE-171A-60 Outlook
Ethernet+DC
10/100/1000T
90W+
60W
30W
PoE Usage
PWR
PoE-in-Use
Legacy
Ethernet
10/100/1000T
52~56V DC IN
Standa rd Legacy
PoE Mod e
Figure 2: POE-171A-95 Outlook
11
LED Indicators:
LED Color Function
PWR Green Lights to indicate the 802.3bt PoE injector
has power.
PoE-in-Use Orange Lights to indicate the device is providing
PoE power.
Legacy Orange Lights to indicate the device is working in
Legacy mode.
PoE Usage Orange PoE Usage LED can monitor the DC input
voltage or the status of the power usage.
Detection of DC input voltage of POE-171A series:
When user powers on the POE-171A injector via the DC adapter,
the injector will detect the DC input voltage and then PoE Usage
LED will ash three times.
LED Description
20W/30W Flashing three times means the DC input voltage
is 48~51V.
40W/60W Flashing three times means the DC input voltage
is 52~54V.
60W+/90W+ Flashing three times means the DC input voltage
is 55~56V.
12
Monitoring of power usage of POE-171A-60:
LED Description
20W
1. Off to indicate the PoE usage is less than 9W
2. Blinks to indicate that the PoE usage is around 10W
to 19W.
3. Lights to indicate the PoE usage is around 20W to
29W.
40W
1. Blinks to indicate that the PoE usage is around 30W
to 39W.
2. Lights to indicate the PoE usage is around 40W to
49W.
60W+
1. Blinks to indicate that the PoE usage is around 50W
to 59W.
2. Lights to indicate the PoE usage is maximum.
Monitoring of power usage of POE-171A-95:
LED Description
30W
1. Off to indicate the PoE usage is less than 14W.
2. Blinks to indicate that the PoE usage is around 15W
to 29W.
3. Lights to indicate the PoE usage is around 30W to
44W.
60W
1. Blinks to indicate that the PoE usage is around 45W
to 59W.
2. Lights to indicate the PoE usage is around 60W to
74W.
90W+
1. Blinks to indicate that the PoE usage is around 75W
to 89W.
2. Lights to indicate the PoE usage is maximum.
13
PoE Mode:
PoE Mode Description
Standard Fully conforms to the IEEE 802.3af/at/bt standard.
Legacy
The legacy detection is to identify the valid current
signature of the PDs that do not fully follow the
IEEE 802.3af/at/bt standard. This protects against
damage to the PDs as the right PoE mode is
applied.
Note
After changing the PoE mode, please power off
and then on the PoE injector to make the change
effective.
14
5. Hardware Installation
The following section describes the hardware features of the
POE-171A series. Before connecting any network device to it,
please read this chapter carefully.
5.1 Before Installation
Before your installation, it is recommended to check your
network environment. If there is any IEEE 802.3bt device that
needs to be powered on and works normally, the POE-171A
series provides you with a way out to supply power to this
Ethernet device conveniently and easily. The POE-171A series is
equipped with a power adaptor which is 100-240V AC input and
injects DC 52~56V power into the pin of the twisted pair cable
(pair 1/2 [-], 3/6 [+] and pair 4/5[+], 7/8[-]).
5.2 POE-171A series Installation
1. Connect the AC power adaptor to the of “52-56V DC IN
the POE-171A series; the LED will be steadily on.“PWR
2. Connect a standard Ethernet cable from an Ethernet switch
or PC workstation to the port of the POE-171A “Ethernet”
series.
3. Connect the long cable to the port.“Ethernet+DC”
4. The POE-171A series, adopting the IEEE 802.3af/at/bt tech-
nology, can directly connect with any IEEE 802.3af/at/bt end-
nodes, such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ
speed dome cameras, color touch screen, Voice over IP (VoIP)
telephones and multi-channel wireless LAN access points. The
screen in Figure 3 appears.
15
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE
PoE PTZ
IP Camera
100 meters
802.3bt PoE Injector
POE-171A-60
Switch
AC-to-DC Adapter
110-240V AC
Figure 3: Architecture of Connected IEEE 802.3af/at/bt Devices
Once the POE-171A series detects the existence of an IEEE
802.3af/at/bt device, the LED indicator will be PoE-in-Use
steadily on to show it is providing power.
Note
Since the PoE port of the POE-171A series
supports 52-56V DC PoE power output, please
check and assure the PD accepts DC power range
of 52-56V DC. Otherwise, it will damage the PD.
5.3 POE-171A Series and POE-172S Installation
Note
Please turn off the POE-172S before you switch to
DC power output mode.
1. Adjust a proper DC power output and connect the DC plug
from the of the POE-172S to a remote device."DC OUT"
2. Connect the power adaptor to the of the “52-56V DC IN
POE-171A series; the LED will be steadily on.“PWR
16
3. Connect a standard Ethernet cable from the “Ethernet+DC
port of the POE-171A series to the port of the POE-“PoE In”
172S. The and LEDs of the POE-172S and “30W” “60W+”
the “PoE-in-Use” of POE-171A series will light up continu-
ously.
4. Connect a standard Ethernet cable from an Ethernet switch
or PC workstation to the port of the POE-171A “Ethernet”
series.
5. Connect a standard Ethernet cable from the port “Ethernet”
of the POE-171S to a remote Ethernet device.
6. The remote device will be turned on.
12V/19V/24V
100 meters
PoE
DC
Digital
Signage
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
DC
Power Line (DC)
Ultra PoE Splitter
802.3bt PoE Injector
60 watts
POE-171A-60
POE-172S
Switch
AC-to-DC Adapter
110-240V AC

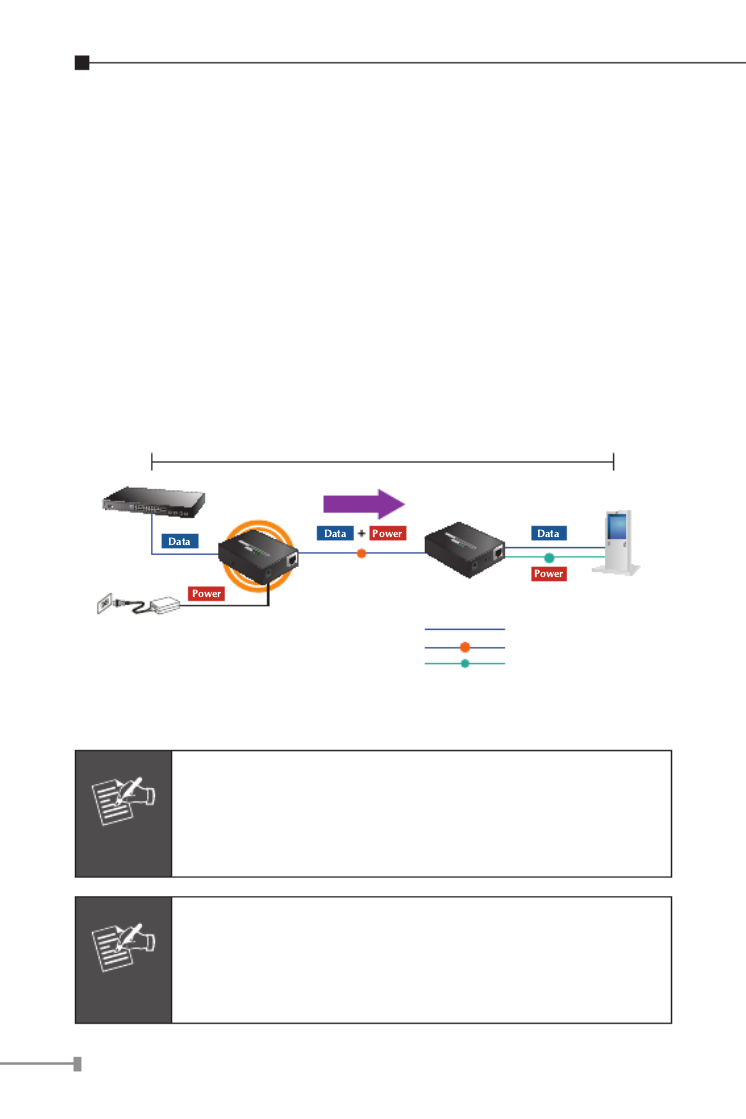

Figure 4: Architecture of Connected POE-171A series and POE-172S
Note
According to IEEE 802.3af/at/bt Power over
Ethernet, the POE-171A series will not inject
power to the cable if not connected to IEEE
802.3af/at/bt device.
Note
Please ensure the POE-172S output voltage is
correct before applying power to remote device.
The POE-172S provides DC12V/19V/24V power
output.
17
5.4 POE-171A Series and POE-E304 Installation
1. Connect the power adaptor to the of the “52-56V DC IN
POE-171A series; the LED will be steadily on. “PWR
2. Connect a standard Ethernet cable from the “Ethernet+DC
port of the POE-171A series to the port of the “PoE IN”
POE-E304.
3. The POE-171A series delivers both Ethernet Data and PoE
power over UTP cable to the POE-E304 and the POE-in-
Use “PWRLED of the POE-171A series and the LED of the
POE-E304 will light up continuously.
4. Connect the additional standard Ethernet cable that will be
used for connecting to the remote PD to the port “PoE OUT
of the POE-E304.
5. The "PoE OUT" port is also the power injection which trans-
mits DC voltage to the standard network cable and transfer
data and power simultaneously between the POE-171A series
and PD.
6. Once the POE-E304 detects the existence of an IEEE 802.3af/
at device, the LED indicator will be steadily ON to “PoE OUT”
show it is providing power.
Ultra
PoE Extender
PoE
100 meters
100 meters
200 meters
1000BASE-T UTP
PoE
1000BASE-T UTP with PoE
PoE IP Camera
Switch
POE-171A-60
PoE
PoE
PoE
PoE
AC-to-DC Adapter
110-240V AC

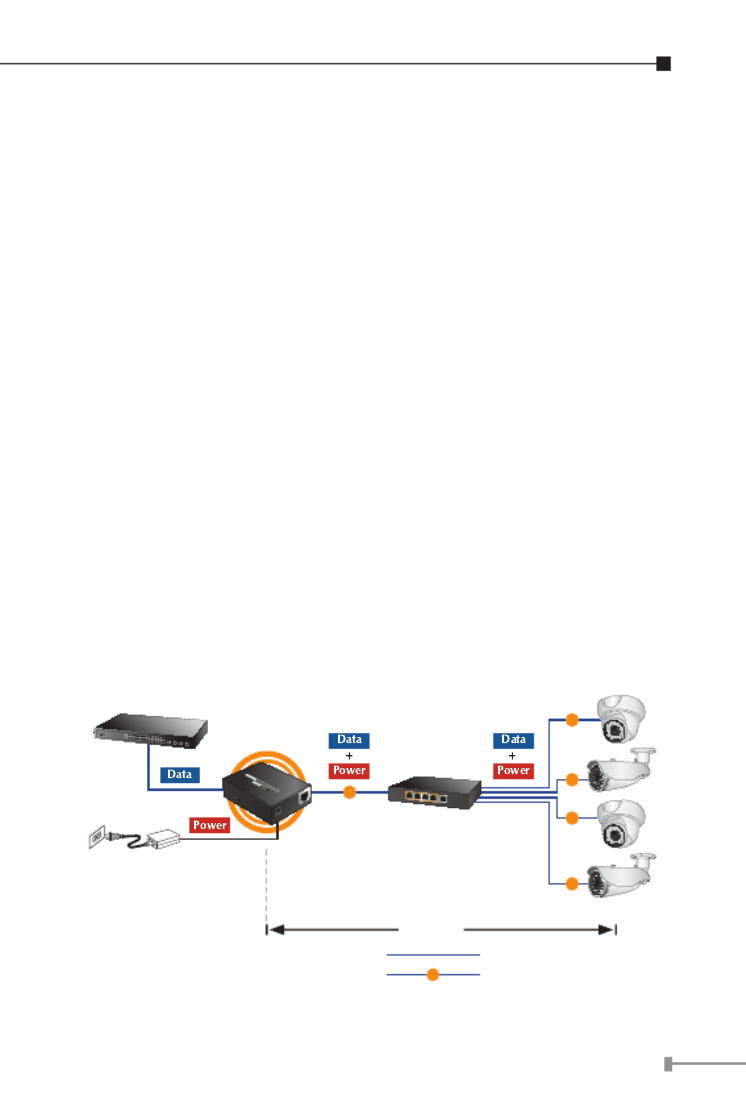

Figure 5: Architecture of Connected POE-171A series and POE-E304
18
Note
1. If the connected device is not fully complied
with IEEE 802.3af/at standard or in-line power
device, the PoE Out LED indicator of POE-E304
will not be steadily on.
2. According to the IEEE 802.3af/at standard, the
POE-E304 will not inject power to the cable if
not connected to a standard IEEE 802.3af/at
device.
Customer Support
Thank you for purchasing PLANET products. You can browse our
online FAQ resource at the PLANET Web site rst to check if it
could solve your issue. If you need more support information,
please contact PLANET PoE support team.
PLANET online FAQs:
http://www.planet.com.tw/en/support/faq.php?type=2
PoE support team mail address:
support_poe@planet.com.tw
Copyright © PLANET Technology Corp. 2018.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All other
trademarks belong to their respective owners.
PLANET TECHNOLOGY CORPORATION
e-mail: sales@planet.com.tw http://www.planet.com.tw
10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan Tel:886-2-2219 886 2219 9528-9518 Fax: -2- -
EC Declaration of Conformity
For the following equipment:
*Type of Product -Port 10/100/1000Mbps 802.3bt PoE Injector: Single
*Model Number : -171A-60POE , POE-171A-95
* Produced by:
Manufacturer‘s Name : Planet Technology Corp.
Manufacturer‘s Address : 10F., No.9 Xindian Dist., New Taipei City 231, Taiwan 6, Minquan Rd.,
is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of
the Laws of the Member States relating to Electromagnetic Compatibility Directive on 2014/30/EU.
For the evaluation regarding the EMC, the following standards were applied:
EN55032 (2015)
EN 61000-3-2 (2014)
EN 61000-3-3 (2013)
EN55024 (2010+A1:2015)
IEC 61000-4-2 (2008)
IEC 61000-4-3 (2006+A1:2007+A2:2010)
IEC 61000-4-4 (2012)
IEC 61000-4-5 (2014)
IEC 61000-4-6 (2013)
IEC 61000-4-8 (2009)
IEC 61000-4-11 (2004)
Responsible for marking this declaration if the:
Manufacturer Authorized representative established within the EU
Authorized representative established within the EU (if applicable):
Company Name: Planet Technology Corp.
Company Address: 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan
Person responsible for making this declaration
Name, Surname Jonas Yang
Position / Title : Product Manager
Taiwan
Oct. 19, 2016
Place
Date
Legal Signature


Produkt Specifikationer

Mærke: Planet
Kategori: Skifte
Model: POE-171A-95

Har du brug for hjælp?

Hvis du har brug for hjælp til Planet POE-171A-95 stil et spørgsmål nedenfor, og andre brugere vil svare dig




Skifte Planet Manualer

Planet

Planet GSD-1121XP Manual

18 September 2024
Planet

Planet BSP-115PV-15A Manual

7 September 2024
Planet

Planet BSP-115HP-5A Manual

5 September 2024
Planet

Planet IGTP-805AT Manual

3 September 2024
Planet

Planet IPM-16230 Manual

3 September 2024
Planet

Planet FSD-804P Manual

3 September 2024
Planet

Planet UPOE-1600G Manual

1 September 2024
Planet

Planet WS-1032P Manual

1 September 2024

Skifte Manualer

Nyeste Skifte Manualer

Kramer

Kramer VP-774A Manual

18 December 2024
Berker

Berker 80161865 Manual

16 December 2024
Berker

Berker 80262280 Manual

16 December 2024
Berker

Berker 80141170 Manual

16 December 2024
Berker

Berker 80162785 Manual

16 December 2024
Berker

Berker 80164773 Manual

16 December 2024
Berker

Berker 80162865 Manual

16 December 2024
Berker

Berker 80162780 Manual

16 December 2024
Berker

Berker 80142170 Manual

16 December 2024
Berker

Berker 80164776 Manual

16 December 2024
