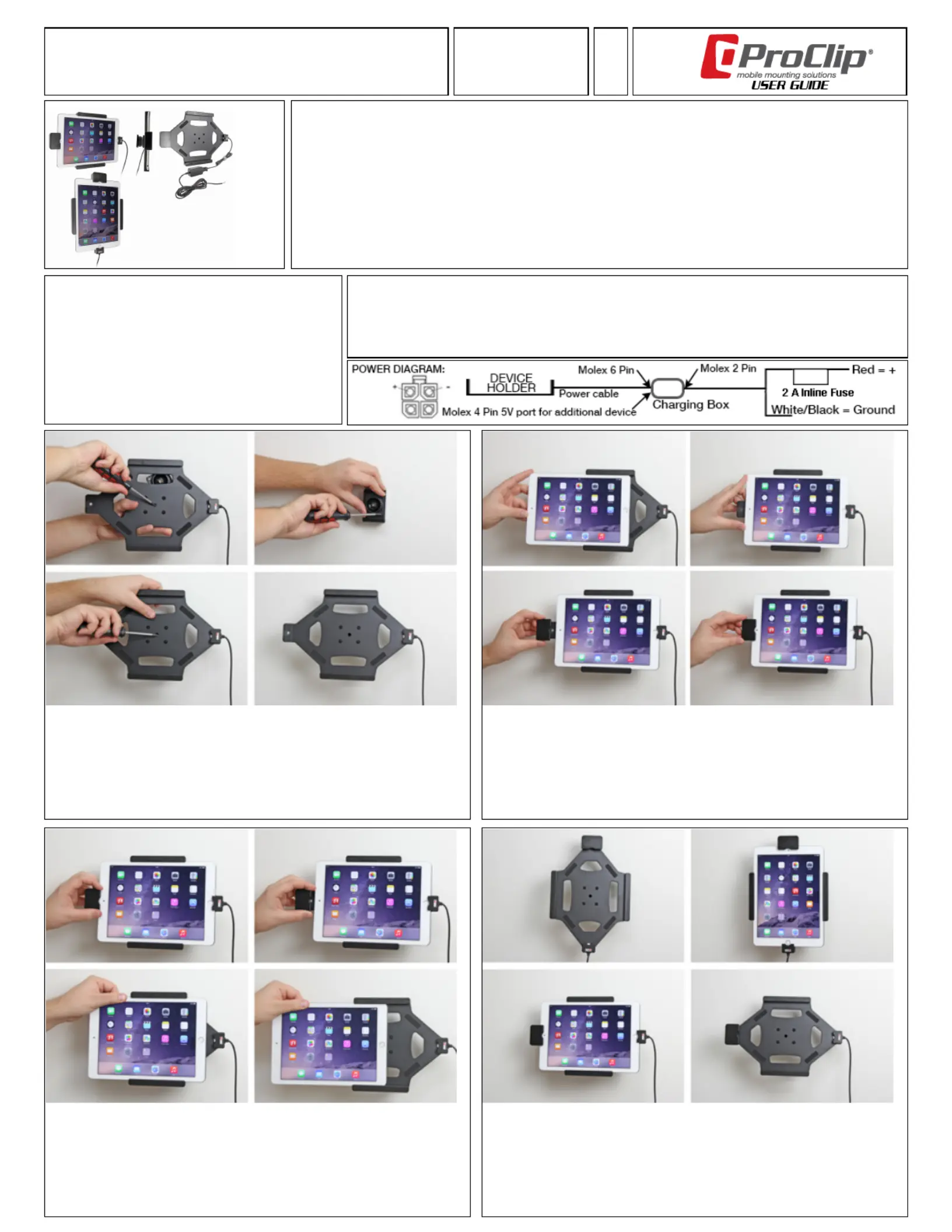

Item No. 547684 - Charging Holder with Spring
Lock, Tilt Swivel Hard Wired Installation
Compatible with:
Apple iPad Air 2 / Apple iPad Pro 9.7
Important:
Self-installation instructions and advice are provided for your
convenience. It is your responsibility to determine if you have the
knowledge, skills, and physical ability required to properly perform an
installation. ProClip USA, Inc. shall have no liability for damage or
injury resulting from the installation or use of any ProClip or third
party products. It is your responsibility to ensure that all products are
installed in adherence with local laws and regulations and in such a
manner as to allow a vehicle to be operated safely and without
distraction. ProClip USA, Inc. product warranties do not cover the
installation, removal or re-installation of any product.
Power Rating: Input Voltage: 10-30 VDC, 1.1A / Output Voltage: 5 VDC, 2A.
Wiring: Follow the diagram below. Route the wire from the holder behind the dashboard and connect it to a
power source; White or Black to ground or the vehicle chassis, and Red via the 2A in-line fuse to a positive power
source. Professional installation is recommended.
Attention: Carefully read all instructions and review the images before installing this product.
1. Unscrew the screw in the center of the holder so you can remove the tilt
swivel base plate on the back.
Place the tilt swivel base plate over the matching holes in the face plate of your
mounting bracket (Demo ProClip mount shown in picture) Attach the base plate
by using the self-tapping screws enclosed.
Place the Holder onto the tilt swivel base plate and attach it with the center
screw. This screw also controls the pivot, tighter for a rm hold and loose for
more (easier) angling/rotation of the Holder.
3. Remove the spring lock tab from the holder. Gently push the device
sideways of the connector and out of the holder.
2. Slide the device from the side into the holder onto the connector. Now slide the
spring clip onto the holder to secure the device in the holder.
4. The holder is in place. Switch between portrait and landscape mode by turning the
holder into desired position.
For wiring and connecting to a power source, please follow the diagram further up on
this page.
