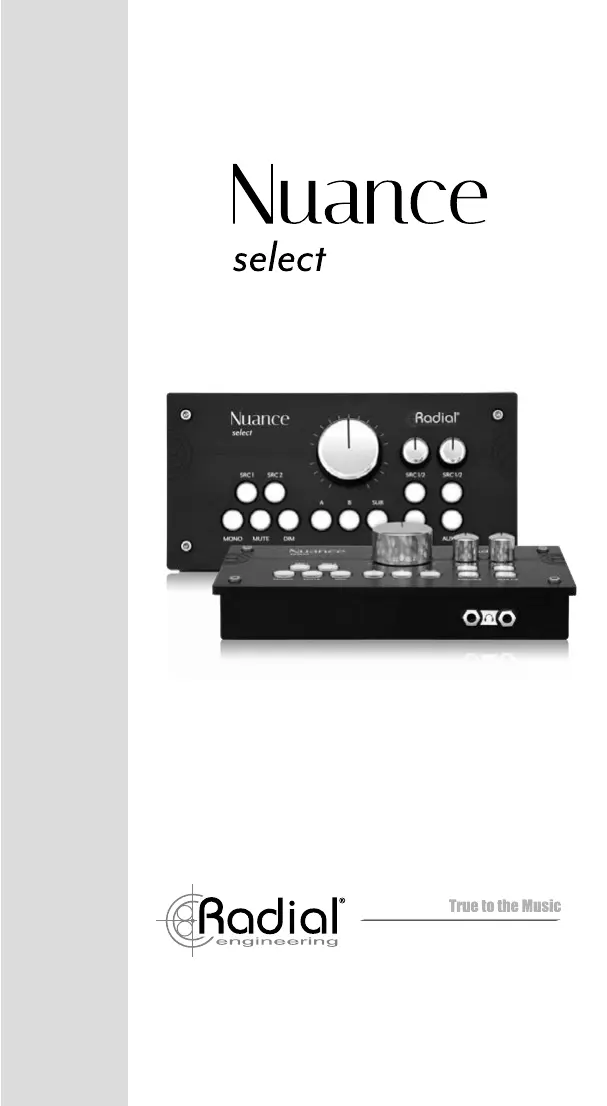

Radial± Smart Sheet N U A N C E S E L E C T ± s t u d i o m o n i t o r c o n t r o l l e r
Features
Silently switch between two sets of monitors
& a subwoofer
Dual stereo input sources with an assignable
Aux output
Two independent headphone ampliers with
source selection
Extremely low distortion for complete
transparency
Benets
Monitor your mix without any coloration
Effortlessly switch between speaker sets
Feed a separate headphone mix to artists
Activate a subwoofer with either speaker pair
Extras
Customized 21 position rotary master level pot
Oversized chrome knobs for ne adjustments
Backlit LED switches
Milled faceplate and robust steel chassis
Dimensions (W x D x H)
9.98" x 4.62" x 2.02" (253mm x 117mm x 51mm)
Includes 100-220V locking 4-pin power supply
3 Year transferable warranty
The Nuance Select is a studio monitor controller designed so you can hear every single detail through
your speakers, with a distortion prole so low that it cannot be measured by most audio testing
equipment. Complete audio transparency is achieved through an innovative circuit that allows you to
hear the true mix through your speakers without any sacrice in audio quality, all while still providing
you with total control over your monitor setup. The Nuance Select features two sets of stereo source
inputs, along with two sets of balanced TRS outputs for powered speakers. A subwoofer output is also
included and can be activated with either set of speakers. Two independent headphone ampliers
are available for monitoring or control room tracking – each headphone output can be assigned to its
own stereo source, to feed a cue mix to an artist while monitoring the main mix yourself. A stereo Aux
output on the rear panel can be used to feed an additional headphone amplier for live room tracking.
Nuance Select - Order # R800 2026 00
Dual assignable headphone outputs
Two reference-grade headphone ampliers are
also built into the Nuance Select, each with an
assignable input. This allows you to check the
main mix on headphones, while also feeding a
separate cue mix to an artist in the control room.
Adding the Aux output
The Aux output on the Nuance Select makes it
easy to feed an additional headphone amplier
for live room tracking as well. The Aux out can be
turned on or off using a local control, and it can
be assigned to either input source just like the
headphone outputs.
Controlling your studio monitors
The Nuance allows you to switch between two
sets of speakers while also having independent
control over a full-range subwoofer output, so you
can turn it on or off with either set of monitors.
Switch between two stereo sources as well to
compare reference tracks or monitor a cue mix.
Headphone Outputs: 1/4" TRS jacks
allow two sets of headphones to be
connected for local monitoring
Power: Locking connection for
external Radial power supply
Aux: Stereo unbalanced TRS output for connection
to external headphone amps or other devices
Sub: Balanced line-level mono output for feeding a powered
subwoofer or power amp. This is a full-bandwidth output
Speaker A: Balanced line-level left and right
outputs for connection to the primary set of
powered studio monitors or power amps
Speaker B: Balanced line-level left and right
outputs for connection to a secondary set of
powered studio monitors or power amps
Source 2: Balanced left and right inputs for
connection to the secondary (or cue) outputs
from an audio interface or mixing console
Source 1: Balanced left and right inputs for
connection to the primary outputs from an audio
interface or mixing console
SRC 1 & SRC 2: Determines which set of Source
inputs will feed the Speaker and Sub outputs
Mono: Sums the left and right channels
to mono for the A & B Speaker outputs
Aux: Selects the input source for the Aux output.
When the button is illuminated, the Aux is fed
directly from Source 2
Phones: Activates both headphone outputs
when selected
Mute: Cuts all signal
to the Speaker and
Sub outputs
Dim: Reduces the volume by -15dB
through the Speaker and Sub outputs
Sub: Activates the mono Sub output when selected
Level: Sets the overall output level of the
Speaker and Sub outputs
HP 1 & 2 Level: Sets the signal level at the two
headphone outputs
SRC 1/2: Selects the input source for each
of the headphone outputs. When the button
is illuminated, the corresponding headphone
output will be fed from the Source 2 inputs
A & B: Selects which set of Speaker outputs is
active. Only one of these buttons can be selected
at a given time
Radial Engineering Ltd. © Copyright 2024 all rights reserved www.radialeng.com email info@radialeng.com Subject to change without notice Made in Canada
