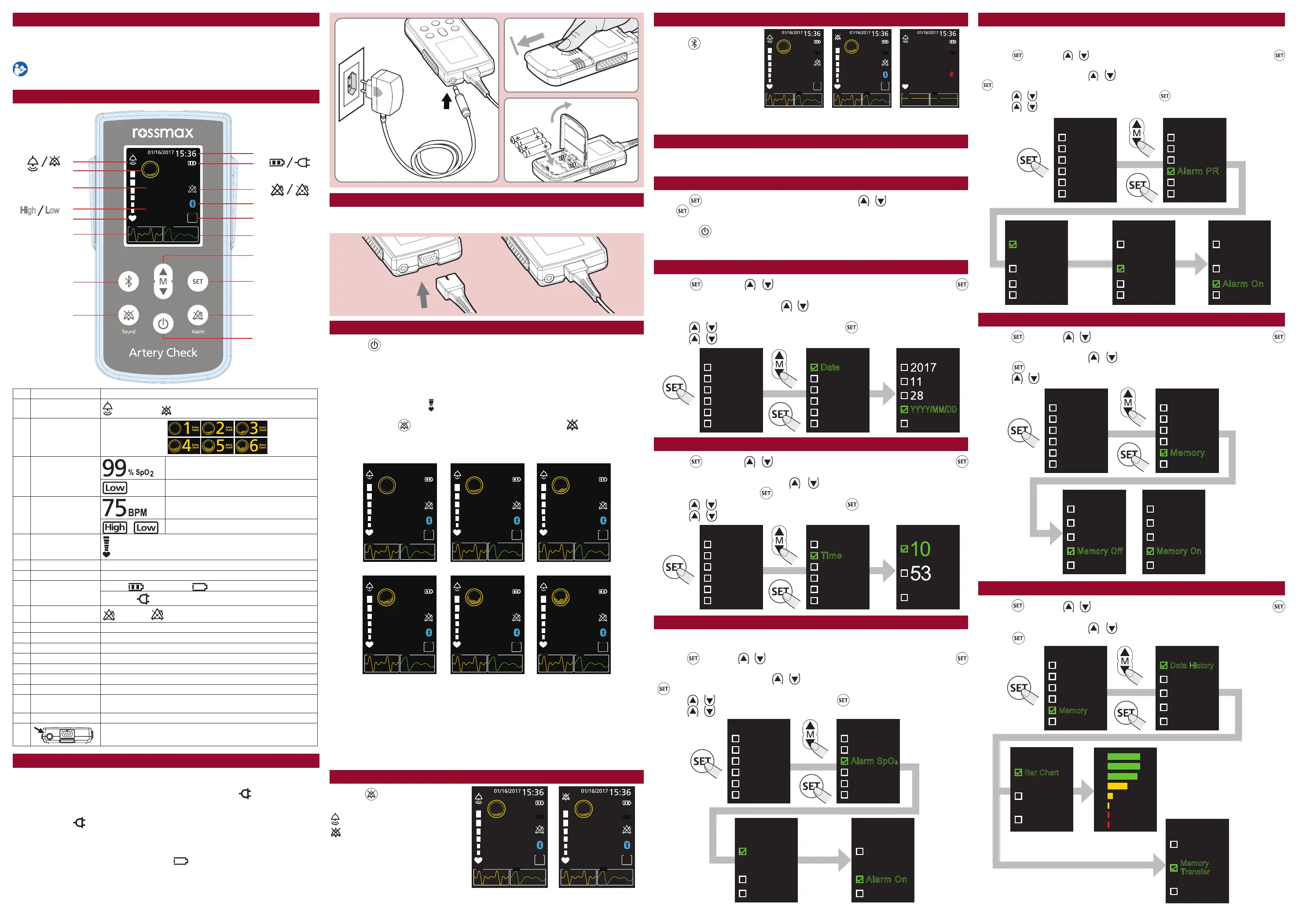

Side 1/2

SpO2

Measuring range 35% – 100% (the resolution is 1%)

Accuracy 70% - 100%: ±2 %, 35% - 69%: unspecied

Pulse Rate

Measuring range 30 – 250 bpm (the resolution is 1 bpm)

Accuracy 30 – 250 ± 3 digits

Probe Type

Probe model Rossmax PA100, PB100, PC100, PD100(Single Use), PF100

Extension cord Rossmax PE100

Optical Sensor The wavelength of red LED is 660nm and Infrared LED is 905/880nm with

maximum optical output power of 4mW.

Electrical Specication

Battery AA * 4 (Alkaline)

Battery Life Continually for 15 hours with 4 alkaline batteries

AC Adaptor Model: HK-X205-A06, HK-XW05-A06, (W=1,2,3,4), HKKS-13116, HKKS-13117

Input: AC100-240V, 50/60Hz, 0.2A max; Output: DC 6V, 0.8A

Environmental conditions

Operation Condition Temperature: 5°C – 40°C (41°F – 104°F), Relative Humidity:15% – 95%(non

condensing), Atmospheric pressure: 700hPa ~ 1060hPa

Storage /Transport

Condition Temperature: -25°C – 70°C (-13°F – 158°F), Relative Humidity:15% – 90%(non

condensing), Atmospheric pressure: 700hPa ~ 1060hPa

Note: The condition of -25°C or 70°C back to use should stand for 3 hours at

room temperature.

Dimension Size: 14.5(L) x 7.25(W) x 2.25cm(H)

Weight About 150g (without the batteries)

Standard IEC/EN60601-1, IEC/EN60601-1-2, IEC/EN60601-1-11, ISO80601-2-61

Symbol Descriptors

Manufacturer

Serial number

EU representative

Type BF (Body Floating)

IP Classication IP22: Protected against foreign objects and moisture

CE Mark

Warning: the symbol on this product means that it’s an electronic product

and following the European directive 2012/19/EU the electronic products

have to be dispose on your local recycling centre for safe treatment.

Symptoms Check points Corrections

SpO2 or Pulse rate

cannot displayed

- -

% SpO

Artery

Check

BPM

The icon “- -“ shows on the

screen Place the nger properly and

try again.

This icon means probe

connect failure.

Be sure ”Rossmax” probe is

connected to the device

correctly.

This icon means probe

dysfunction Replace with new probe.

Applied nger improperly Place the nger properly and

try again

SpO2 or Pulse rate are

not displayed stably

Finger is shaking or body is moving Keep body steady

Applied nger improperly Place the nger properly and

try again

No display when the

bottom is pressed

Batteries run down Replace with new batteries

Batteries inserted incorrectly Re-insert batteries

Note: After clearing data, the icon will show 0 data.

Caution: The deleted data could not be restored.

Warning

Cleaning

Maintenance

Memories mode- Save Cycle

Memories mode- Clear Data

Specification

Troubleshooting

Audio Signals

• This device is not intended for use by people (including children) with restricted physical, sensory or

mental skills or a lack of experience and/or a lack of knowledge, unless they are supervised by a per-

son who has responsibility for their safety or they receive instructions from this person on how to

use the device. Children should be supervised around the device to ensure they do not play with it.

• This device only for spot-checking, but not medical result evaluation.

• This device is designed to determine the percentage of arterial oxygen saturation of functional

hemoglobin. Factors that may degrade pulse oximeter performance or affect the accuracy of the

measurement include the following:

- Do not apply the pulse oximeter on the same arm as a blood pressure cuff, arterial catheter or

infusion line (s)

- Excessive light, such as sunlight or direct home lighting.

- Not steady at the site of application (e.g. term-bling)

- Moisture in the device

- Improperly applied device

- Finger is too large or too small to fit into the device

- Poor pulse quality

- Venous pulsations

- Anemia or low hemoglobin concentrations

- Cardio green and other intravascular dyes

- Carboxyhemoglobin

- Methemoglobin

- Dysfunctional hemoglobin

- Artificial nail or fingernail polish

- On fingers with anatomical changes, oedemas, scars or burns.

- The conditional of probe. Use only the Rossmax approved pulse oximeter sensor, cable and

accessories. These parts are not reprocessed. Use of other sensors, cable and accessories can result

in inaccurate readings.

• Using the device for long periods may cause pain for people with circulatory disorders. Reposition

the device (probe) at least once every 4 hours to allow the patient’s skin to breath and to check

patient’s condition regularly.

• Do not use the device near flammable or explosive gas mixtures.

• Do not use the device during an MRI or CT scan.

• The device will be affected by electromagnetic interference during operation.

• A warning that other cables and accessories may negatively affect EMC performance.

• The device may not work when circulation is reduced. Warm or rub the finger, or re-position the

device.

• This device is a precision electronic instrument and must be repaired by qualified technical

professionals. Field repair of the device is not possible. Do not attempt to open the case or repair

the electronics. Opening the case may damage the device and void the warranty.

• Do not overextend the device’s spring.

• A functional tester cannot be used to access the accuracy of a pulse oximeter monitor.

• Do not self-diagonse or self-medicate on the basis of the measurements without consulting your

doctor. In particular, do not start taking any new medication or change the type and/or dosage of

any existing medication without prior approval.

• Do not look directly inside the housing during the measurement. The red light and the invisible

infra-red light in the probe are harmful to your eyes.

• Please be aware that user with susceptible skin.

• As with all medical equipment, carefully route patient cabling to reduce the possibility of patient

entanglement or strangulation.

• The maximum temperature might reach 42.4°C when operating for long time.

• The oximeter is calibrated in the factory before sale, there is no need to calibrate it during its life

cycle.

• Do not reuse or disinfect disposable SpO2 probe. (only for PD100)

1. Please clean the surface of the device before using. Wipe the device with medical alcohol (70%

isopropyl alcohol) first, and then let it dry in air or clean it by dry clean fabric.

2. Using the medical alcohol to clean the product after use, prevent from cross infection for next

time use.

3. The best storage environment of the device is -25°C °C ~ 70 ambient temperature and not higher

than 90% relative humidity.

Note: 1. Do not sterilize, autoclave or immerse this device in liquid. Do not pour or spray any liquids

onto the device.

2. Do not use caustic or abrasive cleaning agents, or any cleaning agent containing ammonium

chloride or isopropyl alcohol.

Recommends user to return this device to the manufacturer perform the following checks every 24

months.

• Inspect the equipment for mechanical and functional damage or deterioration.

• Ensure all user interface keys and accessories function normally.

Note: Manufacturer use Index2 SpO2 simulator to verify operation of the pulse oximeter device.

Optional of memory interval: 60 / 30 / 10 seconds

• Press the button and / button to highlight “Memory” option, and then press the

button to select the option.

• Entry “Memory Mode”, press the / button to highlight “Save Cycle” option, and then press

the button to select the option.

• Entry “Save Cycle”, press the / button to highlight option, and then press the button

to select the option.

• Press the / button to change the value; press the button to save the desired value.

• Press the / button and the button to select “Back/Exit” to return.

• Press the button and / button to highlight “Clear Data” option, and then press the

button to select the option.

• Entry “Clear Data”, press the / button to highlight “Sure” option, and then press the

button to select the option.

• Press the / button and the button to select “Back/Exit” to return.

No. Name LCD Display Sound Control

1 Power on

V0.00 

% SpO2

Artery

Check

BPM

288

ACT PPG

Beep for 2 seconds Press button

Software

version start measure

2Pulse

search The icon ickers X X

Max./ Min

SpO2 and

Pulse rate

warning

Show or in red icon.

Reects upper or lower alarm

limits.

Beep-beep sounded

repeatedly Default

Mute for temporary, will

Beep-beep sounded

after two minutes. mode

Mute before power o mode

Bar Chart

• Entry “Data History”, press the / button to highlight “Bar Chart” option for viewing statistics

of SpO2, and then press the button to select the option.

• Entry “SpO2 Memory Data”, press the button to go back to the monitoring screen.

Memory Transfer to ROSSMAX Software

• Entry into “Data History”, press the / button to highlight “Memory Transfer” option, and

then press the button to start data transmission for a few seconds.

Note: Before entering the data history mode, the icon should collect more than 1 data.

4Probe

failure

alarm

ACT PPG

The icon shows

on the screen Beep-beep sounded

repeatedly X

Probe

connect

failure

alarm

ACT PPG

The icon shows

on the screen Beep-beep sounded

repeatedly x

6Low

battery

alarm

ACT PPG

The icon shows

on the screen

Beep-beep sounded

repeatedly for 1 minute

and power o x

7Automatic

O XBeep-beep sounded

and then power o

After pulse is unde-

tectable for around

1 minute.

8Unable

measure - -

- -

% SpO2

Artery

Check

BPM

ACT PPG

Blood saturation

& pulse rate

appears “ - - “

Beep-beep sounded

repeatedly. x

9 AC Power icon XRemove or connect

AC power cable to

device.

Note: Description of the effect on displayed and transmitted SpO2 and pulse rate:

• Data averaging: 4 seconds for SpO2; 8 seconds for pulse rate.

• Data update delay: Less than 2 seconds.

• Alarm condition delay: Less than 8 seconds for SpO2; Less than 16 seconds for pulse rate.

• Alarm signal generation delay: Less than 1 second for SpO2 and pulse rate.

The display disappears

suddenly

The device will auto power o when it

gets no signal Normal

Low battery Replace with new batteries

Note: If the unit does not work, return it to your dealer. Under no circumstance should you

disassemble and repair the unit by yourself. Model: SA300

www.rossmax.com

Handheld Pulse Oximeter

Settings

Date

Time

Alarm SpO

Alarm PR

Memory

Exit

Settings

Date

Time

Alarm SpO

Alarm PR

Memory

Exit

Settings

Date

Time

Alarm SpO

Alarm PR

Memory

Exit

Settings

Date

Time

Alarm SpO

Alarm PR

Memory

Exit

Memory Mode

Back

Clear Data

Save Cycle

Data History

Memory Off

Memory Mode

Back

Clear Data

Save Cycle

Data History

Memory Off

Save Cycle

10Sec

Back

Clear Data

Back

Sure

60/30/10

seconds

Electromagnetic Compatibility Information

1. This device needs to be installed and put into service in accordance with the information provided in the user manual.

2. WARNING: Portable RF communications equipment (including peripherals such as antenna cables and external antennas)

should be used no closer than 30 cm (12 inches) to any part of the SA300, including cables specied by the manufacturer.

Otherwise, degradation of the performance of this device could result.

If higher IMMUNITY TEST LEVELS than those specied in Table are used, the minimum separation distance may be lowered. Lower

minimum separation distances shall be calculated using the equation.

Manufacturer’s declaration-electromagnetic immunity

The SA300 is intended for use in the electromagnetic environment specied below. The customer or the user of the SA300

should assure that is used in such and environment.

Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance

Conducted RF

IEC 61000-4-6

3 Vrms:

0,15 MHz – 80 MHz

6 Vrms: in ISM and ama-

teur radio bands between

0,15 MHz and 80 MHz

80 % AM at 1 kHz

3 Vrms:

0,15 MHz – 80 MHz

6 Vrms: in ISM and ama-

teur radio bands between

0,15 MHz and 80 MHz

80 % AM at 1 kHz

Portable and mobile RF communications equip-

ment should be used no closer to any part of the

SA300 including cables, than the recommended

separation distance calculated from the equation

applicable to the frequency of the transmitter.

Recommended separation distance:

d = 1,2 √P, d = 1,2 √P 80MHz to 800 MHz, d = 2,3 √P

800MHz to 2,7 GHz

IN0SA300000000031

Warranty Card

This instrument is covered by a 2 years guarantee from the date of purchase, batteries and

accessories are not included. The guarantee is valid only on presentation of the guarantee

card completed by the dealer confirming date of purchase or the receipt. Opening or altering

the instrument invalidates the guarantee. The guarantee does not cover damage, accidents or

non-compliance with the instruction manual. Please contact your local seller/dealer or www.

rossmax.com.

Customer Name: __________________________________________________________

Address: _________________________________________________________________

Telephone: _______________________________________________________________

E-mail address: ____________________________________________________________

Product Information:

Date of purchase: __________________________________________________________

Store where purchased:

__________________________________________________________________________

Rossmax InnoTek Corp.

12F., No. 189, Kang Chien Rd., Taipei, 114, Taiwan.

CMC Medical Devices & Drugs S.L.

C/ Horacio Lengo N° 18, CP 29006, Málaga, Spain

Radiated RF IEC

61000-4-3

10 V/m

80 MHz – 2,7 GHz

80 % AM at 1 kHz

10 V/m

80 MHz – 2,7 GHz

80 % AM at 1 kHz

Where P is the maximum output power rating of the

transmitter in watts (W) according to the transmitter

manufacturer and d is the recommended separation

distance in metres (m).

Interference may occur in the vicinity of equipment

marked with the following symbol:

NOTE1: At 80 MHz and 800 MHz, the higher frequency range applies.

NOTE2: These guidelines may not apply in all situations. Electromagnetic propagation is aected by absorption and reec-

tion from structures, objects and people.

More information on EMC compliance of the device may be obtained from Rossmax using the contacts shown in this manual.

The text is subject to change without further notice.

RI_IB_SA300_EN_2Yr_

TP_ver2041

Produkt Specifikationer

Mærke:	Rossmax
Kategori:	Blodsukkermåler
Model:	SA300

Har du brug for hjælp?

Hvis du har brug for hjælp til Rossmax SA300 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Blodsukkermåler Rossmax Manualer

Rossmax SB210 Manual

11 August 2024

Rossmax SA300 Manual

3 August 2024

Rossmax SB200 Manual

3 August 2024

Blodsukkermåler Manualer

Nyeste Blodsukkermåler Manualer

AktivMed GlucoCheck XL Manual

31 August 2024

Sanofi MyStar Extra Manual

30 August 2024

HMM smartLAB mini nG Manual

26 August 2024

HMM smartLAB nG TS Manual

26 August 2024

HMM smartLAB sprint nG Manual

26 August 2024

HMM smartLAB sprint Manual

26 August 2024

Eks Codefree Glucometer 0508 Manual

24 August 2024

Beurer Bloedsuiker-controleoplossing GL50 Manual

23 August 2024

Medisana 79010 MediTouch Manual

22 August 2024

LifeScan OneTouch UltraMini - Blood Glucose Monitoring System Manual

21 August 2024
