COLOUR
TELEVISION
CS29A6/CS29A7/CS29M20
CS29M21/CS29M30/CS29Z4
CS34A11/CS34M21/CS34M30
WS32A11/WS32M21/WS32M30
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
Register your product at www.samsung.com/global/register
ON-SCREEN MENUS
PICTURE IN PICTURE (OPTION)
TELETEXT (OPTION)
Contents
◆C PONNECTING AND REPARING YOUR TELEVISION
■View of Your Television (depending on the model)....................................... 5
■Infrared Remote Control................................................................................ 7
■Inserting the Batteries in the Remote Control................................................ 9
■Connecting to an Aerial or Cable Television Network ................................... 10
■Switching Your Television On and Off........................................................... 11
■Placing Your Television in Standby Mode..................................................... 11
■Becoming Familiar with the Remote Control ................................................. 12
■Plug & Play Feature....................................................................................... 13
■Viewing the Demonstration............................................................................ 14
■Choosing Your Language.............................................................................. 14
◆S CETTING THE HANNELS
■Storing Channels Automatically..................................................................... 15
■Sorting the Stored Channels ......................................................................... 16
■Storing Channels Manually............................................................................ 17
■Skipping Unwanted Channels ....................................................................... 19
■Assigning Names to Channels ...................................................................... 20
■Fine Tuning Channel Reception.................................................................... 21
◆U Y TSING OUR ELEVISION
■Using the LNA (Low Noise Amplifier) feature (depending on the model)...... 22
■Changing the Picture Standard ..................................................................... 23
■Adjusting the Picture Settings........................................................................ 24
■Selecting the Color Tone ............................................................................... 25
■Selecting the Picture Size (depending on the model)................................... 26
■Selecting the Digital NR................................................................................. 26
■Using the Tilt Control Feature........................................................................ 27
■Setting the Blue Screen................................................................................. 27
■Freezing the Current Picture ......................................................................... 28
■Changing the Sound Standard ...................................................................... 28
■Adjusting the Sound Settings ........................................................................ 29
■Extra Sound Settings
(depending on the model)
.............................................. 30
■Selecting the Sound Mode (depending on the model) .................................. 31
■Selecting the Melody ..................................................................................... 32
■Setting and Displaying the Current Time....................................................... 33
English-3
Contents (continued)
◆U Y TSING OUR ELEVISION (continued)
■Setting the Sleep Timer................................................................................. 34
■Switching the Television On and Off Automatically....................................... 35
■Setting the Preferred Volume Level/Channel ................................................ 36
■Viewing an External Signal Source/Edit Name (depending on the model).... 37
■Viewing the Picture In Picture (PIP) (depending on the model) .................... 38
◆U T FSING THE ELETEXT EATURE
■Teletext Feature (depending on the model) .................................................. 41
■Displaying the Teletext Information (depending on the model) ..................... 41
■Selecting a Page by Number (depending on the model)............................... 42
■Using FLOF to Select a Page (depending on the model).............................. 43
■Storing Teletext Pages (depending on the model) ........................................ 43
◆A IDDITIONAL NFORMATION ON CONNECTIONS
■Connecting to the External Input/Outputs...................................................... 44
■Connecting to the DVD Player or DTV receiver (depending on the model) .. 45
■Connecting to the Audio Output .................................................................... 45
■Connecting to the RCA Input......................................................................... 46
■Connecting to the S-Video Input.................................................................... 46
■Viewing Pictures From External Sources ...................................................... 47
◆RECOMMENDATIONS FOR USE
■Automatic Degaussing to Remove Color Patches......................................... 48
■Troubleshooting: Before Contacting Service Personnel................................ 48
☛➢
Press Important Note
Symbols
English-4

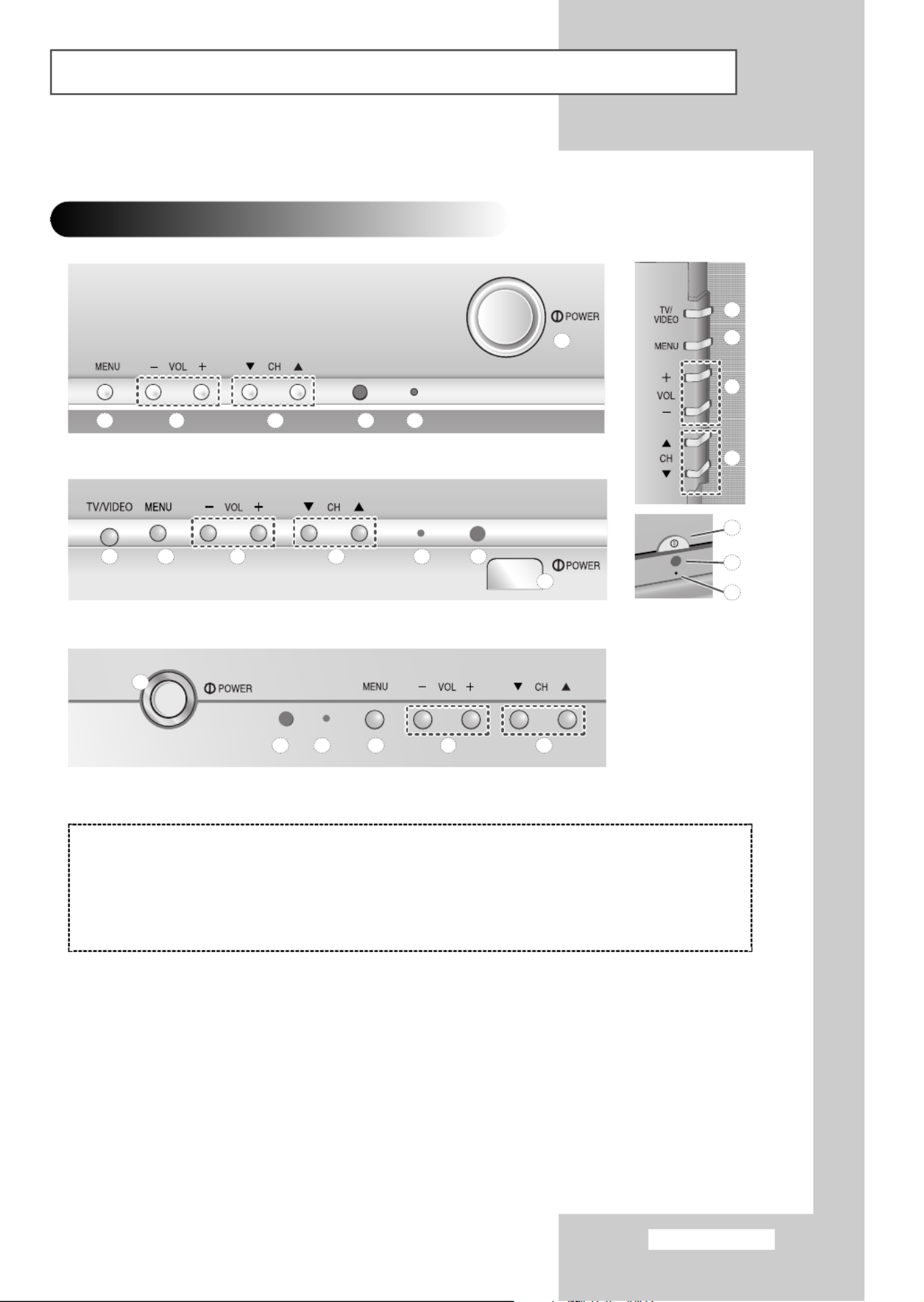

View of Your Television (depending on the model)
Control Panels
1) Power On/Off
2) Standby Indicator
3) Remote Control Sensor
4) Channel Selection
5) Volume Adjustment
6) Menu Display
7) Input source selection
➢The actual configuration on your TV may be different, depending on
your model.
3
1
2
4
5
6
7
English-5
➢Using the Buttons on the Panel
If the remote control no longer works or you have lost it, you can use controls on the panel of
the TV to:
◆
Switch on the TV when it is in Standby mode and select channels ( ▼ ▲CH ).
◆
Access the menu ( MENU ).
◆
Adjust the volume ( - VOL
+
).
◆
Switch among Video input modes ( TV/VIDEO ).
4
5
6 2
1
3
4
5
67 3
1
2
4
5
63
1
2
View of Your Television (depending on the model) (continued)
English-6

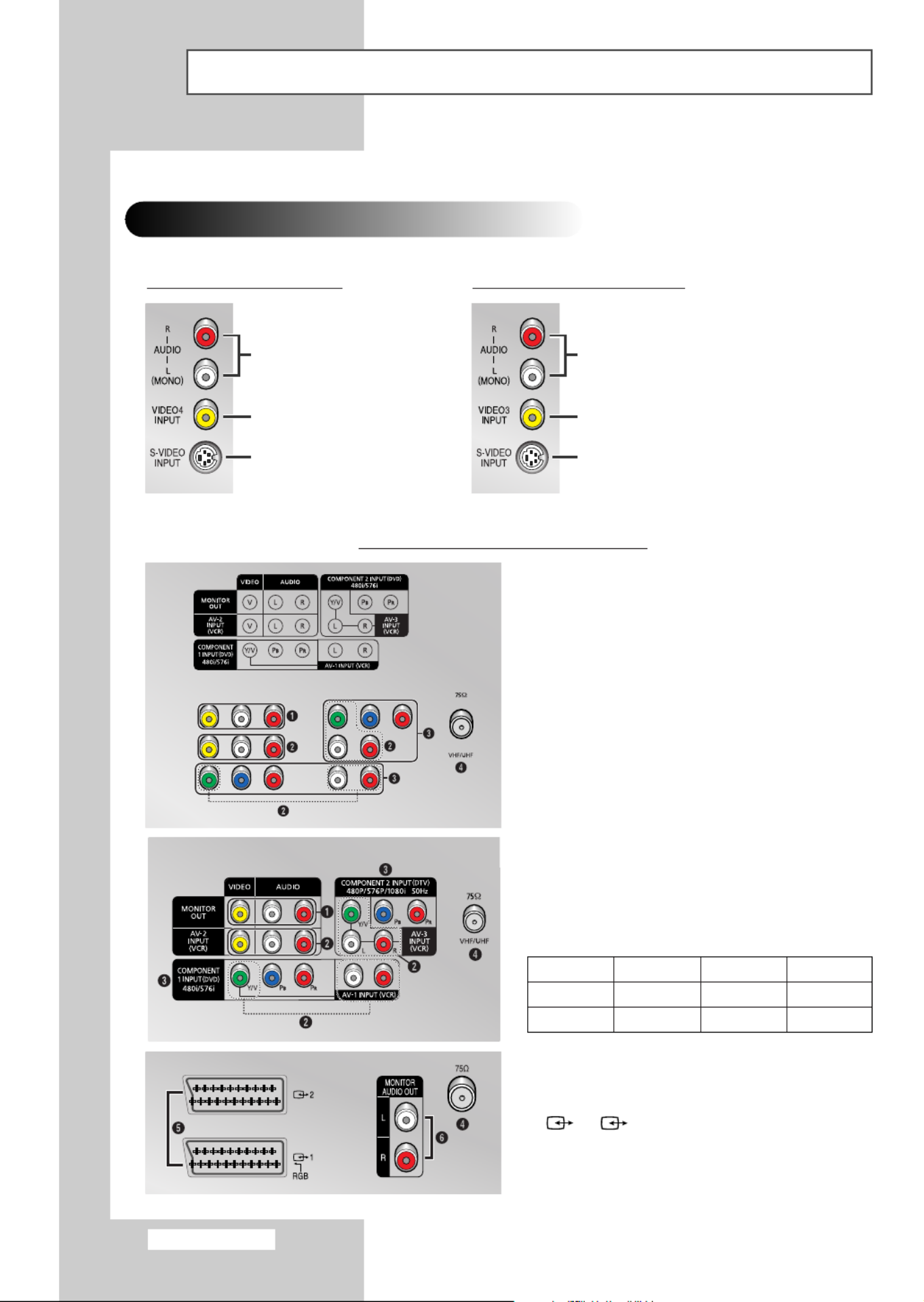

Connection Panels
Audio Input (R, L)
Video Input
S-Video Input
Side of the TV (RCA Model)
Audio Input (R, L)
Video Input
S-Video Input
Side of the TV (SCART Model)
Rear of the TV (depending on the model)
Œ
MONITOR OUT (VIDEO / L-AUDIO-R)
Outputs for external devices.
´AV 1 (VCR) -VIDEO/AUDIO(L/R)
AV 2 (VCR) -VIDEO/AUDIO(L/R)
AV 3 (VCR) -VIDEO/AUDIO(L/R)
Inputs or outputs for external devices, such as
VCR,DVD, video game device or video disc
players.
ˇCOMPONENT (DVD)
VIDEO (Y P/B/PR) and AUDIO (L R/ ) inputs for
Component.
➢Available format for DTV inputs; 480P/576P/1080i
50 Hz.
➢
If you change the output resolution of an
external device at will, the video from the
device may not be displayed on the TV
because the resolution is not automatically
switched. Check the available input ports for
each resolution.
¨VHF/UHF (75Ω)
75ΩCoaxial connector for Aerial/
Cable Network.
ˆ/ (SCART)
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
Ø
MONITOR AUDIO OUT
Audio Output for external devices.
2
1
Component1
Component2
480i/576i
O
X
480P/576P
X
O
1080i (50Hz)
X
O

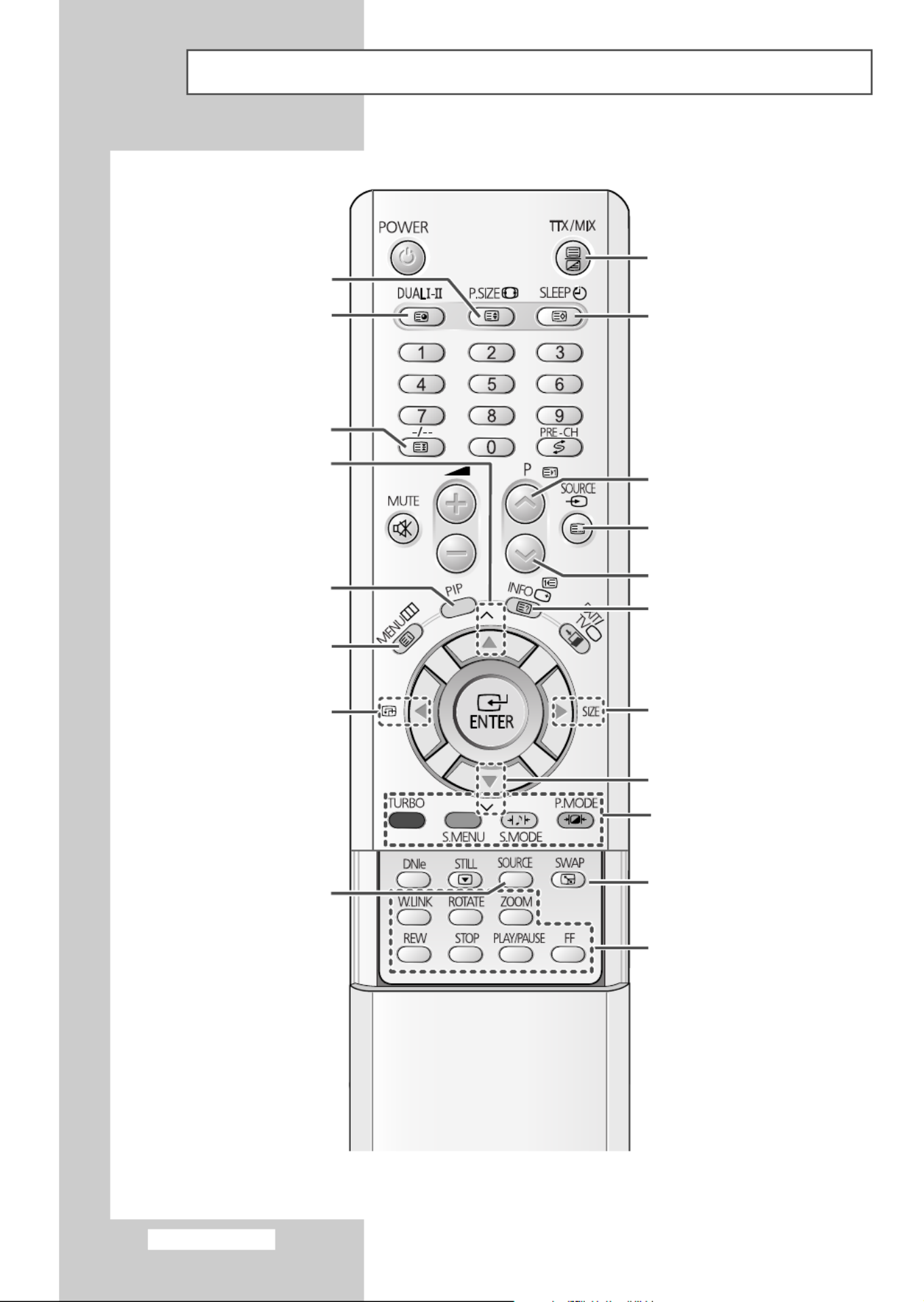

Infrared Remote Control
English-7
➢The performance of the remote control may be affected by bright light.
TELEVISION STAND-BY
DIRECT CHANNEL SELECTION
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
MENU DISPLAY
MOVE TO THE REQUIRED
MENU OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
TURBO SOUND
SOUND MODE SELECTION
EXTERNAL INPUT SELECTION
AUTOMATIC SWITCH-OFF
PICTURE SIZE
EXIT FROM ANY DISPLAY
PREVIOUS CHANNEL
CHANGE CONFIRMATION
INFORMATION DISPLAY
PICTURE EFFECT SELECTION
ONE/TWO-DIGIT
CHANNEL SELECTION SWITCH REPEATEDLY
BETWEEN THE LAST TWO
CHANNELS DISPLAYED
SOUND EFFECT SELECTION
VOLUME DECREASE
NEXT CHANNEL
SOUND MENU DISPLAY
DNIe ON/OFF/DEMO
(depending on the model)
STILL PICTURE
Infrared Remote Control (continued)
P
P
PROGRAMME
SELECTION BY NAME
SUB PICTURE(PIP)
LOCATION SELECTION
SUB PICTURE(PIP)
SOURCE SELECTION
SUB PICTURE(PIP)
NEXT CHANNEL
PIP ON/OFF
TELETEXT SUB-PAGE
TELETEXT SIZE SELECTION
TELETEXT PAGE HOLD
English-8
FASTEXT TOPIC SELECTION
TELETEXT MODE SELECTION
(LIST/FLOF)
TELETEXT STORE
SUB PICTURE(PIP) SIZE SELECTION
SUB PICTURE(PIP) PREVIOUS
CHANNEL
INTERCHANGE THE MAIN AND SUB
PICTURE (PIP)
W.LINK FUNCTIONS
(depending on the model)
TELETEXT PREVIOUS PAGE
TELETEXT REVEAL
TELETEXT NEXT PAGE
TELETEXT DISPLAY/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST
You must insert or replace the batteries in the remote control when
you:
◆Purchase the television
◆Find that the remote control is no longer operating
correctly
1Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆
-
on the battery against
-
on the remote control
◆
+
on the battery against
+
on the remote control
3Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
English-9
Inserting the Batteries in the Remote Control

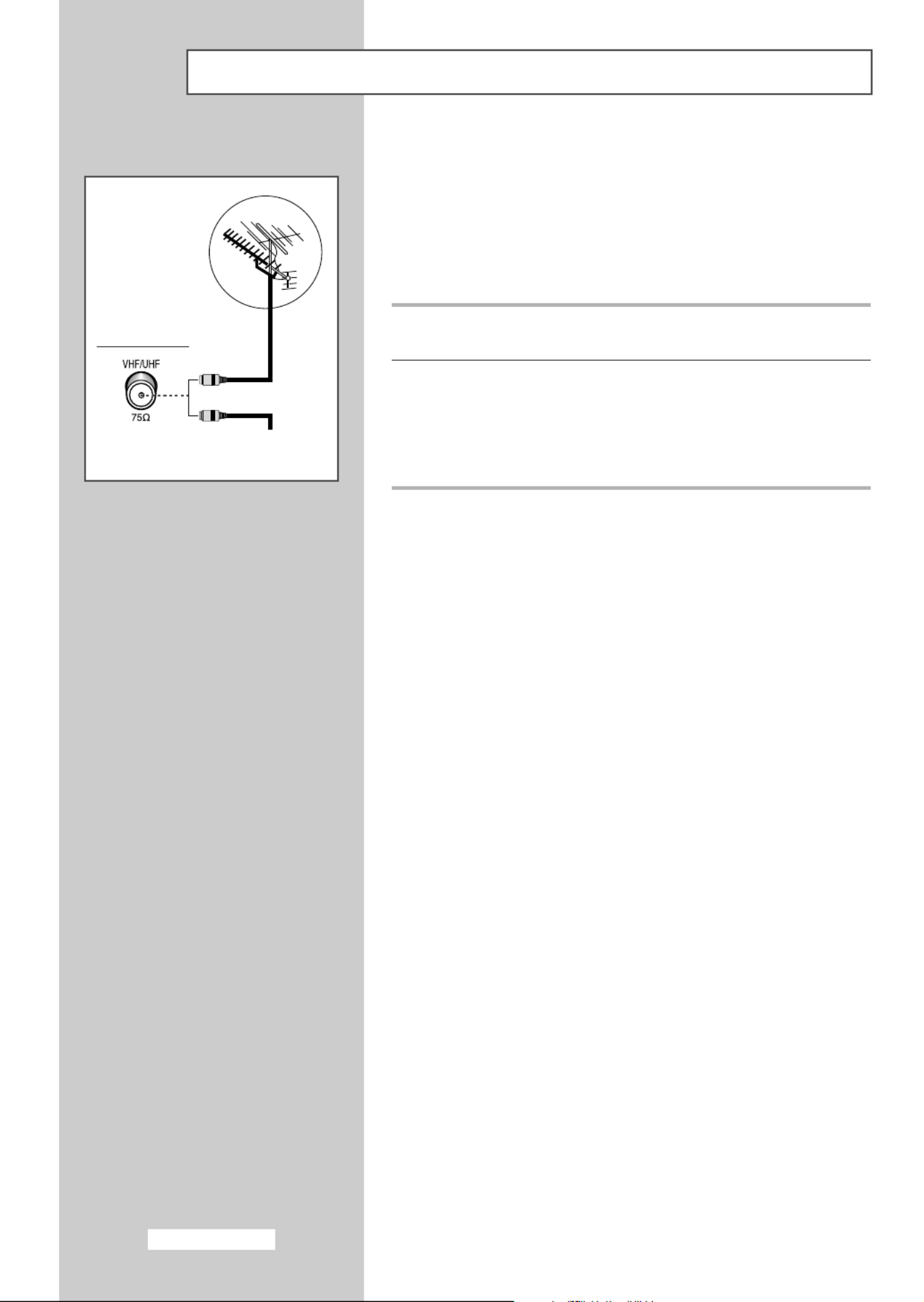

To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆An outdoor aerial
◆A cable television network
◆A satellite network
1In the first three cases, connect the aerial or network input cable to
the 75 coaxial socket on the rear of the television.Ω
2If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to:
◆“Storing Channels Automatically ” on page 15
◆“Storing Channels Manually” on page 17
Connecting to an Aerial or Cable Television Network
Rear of the TV
Cable Television
Network
or
English-10
The mains lead is attached to the rear of your television.
1Plug the mains lead into an appropriate socket.
➢
The main voltage is indicated on the rear of the television
and the frequency is 50 or 60Hz.

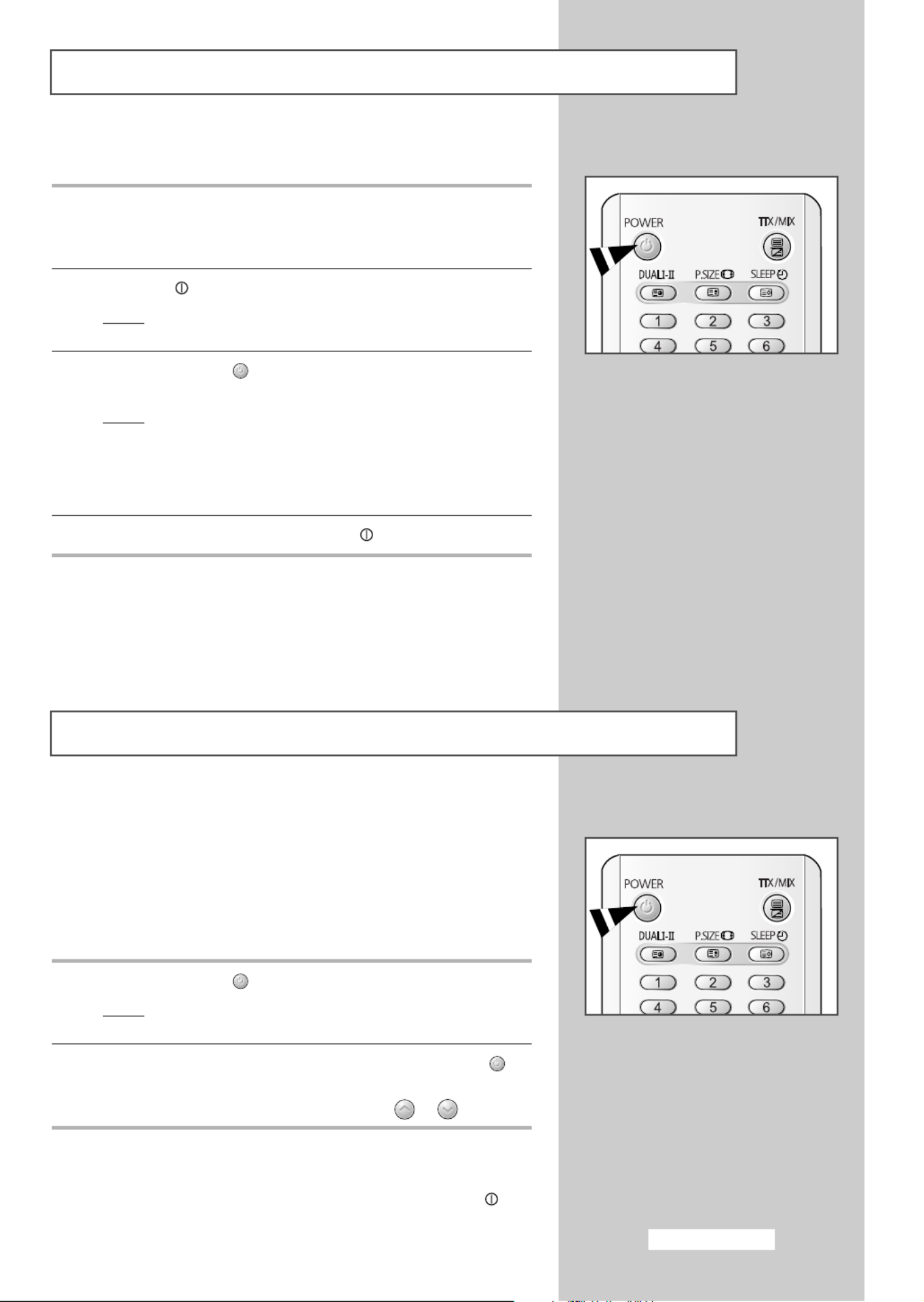

2Press the “ ” button (On/Off) on the front of the television.
Result : The Standby indicator on the front of the television
lights up.
3Press the POWER ( ) button on the remote control to switch the
television on.
Result : The programme that you were watching last is re-
selected automatically.
➢If you have not yet stored any channels, No clear picture
appears. Refer to “Storing Channels Automatically” on page
15 or “Storing Channels Manually” on page 17.
4To switch your television off, press the “ ” button (On/Off) again.
Placing Your Television in Standby Mode
Your television can be placed in Standby mode, in order to reduce:
◆Power consumption
◆Wear of the cathode ray tube
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
1Press the POWER ( ) button on the remote control.
Result : The screen is turned off and the Standby indicator on
the front of the television lights up in red.
2To switch the television back on, simply press the POWER ( )
button again.
➢You can also switch on by pressing the button.P or
☛Do not leave your television in Standby mode for long
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the “ ”
button (On/Off) on the front of the television. It is best to
unplug the set from the mains and aerial.
Switching Your Television On and Off
English-11
Becoming Familiar with the Remote Control
The remote control is used mainly to:
◆Change channels and adjust the volume
◆Set up the television using the on-screen menu system
The following table presents the most frequently used buttons and
their functions.
Button Viewing Function Menu Function
Used to display the next
-
stored channel.
Used to display the previous
-
stored channel.
to Used to display the corresponding channels.
-/--
Used to select a channel numbered ten or over.
Press this button, and the “
--
” symbol is displayed.
Enter the two-digit channel number.

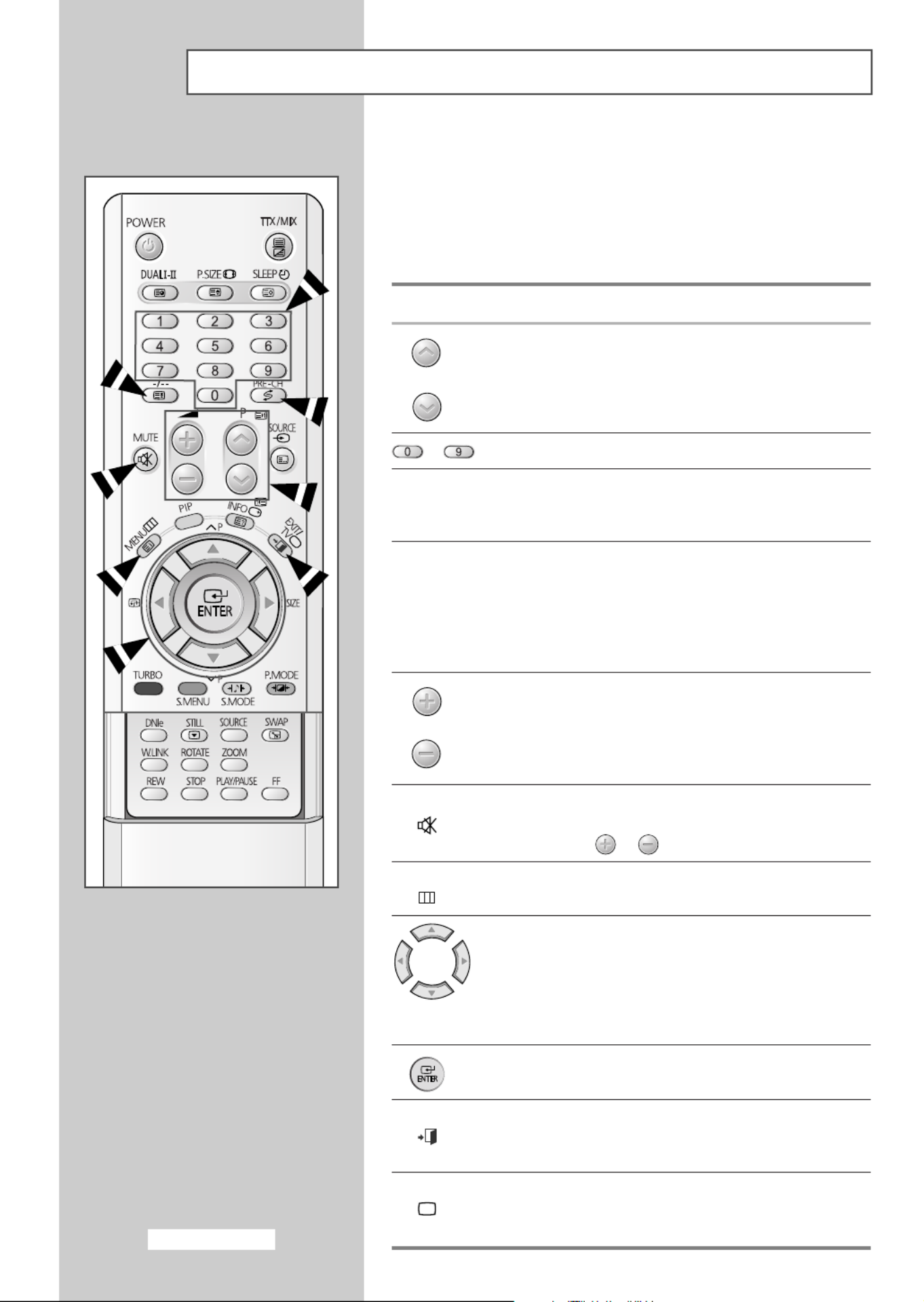

PRE-CH PRE-CH Press the button. The TV will switch to the last
channel viewed.
To quickly switch between two channels that are far apart,
tune to one channel, then use the number button to select
second channel. Then, use the PRE-CH button to quickly
alternate between them.
Used to increase the
-
volume.
Used to decrease the
-
volume.
MUTE Used to switch the sound off temporarily.
➢To turn the sound back on, press this button again, or
press the or button.
MENU Used to display the Used to return to the previous
on-screen menu system. menu or normal viewing.
-
Used to:
◆Display a submenu
containing selections for
the current menu option
◆Increase/decrease a
menu option value
-
Used to confirm your choice.
EXIT
-
Used to exit from the menu
system and return to normal
viewing directly.
TV Used to switch the
television on when it is
in Standby mode.
English-12

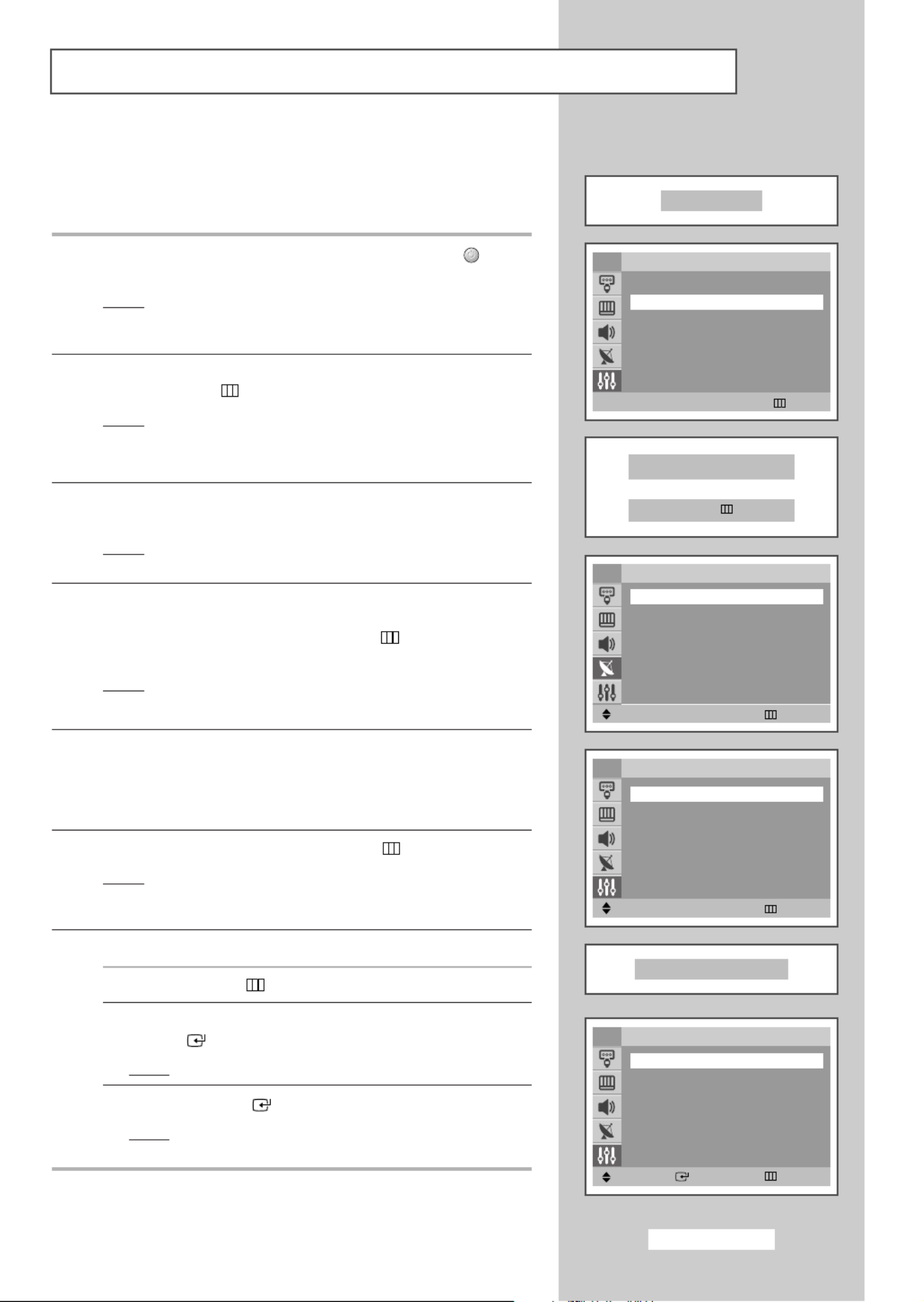

When the television is initially powered on, three basic customer
settings proceed automatically and subsequently: setting the
language, channel and clock.
1If the television is in Standby mode, press the POWER ( ) button
on the remote control.
Result : The message is displayed. It flickers forPlug & Play
a little while and then Language menu is automatically
displayed.
2Select the appropriate language by pressing the button.œ or √
Press the MENU
( )
button to enter the language.
Result : The message Check antenna input. is displayed.
➢If any language is not selected on the Language menu, the
Language menu will disappear about 30 seconds later.
3Make sure that the antenna is connected to the TV.
Press the œ √or button.
Result : The Auto Store menu is displayed with Area is
selected.
4Select your Area by pressing the button. To search theœ or √
channels, select Search by pressing the button, and then▼ or ▲
press the œ or √ button. Press the MENU
( )
button to stop the
search.
Result : The Time menu is displayed with is selected.Clock
➢Refer to “Storing Channels Automatically” on page 15.
5Press the button to move to the hour or minute. Set theœ or √
hour or minute by pressing the ▼ or ▲ button.
➢Refer to “Setting and Displaying the Current Time” on page
33.
6When you have finished, press the MENU
( )
button.
Result : The message is displayed,Enjoy your watching.
and then the channel which has been stored will be
activated.
7If you want to reset this feature...

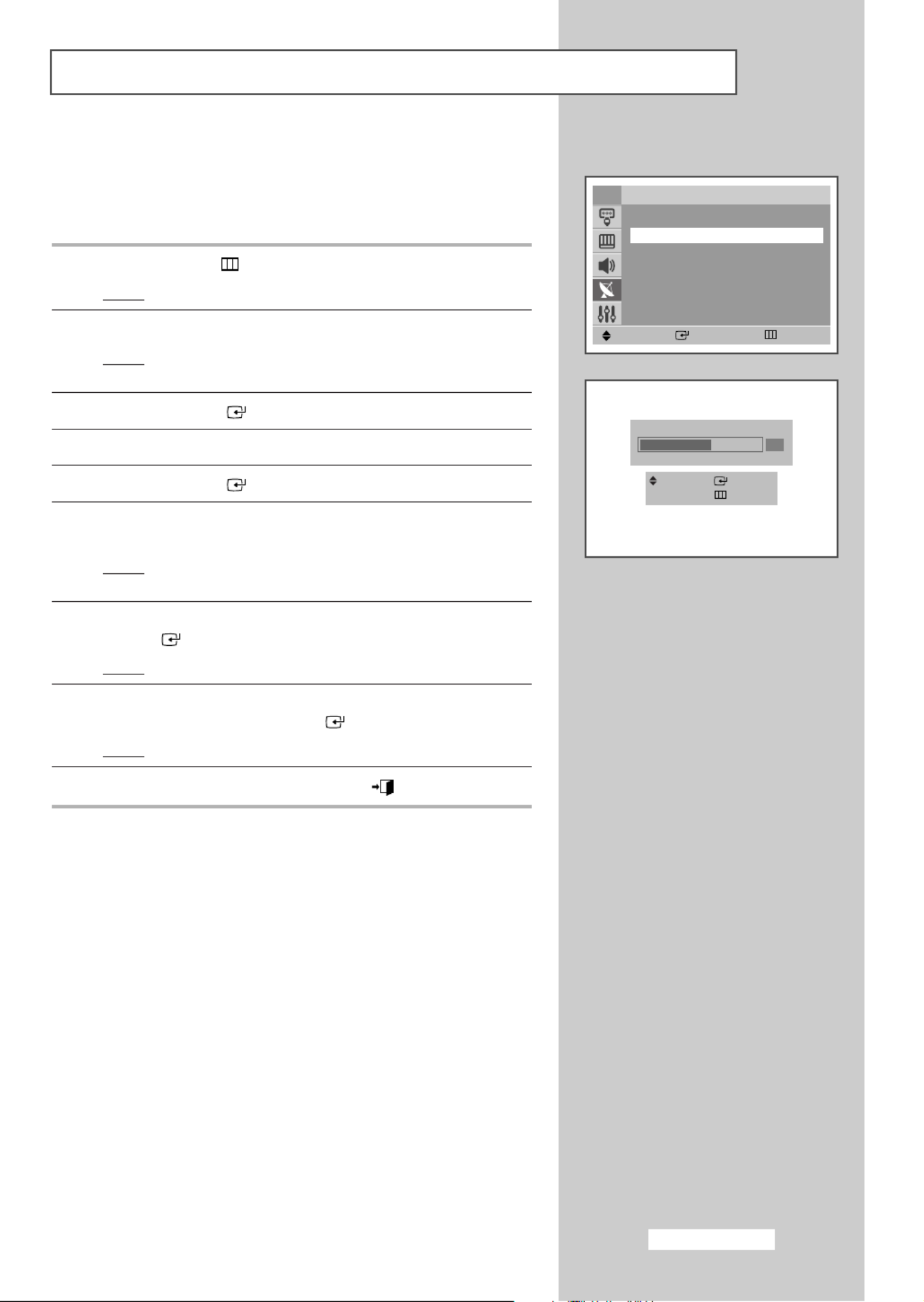

1Press the MENU
( )
button.
2 Press the ▼ or ▲ button to select Setup, and then press the
ENTER ( ) button.
Result : The Plug & Play is selected.
3 Press the ENTER ( ) button again.
Result : This feature starts with the message Plug & Play
is displayed.
Plug & Play Feature
Plug & Play
Enjoy your watching.
Move Enter Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Skip
Auto Store
Area
œ
œ
œ
œ
œ
ASIA W/EUROPE
√
√
√
√
√
Search : -/+
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Skip
Time
Clock -- : -- am
Sleep Timer : Off
On Timer -- : -- am Off
Off Timer -- : -- am Off
On Timer Volume : 10
On Timer Channel : P 1
TV
Check antenna input.
œ
œ
œ
œ
œ
√
√
√
√
√
Move Skip
English-13
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Skip
Setup
Plug & Play
√
√
√
√
√
Language
œ
œ
œ
œ
œ
English
√
√
√
√
√
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV

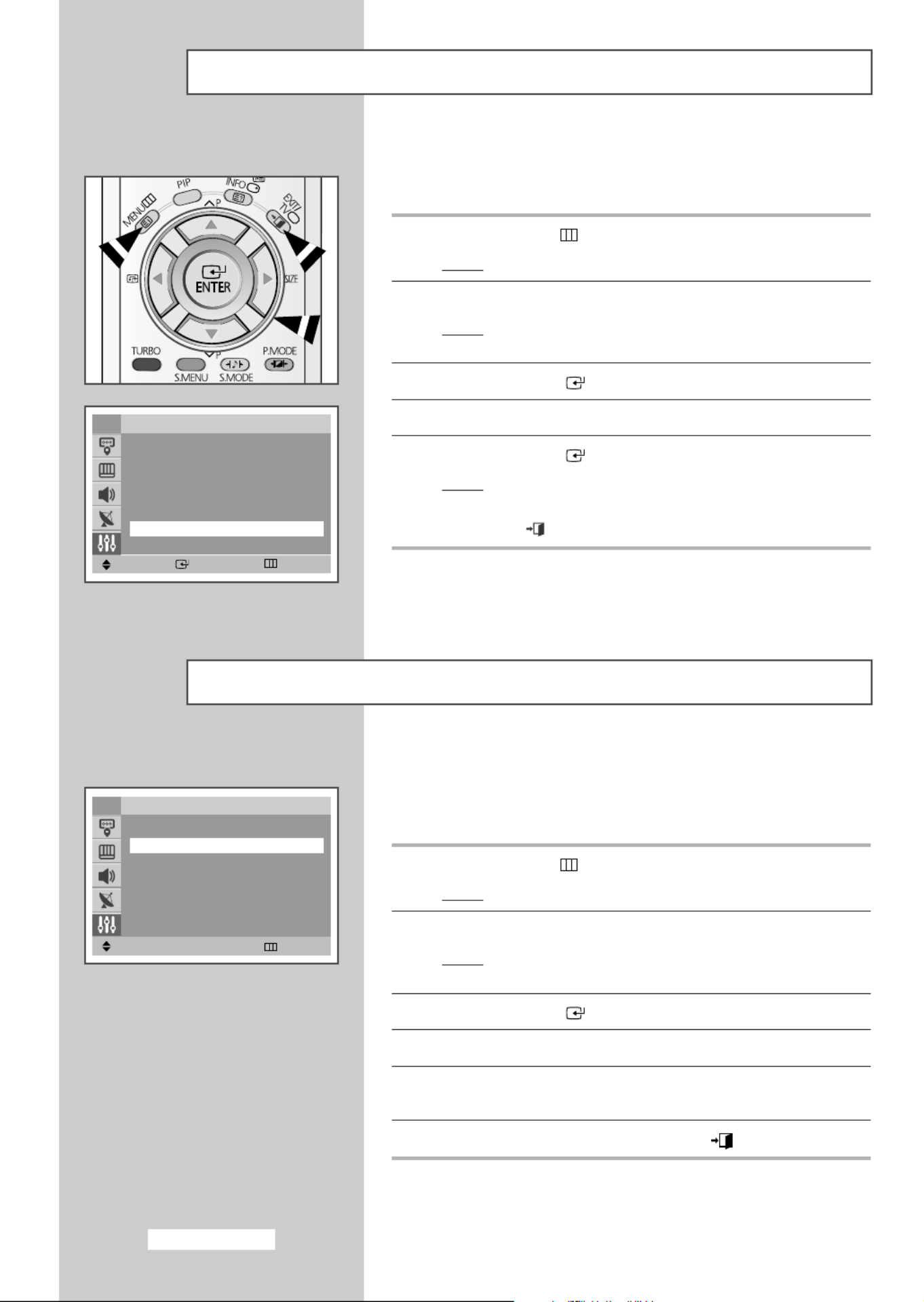

To become familiar with the various menus provided by your
television, you can view the inbuilt demonstration.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Setup.
Result : The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Demonstration.
5Press the ENTER ( ) button.
Result : Each of the menu options is displayed in turn.
➢When you wish to exit from the demonstration, press the
EXIT ( ) button on the remote control.
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Setup.
Result : The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Language.
5Select the appropriate language by pressing the buttonœ or √
repeatedly.
6When you have finished, press the button to exit.EXIT ( )
Viewing the Demonstration
Choosing Your Language
Move Enter Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Setup
Plug & Play
√
√
√
√
√
Language
œ
œ
œ
œ
œ
English
√
√
√
√
√
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
English-14
You can scan for the frequency ranges available to you (and
availability depends on your area). Automatically allocated
programme numbers may not correspond to actual or desired
programme numbers. However you can sort numbers manually and
clear any channels you do not wish to watch.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Channel.
Result : The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
Result : The Auto Store is selected.
4Press the ENTER ( ) button again.
Result : The options available in the Auto Store group are
displayed with Area is selected.
5Select your area by pressing the button. The areas areœ or √
displayed in the following order: ASIA W/EUROPE
-
CIS
E/EUROPE
-
CHINA
-
HONGKONG U/K
-
AUSTRALIA
-
NZ/INDONESIA
-
SOUTH AFRICA
-
AMERICA
6Press the button to select ▼ or ▲ Search.
7Press the button to start the search.œ or √
Result : The horizontal bar is displayed, and then channels are
stored in an order which reflects their positions in the
frequency range. Finally, the search will end
automatically.
➢To stop the search before it has finished, press the MENU
( )
button.
8When searching and storing are complete, the menu isSort
displayed.
◆
To sort the stored channels into the desired numerical order,
go to Step 6 of the “Sorting the Stored Channels” procedure
on page 16.
◆
To exit from the channel store function without sorting the
channels, press the MENU
( )
button repeatedly until the
menus disappear.
9When the channels have been stored, you can:
◆
Sort them in the order required (refer to page 16)
◆
Skip Unwanted Channels (refer to page 19)
◆
Assign a name to the stored channels (refer to page 20)
◆
Fine tune channel reception if necessary (refer to page 21)
◆
Activate the Digital Noise Reduction feature (refer to page 26)
Storing Channels Automatically
Return
Move Enter Return
Channel
Auto Store
√
√
√
√
√
Manual Store
√
√
√
√
√
Add/Delete
√
√
√
√
√
Sort
√
√
√
√
√
Name
√
√
√
√
√
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Auto Store
Area
œ
œ
œ
œ
œ
ASIA W/EUROPE
√
√
√
√
√
Search : -/+
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Search Return
Auto Store
Area : ASIA W/EUROPE
Search
œ
œ
œ
œ
œ
-/+
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sort
From
œ
œ
œ
œ
œ
P 1
√
√
√
√
√
To : P--
Store : ?
TV
P 1 106 MHz
7 %
English-15
This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using auto
store. You can delete the channels you do not want to keep.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Channel.
Result : The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Sort.
5Press the ENTER ( ) button.
Result : The options available in the Sort group are displayed
with From is selected.
6Select the channel number that you wish to change by pressing
the œ or √ button repeatedly.
7Press the button to select . Select the new channel▼ or ▲ To
number which you wish to identify by pressing the œ or √ button
repeatedly.
➢You can also select the channel number directly by pressing
the numeric buttons (0~9).
8Press the button to select . Select to confirm the▼ or ▲ Store OK
exchange of channel numbers by pressing the œ or √ button.
Result :
The selected channel is exchanged with the one
previously stored to the chosen number.
9For all the channels to move to the required channel numbers,
repeat steps 6 8to after selecting the by pressing the From ▼ ▲or
button.
10 When you have finished, press the button to exit.EXIT ( )
Sorting the Stored Channels
Move Enter Return
Channel
Auto Store
√
√
√
√
√
Manual Store
√
√
√
√
√
Add/Delete
√
√
√
√
√
Sort
√
√
√
√
√
Name
√
√
√
√
√
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sort
From
œ
œ
œ
œ
œ
P 1
√
√
√
√
√
To : P--
Store : ?
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sort
From : P 1
To
œ
œ
œ
œ
œ
P 2
√
√
√
√
√
Store : ?
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sort
From : P 1
To : P 2
Store
œ
œ
œ
œ
œ
OK
√
√
√
√
√
TV
English-16
You can store up to 100 television channels, including those
received via cable networks.
When storing channels manually, you can choose:
◆Whether or not to store each of the channels found
◆The programme number of each stored channel which
you wish to identify
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Channel.
Result : The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Manual Store.
5Press the ENTER ( ) button.
Result : The options available in the Manual Store group are
displayed with Programme is selected.
6To assign a programme number to a channel, press the œ or √
button.
7Press the button to select . Indicate the▼ or ▲ Color System
broadcasting standard required by pressing the œ or √ button
repeatedly.
Result : The color standards are displayed in the following
order:
AUTO
-
PAL
-
SECAM
-
NT4.43
-
NT3.58.
8Press the button to select . Select the▼ or ▲ Sound System
sound standard required by pressing the œ or √ button repeatedly.
Result : The sound standards are displayed in the following
order:
BG
-
DK
-
I
-
M.
Storing Channels Manually
Move Enter Return
Channel
Auto Store
√
√
√
√
√
Manual Store
√
√
√
√
√
Add/Delete
√
√
√
√
√
Sort
√
√
√
√
√
Name
√
√
√
√
√
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Manual Store
Programme
œ
œ
œ
œ
œ
P 1
√
√
√
√
√
Color System : AUTO
Sound System : BG
Search : 0MHz
Channel : C--
Store : ?
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Manual Store
Programme : P 1
Color System
œ
œ
œ
œ
œ
AUTO
√
√
√
√
√
Sound System : BG
Search : 0MHz
Channel : C--
Store : ?
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Manual Store
Programme : P 1
Color System : AUTO
Sound System
œ
œ
œ
œ
œ
BG
√
√
√
√
√
Search : 0MHz
Channel : C--
Store : ?
TV
English-17

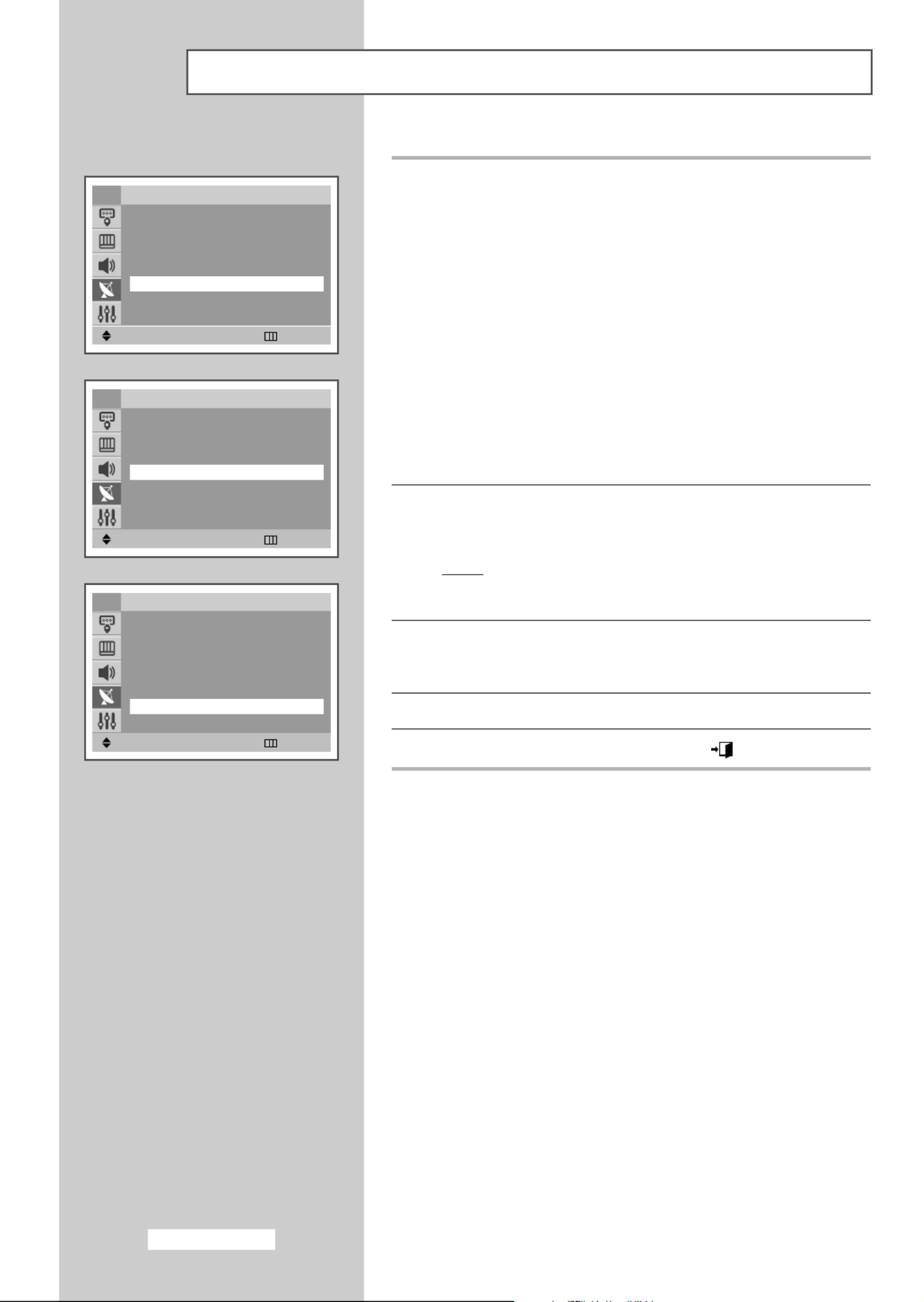

9If you know the number of the channel to be stored, see the
following steps.
◆
Press the button to select ▼ or ▲ Channel.
◆
Press the √ button.
◆
Press the button to select (Air channel) or (Cable▼ or ▲ C S
channel).
◆
Press the button.√
◆
Press the button to select indicate the required▼ or ▲
number.
➢You can also select the channel number directly by
pressing the numeric buttons (0~9).
➢If no sound or abnormal sound, re-select the sound system
required.
10 If you do not know the channel numbers, select bySearch
pressing the ▼ or ▲ button. Press the œ or √ button to start the
search.
Result : The tuner scans the frequency range until the first
channel or the channel that you selected is received
on your screen.
11 To store the channel and associated programme number, select
Store by pressing the button. Press the button to▼ or ▲ œ or √
select OK.
12 Repeat Steps for each channel to be stored.9 to 11
13 When you have finished, press the button to exit.EXIT ( )
☛Channel mode
◆P(Programme mode):
When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to max P99. You can select a
channel by entering the position number in this mode.
◆C(Real channel mode):
You can select a channel by
entering the assigned number to each air broadcasting station
in this mode.
◆S(Cable channel mode):
You can select a channel by
entering the assigned number for each cable channel in this
mode.
Storing Channels Manually (continued)
Adjust
œ
œ
œ
œ
œ
√
√
√
√
√
Move Return
Manual Store
Programme : P 1
Color System : AUTO
Sound System : BG
Search : 0MHz
Channel
œ
œ
œ
œ
œ
C1
√
√
√
√
√
Store : ?
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Search Return
Manual Store
Programme : P 1
Color System : AUTO
Sound System : BG
Search
œ
œ
œ
œ
œ
46MHz
√
√
√
√
√
Channel : C 1
Store : ?
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Manual Store
Programme : P 1
Color System : AUTO
Sound System : BG
Search : 46MHz
Channel : C 1
Store
œ
œ
œ
œ
œ
OK
√
√
√
√
√
TV
English-18
You can exclude the channels you chosen from the channels you
scanned. When you scan through the stored channels, those you
have chosen to skip are not displayed.
All of the channels that you do not specifically choose to skip are
displayed during scanning.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Channel.
Result: The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select▼or ▲ Add/Delete.
5Press the ENTER ( ) button.
Result:
The stored channels are displayed.
6Press the button to select the channel to add or erase.▼or ▲
If necessary, select Added or Deleted by pressing the œ or √
button.
7Repeat Step 6for each channel to be added or erased.
8When you have finished, press the button to exit.EXIT ( )
Skipping Unwanted Channels
Move Enter Return
Channel
Auto Store
√
√
√
√
√
Manual Store
√
√
√
√
√
Add/Delete
√
√
√
√
√
Sort
√
√
√
√
√
Name
√
√
√
√
√
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Add/Delete
P 1
œ
œ
œ
œ
œ
Added
√
√
√
√
√
P 2 : Added
P 3 : Added
P 4 : Added
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Add/Delete
P 1
œ
œ
œ
œ
œ
Deleted
√
√
√
√
√
P 2 : Added
P 3 : Added
P 4 : Added
TV
English-19
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed, allowing
you to assign new names.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Channel.
Result: The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Name.
5Press the ENTER ( ) button.
Result: The current channels are displayed.
6If necessary, select the channel to be assigned to a new name by
pressing the ▼or ▲ button.
7Press the ENTER ( ) button.
8Press the button to select a letter (A~Z), a number (0~9) or▼or ▲
a symbol (
-
, space). Move on the previous or next letter by
pressing the œ or √button.
9 6 8Repeat Steps to for each channel to be assigned to a new
name.
10 When you have finished, press the button to exit.EXIT ( )
Assigning Names to Channels
Move Enter Return
Channel
Auto Store
√
√
√
√
√
Manual Store
√
√
√
√
√
Add/Delete
√
√
√
√
√
Sort
√
√
√
√
√
Name
√
√
√
√
√
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Name
P 1
œ
œ
œ
œ
œ
-----
√
√
√
√
√
P 2 : -----
P 3 : -----
P 4 : -----
TV
Adjust
œ
œ
œ
œ
œ
√
√
√
√
√
Move Return
TV
English-20
Name
P 1
œ
œ
œ
œ
œ
A
√
√
√
√
√
P 2 : -----
P 3 : -----
P 4 : -----
If the reception is clear, you do not have to fine tune the channel,
as this is done automatically during the search and store operation.
If the signal is weak or distorted, you may have to fine tune the
channel manually.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Channel.
Result: The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Fine Tune.
5Press the ENTER ( ) button.
6To obtain a sharp and clear picture and good sound quality, press
the œ or √button.
Result: The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the button.œ or √
7To store the fine tuning setting in the TV’s memory, press the
ENTER ( ) button.
Result: Channel indicator turns into Red.
8To erase adjusted picture or sound, select by pressing theReset
▼or ▲ button. Press the ENTER ( ) button.
Result: Channel indicator returns to its original color.
9When you have finished, press the button to exit.EXIT ( )
Fine Tuning Channel Reception
Fine Tune P 1
Reset
Move Enter Return
Channel
…
…
…
…
…
More
Fine Tune
√
√
√
√
√
LNA : Off
TV
1
Move Save
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
English-21

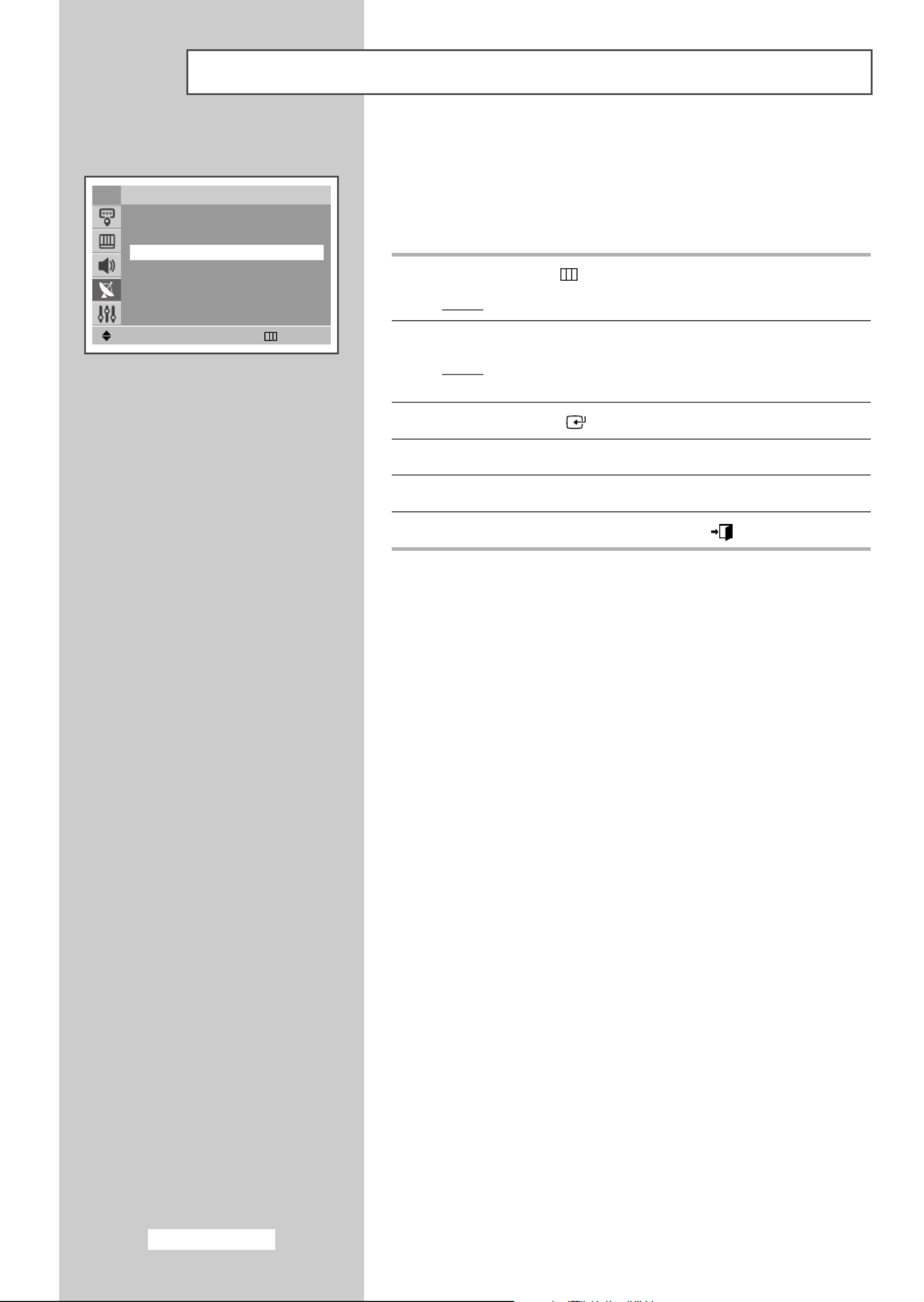

This function is very useful in the situation that the TV is used in
weak signal. LNA amplifies the TV signal in the weak signal area,
but not noise. This feature is working only weak signal condition,
and that is memorized on current channel, additional.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Channel.
Result: The options available in the Channel group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ LNA.
5To activate this feature, select by pressing the button.On œ or √
6When you have finished, press the button to exit.EXIT ( )
➢Setting the LNA option to “On” may produce worse picture
quality due to the current channel’s signal condition.
Hence, apply LNA On/Off selectively according to the
picture quality that is currently displayed.
Using the LNA (Low Noise Amplifier) feature (depending on the model)
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Channel
…
…
…
…
…
More
Fine Tune
√
√
√
√
√
LNA
œ
œ
œ
œ
œ
On
√
√
√
√
√
TV
English-22

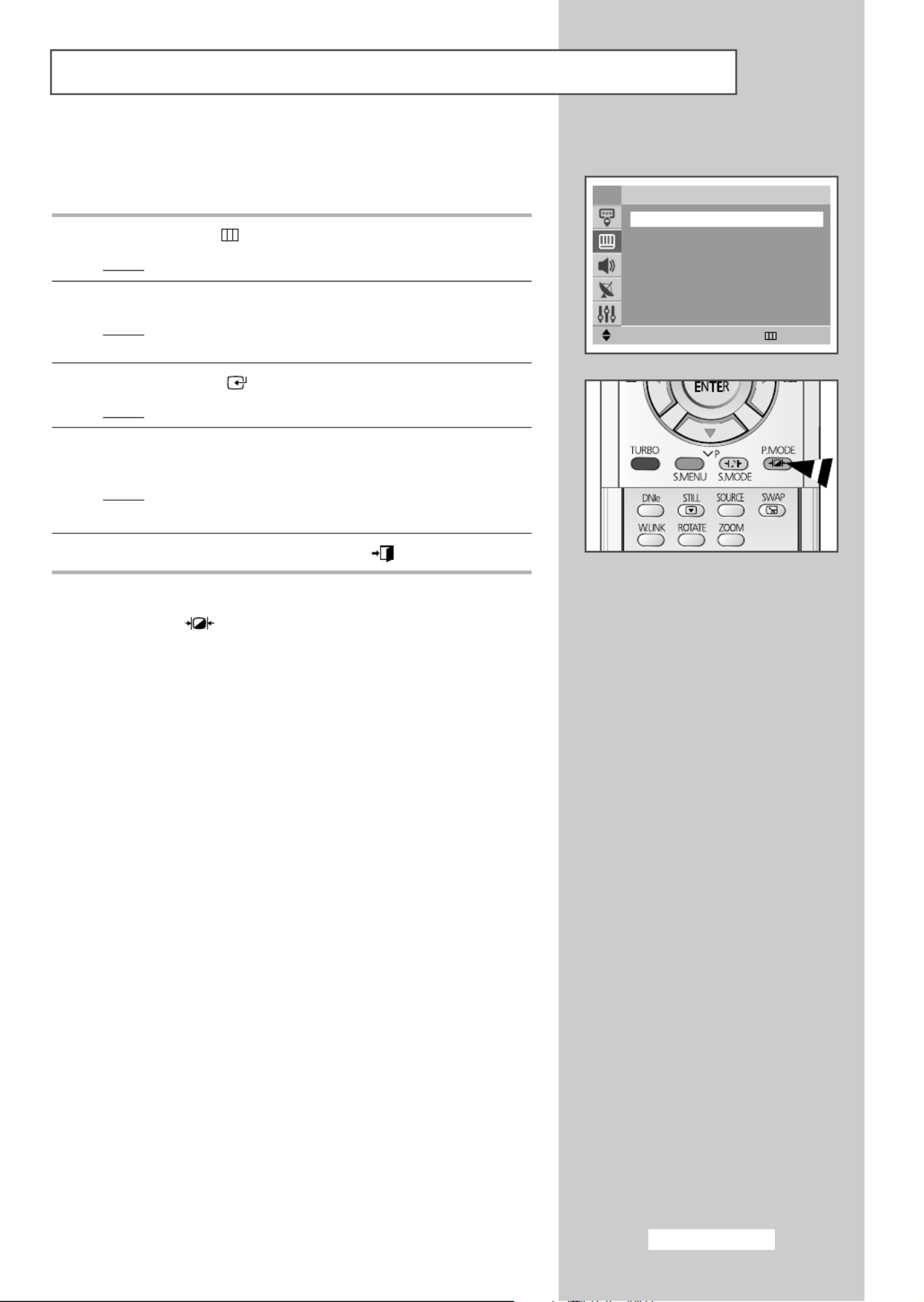

You can select the type of picture which best corresponds to your
viewing requirements.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result:
The options available in the
group are
displayed.
3Press the ENTER ( ) button.
Result:
The
Mode
is selected.
4Select the required picture effect by pressing the buttonœ or √
repeatedly.
Result: The following picture effects are available:
Dynamic
-
Standard
-
Movie
-
Custom.
5When you have finished, press the button to exit.EXIT ( )
➢You can also set these options simply by pressing the
P.MODE
( )
(Picture Mode) button.
Changing the Picture Standard
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Mode
œ
œ
œ
œ
œ
Dynamic
√
√
√
√
√
Custom
√
√
√
√
√
Color Tone : Normal
Size : Normal
Digital NR : On
†
†
†
†
†
More
TV
English-23

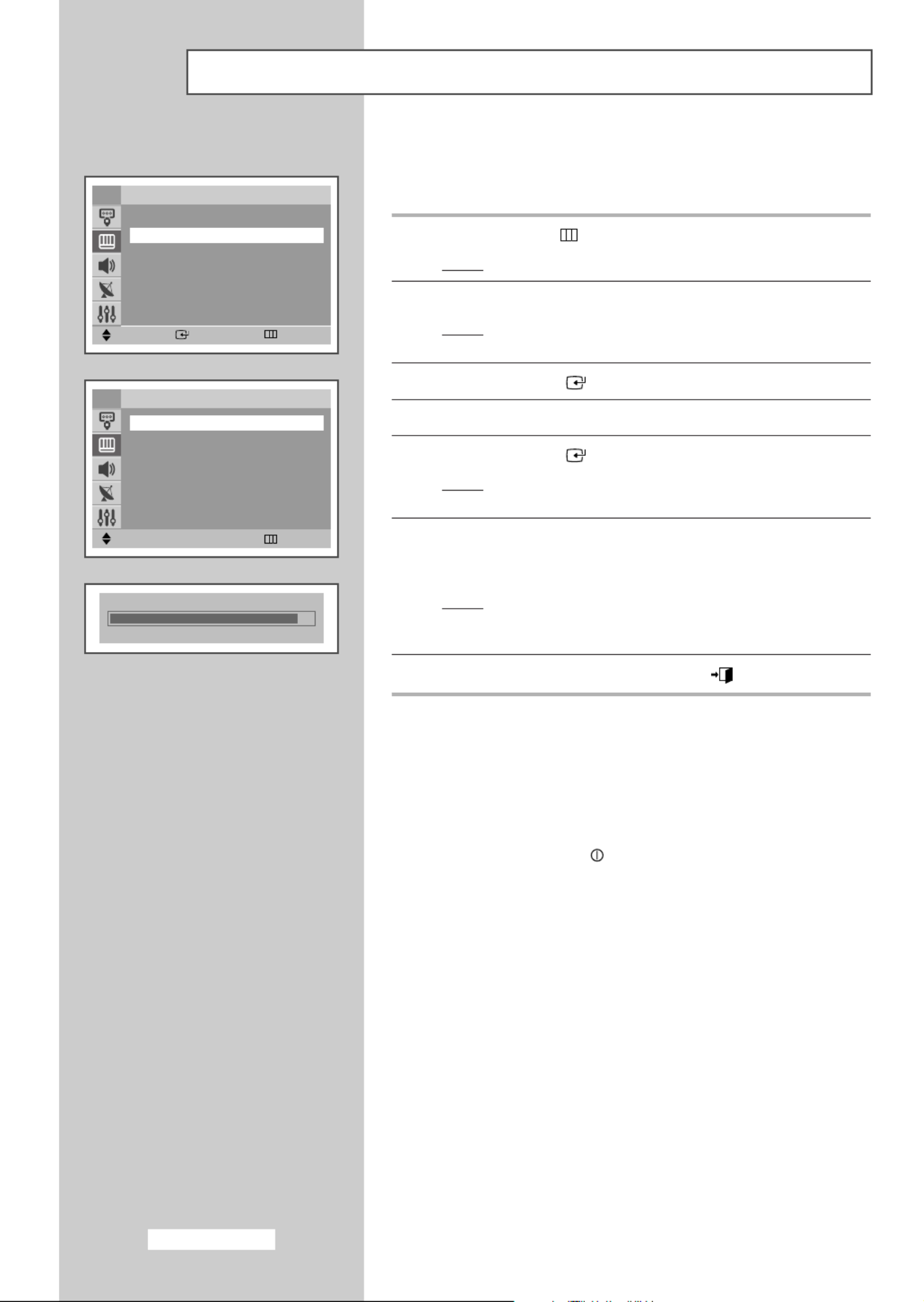

Your television has several settings which allow you to control
picture quality.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result:
The options available in the
group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Custom.
5Press the ENTER ( ) button.
Result: The options available in the Custom group are
displayed.
6Press the button to select the option (▼or ▲ Contrast,
Brightness, Sharpness, Color or Tint-NTSC only) to be adjusted.
Press the œ or √button.
Result: The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œ or √
button.
7When you have finished, press the button to exit.EXIT ( )
➢◆If you make any changes to these settings, the picture
standard is automatically switched to Custom.
◆The television has an “automatic degaussing” system
that is activated if magnetic interference is present.
To degauss the television screen, switch power off by
pressing the “ ” (On/Off) button on the front panel.
(Refer to “Automatic Degaussing to Remove Color
Patches” on page 48.)
Adjusting the Picture Settings
Contrast 90
Move Enter Return
Mode : Dynamic
Custom
√
√
√
√
√
Color Tone : Normal
Size : Normal
Digital NR : On
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Custom
Contrast
œ
œ
œ
œ
œ
90
√
√
√
√
√
Brightness : 50
Sharpness : 60
Color : 50
TV
English-24

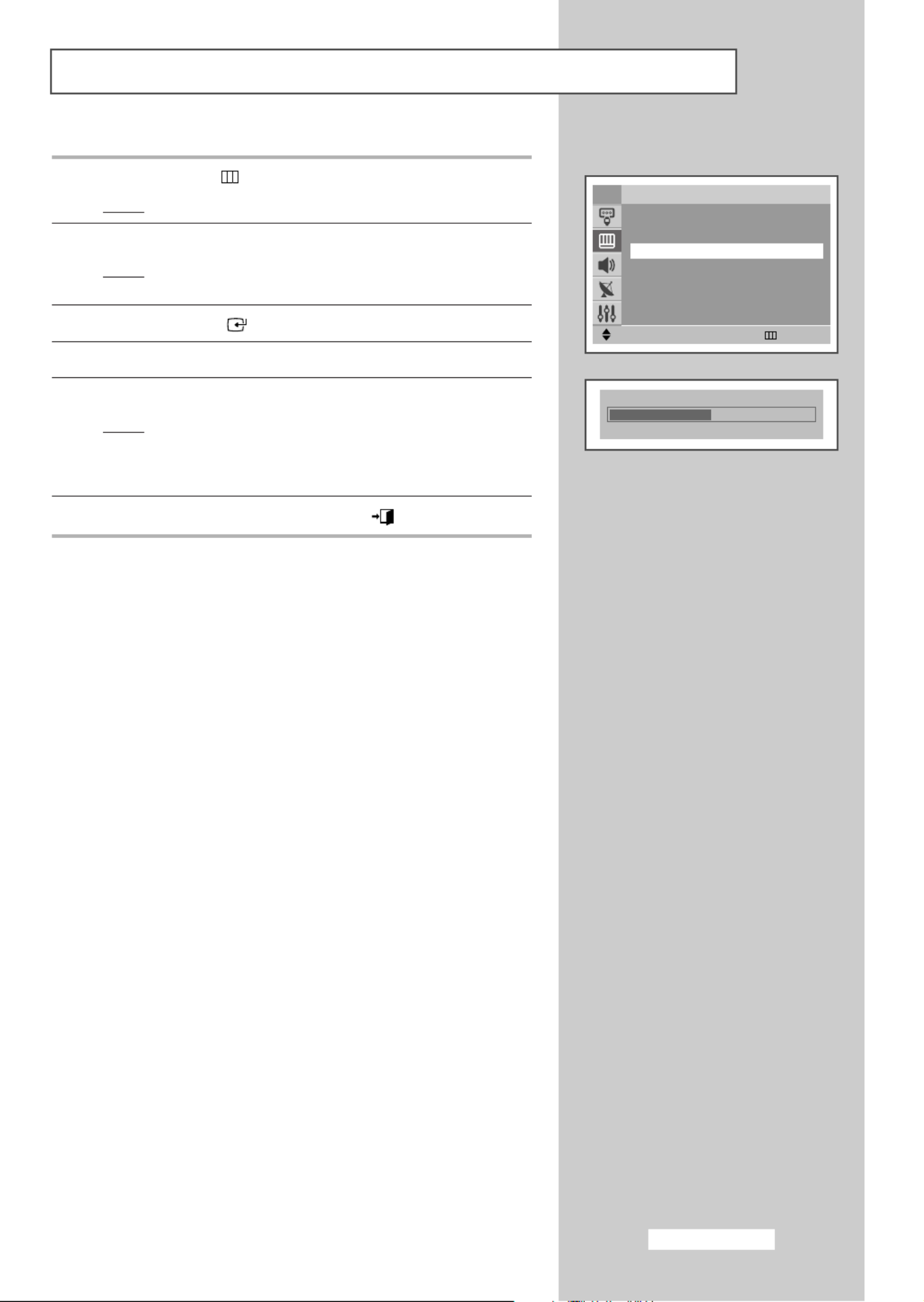

Selecting the Color Tone
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result:
The options available in the
group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Color Tone.
5Press the button.œ or √
Result: The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œ or √
button. ( Warm1 Cool1 ~ Warm10 - Normal - ~
Cool10 ).
6When you have finished, press the button to exit.EXIT ( )
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Mode : Dynamic
Custom
√
√
√
√
√
Color Tone
œ
œ
œ
œ
œ
Normal
√
√
√
√
√
Size : Normal
Digital NR : On
†
†
†
†
†
More
TV
Color Tone Normal
English-25

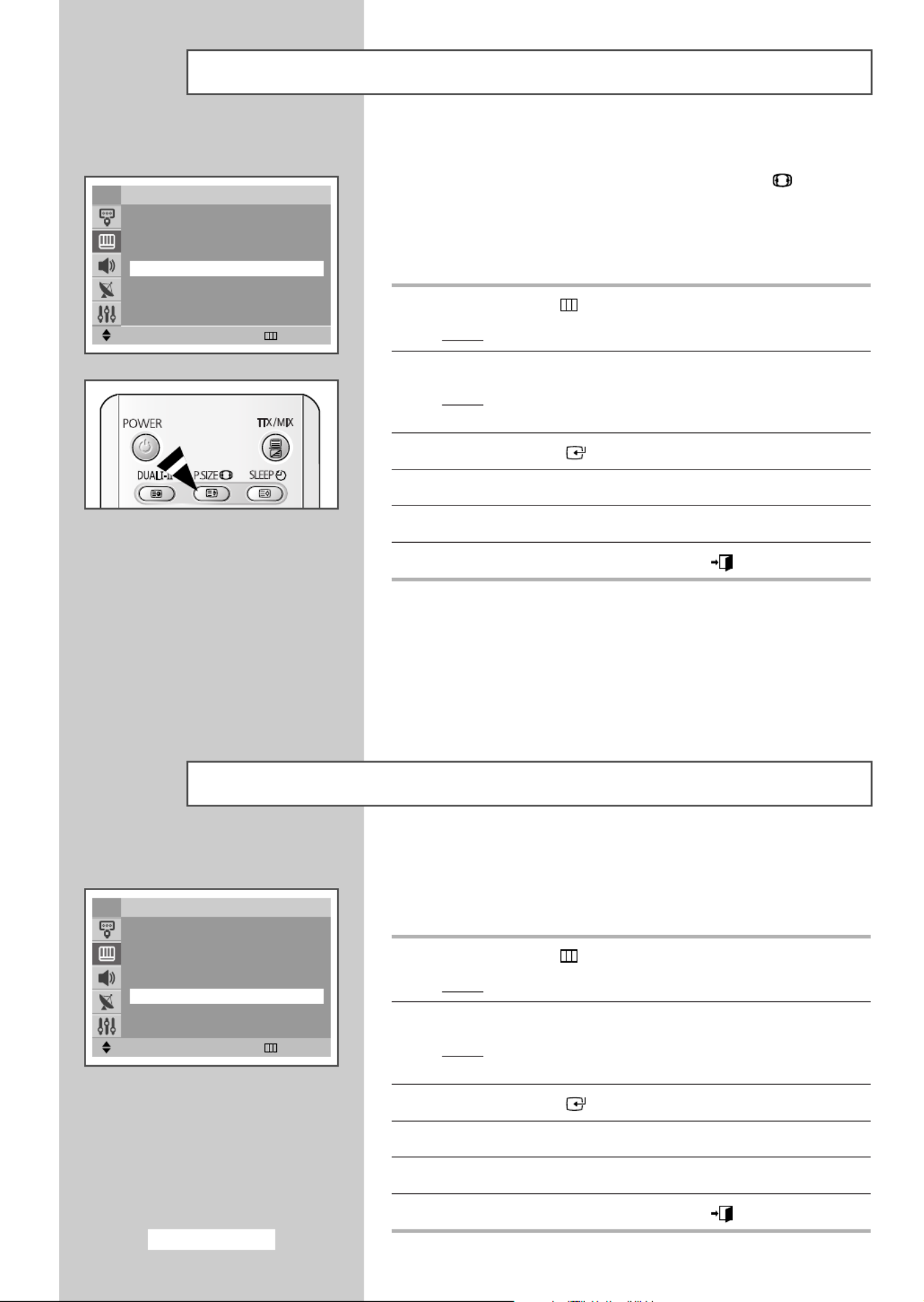

You can select the picture size which best corresponds to your
viewing requirements simply by pressing the “P.SIZE
( )
” button.
Depending on the model, the following picture sizes are available:
◆Normal Zoom1 Zoom2, , , 16:9
◆16:9, Panorama, Zoom1 Zoom2, , 4:3
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result: The options available in the Picture group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Size.
5Press the button to œ or √select the picture size.
6When you have finished, press the button to exit.EXIT ( )
Selecting the Picture Size (depending on the model)
If the signal received by your television is weak, you can activate
this feature to reduce any static and ghosting that may appear on
the screen.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result: The options available in the Picture group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Digital NR.
5To activate this feature, select by pressing the button.On œ or √
6When you have finished, press the button to exit.EXIT ( )
Selecting the Digital NR
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Mode : Dynamic
Custom
√
√
√
√
√
Color Tone : Normal
Size
œ
œ
œ
œ
œ
Normal
√
√
√
√
√
Digital NR : On
†
†
†
†
†
More
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Mode : Dynamic
Custom
√
√
√
√
√
Color Tone : Normal
Size : Normal
Digital NR
œ
œ
œ
œ
œ
On
√
√
√
√
√
†
†
†
†
†
More
TV
English-26

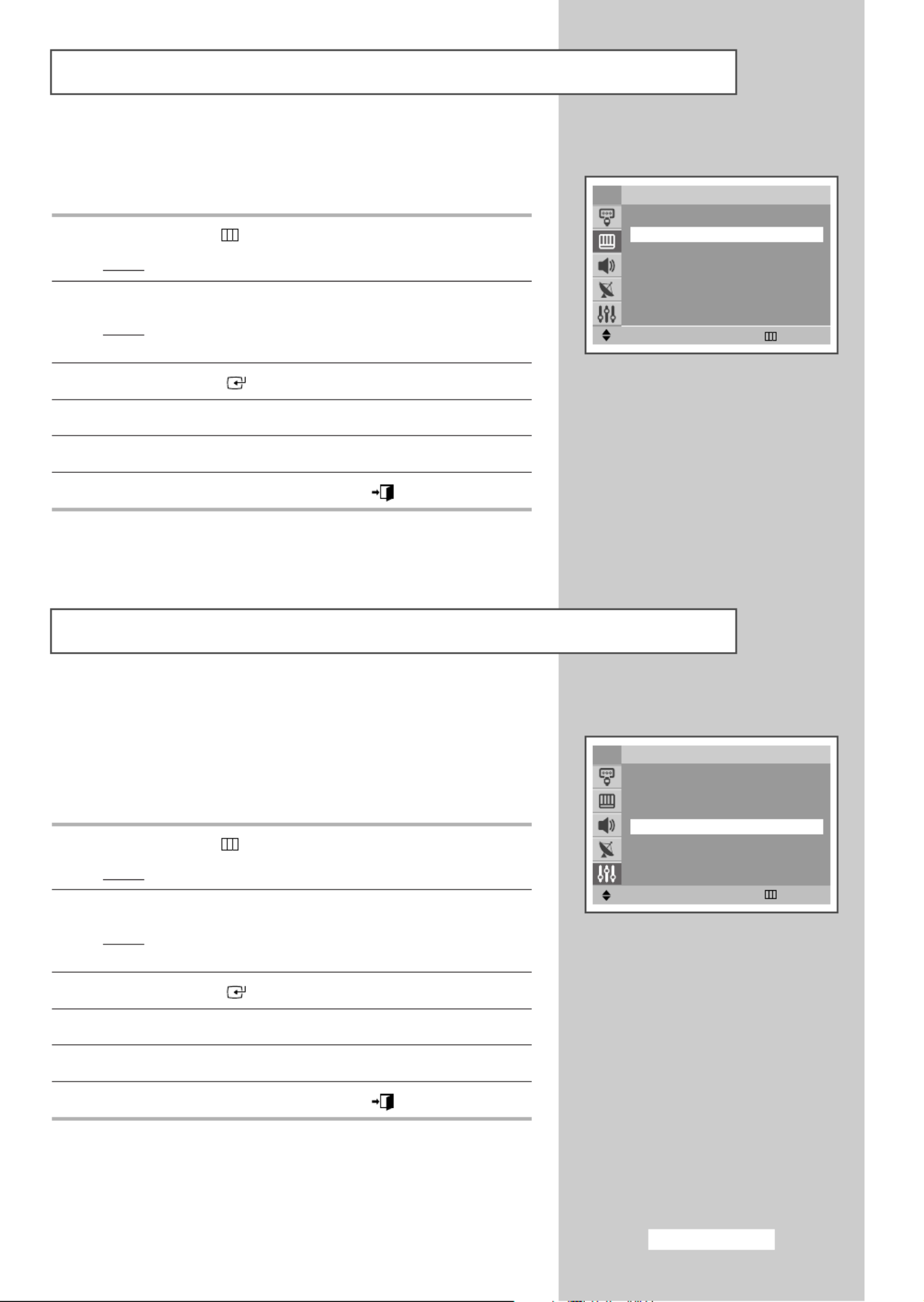

If no signal is being received or the signal is very weak, a blue
screen automatically replaces the noisy picture background.
If you wish to continue viewing the poor picture, you must set the
“Blue Screen” mode to “Off”.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Setup.
Result: The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Blue Screen.
5To activate this feature, select by pressing the button.On œ or √
6When you have finished, press the button to exit.EXIT ( )
Setting the Blue Screen
If you find that the picture received is slightly tilted to one side, you
can adjust the tilt setting.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result: The options available in the Picture group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Tilt.
5Press the button to reach the required setting (œ or √-7 to +7).
6When you have finished, press the button to exit.EXIT ( )
Using the Tilt Control Feature
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen
œ
œ
œ
œ
œ
On
√
√
√
√
√
Melody : On
Demonstration
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
…
…
…
…
…
More
Tilt
œ
œ
œ
œ
œ
3
√
√
√
√
√
PIP
√
√
√
√
√
TV
English-27
You can select the type of special sound effect to be used when
watching a given broadcast.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Sound.
Result: The options available in the Sound group are
displayed.
3Press the ENTER ( ) button.
Result:
The
Mode
is selected.
4Select the required sound effect by pressing the buttonœ or √
repeatedly.
Result: The following sound effects are available:
Standard
-
Music
-
Movie
-
Speech(SVE)
-
Custom.
◆
SVE : S V EAMSUNG oice nhancement Technic
5When you have finished, press the button to exit.EXIT ( )
➢You can also set these options simply by pressing the
S.MODE
( )
(Sound Mode) button.
Changing the Sound Standard
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sound
Mode
œ
œ
œ
œ
œ
Custom
√
√
√
√
√
Equalizer
√
√
√
√
√
Auto Volume : Off
Dolby Virtual : Off
Turbo Sound : Off
Pseudo Stereo : Off
TV

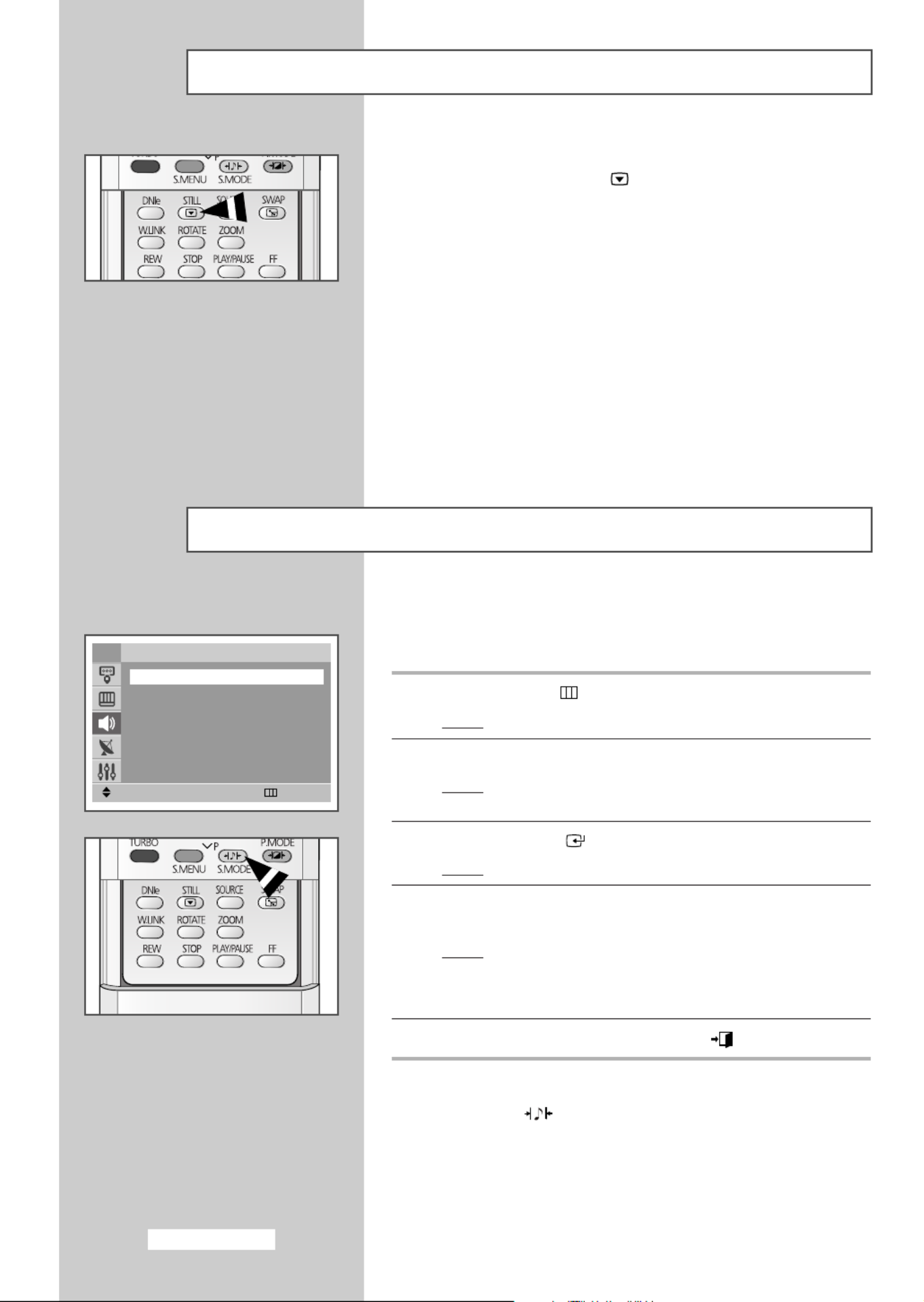

You can freeze the picture when watching a television programme
simply by pressing the “STILL
( )
” button.
➢To return to normal viewing, press this button again.
Freezing the Current Picture
English-28

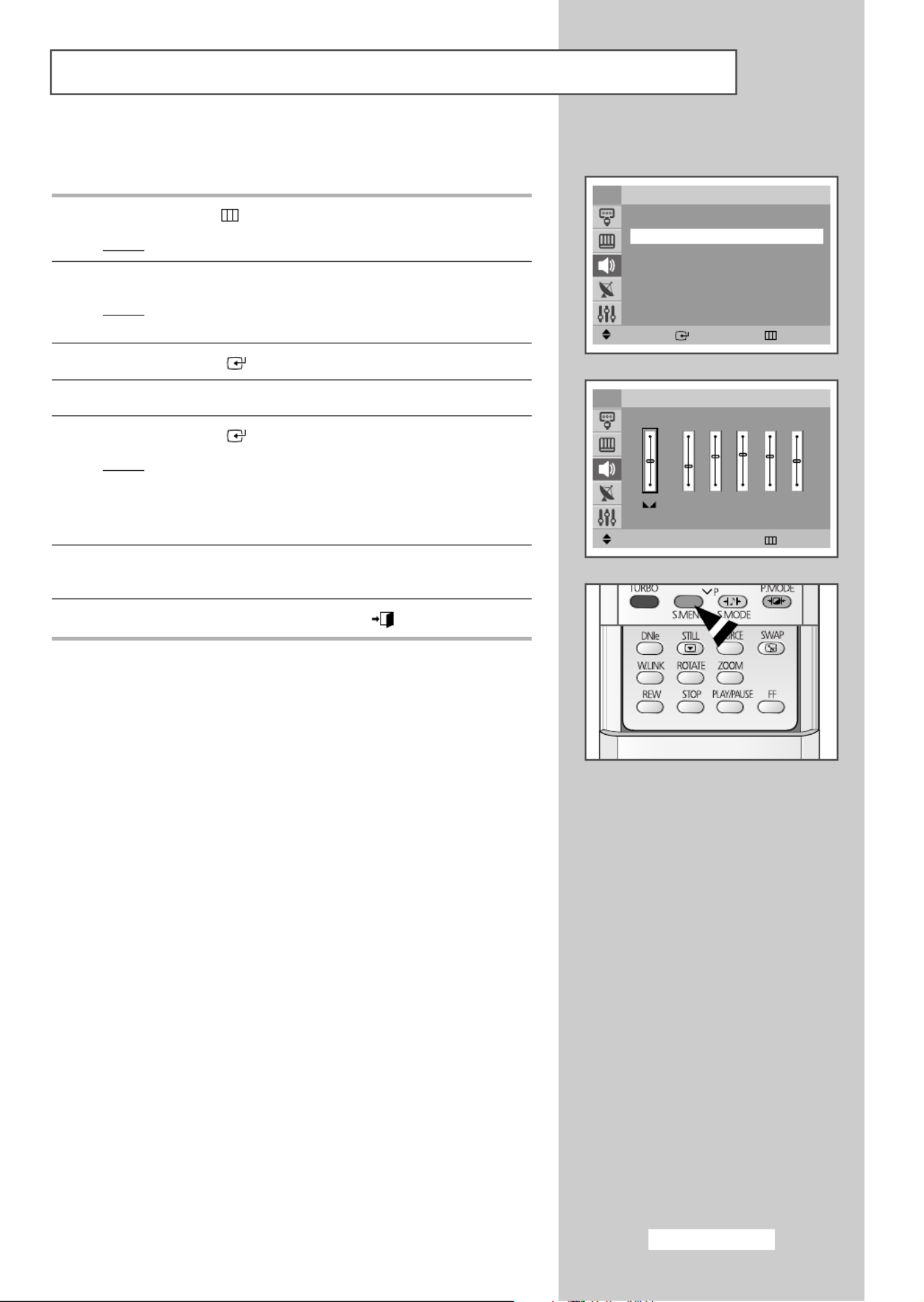

The sound settings can be adjusted to suit your personal preferences.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Sound.
Result: The options available in the Sound. group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Equalizer.
5Press the ENTER ( ) button.
Result: The options available in the Equalizer group are
displayed.
➢You can also display this group simply by pressing the
S.MENU (Sound Menu) button.
6Select the option to be adjusted by pressing the button.œ or √
Press the ▼or ▲ button to reach the required setting.
7When you have finished, press the button to exit.EXIT ( )
➢If you make any changes to these settings, the sound
standard is automatically switched to Custom.
Adjusting the Sound Settings
Move Enter Return
Sound
Mode : Custom
Equalizer
√
√
√
√
√
Auto Volume : Off
Dolby Virtual : Off
Turbo Sound : Off
Pseudo Stereo : Off
TV
100 300 1K 3K 10K
Adjust
œ
œ
œ
œ
œ
√
√
√
√
√
Move Return
EqualizerTV
R
L
English-29

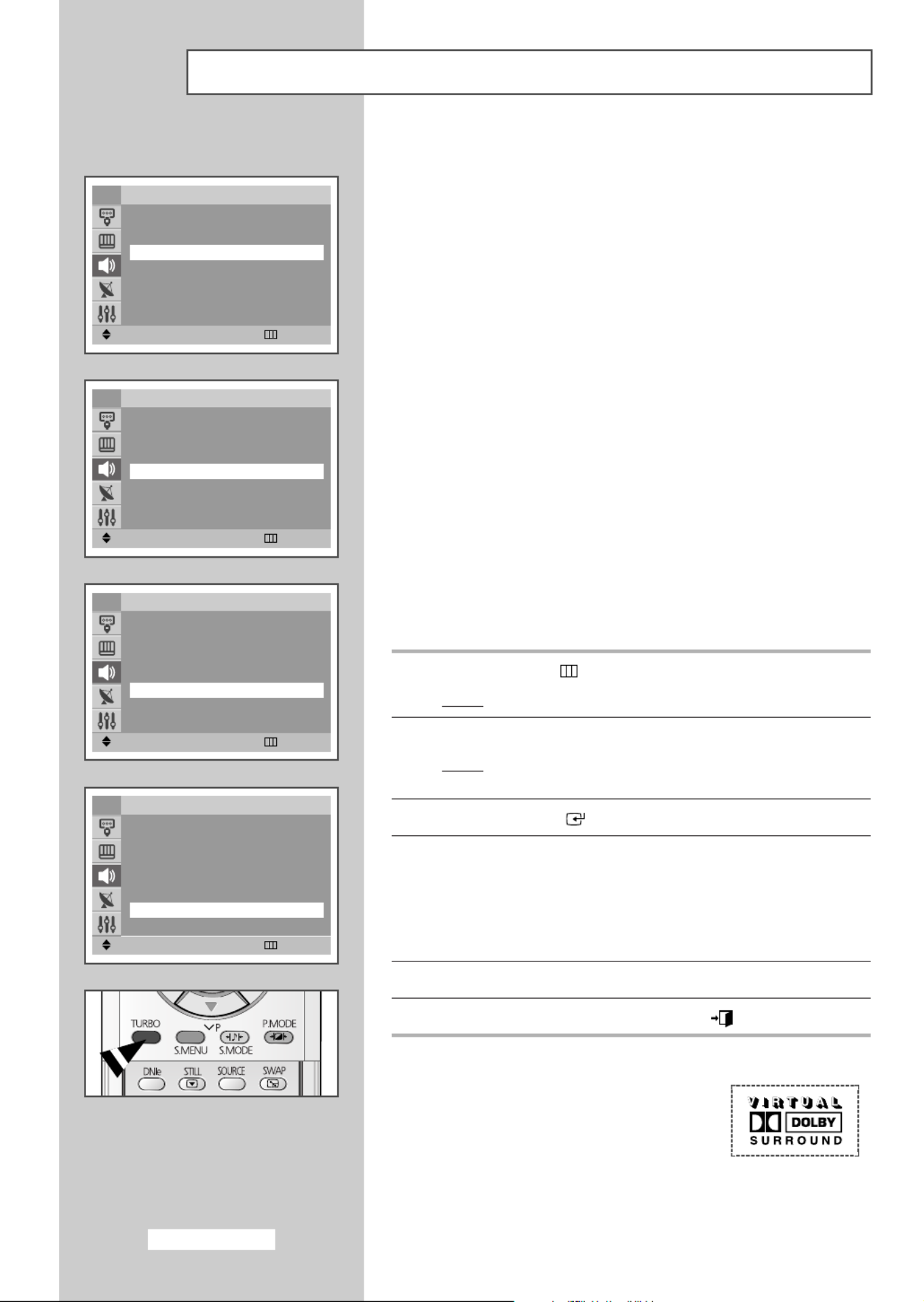

◆Auto Volume
Each broadcasting station has its own signal conditions, and
so it is not easy for you to adjust the volume every time the
channel is changed. This feature lets you automatically
adjust the volume of the desired channel by lowering the
sound output when the modulation signal is high or by
raising the sound output when the modulation signal is low.
◆Turbo Sound
This feature suitably emphasizes both higher and lower
bands of sound (and includes other effects).
You can enjoy more magnificent and dynamic sound when
watching music, movie, or other channels.
◆Pseudo Stereo / Dolby Virtual
Pseudo stereo feature converts a monaural sound signal
into two identical left and right channels.
Once the Pseudo Stereo or Dolby Virtual is set to On
or Off, these settings apply to the sound effects such as
Standard, Music Movie, , and Speech(SVE).
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Sound.
Result : The options available in the Sound group are
displayed.
3Press the ENTER ( ) button.
4Select the required option (Auto Volume,
Dolby Virtual
,
Turbo Sound or Pseudo Stereo) by pressing the ▼ or ▲
button.
➢
You can select the turbo sound feature simply by pressing
the TURBO button.
5To activate each feature, select by pressing the button.On œ or √
6When you have finished, press the button to exit.EXIT ( )
➢Manufactured under license from
Dolby Laboratories.
“Dolby” and the double-D symbol
are trademarks of Dolby
Laboratories.
Extra Sound Settings (depending on the model)
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sound
Mode : Custom
Equalizer
√
√
√
√
√
Auto Volume
œ
œ
œ
œ
œ
On
√
√
√
√
√
Dolby Virtual : Off
Turbo Sound : Off
Pseudo Stereo : Off
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sound
Mode : Custom
Equalizer
√
√
√
√
√
Auto Volume : Off
Dolby Virtual
œ
œ
œ
œ
œ
On
√
√
√
√
√
Turbo Sound : Off
Pseudo Stereo : Off
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sound
Mode : Custom
Equalizer
√
√
√
√
√
Auto Volume : Off
Dolby Virtual : Off
Turbo Sound
œ
œ
œ
œ
œ
On
√
√
√
√
√
Pseudo Stereo : Off
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Sound
Mode : Custom
Equalizer
√
√
√
√
√
Auto Volume : Off
Dolby Virtual : Off
Turbo Sound : Off
Pseudo Stereo
œ
œ
œ
œ
œ
On
√
√
√
√
√
TV
English-30

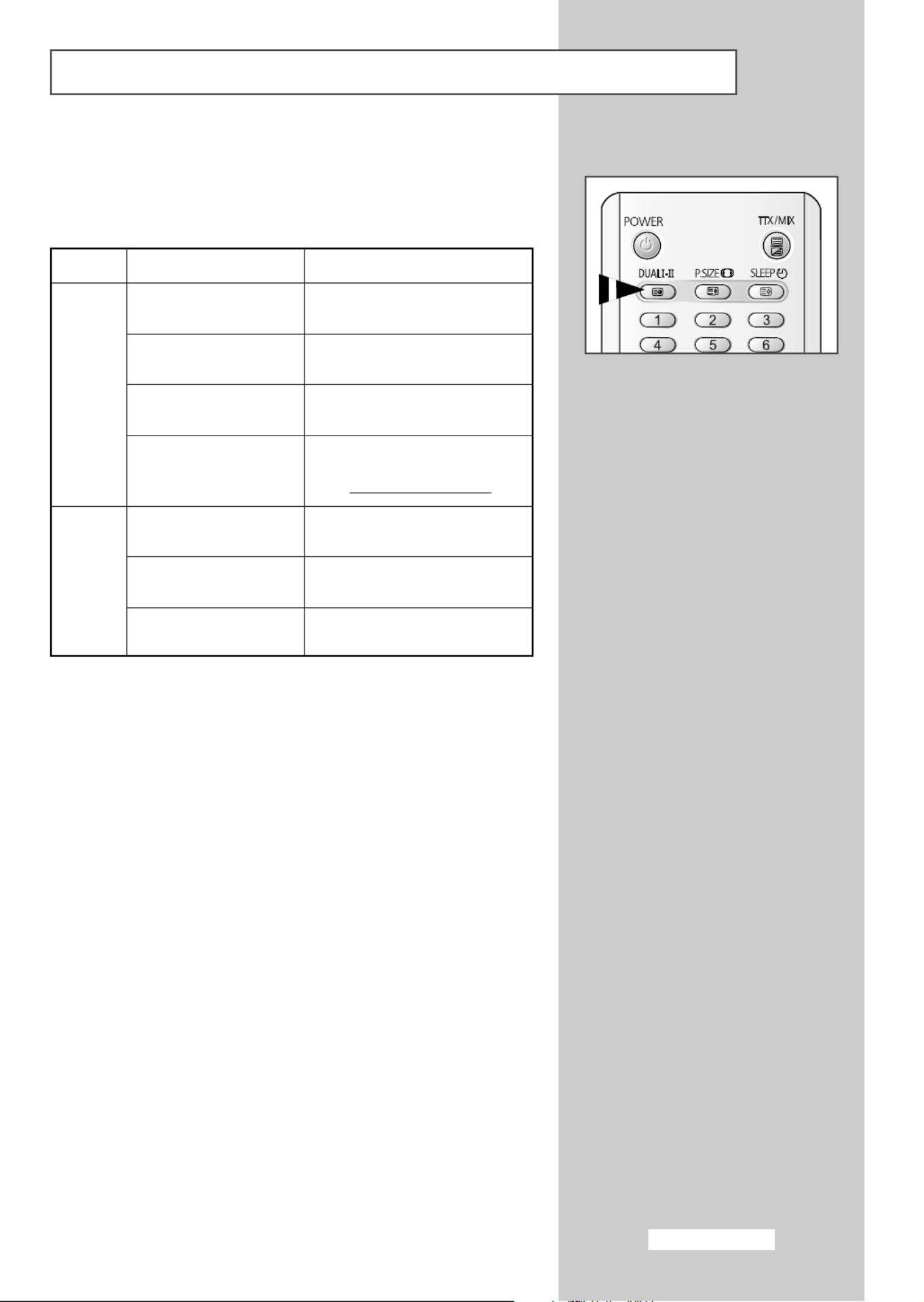

The “DUAL
I-II”
button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “DUAL-I ” or “STEREO”, depending on
the current transmission.
➢◆If the receiving conditions deteriorate, listening will be
easier if the mode is set to the MONO.
◆If the stereo signal is weak and an automatic switching
occurs, then switch to the MONO.
◆When receiving a mono sound in the AV mode, connect
to the “AUDIO-L” input connector on the panel (front or
side). If the mono sound comes out only from left
speaker, press the DUAL
I-II
button.
Selecting the Sound Mode (depending on the model)
Type of broadcast
Regular broadcast
(Standard audio)
Regular +
NICAM Mono
NICAM Stereo
NICAM Dual-I/II
Regular broadcast
(Standard audio)
Bilingual or Dual-I/II
Stereo
On-screen indication
MONO (Normal use)
MONO MONO↔
NICAM (Normal)
STEREO ↔ MONO
NICAM (Normal)
MONO (Normal use)
DUAL- DUAL-I↔ II
STEREO ↔ MONO
(Forced mono)
DUAL- DUAL- Mono I →II →
NICAM NICAM (Normal)
NICAM
Stereo
A2
Stereo
→
→
English-31
Selecting the Melody
You can hear clear melody sound when the television is powered on
or off.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Setup.
Result : The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Melody.
5To activate this feature, select by pressing the button.On œ or √
6When you have finished, press the button to exit.EXIT ( )
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody
œ
œ
œ
œ
œ
On
√
√
√
√
√
Demonstration
√
√
√
√
√
TV
English-32
Setting and Displaying the Current Time
You can set the television’s clock so that the current time is displayed
by pressing the “INFO
( )
” button. You must also set the time if
you wish to use the automatic on or off timers.
➢When pressing the “ ” button (On/Off) on the front of
the television, the clock setting will be reset.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Setup.
Result : The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Time.
5Press the ENTER ( ) button.
Result : The Clock is selected.
6Press the button to move to the hour or minute. Set the¦or
hour or minute by pressing the ▼ or ▲ button.
7When you have finished, press the button to exit.EXIT ( )
8Press the button to display the channel information andINFO ( )
the current time.
Move Enter Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Time
Clock -- : -- am
Sleep Timer : Off
On Timer -- : -- am Off
Off Timer -- : -- am Off
On Timer Volume : 10
On Timer Channel : P 1
TV
Adjust
œ
œ
œ
œ
œ
√
√
√
√
√
Move Return
Time
Clock 01 : am00
Sleep Timer : Off
On Timer -- : -- am Off
Off Timer -- : -- am Off
On Timer Volume : 10
On Timer Channel : P 1
TV
English-33

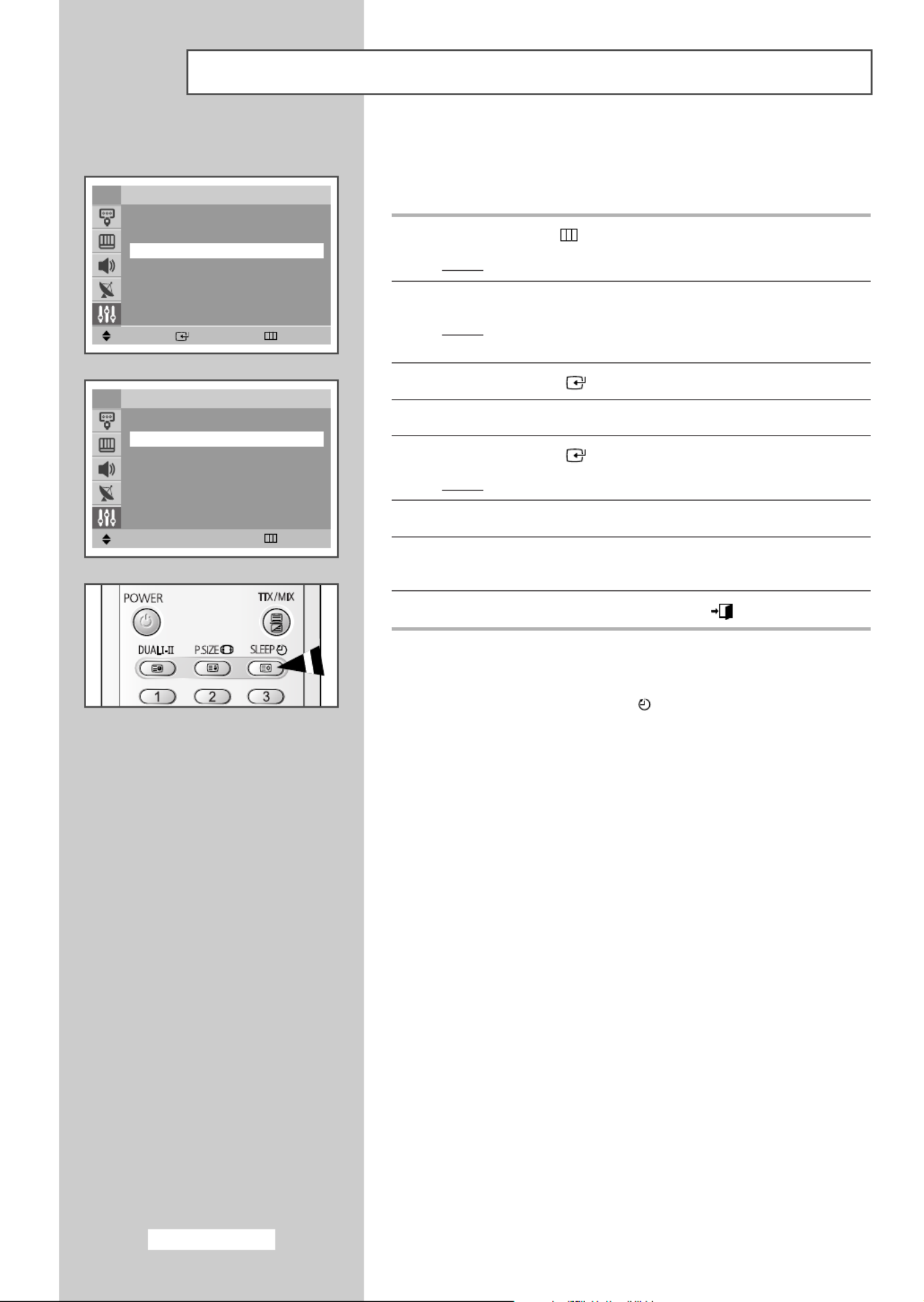

Setting the Sleep Timer
You can set your TV to automatically turn off after a preset
interval.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Setup.
Result : The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Time.
5Press the ENTER ( ) button.
Result : The Clock is selected.
6Press the button to select ▼ or ▲ Sleep Timer.
7Select the preset time interval (Off, 30, 60, 90, 120, 150, 180) for
staying on by pressing the ¦or button.
8When you have finished, press the button to exit.EXIT ( )
➢
You can select a time period of between 30 and 180 minutes
after the television automatically switches to Standby mode
by pressing the SLEEP ( ) button.
Move Enter Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Time
Clock 01 : 00 am
Sleep Timer
œ
œ
œ
œ
œ
30
√
√
√
√
√
On Timer -- : -- am Off
Off Timer -- : -- am Off
On Timer Volume : 10
On Timer Channel : P 1
TV
English-34
Switching the Television On and Off Automatically
You can set the On/Off timers so that the television will:
◆Switch on automatically and tune to the channel of your
choice at the time you select
◆Switch off automatically at the time you select
➢The first step is to set the television’s clock (refer to
“Setting and Displaying the Current Time” on the page
33). If you have not yet set the clock, the message
Set
the clock first is displayed.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Setup.
Result: The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼or ▲ Time.
5Press the ENTER ( ) button.
Result: The Clock is selected.
6Press the button to select . Set the time at which▼or ▲ On Timer
you wish the television to be switched on automatically.
◆
Press the button to move to the hour or minute.¦or
Set these by pressing the ▼or ▲ button.
◆
Press the button to move and then, press the¦or Off
▼or ▲ button to select On.
7Press the button to select ▼or ▲ Off Timer. In the same above,
set the time at which you wish the television to be switched off
automatically.
8When you have finished, press the button to exit.EXIT ( )
➢Auto Power Off
When you set the timer “ ”, the television will eventuallyOn
turn off, if no controls are operated for 3 hours after the TV
was turned on by timer. This function is only available in
timer “On” mode and prevents overheating or leakages,
which may occur if a TV is on for too long (on holiday, for
example).
Move Enter Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
Adjust
œ
œ
œ
œ
œ
√
√
√
√
√
Move Return
Time
Clock 01 : 00 am
Sleep Timer : Off
On Timer 06 : 30 am On
Off Timer -- : -- am Off
On Timer Volume : 10
On Timer Channel : P 1
TV
Adjust
œ
œ
œ
œ
œ
√
√
√
√
√
Move Return
Time
Clock 01 : 00 am
Sleep Timer : Off
On Timer 06 : 30 am On
Off Timer 11 : 30 pm On
On Timer Volume : 10
On Timer Channel : P 1
TV
English-35

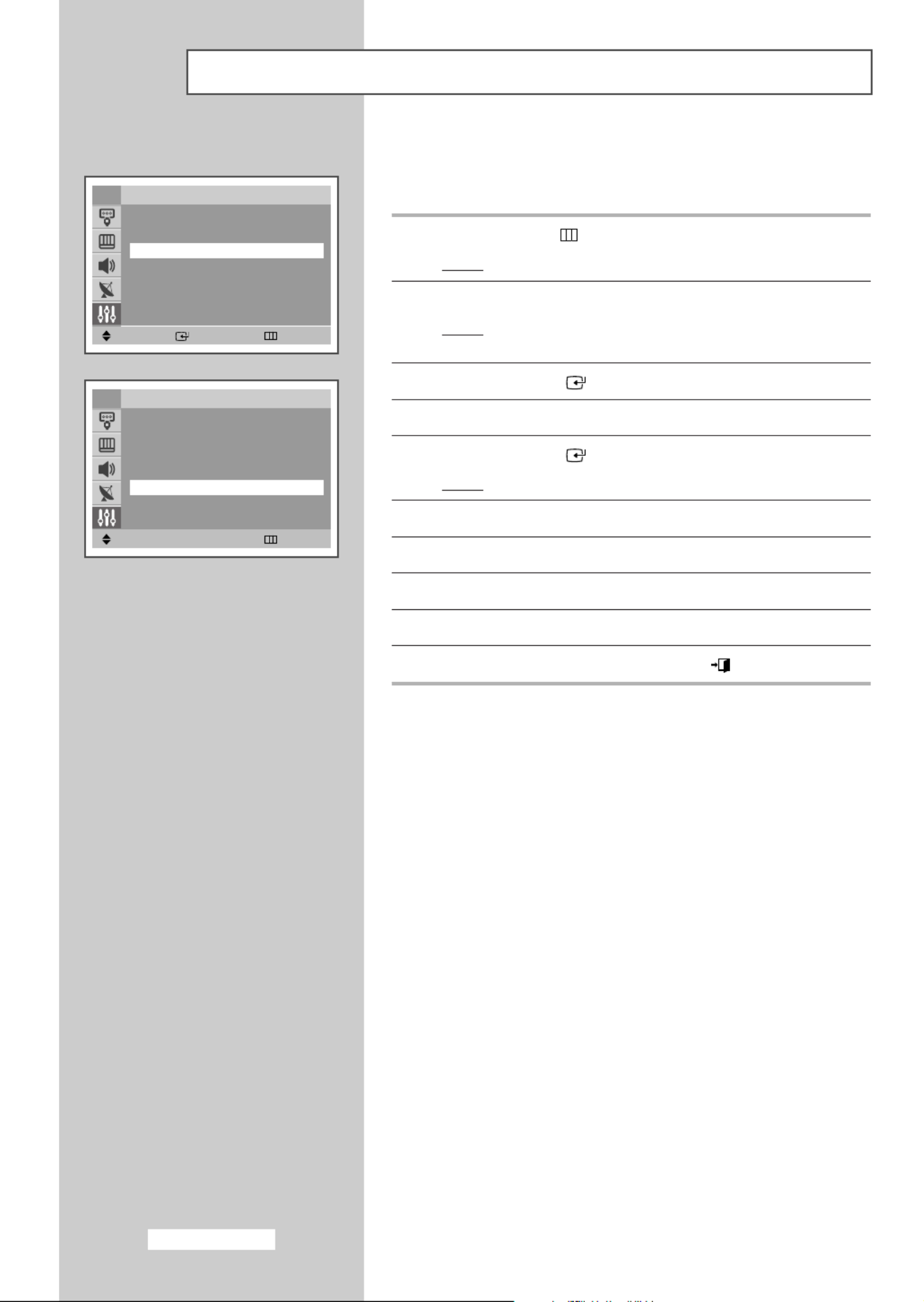

Setting the Preferred Volume Level/Channel
The preferred volume and channel can be set for when the timer
automatically turns on the TV.
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the button to select ▼ or ▲ Setup.
Result : The options available in the Setup group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select ▼ or ▲ Time
5Press the ENTER ( ) button.
Result : The Clock is selected.
6Press the button to select ▼ or ▲ On Timer Volume.
7Press the button to adjust volume level.¦or
8Press the button to select ▼ or ▲ On Timer Channel.
9Press the button to select the channel.¦or
10 When you have finished, press the EXIT ( ) button.
Move Enter Return
Setup
Plug & Play
√
√
√
√
√
Language : English
Time
√
√
√
√
√
Blue Screen : Off
Melody : On
Demonstration
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Time
Clock 01 : 00 am
Sleep Timer : Off
On Timer 06 : 30 am On
Off Timer 11 : 30 pm On
On Timer Volume
œ
œ
œ
œ
œ
10
√
√
√
√
√
On Timer Channel : P 1
TV
English-36

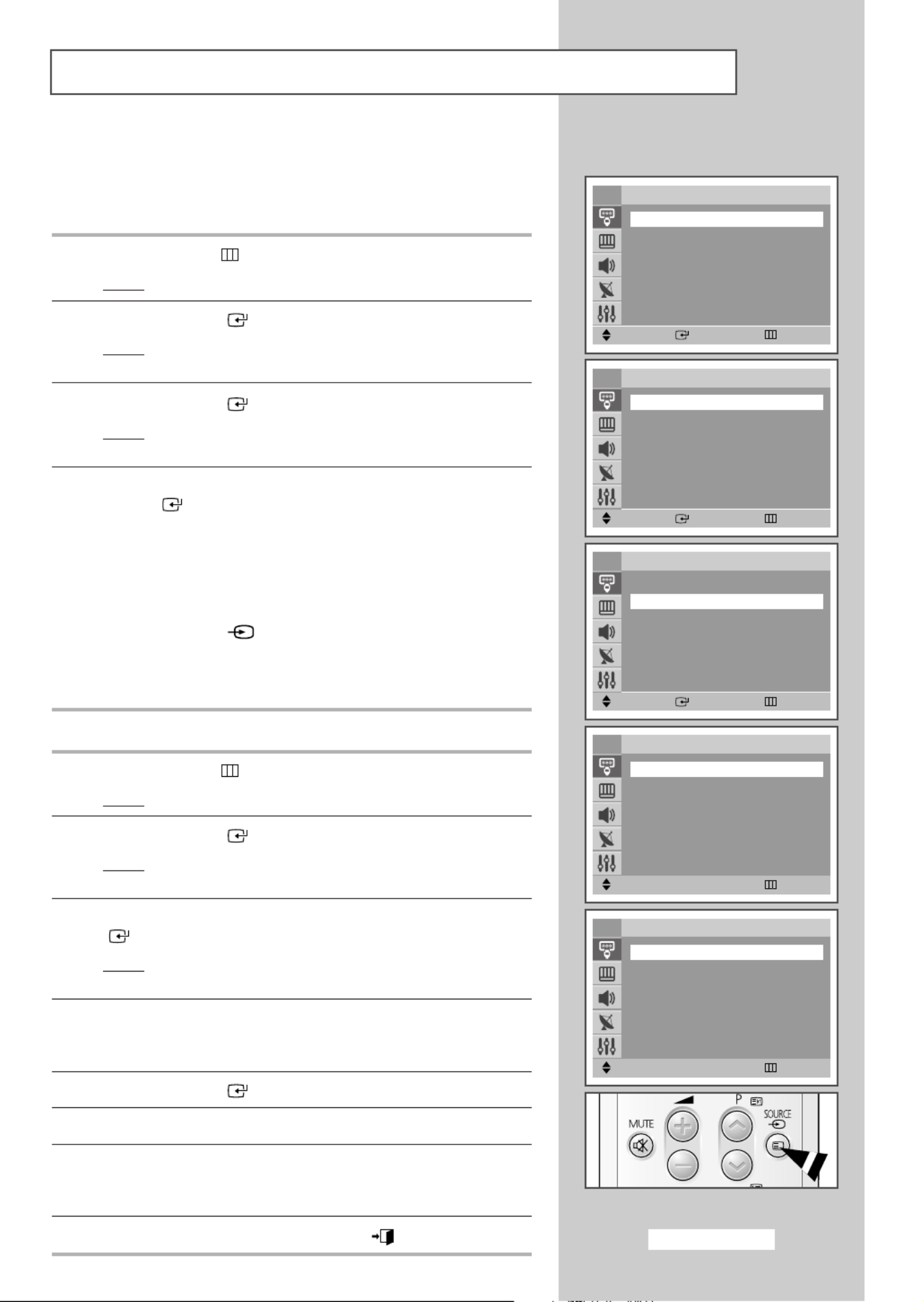

Use the remote control to switch between viewing signal from
connected equipment, such as VCR, DVD, Set-Top-boxes and the
TV source (broadcast or cable)
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the ENTER ( ) button to select Input.
Result : The options available in the Input group are
displayed.
3Press the ENTER ( ) button again to select Source List.
Result : The options available in the Source List group are
displayed.
4Press the button to select signal source, then press the▼ or ▲
ENTER ( ) button.
➢
When you connect equipment to the TV, you can choose
between the following sets of jacks : AV1 AV2 AV3, , ,
Component1 or Component2 on the TV’s rear panel, and
AV4/S-Video on the TV’s side panel.
➢
You can also set these options simply by pressing the
SOURCE ( )
button. If you change the external
source while viewing, pictures might take a short period of
time to be switched.
Edit Name
1Press the MENU
( )
button.
Result : The main menu is displayed.
2Press the ENTER ( ) button to select Input.
Result : The options available in the Input group are
displayed.
3Press the button to select . Press the ▼ or ▲ Edit Name ENTER
( ) button.
Result : The options available in the Edit Name group are
displayed.
4Press the button to select external device : ▼ or ▲
AV1
-
AV2
-
AV3
-
AV4
-
S-Video
-
Component1
-
Component2.
5Press the ENTER ( ) button.
6Select the name by pressing the button.¦or
7Set other signal sources (AV1
-
AV2
-
AV3
-
AV4
-
S-Video
-
Component1
-
Component2) using the same method as listed
above.
8When you have finished, press the button to exit.EXIT ( )
Viewing an External Signal Source/Edit Name (depending on the model)
Move Enter Return
Input
Source List : TV
√
√
√
√
√
Edit Name
√
√
√
√
√
TV
Move Enter Return
Input
Source List : TV
√
√
√
√
√
Edit Name
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Edit Name
AV1
œ
œ
œ
œ
œ
----
√
√
√
√
√
AV2 : ----
AV3 : ----
AV4 : ----
S-Video : ----
Component1 : ----
Component2 : ----
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
Edit Name
AV1
œ
œ
œ
œ
œ
DVD
√
√
√
√
√
AV2 : ----
AV3 : ----
AV4 : ----
S-Video : ----
Component1 : ----
Component2 : ----
TV
Move Enter Return
Source List
TV
AV1 : ----
AV2 : ----
AV3 : ----
AV4/S-Video : ----
Component1 : ----
Component2 : ----
TV
English-37

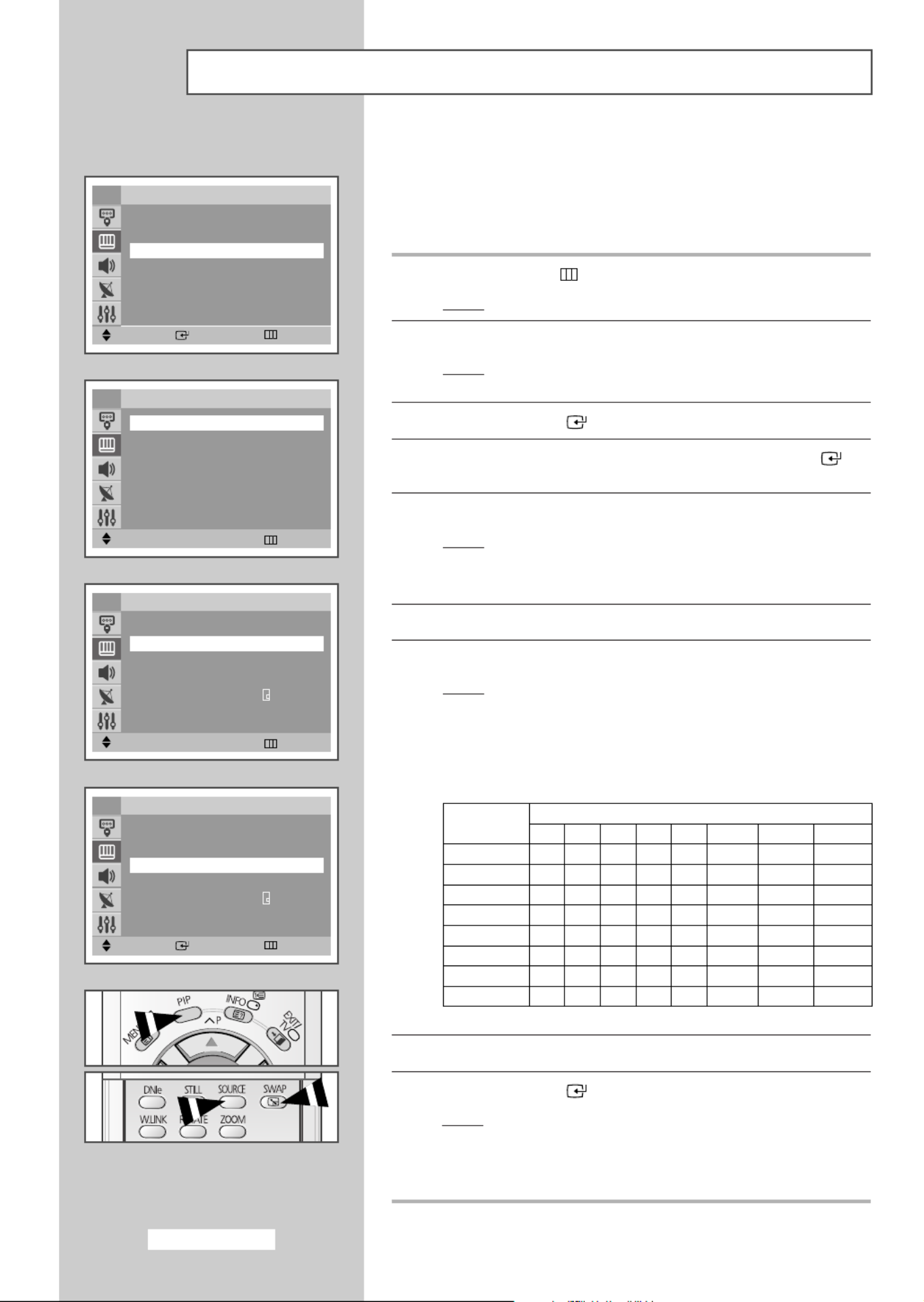

You can display a sub picture within the main picture of TV program
or external A/V devices such as VCR or DVD. In this way you can
watch TV program or monitor the video input from any connected
devices while watching TV or other video input.
1Press the MENU
( )
button.
Result: The main menu is displayed.
2Press the button to select ▼or ▲ Picture.
Result: The options available in the Picture group are
displayed.
3Press the ENTER ( ) button.
4Press the button to select . Press the ▼or ▲ PIP ENTER ( )
button.
5Press the ¦or button to On.
Result: The options available in the PIP group are displayed.
➢
You can also activate the PIP simply by pressing the PIP
button. To deactivate, press it again.
6Press the button to select ▼or ▲ Source.
7Press the button to select a source of sub picture.¦or
Result: The sources are displayed in the following order:
TV
-
AV1
-
AV2
-
AV3
-
AV4/S-Video
➢
When viewing as the mainComponent1 or Component2
picture, PIP will not work. You cannot view Component1
or Component2 in the sub-picture within the PIP screen.
8Press the button to select ▼or ▲ Swap.
9Press the ENTER ( ) button.
Result: The main picture and the sub picture are
interchanged.
➢
You can also interchange the main picture and the sub
picture simply by pressing the SWAP button.
Viewing the Picture In Picture (PIP) (depending on the model)
Move Enter Return
…
…
…
…
…
More
Tilt : 0
PIP
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
PIP
PIP
œ
œ
œ
œ
œ
Off
√
√
√
√
√
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
PIP
PIP : On
Source
œ
œ
œ
œ
œ
TV
√
√
√
√
√
Swap
√
√
√
√
√
Size : Large
Position :
Programme : P 1
TV
Move Enter Return
PIP
PIP : On
Source : TV
Swap
√
√
√
√
√
Size : Large
Position :
Programme : P 2
TV
English-38
Mode
TV
AV1
AV2
AV3
AV4
S-Video
Component1
Component1
PIP
TV AV1 AV2 AV3 AV4 S-Video
Component1 Component2
O O O O O O X X
O O O O O O X X
O O O O O O X X
O O O O O O X X
O O O O O O X X
O O O O O O X X
X X X X X X X X
X X X X X X X X

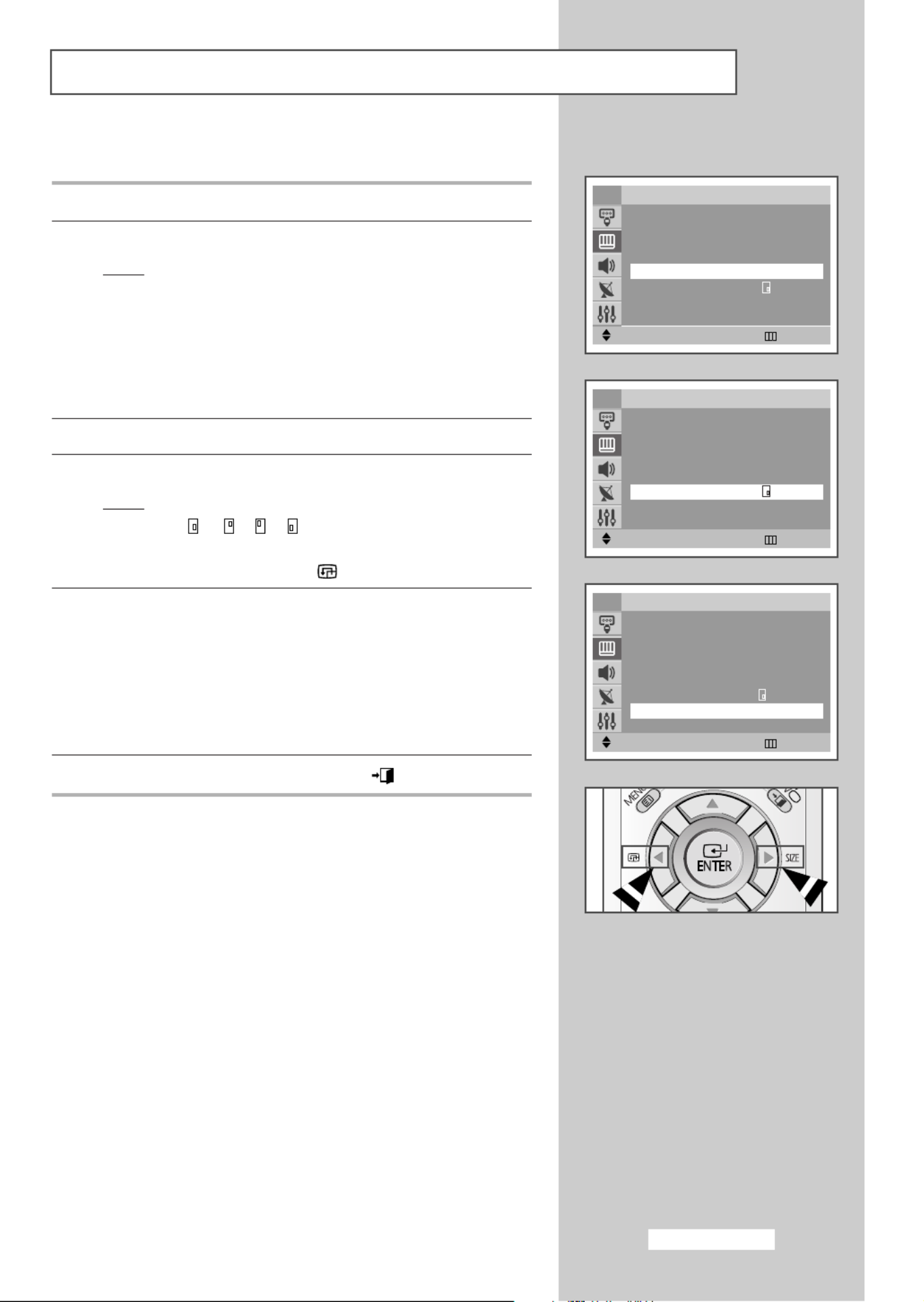

Viewing the Picture In Picture (PIP) (depending on the model) (continued)
10 Press the button to select ▼or ▲ Size.
11 Select a size of sub picture by pressing the button.¦or
Result: The sizes are displayed in the following order:
Small
-
3PIP
-
4PIP
-
12PIP
-
Large
3PIP/4PIP/12PIP : You can view up to 3,4, or 12 memorizer
channels on the sub picture
spontaneously.
➢
You can select these options simply by pressing the SIZE
button.
12 Press the button to select ▼or ▲ Position.
13 Press the œor √button.
Result: The positions available are displayed.
---
➢
Anda dapat menentukan pilihan tersebut cukup dengan
menekan tombol Position ( ).
14 Press the button to select You can select the†or …Programme.
channel that you want to view through sub picture by pressing the
œ √or button.
➢
◆When the is set to , you can select theSource TV
channel of sub picture.
◆You can select the channel of the sub picture simply by
pressing the † …or button.
15 When you have finished, press the button to exit.EXIT ( )
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
PIP
PIP : On
Source : TV
Swap
√
√
√
√
√
Size
œ
œ
œ
œ
œ
Large
√
√
√
√
√
Position :
Programme : P 1
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
PIP
PIP : On
Source : TV
Swap
√
√
√
√
√
Size : Large
Position
œ
œ
œ
œ
œ √
√
√
√
√
Programme : P 1
TV
Move
œ
œ
œ
œ
œ
√
√
√
√
√
Adjust Return
PIP
PIP : On
Source : TV
Swap
√
√
√
√
√
Size : Large
Position :
Programme
œ
œ
œ
œ
œ
P 1
√
√
√
√
√
TV
English-39

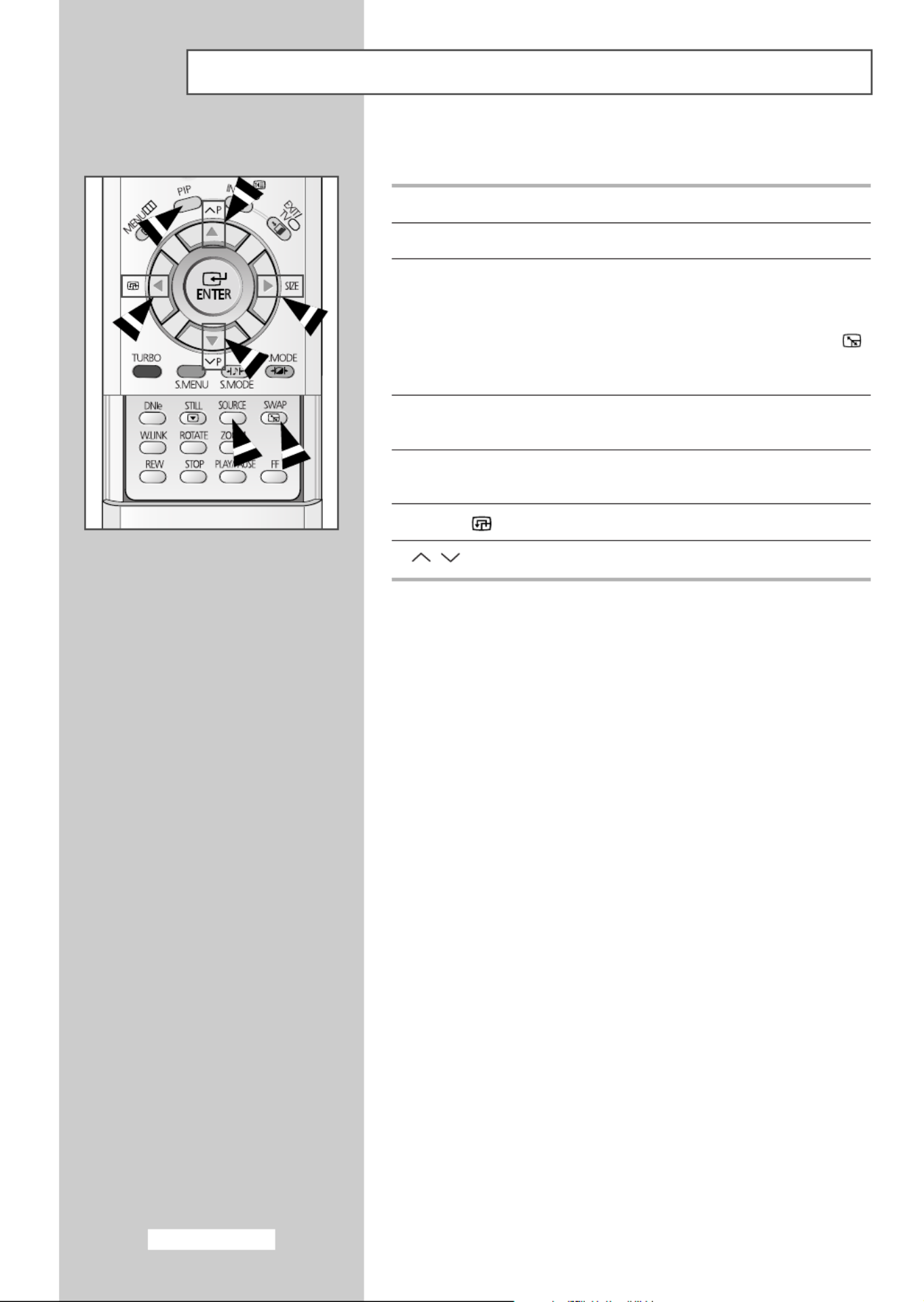

Viewing the Picture In Picture (PIP) (depending on the model) (continued)
Easy functions of remote control
Buttons Feature
PIP Used to activate or deactivate the PIP function directly.
SWAP Used to interchange the main picture and the sub picture.
➢When the main picture is in the Video mode and the
sub picture is in the TV mode, you might not hear the
sound of main picture when pressing the SWAP
( )
button after changing the sub picture channel. At this
time, reselect the channel of main picture.
SOURCE Used to assign a source of sub picture (TV
-
AV1
-
AV2
-
AV3
-
AV4/S-Video).
SIZE Used to select a size of sub picture (Small, , 3PIP 4PIP,
12PIP Largeor ).
POSITION( )Used to move the sub picture counterclockwise.
P / Used to select the channel of sub picture.
English-40

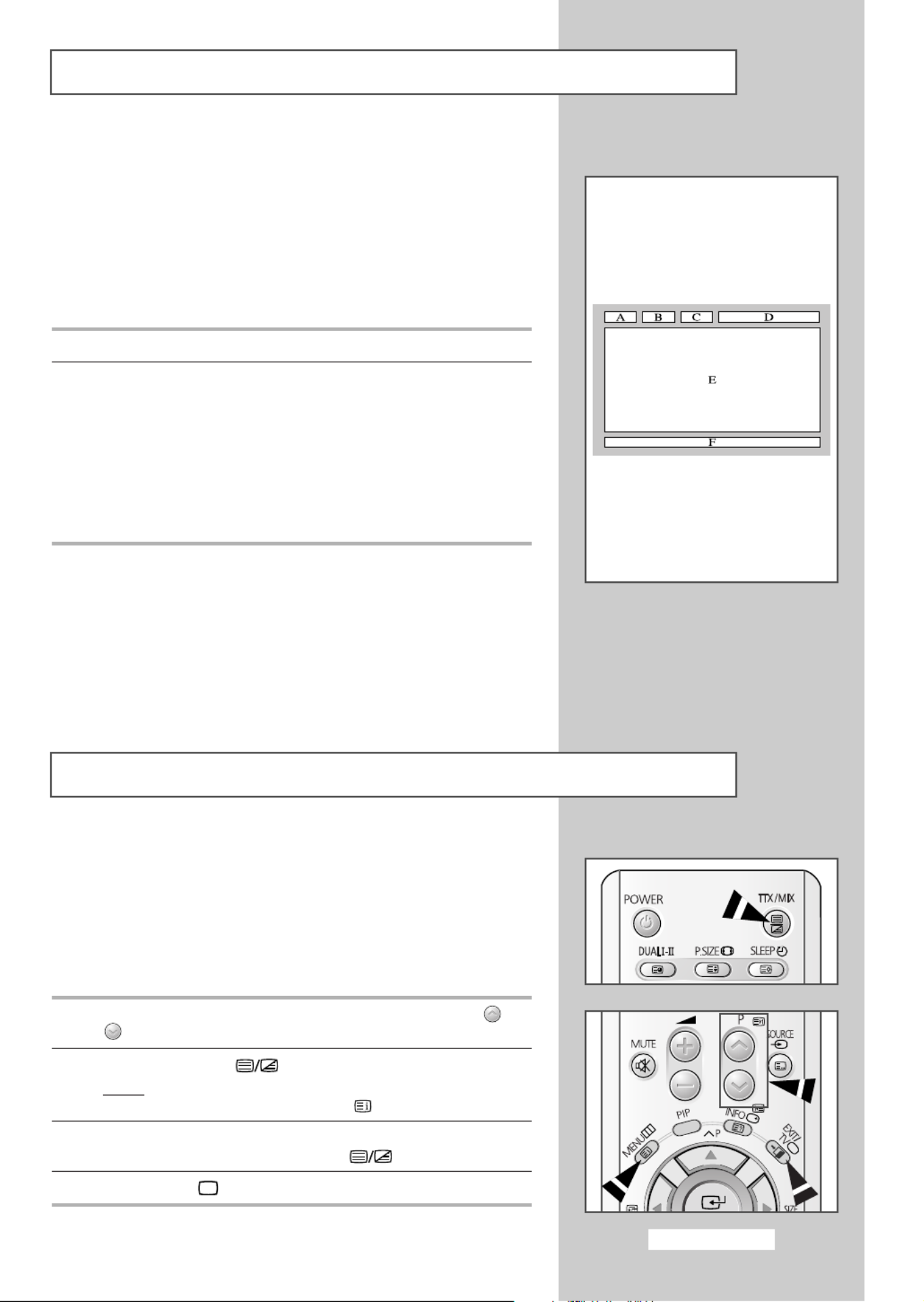

Most television channels provide written information services via
teletext. Information provided includes:
◆
Television programme times
◆
News bulletins and weather forecasts
◆
Sports results
◆
Travel information
This information is divided into numbered pages (see diagram).
Part Contents
A Selected page number.
B Broadcasting channel identity.
C Current page number or search indications.
D Date and time.
E Text.
F Status information.
FASTEXT information.
➢It can be diffrent from depending on TTX source.
➢Teletext information is often divided between several
pages displayed in sequence, which can be accessed by:
◆Entering the page number
◆Selecting a title in a list
◆Selecting a colored heading (FASTEXT system)
Teletext Feature (depending on the model)
You can display Teletext information at any time on your television.
☛For Teletext information to be displayed correctly,
channel reception must be stable; otherwise:
◆Information may be missing
◆Some pages may not be displayed
1Select the channel providing the Teletext service using the or
button.
2Press the TTX/MIX ( ) button to activate the teletext mode.
Result:
The contents page is displayed. It can be redisplayed
at any time by pressing the (index) button.
3If you wish to display the actual broadcast at the same time as
the teletext page, press the TTX/MIX ( ) button again.
4Press the TV ( ) button to exit from the teletext display.
Displaying the Teletext Information (depending on the model)
English-41

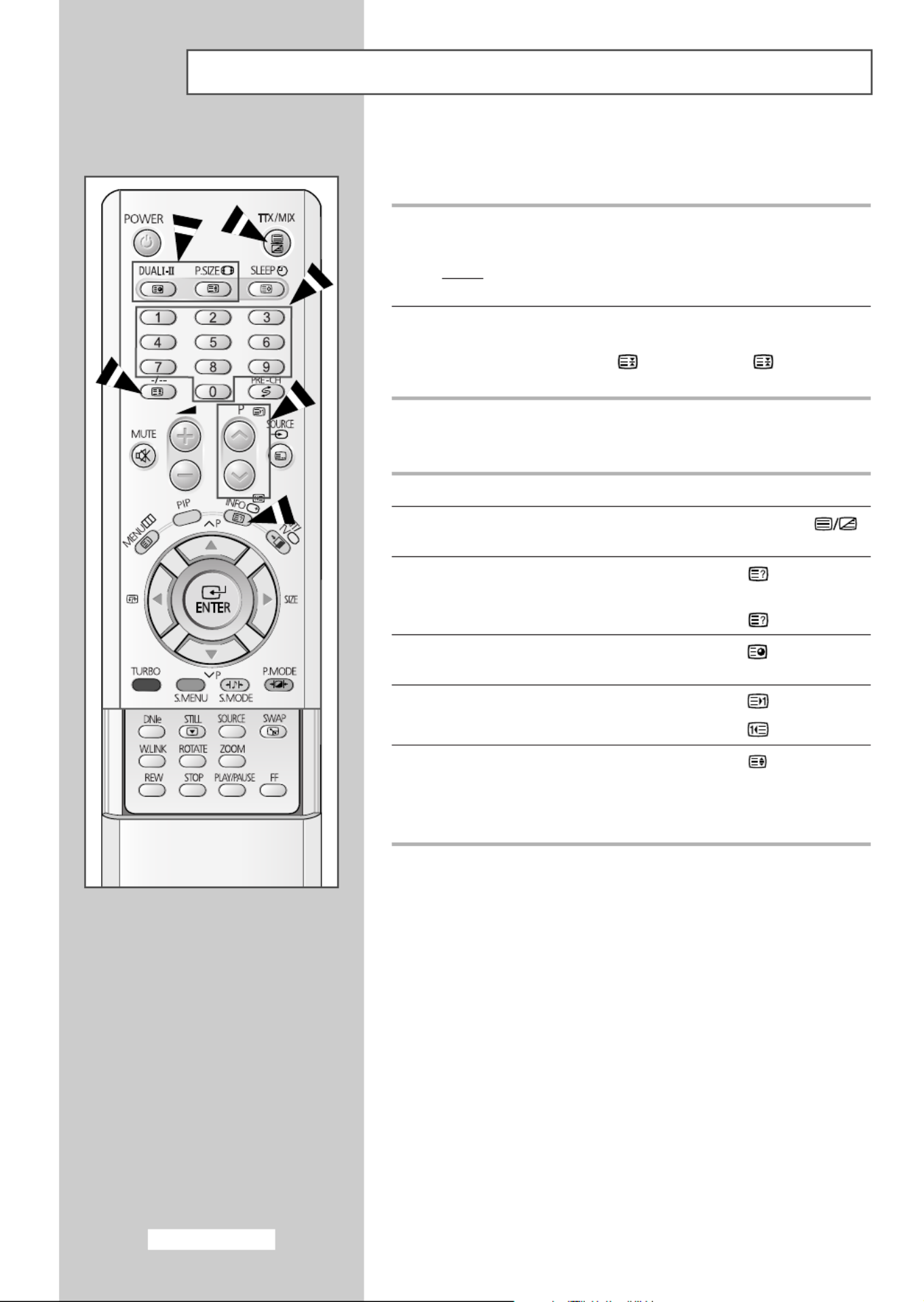

You can enter the page number directly by pressing the numeric
buttons on the remote control.
1Enter the three-digit page number given in the content by pressing
the corresponding numeric buttons.
Result: The current page counter is incremented and the
page is then displayed.
2If the selected page is linked with several secondary pages, the
secondary pages are displayed in sequence. To freeze the display
on a given page, press the (hold). Press the (hold) again to
resume.
Using the various display options:
To display... Press the...
◆Both teletext information and TTX/MIX ( )
the normal broadcast twice
◆Hidden text (reveal)
(answers to quiz games, for example)
◆The normal screen (reveal) again
◆A secondary page, (sub-page)
by entering its 4-digit number
◆The next page (page up)
◆The previous page (page down)
◆Double-size letters in the: (size)
• Upper half of the screen • Once
• Lower half of the screen • Twice
◆Normal screen • Three times
Selecting a Page by Number (depending on the model)
English-42

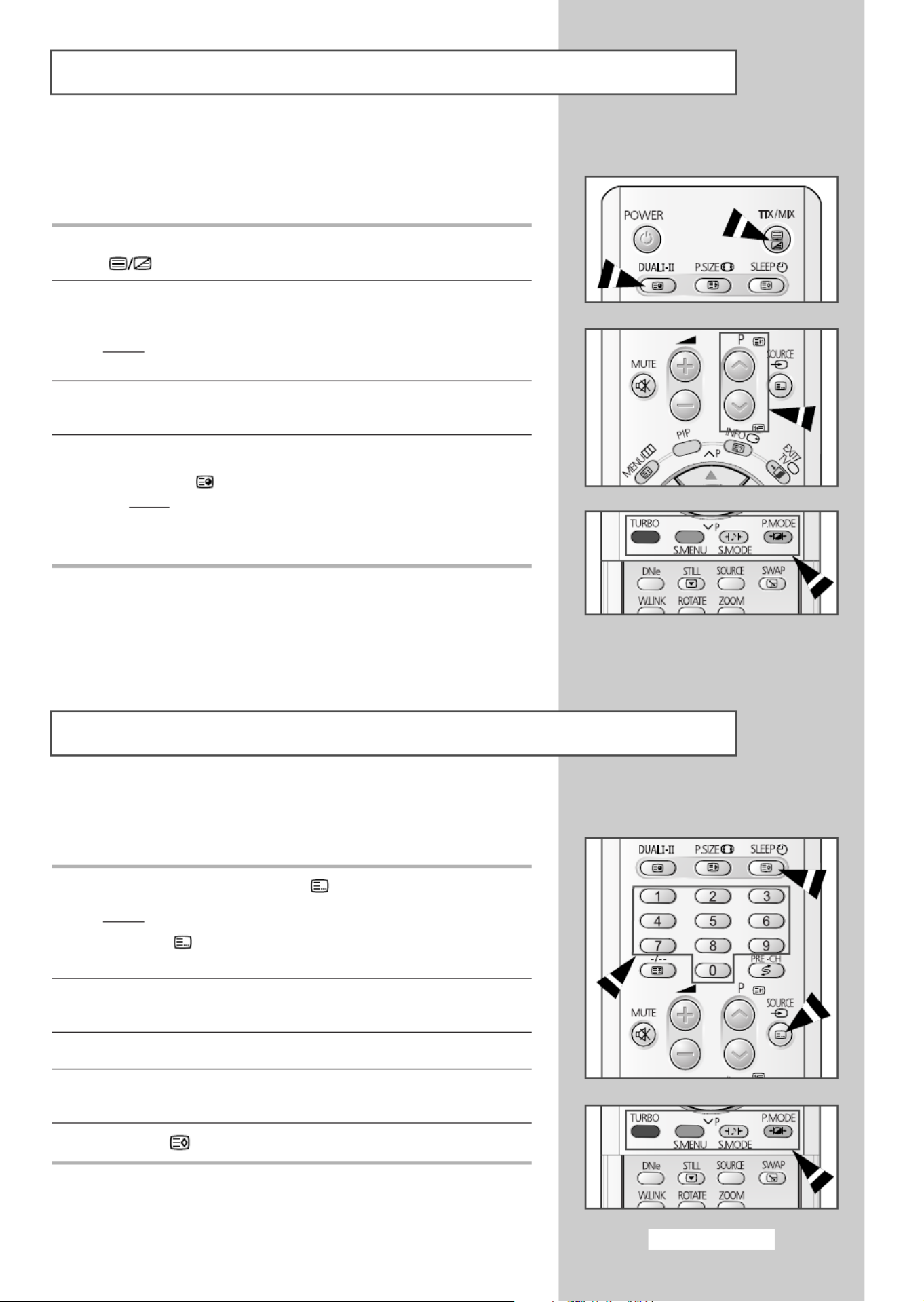

You can store up to four teletext pages to display them later at
leisure.
1Select the LIST mode using the button.
Result: Four 3-digit numbers are displayed in different colors.
➢The button is used to switch between the LIST and
FLOF (or FASTEXT) modes.
2Press the colored button corresponding to the page that will be
replaced.
3Enter the new page number using the numeric buttons.
4 2 3Repeat steps and for each page to be stored, using a
different colored button each time.
5Press the (store) button until the corresponding blocks blink.
Using FLOF to Select a Page (depending on the model)
The various topics included in the teletext pages are color-coded,
and can be selected by pressing the colored buttons on the remote
control.
1Display the teletext contents page by pressing the TTX/MIX
( ) button.
2Press the colored button corresponding to the topic that you wish
to select;the available topics are given on the status line.
Result:
The page is displayed with other colored information
that can be selected in the same way.
3To display the previous or next page, press the corresponding
colored button.
4To display the subpage, see the following steps.
◆
Press the (sub-page) button.
Result: The available subpages appear.
◆
Select the required sub-page. Sub-pages can be scrolled by
using the TURBO S.MENU(Red) or (Green) button.
Storing Teletext Pages (depending on the model)
English-43

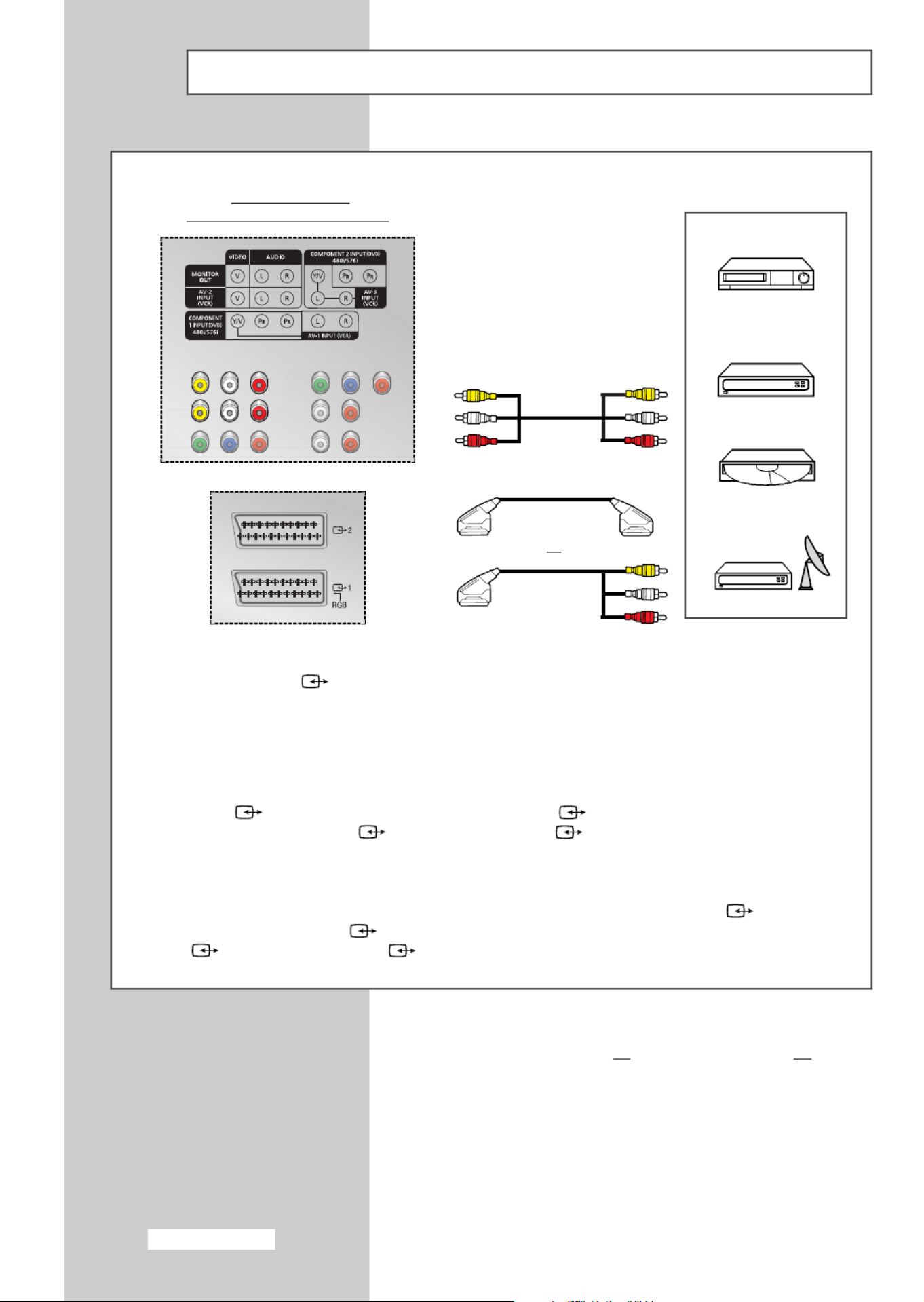

Connecting to the External Input/Outputs
English-44
Rear of the TV
(depending on the model)
VCR
Decoder /
Video game device
Video disc player
Satellite receiver
◆
“MONITOR OUT (or
)
” is used for the audio/video output of current television programme.
①
This end can be fitted with:
◆A SCART connector
◆Three RCA connectors (Video + Audio-L and R)
②
If you have a second VCR and wish to copy cassettes tape, connect the source VCR to “
AV 2 INPUT
(VCR) (or
)
”
and the target VCR to
“MONITOR OUT (or
)
”
so that you can redirect the signal
from
“AV 2 INPUT (VCR) (or
)
”
to
“MONITOR OUT (or
)
”
.
③
If you have a decoder, connect the decoder to the VCR and the VCR to the television.
➃
When you wish to record a programme, connect the receiver to
“AV 2 INPUT (VCR) (or
)
”
and the
VCR to
“MONITOR OUT (or
)
”
so that you can redirect the signal from
“AV 2 INPUT (VCR)
(or
)
”
to
“MONITOR OUT (or
)
”
.
2
1
2
1
2
1
2
1
2
②
➃
③
☛Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
or
①

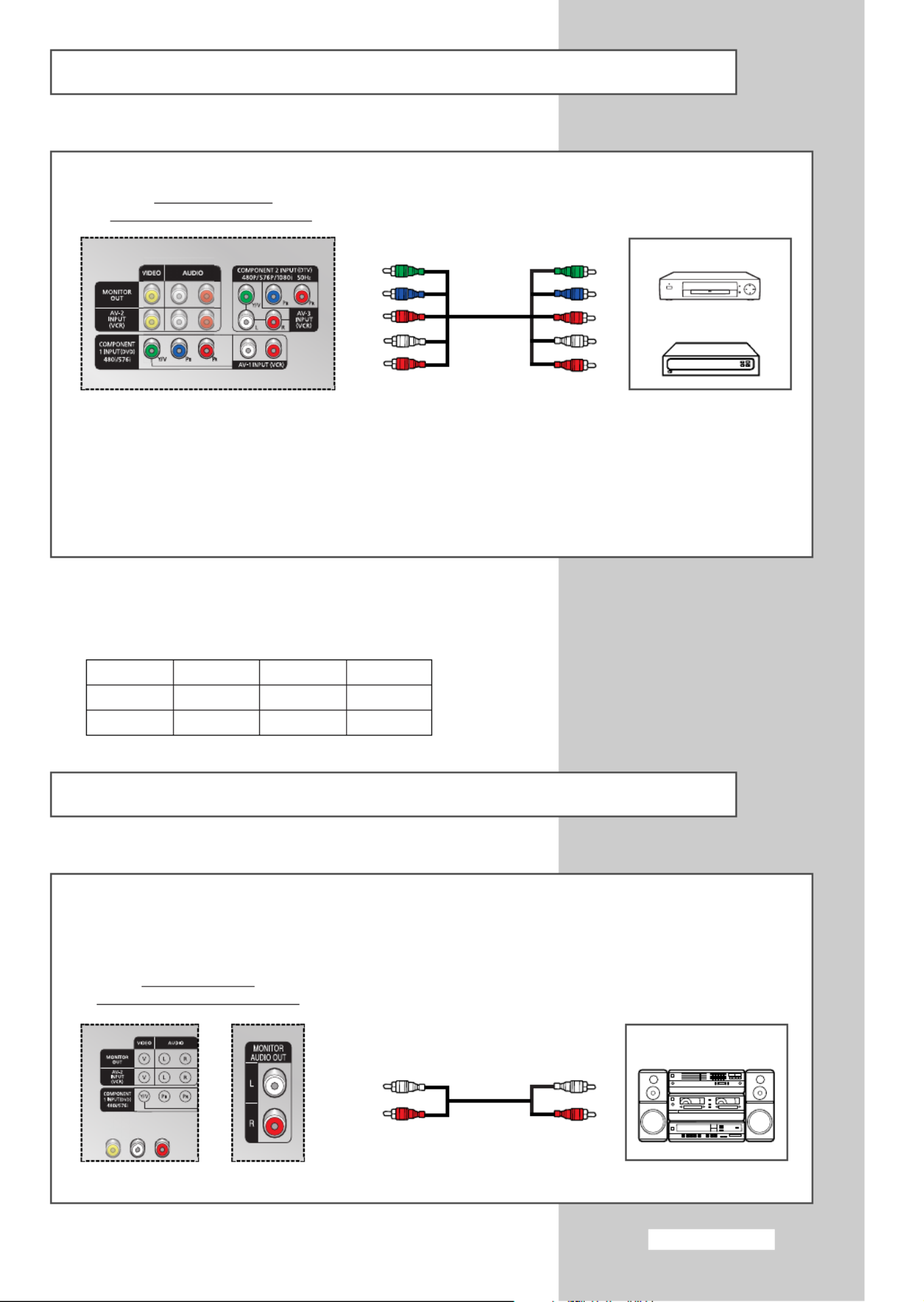

Connecting to the DVD Player or DTV receiver
(depending on the model)
English-45
Connecting to the Audio Output
➢The MONITOR OUT (L-AUDIO-R) connectors are used for equipment, such as an audio system (to
take full advantage of the Surround sound effect).
Audio system
Rear of the TV
(depending on the model)
DVD Player
Rear of the TV
(depending on the model)
◆
Connect the RCA Cable to “ ” on the rear of your television and the other end to “Audio Out”L” and “R
connector of the DVD player or DTV receiver. Connect the RCA Cable to “Y P”, “
B
”, and “P
R
” on the rear of
your television and the other end to the “Component Video Out (Y, P
B
, P
R
)” connectors of the DVD player
or DTV receiver.
◆
If you wish to connect both the DVD player and DTV receiver, you should connect the DVD player to the
“Component1 Component2” and connect the DTV receiver to the “ ”.
DTV receiver
➢
If you change the output resolution of an external device at will,
the video from the device may not be displayed on the TV because
the resolution is not automatically switched. Check the available
input ports for each resolution.
Component1
Component2
480i/576i
O
X
480P/576P
X
O
1080i (50Hz)
X
O

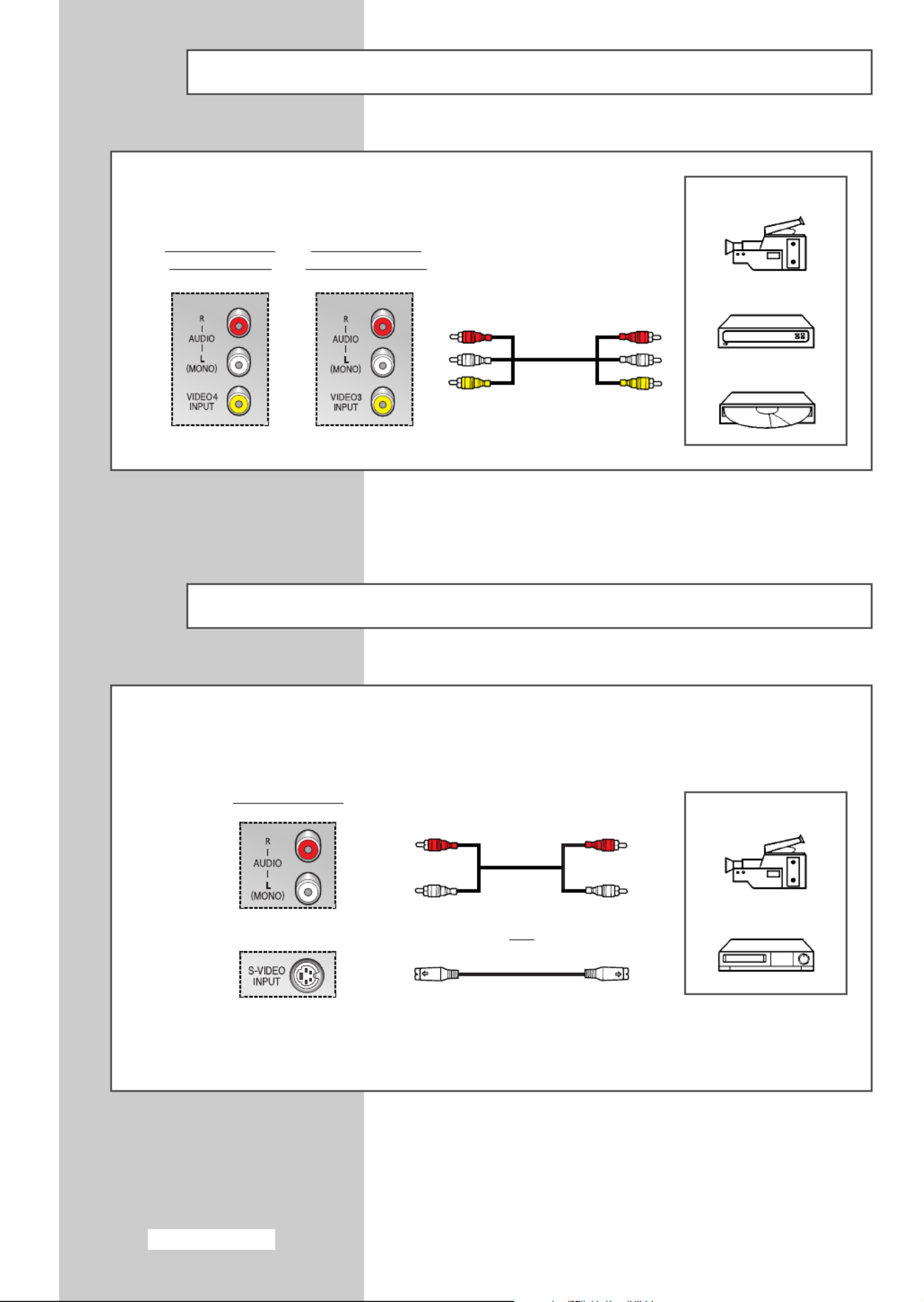

Connecting to the RCA Input
English-46
➢The RCA ( and ) connectors are used for equipment,VIDEO AUDIO- +L R
such as camcorders, video disc players, and some video game devices.
Side of the TV
(RCA Model)
Camcorder
Video game device
Video disc player
Side of the TV
(SCART Model)
Connecting to the S-Video Input
➢The S-VIDEO AUDIOand RCA ( - +L R) connectors are used for equipment with an S-Video output,
such as a camcorder or VCR.
Camcorder
VCR
①
To play pictures and sound, both the S-VIDEO and RCA connectors must be used.
and
①
☛When both the side AV and rear connectors are connected
to external equipments, the side AV receives priority.
Side of the TV

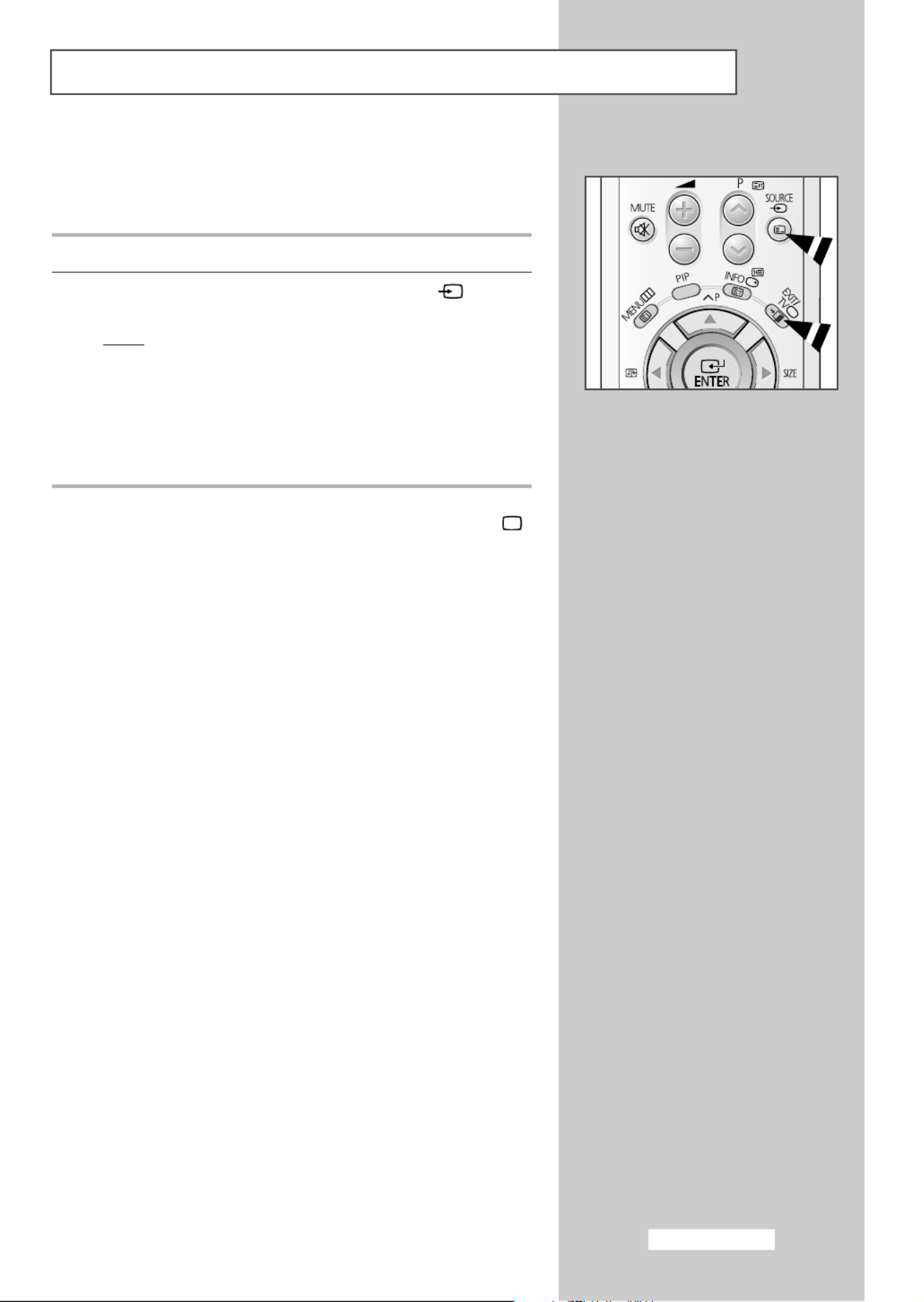

Once you have connected up your various audio and video
systems, you can view different sources by selecting the
appropriate input.
1Check that all the necessary connections have been made.
2Switch your television on, then press the SOURCE
( )
button
repeatedly.
Result: The input sources are displayed in the following
order:
◆
AV1
-
AV2
-
AV3
-
AV4/S-Video
-
Component1
-
Component2. (RCA Model)
◆
TV
-
AV1
-
AV2
-
AV3/S-Video (SCART Model)
➢Depending on the source selected, the pictures may appear
automatically.
➢To watch television programmes again, press the TV ( )
button and select the number of the channel required.
English-47
Viewing Pictures From External Sources
A degaussing coil is mounted around the picture tube, so you do not normally need to degauss the
television manually.
If you move the television to a different position and color patches appear on the screen, you must:
◆Switch the television off by pressing the “ ” (On/Off) button on the front panel
◆Unplug the television from the wall socket
◆Leave the television power-off for about 30 minutes so that the automatic degauss function
can be activated, and then press the “POWER( )” button on the remote control.
☛If your television will be left unattended, press the “ ” (On/Off) button to turn your
television off.
Automatic Degaussing to Remove Color Patches
English-48
Troubleshooting: Before Contacting Service Personnel
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
Normal picture but no sound
No picture or black and white picture
Sound and picture interference
Blurred or snowy picture,
distorted sound
Remote control malfunctions
◆Check that the mains lead has been connected to a wall socket.
◆Check that you have pressed the “ ” button (On/Off) and the
POWER ( ) button.
◆Check the picture contrast and brightness settings.
◆Check the volume.
◆Check the volume.
◆Check whether the MUTE ( ) button on the remote control has
been pressed.
◆Adjust the color settings.
◆Check that the broadcast system selected is correct.
◆Try to identify the electrical appliance that is affecting the television,
then move it further away.
◆Plug your television into a different mains socket.
◆Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
◆Replace the remote control batteries.
◆Clean the upper edge of the remote control (transmission window).
◆Check the battery terminals.
Memo
English-49
Memo
English-50
Memo
English-51
ELECTRONICS
AA68-03606A-00
-
AFTER SALES SERVICE
-
Do not hesitate to contact your retailer or service agent
if a change in the performance of your product
indicates that a faulty condition may be present.
Produkt Specifikationer
Mærke: | Samsung |
Kategori: | televisión |
Model: | CS-29350HP |
Har du brug for hjælp?
Hvis du har brug for hjælp til Samsung CS-29350HP stil et spørgsmål nedenfor, og andre brugere vil svare dig
televisión Samsung Manualer
8 Januar 2025
2 Januar 2025
2 Januar 2025
30 December 2025
23 December 2024
20 December 2024
20 December 2024
20 December 2024
20 December 2024
20 December 2024
televisión Manualer
- televisión SilverCrest
- televisión Acer
- televisión Denver
- televisión Sencor
- televisión TCL
- televisión Sony
- televisión Siemens
- televisión Panasonic
- televisión VOX
- televisión Philips
- televisión Lenco
- televisión OK
- televisión LG
- televisión AEG
- televisión Pioneer
- televisión Mitsubishi
- televisión Sharp
- televisión Daewoo
- televisión Arçelik
- televisión AOC
- televisión Sanyo
- televisión Grundig
- televisión Nikkei
- televisión Toshiba
- televisión Pyle
- televisión Furrion
- televisión Lenovo
- televisión Infiniton
- televisión Nedis
- televisión Logik
- televisión Abus
- televisión Optoma
- televisión Westinghouse
- televisión Element
- televisión Thomson
- televisión Hyundai
- televisión Aiwa
- televisión Nokia
- televisión Casio
- televisión AKAI
- televisión Hisense
- televisión Strong
- televisión Brandt
- televisión Hannspree
- televisión Trevi
- televisión Blaupunkt
- televisión JVC
- televisión BEKO
- televisión Uniden
- televisión Clatronic
- televisión Hitachi
- televisión Medion
- televisión Sweex
- televisión Citizen
- televisión Megasat
- televisión Haier
- televisión TechniSat
- televisión Innoliving
- televisión NewStar
- televisión Bang And Olufsen
- televisión Luxor
- televisión Vivax
- televisión Loewe
- televisión Walker
- televisión Sunny
- televisión Finlux
- televisión Telefunken
- televisión Kernau
- televisión BenQ
- televisión Packard Bell
- televisión Xiaomi
- televisión Peerless-AV
- televisión Krüger&Matz
- televisión Viewsonic
- televisión Schneider
- televisión Fujitsu
- televisión Oppo
- televisión Zalman
- televisión Tesla
- televisión Polaroid
- televisión NEC
- televisión TERRIS
- televisión OKI
- televisión MT Logic
- televisión Yasin
- televisión Bush
- televisión Dual
- televisión Aspes
- televisión Salora
- televisión Sagem
- televisión Nevir
- televisión Teac
- televisión Nextbase
- televisión Techwood
- televisión Vivo
- televisión Albrecht
- televisión SVAN
- televisión Sogo
- televisión Alba
- televisión RCA
- televisión ECG
- televisión AudioSonic
- televisión Manhattan
- televisión Proline
- televisión JGC
- televisión Orion
- televisión ITT
- televisión ILive
- televisión Intenso
- televisión Fantec
- televisión Cecotec
- televisión Roadstar
- televisión VIZIO
- televisión XD Enjoy
- televisión Wharfedale
- televisión Technika
- televisión Seiki
- televisión TechLine
- televisión Monster
- televisión Bauhn
- televisión V7
- televisión Airis
- televisión Majestic
- televisión Star-Light
- televisión Vestel
- televisión Continental Edison
- televisión Iiyama
- televisión RevolutionHD
- televisión GPX
- televisión CHiQ
- televisión MBM
- televisión Orima
- televisión SereneLife
- televisión Lexibook
- televisión AG Neovo
- televisión Philco
- televisión Kunft
- televisión GoGen
- televisión Kogan
- televisión Graetz
- televisión Emerson
- televisión Kemo
- televisión Insignia
- televisión Xoro
- televisión Manta
- televisión SunBriteTV
- televisión JTC
- televisión Reflexion
- televisión Planar
- televisión QBell Technology
- televisión SYLVOX
- televisión Dyon
- televisión Schaub Lorenz
- televisión Xiron
- televisión Alden
- televisión Alphatronics
- televisión Aldi
- televisión Allview
- televisión AYA
- televisión Aristona
- televisión Apex
- televisión Ziggo
- televisión Icy Box
- televisión Palsonic
- televisión Funai
- televisión Saba
- televisión Antarion
- televisión Tevion
- televisión Proscan
- televisión Tucson
- televisión Sunstech
- televisión Nabo
- televisión Sylvania
- televisión Marquant
- televisión Nordmende
- televisión AudioAffairs
- televisión Magnum
- televisión Kubo
- televisión Coby
- televisión Seg
- televisión Metz
- televisión Qilive
- televisión Changhong
- televisión Naxa
- televisión Mpman
- televisión Cello
- televisión Mx Onda
- televisión Peaq
- televisión Humax
- televisión Superior
- televisión Difrnce
- televisión Grunkel
- televisión Avtex
- televisión Odys
- televisión NPG
- televisión Bluesky
- televisión Videocon
- televisión Durabase
- televisión HKC
- televisión Edenwood
- televisión Woxter
- televisión Premier
- televisión Teleco
- televisión Opera
- televisión LTC
- televisión Horizon
- televisión Elements
- televisión Viewpia
- televisión CGV
- televisión Online
- televisión Doffler
- televisión DirecTV
- televisión Tele 2
- televisión Mystery
- televisión Telesystem
- televisión Jay-tech
- televisión EKO
- televisión E-motion
- televisión Mitsai
- televisión Selfsat
- televisión High One
- televisión Tve
- televisión ISymphony
- televisión Pantel
- televisión Magnavox
- televisión ATYME
- televisión HCI
- televisión Inno-Hit
- televisión Lin
- televisión Engel
- televisión Digihome
- televisión Englaon
- televisión Reflex
- televisión Astar
- televisión Visco
- televisión Tivax
- televisión H&B
- televisión Norcent
- televisión TELE System
- televisión TIM
- televisión Oyster
- televisión Belson
- televisión Vision Plus
- televisión Sbr
- televisión Voxx
- televisión Rm 2000
- televisión Hoher
- televisión Felson
- televisión Elbe
- televisión Axing
- televisión FFalcon
- televisión Smart Tech
- televisión Séura
- televisión Mitzu
- televisión Caratec
- televisión JTC24
- televisión Kivi
- televisión Smart Brand
- televisión FOX Electronics
Nyeste televisión Manualer
8 Januar 2025
8 Januar 2025
8 Januar 2025
8 Januar 2025
8 Januar 2025
8 Januar 2025
8 Januar 2025
8 Januar 2025
7 Januar 2025
7 Januar 2025
