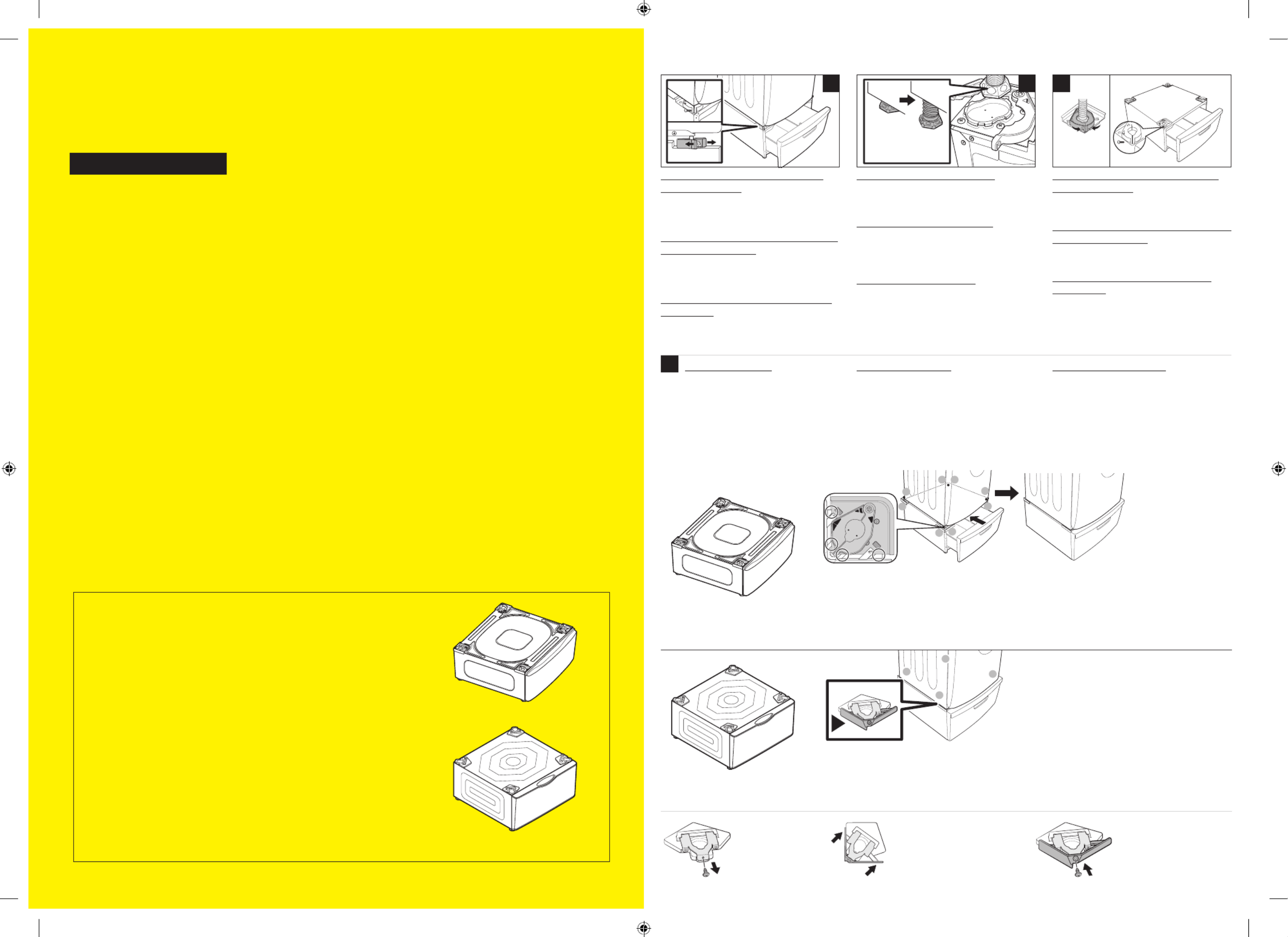

Pedestal Installation Instructions / Instrucciones de instalación del

pedestal / Instructions pour l’installation du socle

Components / Componentes / Composants

X12 A

SCREW TAPPING

TORNILLO DE ROSCA

VIS TARAUDEUSE

X4 C

DOUBLE FACE TAPE

CINTA BIFAZ

ADHÉSIF DOUBLE FACE

BRACKET LEG

SOPORTE PARA PATAS

SUPPORT DE PIED

GUIDE COVER RIGHT /

GUIDE COVER LEFT

CUBIERTA CON GUÍA DERECHA /

CUBIERTA CON GUÍA IZQUIERDA

CACHE-GUIDE DROIT /

CACHE-GUIDE GAUCHE

Tools / Herramientas / Outils

Wrench / Llave inglesa / Clé anglaise

Supplied with Washing Machine or General Wrench (9/16 inch or 14 mm)

La suministrada con la lavadora o una llave inglesa general (9/16 pulgadas o 14 mm)

Livrée avec le lave-linge ou la clé générale (9/16 pouces ou 14 mm)

Phillips Screwdriver

/ Destornillador

Phillips / Tournevis

cruciforme

Flat Screwdriver /

Destornillador plano /

Tournevis plat

1 2 3

Clean the oor where you intend to install

the pedestal, then move the pedestal near

where you intend to install it. Make sure to

leave yourself space at all four corners so

you can access the legs underneath.

Limpie bien el suelo donde vaya a instalar

el pedestal y a continuación deposite

éste cerca de su lugar de instalación. Deje

suciente espacio en cada una de las

cuatro esquinas para que pueda acceder

fácilmente a las patas de la parte inferior.

Nettoyez le sol là où vous prévoyez

d’installer le socle, puis déplacez le socle

à proximité de cet emplacement. Assurez-

vous de laisser un espace sufsant aux

quatre coins pour pouvoir accéder aux

pieds.

Level the pedestal with a wrench, adjusting all

four legs as necessary. Use a level to make sure

that the pedestal is level side to side and back to

front. Do not tighten the locknuts above the feet

at this time.

Nivele el pedestal con una llave inglesa

ajustando las cuatro patas según sea necesario.

Use un nivel para que el pedestal esté nivelado

de lado a lado y de adelante atrás. No apriete

aún la contratuerca que está encima de las

patas.

Mettez le socle de niveau avec une clé anglaise

en ajustant les quatre pieds. Utilisez un niveau

pour vous assurer que le socle est de niveau

aussi bien entre les côtés droit et gauche

qu’entre l’avant et l’arrière. À ce stade, ne serrez

pas les contre-écrous situés au-dessus des pieds.

Turn the feet of the washer or dryer so that the feet are as close to the body

of the washer or dryer as possible, then lock them in place. Place the washer

or dryer onto the pedestal so that the feet rest properly in the clamps. See

3-a for the correct placement of the dryer and 3-b for the washer.

Gire las patas de la lavadora o la secadora de modo que queden lo más

cerca posible de la lavadora o la secadora y, a continuación, asegúrelas

en su lugar. Coloque la lavadora o la secadora sobre el pedestal de

modo que las patas descansen adecuadamente en las abrazaderas. Vea

3-a para la correcta instalación de la secadora y 3-b para la lavadora.

Tournez les pieds du lave-linge ou du sèche-linge an que ceuxci soient

aussi près que possible du corps du lave-linge ou du sèche-linge, puis

verrouillez-les. Placez le lave-linge ou le sèchelinge sur le socle de manière

que les pieds reposent correctement dans les colliers. Reportez-vous à 3-a

pour le placement correct du sèche-linge et 3-b pour le lave-linge.

Caution / Atención / Attention

To prevent a fall, use caution when mounting the washer or dryer

on top of the pedestal.

Para evitar una caída, tenga cuidado al instalar la lavadora o la

secadora en el pedestal.

Pour éviter toute chute, soyez attentifs lors du montage du lave-

linge ou du sèche-linge sur le dessus du socle.

3-a 3-b

Place the feet of the dryer in the inner circle of

the safe landing grooves on the pedestal. The

location of the safe landing groove for the dryer is

highlighted above.

Coloque las patas de la secadora en el círculo interior

de las ranuras de posición segura del pedestal. La

ubicación de las ranuras de posición segura de la

secadora se destaca en la ilustración superior.

Placez les pieds du sèche-linge dans le cercle

intérieur des rainures du socle. L’emplacement de la

rainure pour le sèche-linge est signalé ci-dessus.

Place the feet of the washer in the outer circle of the

safe landing grooves on the pedestal. The location of

the safe landing groove for the washer is highlighted

above.

Coloque las patas de la lavadora en el círculo exterior

de las ranuras de posición segura del pedestal. La

ubicación de las ranuras de posición segura de la

lavadora se destaca en la ilustración superior.

Placez les pieds du lave-linge dans le cercle

extérieur des rainures du socle. L’emplacement de la

rainure pour le lave-linge est signalé ci-dessus.

Attach a bracket leg to each foot of the washer or dryer

on the pedestal, and then secure it with 4x12 screws (A).

Important: All feet must be xed.

Inserte un soporte para patas en cada pie de la

lavadora o secadora sobre el pedestal, y luego

ajústelo usando tornillos 4x12 (A).

Importante: Todos los pies deben estar jos.

Installez un support de pied sur chaque pied du lave-

linge ou sèche-linge placé sur le socle, puis xez-le en

place à l’aide de 4 x 12 vis (A).

Important : tous les pieds doivent être xés.

Code No. : DC68-02931D-01

Remove the Shipping bolts from the

washing machine.

Retire los tornillos de transporte de la

lavadora.

Retirez les vis de transport du lave-linge.

Move the assembled units to their nal

installation site.

Transporte las unidades ensambladas a

su lugar de instalación denitivo.

Déplacez les appareils assemblés à leur

emplacement d’installation nale.

Using a level, make sure the units are level side to side and front to back. Do

additional leveling as needed. Proper leveling keeps vibration at a minimum.

Con un nivel, compruebe si las unidades están niveladas de lado a lado y

de adelante atrás. Realice la nivelación adicional necesaria. Una nivelación

correcta reduce la vibración al mínimo.

Assurez-vous que les appareils sont de niveau de droite à gauche et de l’avant

à l’arrière à l’aide d’un niveau. Réglez à nouveau le niveau si nécessaire. Une

bonne mise de niveau permet de maintenir les vibrations au minimum.

After the washer is fully installed, run a spin test. To

run a spin test, put a small load into the washer, wet

the clothes, and then select Spin Only mode. If there

is too much vibration, repeat Step 7.

Cuando la lavadora esté totalmente instalada,

realice una prueba de centrifugado. Para realizar

una prueba de centrifugado, ponga una pequeña

carga de ropa en la lavadora, mójela y seleccione

el modo Spin Only (Sólo centrifugado). Si hay

demasiadas vibraciones, repita el paso 7.

Une fois l’installation du lave-linge terminée,

lancez un test d’essorage. Pour effectuer un test

d’essorage, déposez une faible charge dans le

lave-linge, mouillez les vêtements et sélectionnez

le mode Essorage seulement. Si les vibrations sont

trop importantes, répétez l’étape 7.

Once the washer is stabilized and does not

vibrate, tighten the lock nuts on each leg of the

pedestal using a at head screwdriver.

Cuando la lavadora esté estabilizada y no vibre,

apriete las tuercas de seguridad de cada pata

del pedestal mediante un destornillador plano.

Une fois que le lave-linge est stabilisé et ne

vibre pas, serrez les contre-écrous sur chaque

pied du socle à l’aide d’un tournevis plat.

When you install the pedestal on smooth oors such as tiles:

• Peel out the double-face tape.

Attach it under the all legs.

Al instalar el pedestal en supercies lisas revestidas:

• Pele una cinta bifaz.

Péguela bajo todas las patas.

Lorsque vous posez le socle sur des sols mous tels que des

moquettes :

• Décollez le adhésif double face.

Collez-la sous tous les pieds.

Tips for Installation on Wooden Panel Floors / Sugerencias para la instalación en suelos de paneles de madera / Conseils pour l’installation sur un parquet

Put the legs on the same oor panels and keep them away from the oor lines.

Ponga las patas sobre los mismos paneles del suelo y apártelas de las líneas del suelo.

Placez les pieds sur les mêmes lames et éloignez-les des joints du plancher.

Warranty

SAMSUNG LAUNDRY PEDESTAL LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC.

(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and

workmanship for a limited warranty period of:

One (1) Year All Parts and Labor

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the

purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service

center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will

provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States.

In-home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation

of the product to and from an authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective

during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement

parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and

workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation;

applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect, re, water,

lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or

connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, uctuations and surges; customer

adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal

and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from electric current, voltage or supply, light bulbs, house

fuses, house wiring, cost of a service call for instructions, or xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING,

BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN

BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE

OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR

INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY

OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY

SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO

PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED

WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above

limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

1-800-SAMSUNG (1-800-726-7864)

www.samsung.com

PEDESTAL-02931D-01.indd 1-2 2020-04-07  2:55:01
