Important Instructions

• Suggest using IGMP Gigabit switches

• Do not mix up transmitter and receiver

before installation

• Channel of each transmitter(TX) must be

unique, otherwise, the system could break

down (including transmitter, receiver, IGMP

switch etc.)

Product Features

1. Resolution supported up to 1080p @60Hz

2. Transmission distance up to 120 meters (CAT6)

3. Support IR pass back function to control the

source device from RX location

4. Oers scalable TX/RX matrix conguration,

allows up to 256 total units, limited to 100

transmitters, additional transmitter units (part#

CE-H23B11) and receiver units (part# CE-

H23C11) sold separately

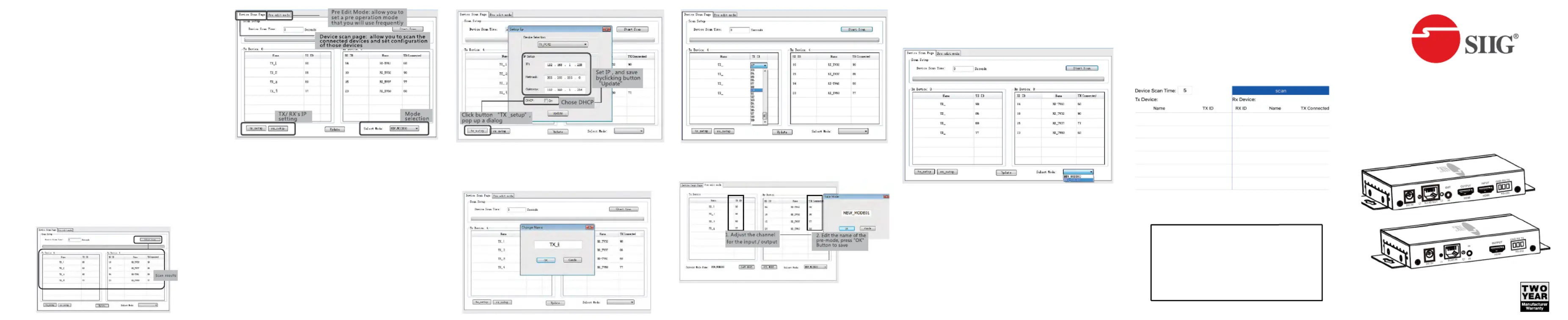

5. Supports computer control software to select

and switch between source devices .

Package Contents

1. Transmitter unit

2. Receiver unit

3. User Guide

4. IR blaster extension cable

5. IR receiver extension cable

6. DC5V/2A power adapter (x2)

7. Remote control

8. 3 pin phoenix connector (x2)

9. Wall-mount kit (x2)

10. Screws (x8)

Layout

• Transmitter unit

OUTPUT GND RX TX

RS-232

1. IR window: remote control channel

2. Power indicator

3. TX ID: Indicator of the current TX’s number

4. Reset button

5. DC 5V/2A power jack

6. Data transmission indicator

7. RJ45 output

8. Connection indicator

9. IR blaster extension cable interface

10. HDMI local signal output

11. HDMI signal input

12. RS-232 connector

• Receiver unit

G ND RX TX

RS-232

1. RX ID: Mark receiver unit as a number,

Indicator of the current RX’s number

2. IR window: remote control channel

3. Power indicator

4. TX connected: Indicator the input channel

as a number, and when the cahannel of

receiver as same as the channel of trans

mitter, transmission connected

5. Reset button

6. DC 5V/2A power jack

7. Data transmission indicator

8. RJ45 input

9. Connection indicator

10. IR receiver extension cable interface

11. HDMI signal output

12. RS-232 connector

Application

• Point to point

OUTP UT

RJ45

23 2

GND

• Matrix conguration

Note: Dedicated LANs with IGMP Gigabit Ethernet switches are

recommended for reliable performance. Installing on mixed LANs

may adversly eect performance is not supported.

RS232 bi-direction function

• Baud rate

Different encoding mechanism can not mix-

connected, the baud rate of RS232 serial of these

transmitter unit and receiver unit, support 2400,

4800, 9600, 19200, 28800, 38400, 57600, and

115200

If the RS232 serial does not work by above con-

nection, please try to change the order of TXD

line and RXD line.

• Check baud rate:

I f y o u n e e d t o c h e c k t h e b a u d r a t e .

Before powering on, set the baud rate to

115200 on your seria l port test tool and

power on. When the RS232 serial of the product

co n n ec te d to se ri a l po rt te s t to o l , th e

s o f t w a r e w i l l r e a d o u t t h e b a u d r a te .

E.g.: The software shows information “ Baud rate:

9600”, and it means 9600 is the current baud rate.

• Set baud rate

For example, the current baud rate of extenders

are 9600, but the baud rate of control equipment

is 19200. In this case, choose baud rate 9600 for

serial port tool, then input command “set: 19200”

in character format and send it out. (set: xxxxx

have to send all at once in command line)

IR use guide

• IR passback

IR blaster cable should be pluged into the IR-out

of Transmitter, and the IR receiver cable should

be pluged into the IR-in port of the Receiver. The

emitter of IR blaster cable should be as close as

possible to the IR receiver window of the signal

source device.

• IR remote control

Using the IR remote controll to set/select the

channel of this HDMI Extender.

Button control

The left button controls the value of the left

Nixie tube, and the right one to control the value

of the right Nixie tube. When the value of “TX

connected” on the RX unit matches the value of

“TX ID” on the TX unit, the devices will pair/link

successfully.
