*988-10401-004*
www.bandg.com | www.simrad-yachting.com | www.lowrance.com

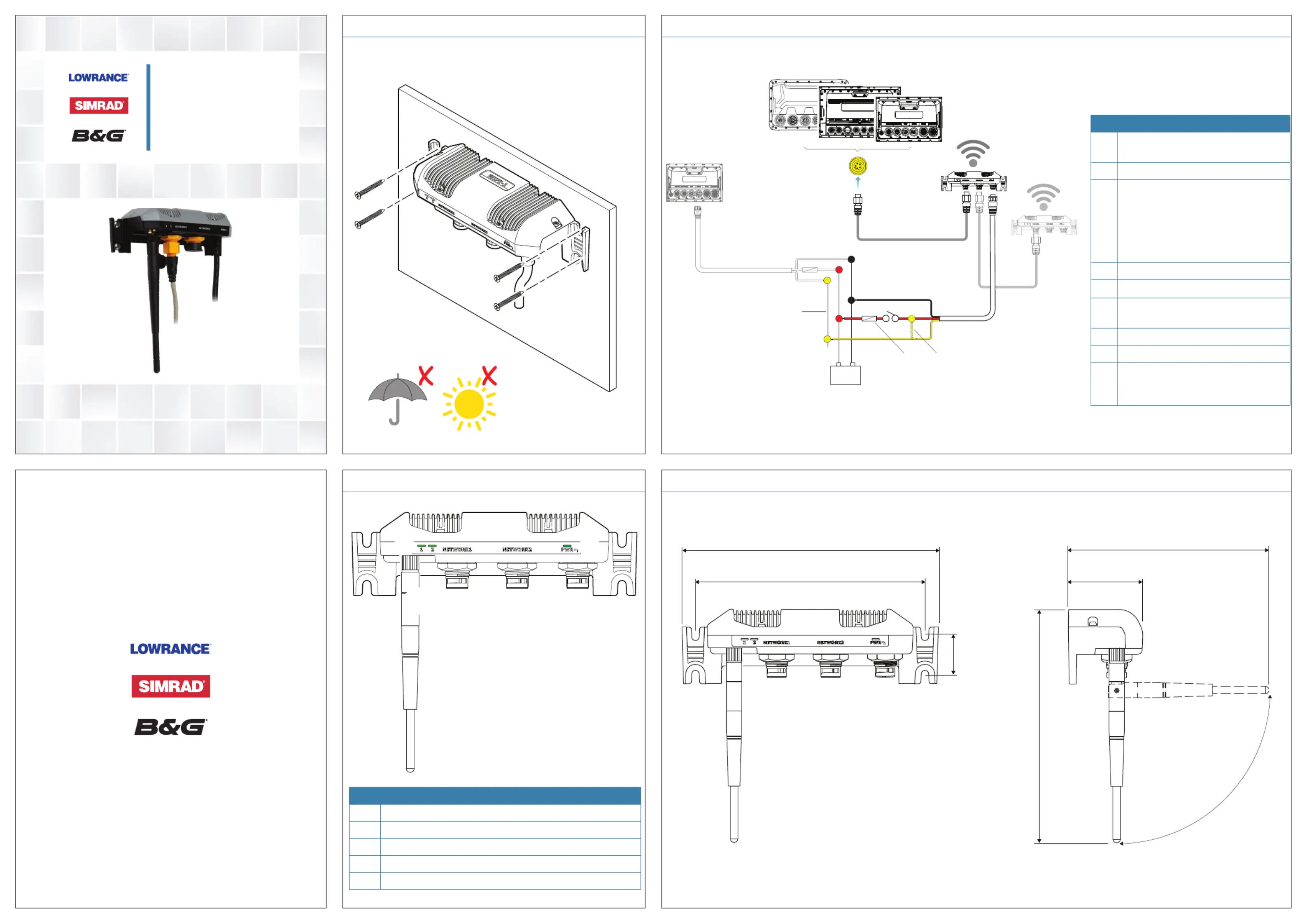

Installing
+_
4
4
6
5
8
9
2
3
1
7
Key Description
1Multi-function display, SonarHub™,
StructureScan® or other WIFI-1
2WIFI-1
3
Optional second WIFI-1 to use when
connecting your phone/tablet for
viewing/controlling the display unit
and the primary WIFI-1 is used for
accessing the internet. For more
information, refer to WIFI-1 modes”.
4Ethernet cable
5Power cable
6Remote power on: WIFI-1 will turn on
when power is applied
7Fuse or breaker
812 V DC
9
Remote power on: WIFI-1 will turn
on when the MFD is turned on (MFD
needs to be set to power on master)
Wiring
English
WIFI-1
Installation Guide
Layout
Key Description
1Antenna
2Ethernet ports
3Power connector
4Ethernet LEDs. Green: port is active
5Power LED. Red: power on
2 2
45
31
Dimensional drawing
52 mm (2.05”)
156 mm (6.14”)
25 mm
(1.0”)
187 mm
(7.36”)
171 mm (6.76”)
154 mm (6.06”)
