Power sources Specifications

CD player section

System

Compact disc digital audio system

Laser diode properties

Emission duration: Continuous

Laser output: Less than 44.6 µW

(This output is the value measured at a distance of

about 200 mm from the objective lens surface on the

optical pick-up block with 7 mm aperture.)

Number of channels

Frequency response

20 Hz - 20,000 Hz +1/–2 dB

Wow and flutter

Below measurable limit

Radio section

Frequency range

FM: 87.5 MHz - 108 MHz

AM: 531 kHz - 1,602 kHz

FM: 128 kHz

AM: 45 kHz

Antennas

FM: Telescopic antenna

AM: Built-in ferrite bar antenna

Cassette-corder section

Recording system

4-track 2 channel stereo

Fast winding time

Approx. 150 s (sec.) with Sony cassette C-60

Frequency response

TYPE I (normal): 80 Hz - 10,000 Hz

General

Speaker

Full range: 8 cm dia., 4 , cone type (2)

Outputs

Headphones jack (stereo minijack):

For 16 - 32 impedance headphones 

Input

AUDIO IN jack (stereo minijack)

Power output

1.7 W + 1.7 W (at 4 , 10% harmonic distortion)

Power requirements

For CD radio cassette-corder:

Thailand model: 220 V AC, 50 Hz

Other models: 230 V AC, 50 Hz

9 V DC, 6 R14 (size C) batteries

For remote control:

3 V DC, 2 R03 (size AAA) batteries

Power consumption

AC 13 W

Battery life

For CD radio cassette-corder:

FM recording

Sony R14P: approx. 4.5 h

Sony alkaline LR14: approx. 19 h

Tape playback

Sony R14P: approx. 2.5 h

Sony alkaline LR14: approx. 13 h

CD playback

Sony R14P: approx. 1 h

Sony alkaline LR14: approx. 8 h

Dimensions

Approx. 365 mm × 134 mm × 230 mm (w/h/d)

(incl. projecting parts)

Mass

Approx. 2.7 kg (incl. batteries)

Supplied accessories

AC power cord (1)

Remote control (1)

Design and specifications are subject to change without notice.

Optional accessory

Sony MDR headphones series

Basic Operations

* VOLUME + (VOL + on the remote) ,  and  on the

unit have a tactile dot.

Before using the unit

To turn on/off the power

European model: Press OPERATE .

Other models: Press POWER .

Note

When turning on the power, hold down OPERATE (or POWER) 

until OPR/BATT indicator lights up.

To adjust the volume

Press VOLUME +, – (VOL +, – on the remote) .

To listen through headphones

Connect the headphones to the (headphones) jack 

 on the back of the unit.

To reinforce the bass sound

Press MEGA BASS  on the unit.

“MEGA BASS” appears in the display.

To return to normal sound, press the button again.

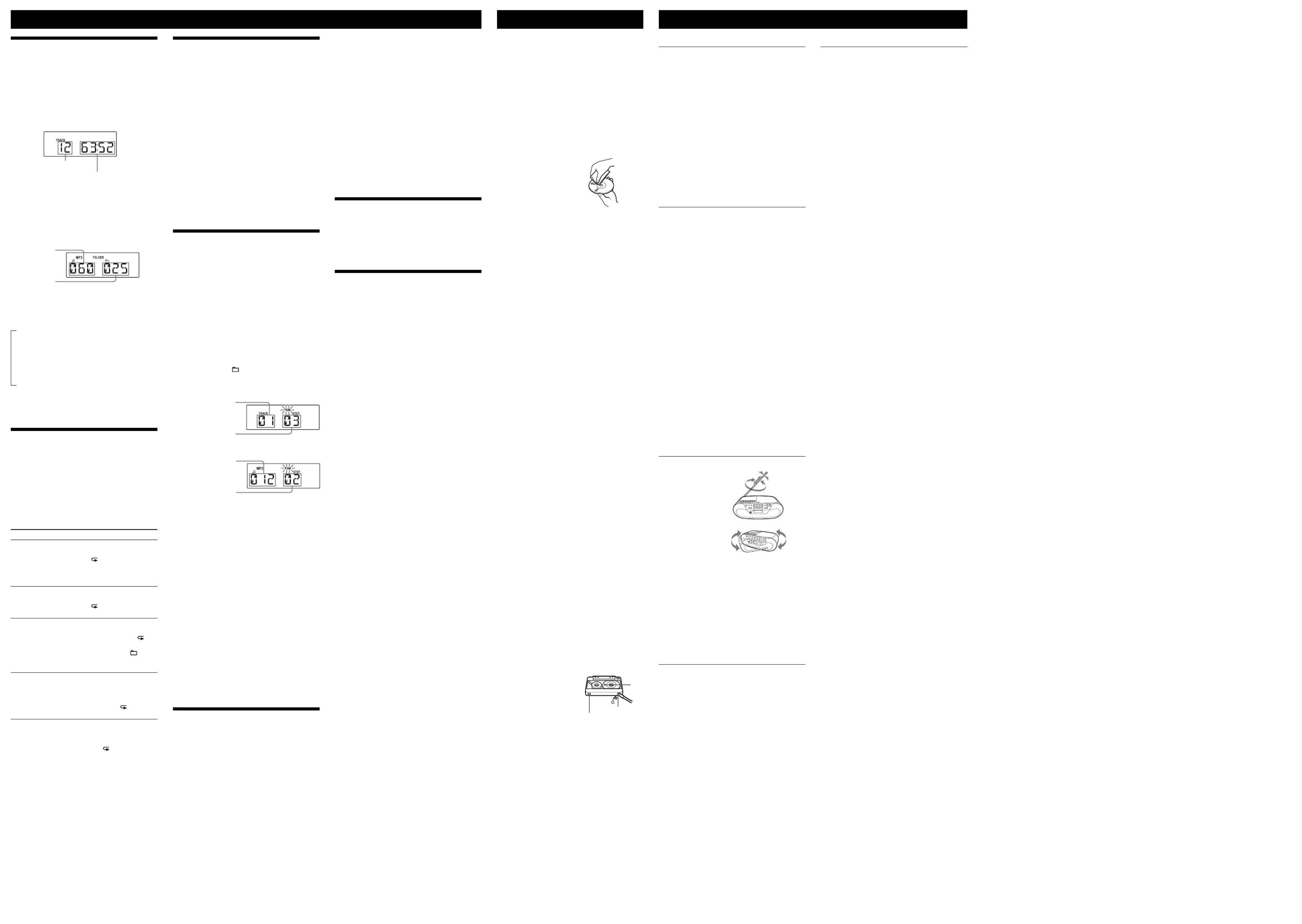

Playing a CD/MP3 disc

1 Press OPERATE (or POWER) .

2 Press CD  on the unit.

(On the remote, press FUNCTION  repeatedly

until “CD” appears in the display.)

3 Press PUSH OPEN/CLOSE  on the unit, and

place a disc with the label side up on the CD

compartment.

To close the CD compartment, press PUSH OPEN/

CLOSE  on the unit.

4 Press  .

The unit plays all the tracks/MP3 files once.

When you play an MP3 disc, the MP3 indicator lights

up after the unit has read the file information.

Audio CD

Track

number

Playing

time

MP3 disc

MP3 file

number

After the folder name* and song title are

displayed, the playing time** will appear.

* If there is no folder, “ROOT” appears in the display.

* If there is no song title in ID3 tag information “NO TITLE” will be

displayed.

** If the playing time is more than 100 minutes, “--:--” appears in

the display.

To Press

Pause playback  . To resume play, press it

again.

Stop playback  .

Go to the next

track/MP3 file

 .

Go back to the

previous track/

MP3 file



.

Select a folder on

an MP3 disc

+  on the unit to go forward

and –  to go backward.

Play the selected

folder only (MP3

disc only)

MODE  on the unit until

“FOLDER” appears, + or –  on

the unit to select a folder and then

  to start playing.

Locate a point

while listening to

the sound

 (forward) or  (backward)

 during playback and hold it

until you find the point.

Locate a point

while observing

the display

 (forward) or  (backward)

 in pause and hold it until you

find the point then press  .

Remove the CD  PUSH OPEN/CLOSE  on the

unit.

Tips

 Playback starts from the track/MP3 file you last stopped playing

(Resume play). During stop, the track/MP3 file number to be

played is displayed.

 To cancel the resume play (to start play from the beginning of the

first track/MP3 file), press 

 while the CD is stopped. When

you open the CD compartment or turn off the unit, the resume

play is also canceled.

Example of folder structure and playing order

The playing order of the folders and files is as follows:

CD-R

CD-RW

Folder

MP3 file

Notes on MP3 discs

 When the disc is inserted, the unit reads all the files on that disc.

During this time, “READING” is displayed. If there are many folders

or non-MP3 files on the disc, it may take a long time for play to

begin or for the next MP3 file to start play.

We recommend that you do not save unnecessary folders or files

other than MP3 ones in the disc to be used for MP3 listening.

 A folder that does not include an MP3 file is skipped.

 Maximum number of files: 511

Maximum number of folders: 256 (including the root folder)

Maximum number of folders and files in total: 512

Maximum directory levels: 8

 Folder names and file names can be displayed with up to 64

characters including quotation marks.

 The characters A - Z, 0 - 9 and _ can be displayed on this unit.

Characters a - z are displayed as A - Z (capitalized). Other

characters are displayed as “_.”

 This unit conforms to Version 1.0, 1.1, 2.2, 2.3 and 2.4 of the ID3

tag format. When the file has the ID3 tag information, song title,

artist name and album name can be displayed and “ID3” appears

in the display. If the file does not have ID3 tag information, “NO

TITLE” appears instead of song title, “NO ARTIST” appears instead

of artist name, and “NO ALBUM” appears instead of album name.

The ID3 tag information can be displayed with up to

30 characters.

 When naming, be sure to add the file extension “mp3” to the file

name.

 If you put the extension “mp3” to a file other than an MP3 file, the

unit cannot recognize the file properly and will generate random

noise that could damage your speakers.

 The file name does not correspond to the ID3 tag.

Listening to the radio

1 Press OPERATE (or POWER) .

2 Press RADIO BAND  on the unit (BAND  on the

remote) repeatedly.

Each time you press the button, the radio band

toggles between AM and FM.

3 Hold down TUNE + or –  on the unit until the

frequency digits begin to change in the display.

The unit automatically scans the radio frequencies

and stops when it finds a clear station.

If you cannot tune in a station, press TUNE + or – 

on the unit repeatedly to change the frequency step

by step.

When an FM stereo broadcast is received, “ST”

appears.

Tip

If an FM broadcast is noisy, changing the current status to

monaural usually reduces the noise.

1 Press MODE  on the unit.

“STEREO” or “MONO” appears.

2 While “STEREO” is displayed, press MODE on the unit to display 

“MONO.”

Preparing the remote

Insert two R03 (size AAA) batteries (not supplied).

Replacing batteries

With normal use, the batteries should last for about six months. When the remote no longer operates the unit,

replace all the batteries with new ones.

Note for customers in Europe

The unit automatically turns off after 30 minutes if no operation is performed after playback or recording for CD,

TAPE or AUDIO IN.

Connect the AC power cord or insert six R14 (size C) batteries (not supplied) into the battery compartment . 

Notes

 Replace the batteries when the OPR/BATT indicator  dims or when the unit stops operating.

Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the unit.

 To use the unit on batteries, disconnect the AC power cord from the unit.

 When you operate the unit on batteries, you cannot turn on the unit using the remote.

Playing a tape

Use buttons on the unit for the operation.

1 Press OPERATE (or POWER) .

2 Press TAPE .

3 Press  , and insert the tape into the tape

compartment with the side you want to play facing

upward. Use TYPE I (normal) tape only. To close the

tape compartment, press CLOSE .

Make sure there is no slack in the tape to avoid

damaging the tape or the unit.

4 Press .

The unit starts playing.

To Press

Pause playback  . To resume play, press it

again.

Stop playback  .

Fast-forward or

rewind*

 or  (fast forward or

rewind) .

Eject the cassette  .

* When the tape is wound to the end, press   to release 

or  .

Recording on a tape

Use buttons on the unit for the operation.

1 Press OPERATE (or POWER) .

2 Press   to open the tape compartment and

insert a blank tape with the side you want to record

on facing upward. Use TYPE I (normal) tape only. To

close the tape compartment, press CLOSE .

3 Select the program source you want to record.

To record from the CD player, insert a CD and press

CD .

To record from the radio, tune in the station you

want.

4 Press   to start recording

(  is depressed automatically).

To Press

Pause recording  . To resume recording,

press it again.

Stop recording  .

Tips

 Adjusting the volume or the audio emphasis will not affect the

recording level.

 If the AM program makes a whistling sound after you have press

  in step 4, press MODE 

on the unit to select the position

of ISS (Interference Suppress Switch) that most decreases the

noise.

 For best results, use AC power as the power source for recording.

 To erase a recording, proceed as follows:

1 Press OPERATE (or POWER)

.

2 Insert the tape whose recording you want to erase.

3 Press TAPE .

4 Press

  .

WARNING

To reduce the risk of fire or electric shock, do

not expose this apparatus to rain or moisture.

To reduce the risk of fire, do not cover the ventilation of

the apparatus with newspapers, tablecloths, curtains,

etc. And do not place lighted candles on the apparatus.

To reduce the risk of fire or electric shock, do not expose

this apparatus to dripping or splashing, and do not

place objects filled with liquids, such as vases, on the

apparatus.

As the main plug is used to disconnect the unit from

the mains, connect the unit to an easily accessible

AC outlet. Should you notice an abnormality in the

unit, disconnect the main plug from the AC outlet

immediately.

The unit is not disconnected from the AC power source

(mains) as long as it is connected to the wall outlet,

even if the unit itself has been turned off.

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

Do not expose the batteries (battery pack or batteries

installed) to excessive heat such as sunshine, fire or the

like for a long time.

The nameplate and important information concerning

safety are located on the bottom exterior.

Excessive sound pressure from earphones and

headphones can cause hearing loss.

Disposal of Old Electrical & Electronic

Equipment (Applicable in the European

Union and other European countries with

separate collection systems)

This symbol on the product or on its packaging

indicates that this product shall not be treated as

household waste. Instead it shall be handed over to

the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent

potential negative consequences for the environment

and human health, which could otherwise be caused

by inappropriate waste handling of this product. The

recycling of materials will help to conserve natural

resources. For more detailed information about

recycling of this product, please contact your local

Civic Office, your household waste disposal service or

the shop where you purchased the product.

4-178-175- (2)31

CD Radio Cassette-Corder

Disposal of waste batteries (applicable

in the European Union and other

European countries with separate

collection systems)

This symbol on the battery or on the packaging

indicates that the battery provided with this product

shall not be treated as household waste.

On certain batteries this symbol might be used in

combination with a chemical symbol. The chemical

symbols for mercury (Hg) or lead (Pb) are added if

the battery contains more than 0.0005% mercury or

0.004% lead.

By ensuring these batteries are disposed of

correctly, you will help prevent potentially negative

consequences for the environment and human health

which could otherwise be caused by inappropriate

waste handling of the battery. The recycling of the

materials will help to conserve natural resources.

In case of products that for safety, performance or

data integrity reasons require a permanent connection

with an incorporated battery, this battery should be

replaced by qualified service staff only.

To ensure that the battery will be treated properly,

hand over the product at end-of-life to the applicable

collection point for the recycling of electrical and

electronic equipment.

For all other batteries, please view the section on how

to remove the battery from the product safely. Hand

the battery over to the applicable collection point for

the recycling of waste batteries.

For more detailed information about recycling of this

product or battery, please contact your local Civic

Office, your household waste disposal service or the

shop where you purchased the product.

Notice for customers: the following

information is only applicable

to equipment sold in countries

applying EU directives

The manufacturer of this product is Sony Corporation,

1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The

Authorized Representative for EMC and product safety

is Sony Deutschland GmbH, Hedelfinger Strasse 61,

70327 Stuttgart, Germany. For any service or guarantee

matters please refer to the addresses given in separate

service or guarantee documents.

Note on DualDiscs

A DualDisc is a two sided disc product which mates

DVD recorded material on one side with digital audio

material on the other side. However, since the audio

material side does not conform to the Compact

Disc (CD) standard, playback on this product is not

guaranteed.

Music discs encoded with copyright

protection technologies

This product is designed to playback discs that

conform to the Compact Disc (CD) standard. Recently,

various music discs encoded with copyright protection

technologies are marketed by some record companies.

Please be aware that among those discs, there are

some that do not conform to the CD standard and may

not be playable by this product.

MPEG Layer-3 audio coding technology and patents

licensed from Fraunhofer IIS and Thomson.

CFD-S07CP Operating Instructions

2 1 to a wall outlet to AC IN





Produkt Specifikationer

Mærke:	Sony
Kategori:	Hi-Fi system
Model:	CFD-S07CP
Vægt:	2700 g
Produktfarve:	Sort
Indbyggede højttaler(e):	Ja
Udgangseffekt (RMS):	3.4 W
Udgange til hovedtelefoner:	1
Understøttede lydformater:	MP3
Dimensioner (BxDxH):	365 x 230 x 134 mm
Fjernbetjening inkluderet:	Ja
Batteritype:	C
Antal understøttede batterier:	6
MP3-afspilning:	Ja
CD-R-afspilning:	Ja
CD-RW-afspilning:	Ja
Enhedstype:	Personlig CD-afspiller
Højttalere:	2
FM båndbredde:	87.5 - 108 MHz
Line-in:	Ja
CD-tekst:	Ja
Kassettebåndoptager:	Ja
Digital tuner:	Ja
CD-skifter:	Ja
Højttaler, diameter:	80 mm
