SBPM JParapet Mount Bracket InstruconInstallaon s
Note: The mount should be installed on a flat and sturdy surface. The installation surface
must be capable of withstanding heavy winds and at least 3 times the total weight of the
camera being installed.
1. Start by marking off holes in which you want to position the mount.
2. Drill a hole in the base material with a hammer drill and a correctly sized carbide drill

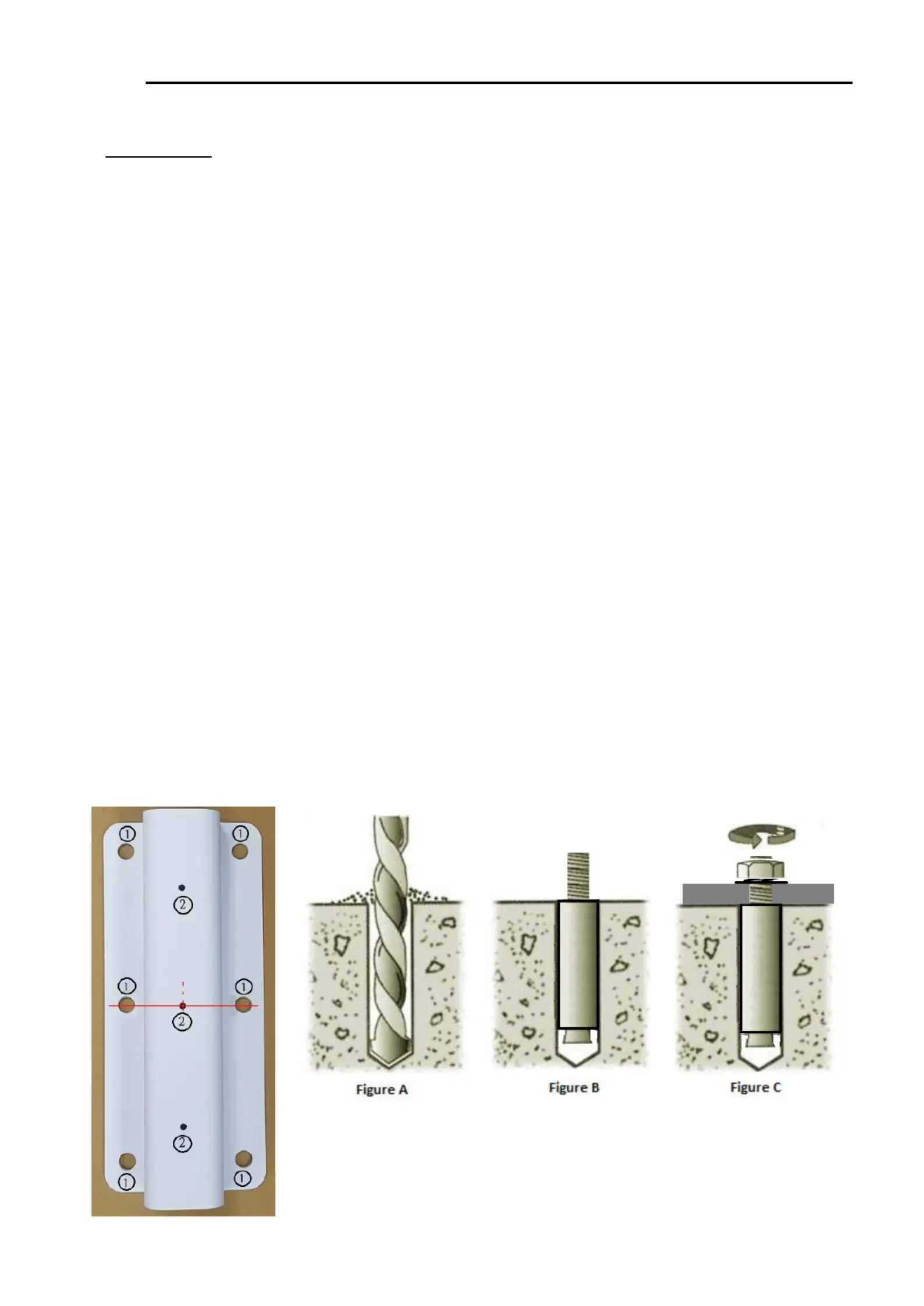

bit for the anchor. See figure A
3. Using the proper diameter and use bit, drill holes for the expansion bolts. The depth of
the hole should accommodate the length of the bolt up to the shim.
4. Clean out the hole of all debris.
5. the Sleeve with bolt and ensure the sleeve isInsert Expansion Anchor into the hole
flush with the surface. See figure B
6. , insert flat washer, locking washerSet the mount base over the single expansion anchor
then tighten the nut of the expansion bolt. The anchor of the bolt will expand inside the
hole . See figure C and lock into place . Do this for all 6 expansion bolts.
7. Make the camera connections through the hollow arm and mount the camera to the
arm using the mounting collar and set screws.
8. Insert the arm to the base and use the included locking screws to lock it in place.
Box contents:
1 Parapet Mount and base with PTZ collar
1 PC x Hex Wrench for Setting Screws
6 Sets Mounting 63mm±0.5mm (Total Length) x bolts with expansion anchors
9 PCS Set Screwx s Ø 6mm±0.2mm
mounng holes for SPECO or Specic Metal Plate
seng holes to x Metal Plate and Tube
