http://www.supermicro.com MNL-1754-QRG
Board Layout
SuperServer F618H6-FTL+/FTPTL+ Quick Reference Guide
CPU Installation Front View & Interface
Heatsink Installation
1. Place the heatsink on top of the installed CPU.
2. Align the four screws to the socket.
3. Holding the heatsink in place, screw down as shown
(cross pattern, in order: A, C, B, D).
4. Note: Only use 6-8 lb/f of torque; otherwise, hand-tighten
each screw to avoid damaging the CPU.
Memory
Caution
SAFETY INFORMATION
IMPORTANT: See installation instructions and safety warning
before connecting system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm
WARNING:
To reduce risk of electric shock/damage to equipment,
disconnect power from server by disconnecting all power
cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap
CAUTION:
Always be sure all power supplies for this system have
the same power output. If mixed power supplies are
installed, the system will not operate.
For more information go to :
http://www.supermicro.com/support
!
!
!

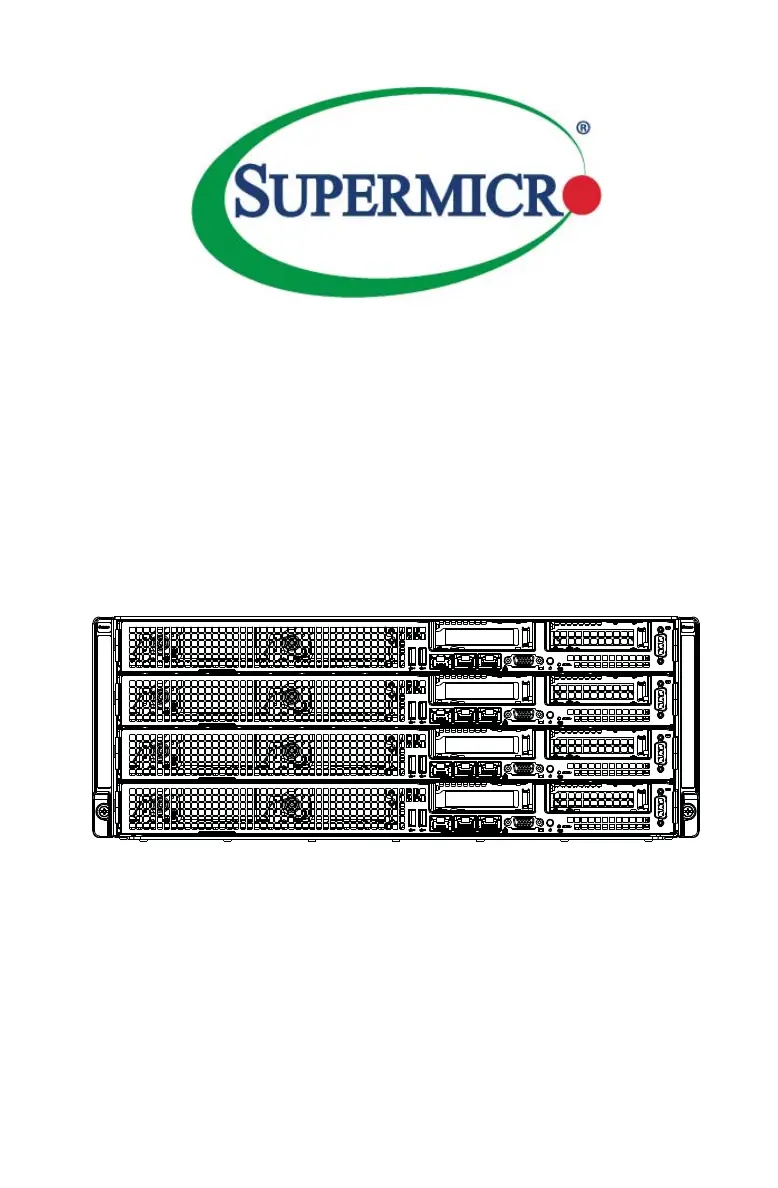

Rear View
Align CPU to socket;
install CPU straight down
NOTE:
Do not bend pin inside socket
!
Nodes and Corresponding Hard Drives
1 2
Description
No.
1
2
Power-Supply Module
Chassis Fan
Screw #A Screw #B
F414IS2-R2K04BP Node Locations in the Chassi s
Node 1
Controls twelve 3.5" HDDs, A1-A12
Node 3
Controls twelve 3.5" HDDs, C1-C12
Node 2
Controls twelve 3.5" HDDs, B1-B12
Node 4
Controls twelve 3.5" HDDs, D1-D12
Rev. 1.0
1 2
DescriptionNo.
1
2
USB Ports
VGA Port
53 4
3
4
IPMI LAN Port
Ethernet Ports
5
Control Panel
6 7
6
7
Power Button
UID Button
N e 4od
N e 3od
N e 2od
N e 1od
Pro o a their Co o M escess rs nd rresponding Mem ry odul
CPU# Corresponding DIMM Modules
CPU 1 P1-
DIMMA1
P1-
DIMMB1
P1-
DIMMC1
P1-
DIMMD1
P1-
DIMMA2
P1-
DIMMB2
P1-
DIMMC2
P1-
DIMMD2
CPU2 P2-
DIMME1
P2-
DIMMF1
P2-
DIMMG1
P2-
DIMMH1
P2-
DIMME2
P2-
DIMMF2
P2-
DIMMG2
P2-
DIMMH2
Pro or a o M e for ti l P o ncecess nd Mem ry odul Popul ionat Op ma erf rma
Number of
CPUs+DIMMs (For memory to work properly, please follow the instructions below.)
1 CPU &
2 DIMMs
CPU1
P1-DIMMA1/P1-DIMMB1
1 CPU &
4 DIMMs
CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1
1 CPU &
5~8 DIMMs
CPU1
P1-DIMMA1/P1-DIMMB1, P1-DIMMC1/P1-DIMMD1 + any pair of P1-DIMMA2/P1-
DIMMB2/P1-DIMMC2/P1-DIMMD2 slots
2 CPUs &
4 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1
2 CPUs &
6 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1
2 CPUs &
8 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-
DIMMG1/P2-DIMMH1
2 CPUs &
9~16 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-
DIMMG1/P2-DIMMH1 + any pair of P1, P2 DIMM slots
2 CPUs &
16 DIMMs
CPU1/CPU2
P1-DIMMA1/P1-DIMMB1/P1-DIMMC1/P1-DIMMD1, P2-DIMME1/P2-DIMMF1/P2-
DIMMG1/P2-DIMMH1, P1-DIMMA2/P1-DIMMB2/P1-DIMMC2/P1-DIMMD2, P2-DIMME2/
P2-DIMMF2/P2-DIMMG2/P2-DIMMH2
13
14
15
16
17
18
19
20
21
22
23
24
25
JSD1 & JSD2: I-SATA4 & I-SATA5
Power Connector
I-SATA4~5: Support SMCI SuperDOM
T-SGPIO 1/2: Intel SATA SGPIO
I-SATA0~3: Internal SATA 3.0 Ports
P2-DIMME1 / P2-DIMME2
P2-DIMMF1 / P2-DIMMF2
CPU2 Socket
SXB2: CPU2 PCI-E p1-x32
Proprietary Slot
P2-DIMMH1 / P2-DIMMH2
P2-DIMMG1 / P2-DIMMG2
P1-DIMMD1 / P1-DIMMD2
P1-DIMMC1 / P1-DIMMC2
Description
No.
1
2
3
4
5
6
7
8
9
10
11
12
SXB1: CPU1 Slot1 PCI-E 3.0 p1-x16
CPU1 Slot2 PCI-E 3.0 x8
CPU2 Slot3 PCI-E 3.0 x8
CPU1 Socket
PCH Slot4 PCIE-E 2.0 x4
JBT1: CMOS Clear
1G_bit LAN Ports 1/2 (X10DRFF-iG/CG)
10G_bit LAN Ports 1/2 (X10DRFF-iTG/CTG)
IPMI_LAN1: IPMI dedicated LAN Support
JTPM1: Trusted Platform Module Header
S-SATA 0~3: SATA 3.0 connectors
P1-DIMMB1 / P1-DIMMB2
P1-DIMMA1 / P1-DIMMA2
Proprietary Slot
DescriptionNo.
J23
JVRM1
JVRM2
JWD1
JPME2
UID_LED1
COM1
JSD2
JUIDB1
FAN7
FAN6
FAN1
FAN4
FAN5
FAN3
FAN2
FAN8
JBT1
I-SATA5
I-SATA3
I-SATA2
I-SATA1
I-SATA0
S-SATA2
S-SATA3
S-SATA0
S-SATA
1
I-SATA4
SXB1
HDD_LED1
LEDBMC
USB1
JPW1
HDD_PWR2
HDD_PWR1
JPW3
LEDS2
J22
BT1
S-SGPIO1
T-SGPIO2
JIPMB1
JP
REAR_FAN1
REAR_FAN2
SAS4-7
SAS0-3
PCH SLOT4 PCIE-E 2.0 X4
CPU2 SLOT3 PCI-E 3.0 X8
CPU1 SLOT2 PCI-E 3.0 X8
SXB1: CPU1 SLOT1 PCI-E X16 PROPRIETARY SLOT
P1-DIMMA2
P1-DIMMB1
P1-DIMMB2
P1-DIMMA1
P2-DIMME1
P2-DIMME2
P2-DIMMF1
P2-DIMMF2
P2-DIMMG1
SXB2:CPU2 PCI-E X32 PROPRIETARY SLOT
P2-DIMMG2
P2-DIMMH1
P2-DIMMH2
JPW2
P1-DIMMC2
P1-DIMMC1
P1-DIMMD2
P1-DIMMD1
JNVI2C1
T-SGPIO1
CPU2
CPU1
X10DRFF-CG/CTG
JNVI2C2
BIOS
PCH
Battery
USB0
JSD1
JPS1
12
11
15
23 22 21
5 6 7
14
8
1920 1825 24
1 2 3 4
10
17
9
16
13
JTPM1
mini-SAS HD Connectors:
SAS0-3: LSI SAS Port 0-3
SAS4-7: LSI SAS Port 4-7
Populating RDIMM/LRDIMM DDR4 Memory Modules
Type
Ranks
Per DIMM
and Data
Width
DIMM Capacity
(GB)
Speed (MT/s); Voltage (V); Slots per Channel (SPC) and
DIMMs per Channel (DPC)
2 Slots per Channel
1 DPC 2 DPC
E5-2600 V3 E5-2600 V4 E5-2600 V3 E5-2600 V4
4 GB 8 GB 1.2 V 1.2 V 1.2 V 1.2 V
RDIMM SRx4 8 GB 16 GB 2133 2400 1866 2133
RDIMM SRx8 4 GB 8 GB 2133 2400 1866 2133
RDIMM DRx8 8 GB 16 GB 2133 2400 1866 2133
RDIMM DRx4 16 GB 32 GB 2133 2400 1866 2133
LRDIMM QRx4 32 GB 64 GB 2133 2400 2133 2400
LRDIMM 3DS 8Rx4 64 GB 128 GB 2133 2400 2133 2400
SNK-P0047PSC for CPU1 SNK-P0047PS for CPU2
Screw #C Screw #D
Screw #A Screw #B
Screw #C Screw #D
