MNL-2490-QRG http://www.supermicro.com

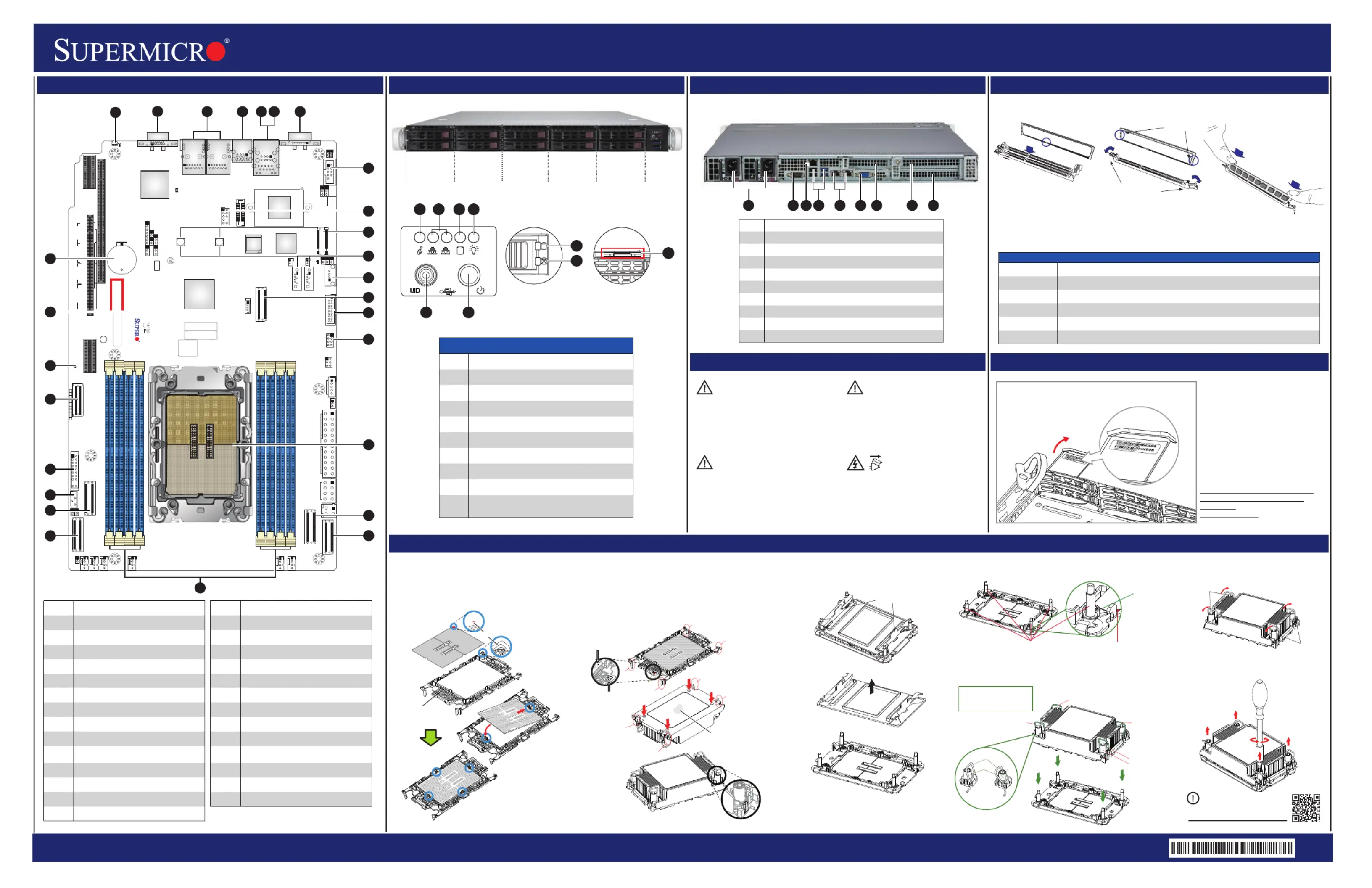

SuperServer 111E-WR Quick Reference Guide
Rev. 1.0a
Board Layout Rear View and FeaturesFront View and Features
BMC Password Label
P s Both Notches res
S a ht D n into the tr ig ow
Memory Slot
Notches
Rel e Tabseas
DI nMM Install ioat
Memory
Number of DIMMs Memory Population Sequence
1 DIMMA1
2DIMMA1 / DIMMG1
1 CPU, 8-DIMM Slots
DIMMA1 / DIMMG1 / DIMMC1 / DIMME14
6 DIMMA1 / DIMMG1 / DIMMC1 / DIMME1 / DIMMD1 / DIMMF1
8 DIMMA1 / DIMMG1 / DIMMC1 / DIMME1 / DIMMD1 / DIMMF1 / DIMMB1 / DIMMH1
Item
1
Description
2
3
4
5
6
7
8
9
10
11
12
13
14
UID Button (Unit Identier Button)
VGA Port
2 1GbE LAN Ports
USB 3.2 Gen 1 Ports
Dedicated LAN for IPMI
USB 2.0 Ports
COM Port (Serial Port)
COM Port Header (Serial Port)
TPM Header
M.2 PCI-E 3.0 Interface
SATA 8-9: SATA 3.0 Ports with
SuperDOM power
USB 2.0 TypeA Header
NVME 8/9: PCIe 5.0 p1-x8 MCIO Connector
USB 3.2 Gen 1 Header
Item
15
16
17
18
19
20
21
22
23
24
25
26
27
Description
S-SGPIO2 Header
CPU
NVME 6/7: PCIe 5.0 p1-x8 MCIO Connector
NVME 4/5: PCIe 5.0 p1-x8 MCIO Connector
DIMM A1-H1 slots
NVME 0/1: PCIe 5.0 p1-x8 MCIO Connector
NVME 2/3: PCIe 5.0 p1-x8 MCIO Connector
JIPMB1 4-pin BMC External I2C Header
Front Control Panel Header
SATA 0-7: SlimSAS SATA 3.0 Ports
Onboard Power LED
Intel RAID Key Header
Onboard CMOS Battery
CPU Installation, Supports a single Intel Xeon Sapphire Rapids Scalable Processor (LGA 4677)
When installing memory modules, the DIMM slots should be populated in the
following order: DIMMA1 / DIMMG1 / DIMMC1 / DIMME1 / DIMMD1 / DIMMF1
/ DIMMB1 / DIMMH1.
•Always use DDR5 DIMM modules of the same type, size, and speed.
•Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
For more information go to:
http://www.supermicro.com/support
PRODUCT RESOURCES:
Each system comes with a
unique default password for
the ADMIN user.
This can be found on a sticker
on the motherboard and a sticker
underneath the service tag on
chassis.
If necessary, the password can
be reset by the Supermicro
IPMICFG tool.
For more information,
please visit
https://www.supermicro.com/
en/solutions/management-
software/
bmc-resources
Pull-out tag with BMC unique password
and Serial Number Label
underneath.
PULL
B. Assembling the Processor Heatsink Module (PHM)
1. If this is a new heatsink, the thermal grease has been preapplied. Otherwise, apply the proper
amount of thermal grease.
2. Hold the processor carrier assembly so the processor's gold contacts are facing up, then align
the holes of the processor carrier assembly with the holes on the heatsink. Press the processor
carrier assembly down until it snaps into place. The plastic clips of the processor carrier assembly
will lock at the four corners.
3. Examine all corners to ensure that the plastic clips on the processor carrier assembly are rmly
attached to the heatsink.
Pin 1
a
c
b
d
A
C
B
D
A. Creating the Intel Sapphire Rapids CPU
Carrier Assembly
1. Locate small gold triangle (Pin 1) on processor and corresponding
hollowed triangle on carrier.
2. Using the triangles as a guide, carefully align and place Point A of
the processor into the carrier. Gently snap into place to fasten onto
Point B.
Pin 1
Make sure the lever
is pressed down before
installing the processor.
A
B
Processor Carrier Assembly
(Upside Down)
Check each corner to ensure that the processor carrier is rmly attached to the heatsink.
Triangle on the
processor carrier
Triangle on the CPU
Thermal grease
C. Preparing the CPU Socket for Installation
Gently pull o the plastic protective cover by one corner to
remove it from the CPU socket.
D. Installing the Process Heatsink Module
1. Locate four threaded fasteners (a, b, c, d) on the CPU socket. 3. Press all four rotating wires outward to latch the PHM
onto the CPU socket.
4. With a t30-bit screwdriver, tighten all PEEK nuts in the
sequence of A, B, C, and D with even pressure not greater
than 12 lbf-in.
A, B, C, D: Peek Nut
1, 2, 3, 4: Rotating Wire
a, b, c, d: Threaded Fastener
Peek Nut
(Unlatched) (Latched)
Rotating Wire
a
c
b
d
C
A
D
B
Rotating Wire 1
Rotating Wire 3
Rotating Wire 4
Rotating Wire 2
Peek Nut
Grip Tabs
a
b
c
d
(a, b, c, d: Threaded Fasteners) CPU Socket Pin1
Threaded
F neraste
CPU tSocke
Rotating
Wire
Rotating
Wire
2. Locate four PEEK nuts (A, B, C, D) and four rotating wires (1, 2, 3, 4) on the heatsink as
shown below. Gently place the heatsink on the CPU socket, making sure that each nut is
properly aligned with its corresponding threaded fastener.�
A
B
C
D
Item
1
Description
Control Panel Features
2
Universal Information LED
3
NIC1 (Right) and NIC2 (Left) LED
4
HDD LED
5
Power LED
6
UID Button
7
Power Button
8
Drive Activity LED
9
Drive Status LED
Servicel/Asset Tag (pull-out identier with
BMC ADMIN default password underneath)
HDD1
HDD0
HDD3
HDD2
HDD5
HDD4
HDD7
HDD6
HDD9
HDD8
12
4321
5 6
8
79
1 2 3 4 5 6 7 98
1
Item
2
3
4
5
6
7
Description
8
9
Serial Port
Redundant Power Supply Modules
Dedicated IPMI Port
PCI-E 5.0 p1-x8 (in x16) Expansion Slot 3 (LP)
Two USB 3.2 Gen1 and Two USB 2.0 Ports(black)
VGA Port
PCI-E 5.0 p1-x16 Expansion Slot 1 (FHFL)
PCI-E 5.0 p1-x16 Expansion Slot 2 (FHFL)
LAN 1 and LAN 2 Ports(left) (right)
PORT2APORT1CPORT1A
PORT2CPORT2APORT1
SXB1A
PORT1A
SUPERDOM
Header for 5V STBY power
NVME8/9
NVME4/5
NVME6/7
CHASSIS INTRUSION
SXB2: PCIe 5.0 X8(IN X16)
SXB1B: PCIe 5.0 X16 + X16
SXB1C
S A0~7AT
DIMMF1
DIMME1
DIMMH1
DIMMG1
NVME2/3
NVME0/1
DIMMC1
DIMMD1
DIMMA1
DIMMB1
PWR I2C
USB5/6(3.0)
RAID KEY-1
TPM/PORT80
SUPERDOM
USB2
S A DOM POWERAT
M.2-P
S A DOM POWERAT
ON
PWR R ST
JF1
ID
EDFAIL
PS LED
PWR X N MILED
HDDNIC
1
NIC
2
1-2:ENABLE
2-3:DISABLE
JPL3:LAN1/2
2-3:DISABLE
JPL2:LAN2
1-2:ENABLE
USB0/1
IPMI_LAN
COM1
COM2
USB3/4(3.0)
LAN1
JPL1:LAN1
1-2:ENABLE
2-3:DISABLE
LAN2
M.2 NVME
CMOS CLEAR
VGA
CPU
J17
S-SGPIO2
LEDPWR
DESIGNED IN USA
SAN MAC
MAC CODE
REV:1.02
13SEW-TF
IPMI CODE
BIOS LICENSE
BAR CODE
+
JRK1
LEDBMC
JSTBY1
JSLIM1
JSLIM2
JSLIM3
JSLIM4
JS IM5
JUIDB1
MH15
JVRM1
JPI2C
JCPLD
JBT1
JIPMB1
LED1
LED10
S A9AT
JPWR
JPLD1
PFR3
SATA8
JPFR1
JL1
JPME2
J36
J35
JPME1
JBR1 JPL1
JPL3
JPL2
JSD2
JSD1
JNCSI1
JMP2
JMP1
MH17MH4
BT1
FAN2 FAN1
FAN3
JPWR3
JPWR2
FAN6 FAN5FAN4
MH8
MH10
MH9
MH1 MH2
MH6
MH7
JF1
JPWR1
JS1
JTPM
Caution and Product Resources
CAUTION:
Always be sure all power supplies for this
system have the same power output.
If mixed power supplies are installed,
the systemwill not operate.
IMPORTANT: See installation instructions
and safety warning before connecting
system to power supply.
http://www.supermicro.com/about/policies/
safety_information.cfm
SAFETY INFORMATION:
To reduce risk of electric shock/damage to
equipment, disconnect power from server by
disconnecting all power cords from electrical
outlets. If any CPU socket empty, install
protective plastic CPU cap.
WARNING:
CAUTION:
This unit has redundant power sources.
Please disconnect all the power
cords before servicing.
123 4 6 75
8
9
11
12
13
14
15
17
20
21
22
24
10
18
16
23
25
26
27
19
