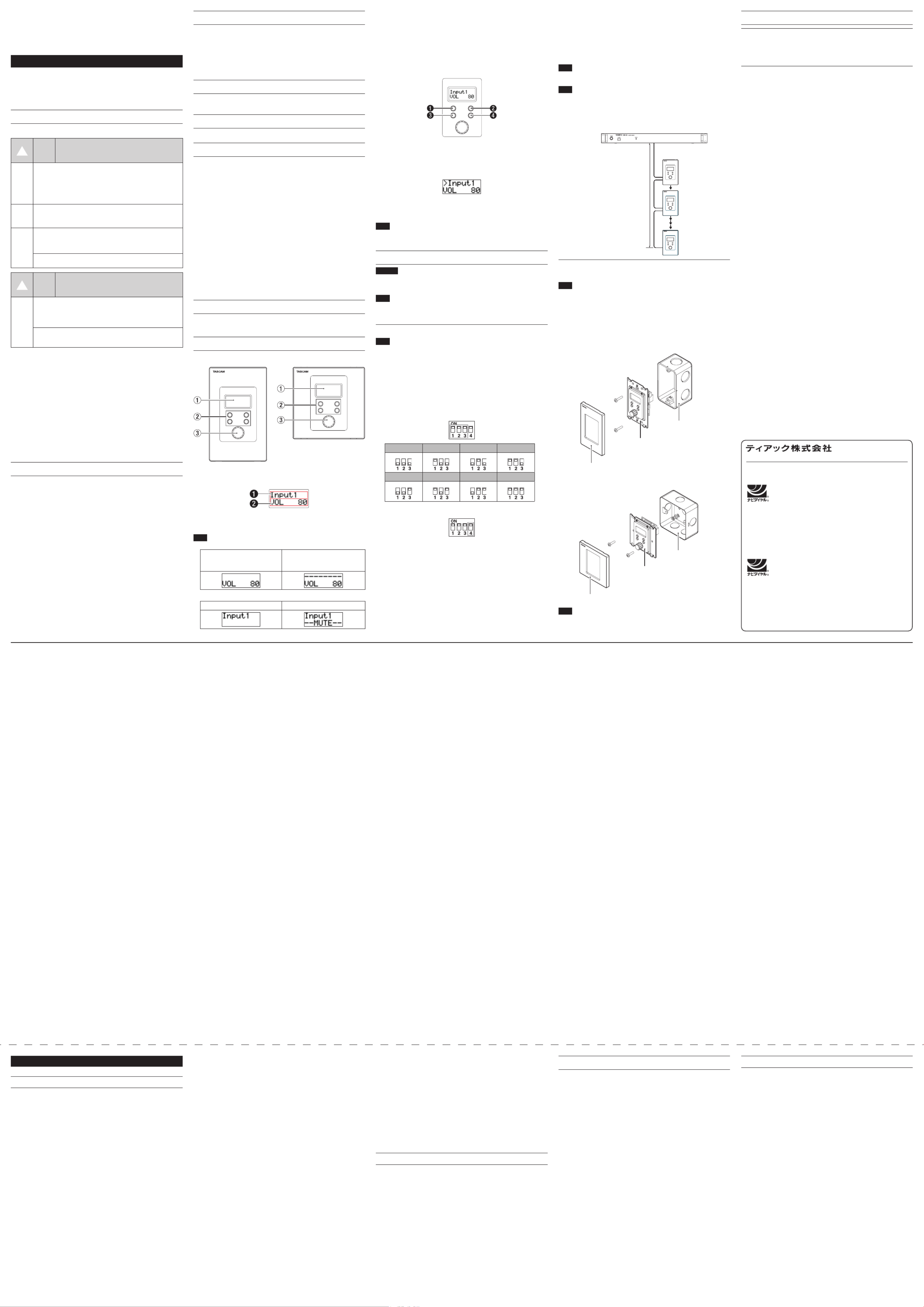

Features
pProgrammable controller with 1 multi-jog dial and 4 buttons that can be
used with an MX-8A or another compatible TASCAM device
pEnables switching sources and adjusting volume (including muting)
pFunctions can be assigned to the multi-jog dial and the buttons using
TASCAM MX CONNECT
Two source switching modes available
oMODE 1: One mode for selecting sources directly by pushing buttons
(up to 4 sources can be assigned)
oMODE 2: Custom source mode for selecting sources from a screen (up
to 8 sources can be assigned)
pEasy-to-read display
oName of the selected source and current volume can be checked
oAutomatic backlight off function
pDaisy chaining of up to 8 units is possible using cables rated category 5e
or higher (maximum length 200 m)
pPower can be supplied by an MX-8A or another mixer
Included items
This product includes the following items.
Take care when opening the package to avoid damaging the items. Keep
the box and packing materials for transportation in the future.
Please contact the store where you purchased this unit if any of these items
are missing or have been damaged during transportation.
pController unit x 1
............................................................................................................
pFront cover x 1
...................................................................................................................
pOwner’s manual (this document) including warranty x 1
.................................
Cleaning the unit
Use a soft dry cloth to wipe the unit clean.
Do not wipe with chemical cleaning cloths, thinner, alcohol or other
chemical agents. Doing so could damage the surface or cause discoloration.
Using the TEAC Global Site
You can download updates for this unit from the TEAC Global Site:
http://teac-global.com/
In the TASCAM Downloads section, select the desired language to open the
Downloads website page for that language.
Product registration
Customers in the USA, please visit the following TASCAM website to register
your TASCAM product online.
https://tascam.com/us/
About TASCAM customer support service
TASCAM products are supported and warrantied only in their country/
region of purchase.
To receive support after purchase, on the TASCAM Distributors list page of
the TEAC Global Site (http:// teac-global.
com/), search for the local company or representative for the region where
you purchased the product and contact that organization.
When making inquiries, the address (URL) of the shop or web shop where it
was purchased and the purchase date are required.
Moreover, the warranty card and proof of purchase might also be necessary.
Names of parts
RC-W100-R120 RC-W100-R86
1 Display
This shows the name of the selected source and the volume.
1: Input source
2: Volume setting
NOTE
• The screen appears as follows depending on the input source status.
When no input source is selected
When the selected input source
has not been selected by an
application or other controller, etc.
• The screen will appear as follows depending on the volume setting.
Screen when volume adjustment
is disabled Screen when volume is muted
2 Source select buttons
Their functions change depending on the mode.
See the TASCAM MX CONNECT Owner’s Manual for details about
switching modes.
MODE 1
Press a source selection button to change the input source set with
TASCAM MX CONNECT.
MODE 2
The source selection buttons function as follows.
oUse the and buttons to select input sources.1 2
o
Press the button to confirm the selected input source.4
oPress the button when an import source is selected to cancel 3
that selection and return to the regular screen. When an input
source is selected, appears before its name.;
3 MULTI JOG dial
Turn the dial to adjust the volume.
Press the dial to mute/unmute the volume.
NOTE
The wheel and button functions of the multi-jog dial can be turned on/
off. See the TASCAM MX CONNECT Owner’s Manual for details about
changing this.
Using the unit
VCAUTION
Do not connect this unit to any connectors other than those on an MX-
8A or the RS-485 connector on a TASCAM-compatible unit. If they are not
compatible electrically, fire or malfunction could result.
NOTE
This product does not include a switchbox to install the controller
or installation screws. Use a commercially-available switchbox and
installation screws.
Setting and connecting the controller unit
NOTE
• This unit receives power from the connected mixer. Always turn the
power of this unit and the connected mixer off before connecting them
and always use cables that are category 5e or higher.
• When connecting multiple units in a daisy chain, set the ID of this unit so
that it does not overlap with that of others.
• This unit cannot be connected to multiple MX-8A units or TASCAM-
supported devices.
Setting the ID of the controller unit
1. On the side of the controller with the connectors, set dip switches 1–3
as follows to set the ID to 1–8.
1234
5678
2. Set the termination of the controller unit that will be the final one in the
chain.
o
When connecting a mixer to only one of these units, set dip switch 4
for that controller to ON.
o
When connecting a mixer to multiple controllers, set dip switch 4 for
the final controller to ON.
Set dip switch 4 for the other controllers to OFF.
Connecting a mixer to this unit
Use a category 5e or higher cable to connect the RS-485 connector on the
mixer to the connector on this unit.
Either of the two connectors can be used for the connection.
pConnecting a mixer to 2 or more units
To connect the mixer using its RS-485 connector to multiple units,
connect the units sequentially in a daisy chain.
ATTENTION
Set dip switch 4 for the final controller to ON.
NOTE
• Up to 8 units can be connected.
• The maximum total cable length from the mixer unit to the last controller
unit is 200 m.
• When connecting multiple units in a daisy chain, set the ID of this unit so
that it does not overlap with that of others.
CONTROLLER 1
CONTROLLER 2
CONTROLLER 8
TASCAM MX-8A
TASCAM RC-W100
TASCAM RC-W100
TASCAM RC-W100
Maximum total cable length:
200 m
RS-485 connector
Trademarks
p
TASCAM is a trademark of TEAC Corporation, registered in the U.S.
and other countries.
pOther company names, product names and logos in this document
are the trademarks or registered trademarks of their respective
owners.
Dimensional drawings / Dessins avec cotes / Esquema de dimensiones /
Maßzeichnungen / Dimensioni / 寸法図
RC-W100-R120
65mm70.0mm
8.2mm
20.2mm
54.0mm
8.2mm
20.2mm
54.0mm
83.3mm
109.2mm
114.0mm
RC-W100-R86
82.2mm87.0mm
8.2mm
20.2mm
54.0mm
8.2mm
20.2mm
54.0mm
60.0mm
82.2mm
87.0mm
Installing the controller unit
1. Use screws to attach the controller unit to the switchbox.
NOTE
• For installing an RC-W100-R120, use a switchbox that is compliant with
JIS C8340 for a single unit and has a depth of at least 44 mm.
• For installing an RC-W100-R86, use a switchbox that is compatible with a
single US type unit and has a depth of at least 44 mm.
• Use screws of a size that matches the switchbox.
2. Put the front cover on to the controller unit.
Press it until it clicks into place.
RC-W100-R120
Front cover
Controller unit
Switchbox
RC-W100-R86
Front cover
Controller unit
Switchbox
NOTE
To remove the front cover, insert a flat head screwdriver, for example,
into the cutouts at its top and the bottom to pry it off. Be careful not to
damage the front cover when doing this.
Specifications
Input/output ratings
RS-485 connector
Connector: RJ-45 p1-x2
Cables: category 5e or faster STP cables
Other
Power consumption
0.24 W
Dimensions
RC-W100-R120: 70 x 114 x 54 mm (W x H x D, including protrusions)
RC-W100-R86: 87 x 87 x 54 mm (W x H x D, including protrusions)
Weight
RC-W100-R120: 140 g
RC-W100-R86: 140 g
Operating temperature range
0 - 40°C (32 - 104°F)
Model / Modèle / Modell
Modello / Modelo / 型号
RC-W100-R120 / RC-W100-R86
Serial No. / No de série / Seriennummer
Numero di serie / Número de serie / 機番
Date of purchase / Date de l’achat / Datum des Kaufs
Data dell’acquisto / Fecha de compra / お買い上げ日
Owner’s name / Nom du propriétaire / Name des Eigentümers
Nome del proprietario / Nombre del propietario / お名前
Address / Adre e / Adressess
Indirizzo / Dir ión / ecc ご住所
Dealer’s name Nom du revendeur / Name des ers / Händl
Nome del com rciante / Nombre del establecim / me iento 販売店
Dealer’s address / Adresse du revendeur / Adresse des Händlers
Indirizzo del commerciante / Dirección del establecimiento / 住所
Memo / 修理メモ
にご記 だいた保 の控えは、 期間内の ス活動お そお客様 入いた 証書 保証 サービ よび
安全点 のために 内容を利用 ていただ すのの後の 検活動 記載 させ く場合がございま
で、ご了承ください｡
IMPORTANT SAFETY INSTRUCTIONS
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
For U.S.A.
Declaration of Conformity
Model Number: RC-W100-R120/RC-W100-R86
Trade Name: TASCAM
Responsible party: TEAC AMERICA, INC.
Address: 10410 Pioneer Blvd. Suite #1 Santa Fe Springs, California 90670,
U.S.A.
Telephone number: 1-323-726-0303
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures.
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and receiver.
c) Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Changes or modifications to this equipment not expressly approved by
TEAC CORPORATION for compliance could void the user’s authority to
operate this equipment.
For Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A LA NORME
NMB-003 DU CANADA.
This product complies with the European Directives
request and the other Commission Regulations.
CE Marking Information
EN55103-2
a) Applicable electromagnetic environment: E1, E2, E3, E4
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8. Only use attachments/accessories specified by the manufacturer.
9. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
iIf you are experiencing problems with this product, contact TEAC for a
service referral. Do not use the product until it has been repaired.
CAUTION
iDo not expose this apparatus to drips or splashes.
iDo not place any objects filled with liquids, such as vases, on the
apparatus.
For European Customers
Disposal of electrical and electronic equipment and
batteries and/or accumulators
(a) All electrical/electronic equipment and waste batteries/accumulators
should be disposed of separately from the municipal waste stream via
collection facilities designated by the government or local authorities.
(b) By disposing of electrical/electronic equipment and waste batteries/
accumulators correctly, you will help save valuable resources and
prevent any potential negative effects on human health and the
environment.
(c) Improper disposal of waste electrical/electronic equipment and
batteries/accumulators can have serious effects on the environment
and human health because of the presence of hazardous substances in
the equipment.
(d) The Waste Electrical and Electronic Equipment (WEEE)
symbols, which show wheeled bins that have been crossed
out, indicate that electrical/electronic equipment and
batteries/accumulators must be collected and disposed of
separately from household waste.
(e) Return and collection systems are available to end users.
For more detailed information about the disposal of old electrical/
electronic equipment and waste batteries/accumulators, please
contact your city office, waste disposal service or the shop where you
purchased the equipment.
X
RC-W100-R120 / RC-W100-R86
WALL MOUNTED CONTROLLER
OWNER’S MANUAL
Thank you very much for purchasing the TASCAM RC-W100-R120/RC-
W100-R86.
Before using this unit, read this Owner’s Manual carefully so that you will be
able to use it correctly and enjoy working with it for many years. After you
have finished reading this manual, please keep it in a safe place for future
reference.
Printed in China D01366300A
TEAC CORPORATION
https://tascam.jp/jp/
Phone: +81-42-356-9143
1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan
TEAC AMERICA, INC.
https://tascam.com/us/
Phone: +1-323-726-0303
10410 Pioneer Blvd. Suite #1 Santa Fe Springs, California 90670, U.S.A.
TEAC UK Ltd.
https://www.tascam.eu/en/
Phone: +44-1923-797205
Meridien House, 69-71 Clarendon Road, Watford, Herts, WD17 1DS, United
Kingdom
TEAC EUROPE GmbH
https://www.tascam.eu/de/
Phone: +49-611-71580
Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany
TEAC SALES & TRADING(SHENZHEN) CO., LTD
https://tascam.cn/cn/
Phone: +86-755-88311561~2
Room 817, Xinian Center A, Tairan Nine Road West, Shennan Road, Futian
District, Shenzhen, Guangdong Province 518040, China

Produkt Specifikationer

Mærke: Tascam
Kategori: Ikke kategoriseret
Model: RC-W100

Har du brug for hjælp?

Hvis du har brug for hjælp til Tascam RC-W100 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Tascam Manualer

Tascam

Tascam Porta-02MKII Manual

19 September 2024
Tascam

Tascam DR-10L Pro Manual

23 August 2024
Tascam

Tascam DP-008 Manual

6 August 2024
Tascam

Tascam VL-A4 Manual

6 August 2024
Tascam

Tascam MiNiSTUDIO Creator US-42B Manual

2 August 2024
Tascam

Tascam TT-M1 Manual

2 August 2024
Tascam

Tascam MD-02 Manual

1 August 2024
Tascam

Tascam CG-1800 Manual

31 Juli 2024
Tascam

Tascam IF-DA8 Manual

27 Juli 2024
Tascam

Tascam DP-01FX Manual

27 Juli 2024

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Smeg

Smeg KIT6PX Manual

23 December 2024
Smeg

Smeg KIT6CX Manual

23 December 2024
Smeg

Smeg GTA-6 Manual

23 December 2024
Lucide

Lucide Casper i 79166/19/12 Manual

23 December 2024
Lucide

Lucide Merlina 78193/30/66 Manual

23 December 2024
Lucide

Lucide Pippa 77583/81/30 Manual

23 December 2024
Lucide

Lucide Pia 45380/04/30 Manual

23 December 2024
Lucide

Lucide Pia 45280/01/30 Manual

23 December 2024
Lucide

Lucide Anaka 45179/03/30 Manual

23 December 2024
Lucide

Lucide Zych 45156/01/97 Manual

23 December 2024
