SN54AHCT125, SN74AHCT125
QUADRUPLE BUS BUFFER GATES
WITH 3-STATE OUTPUTS
SCLS264O − DECEMBER 1995 − REVISED JULY 2003
1
POST OFFICE BOX 655303 DALLAS, TEXAS 75265
DInputs Are TTL-Voltage Compatible
DLatch-Up Performance Exceeds 250 mA Per
JESD 17
DESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)
− 1000-V Charged-Device Model (C101)
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1OE
1A
1Y
2OE
2A
2Y
GND
VCC
4OE
4A
4Y
3OE
3A
3Y
SN54AHCT125 . . . J OR W PACKAGE
SN74AHCT125 . . . D, DB, DGV, N, NS,
OR PW PACKAGE
(TOP VIEW)
3 2 1 20 19
9 10 11 12 13
4
5
6
7
8
18
17
16
15
14
4A
NC
4Y
NC
3OE
1Y
NC
2OE
NC
2A
1A
1OE
NC
3Y
3A
V
4OE
2Y
GND
NC
SN54AHCT125 . . . FK PACKAGE
(TOP VIEW)
CC
NC − No internal connection
SN74AHCT125 . . . RGY PACKAGE
(TOP VIEW)
1 14
7 8
2
3
4
5
6
13
12
11
10
9
4OE
4A
4Y
3OE
3A
1A
1Y
2OE
2A
2Y
1OE
3Y V
GND
CC
description/ordering information

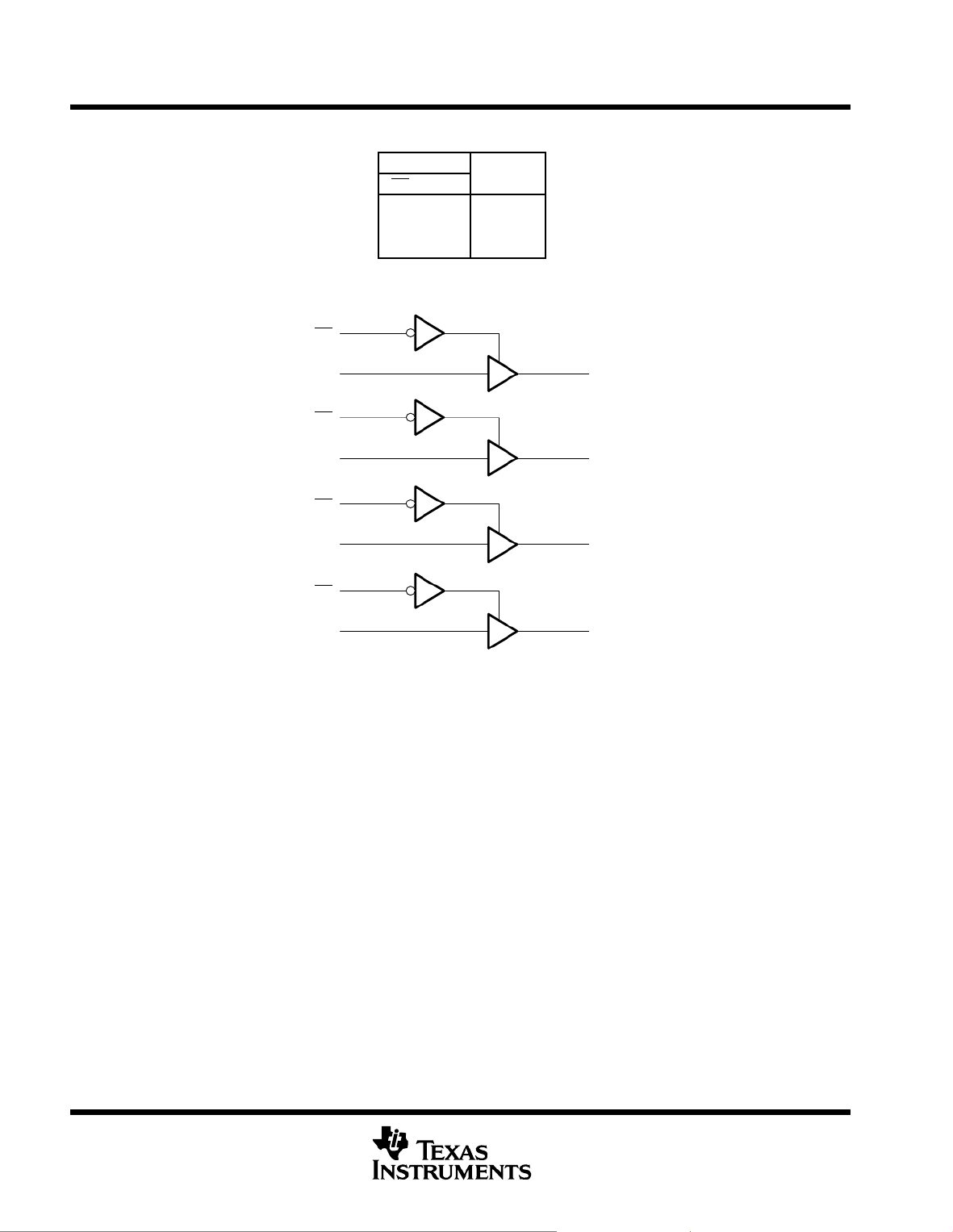

The ’AHCT125 devices are quadruple bus buffer gates featuring independent line drivers with 3-state outputs.
Each output is disabled when the associated output-enable (OE) input is high. When OE is low, the respective
gate passes the data from the A input to its Y output.
To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
ORDERING INFORMATION
TAPACKAGEORDERABLE
PART NUMBER
TOP-SIDE
MARKING
QFN − RGY Tape and reel SN74AHCT125RGYR HB125
PDIP − N Tube SN74AHCT125N SN74AHCT125N
SOIC D
Tube SN74AHCT125D
AHCT125
SOIC − D Tape and reel SN74AHCT125DR AHCT125
−40° °C to 85 C SOP − NS Tape and reel SN74AHCT125NSR AHCT125
SSOP − DB Tape and reel SN74AHCT125DBR HB125
TSSOP PW
Tube SN74AHCT125PW
HB125
TSSOP − PW Tape and reel SN74AHCT125PWR HB125
TVSOP − DGV Tape and reel SN74AHCT125DGVR HB125
CDIP − J Tube SNJ54AHCT125J SNJ54AHCT125J
−55° °C to 125 C CFP − W Tube SNJ54AHCT125W SNJ54AHCT125W
55 C
to
125 C
LCCC − FK Tube SNJ54AHCT125FK SNJ54AHCT125FK
Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are
available at www.ti.com/sc/package.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright © 2003, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
On products compliant to MIL-PRF-38535, all parameters are tested
unless otherwise noted. On all other products, production
processing does not necessarily include testing of all parameters.


Produkt Specifikationer

Mærke: Texas Instruments
Kategori: Ikke kategoriseret
Model: SN74AHCT125PWR
Type: Logisk kredsløb
Bredde: 5.1 mm
Dybde: 4.5 mm
Højde: 1.05 mm
Antal pr. pakke: 2000 stk
Pakkedybde: 364 mm
Pakkebredde: 364 mm
Pakkehøjde: 27 mm
Opbevaringstemperatur (T-T): -65 - 150 °C
Driftstemperatur (T-T): -40 - 125 °C
Pakketype: TSSOP
Antal stifter: 14
Bredde (med stifter): 5.1 mm
Højde (med stifter): 1.2 mm
Dybde (med stifter): 6.6 mm

Har du brug for hjælp?

Hvis du har brug for hjælp til Texas Instruments SN74AHCT125PWR stil et spørgsmål nedenfor, og andre brugere vil svare dig
