Side 1/4

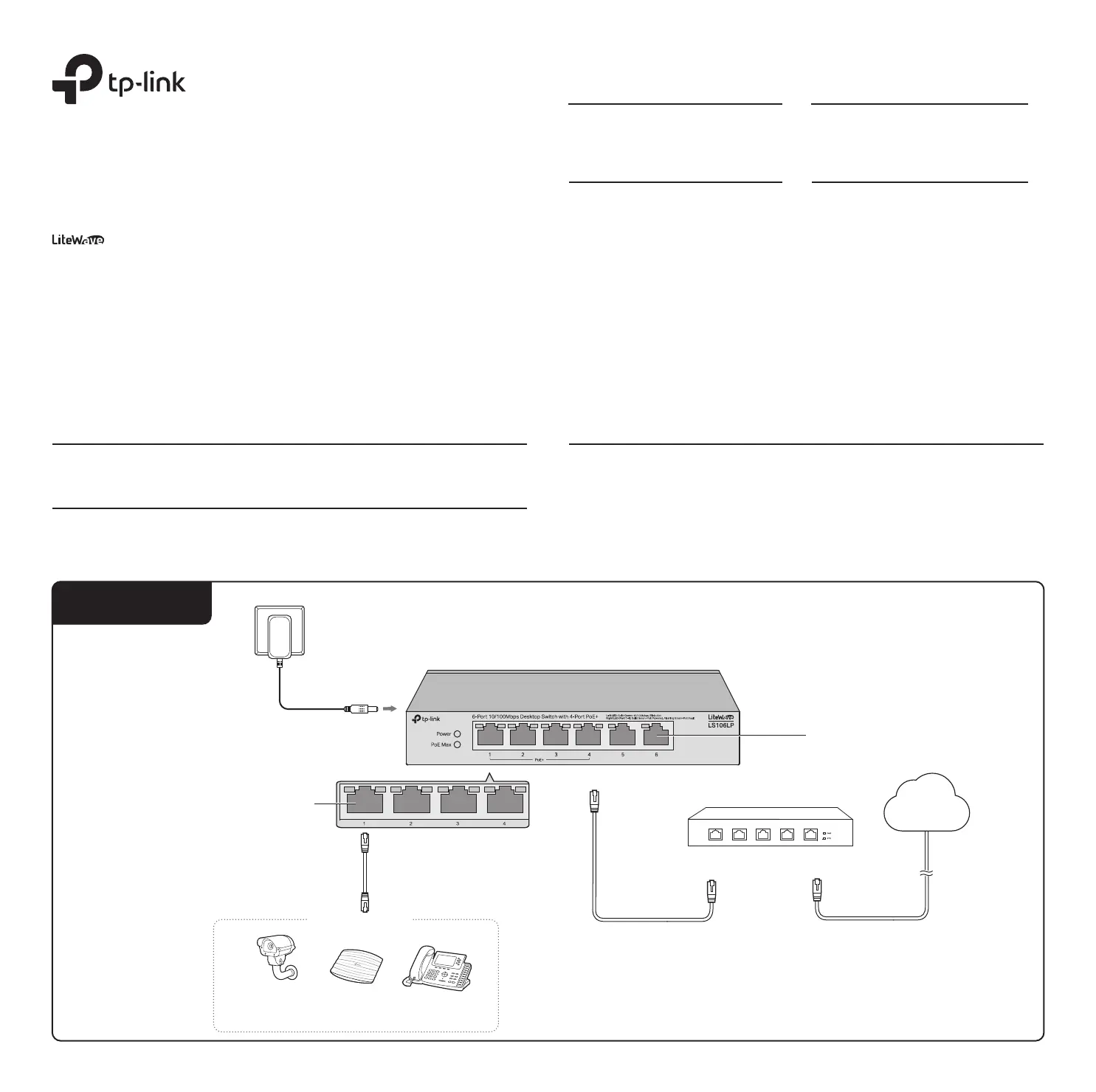

Connection

Note: For simplicity, we will take LS106LP for example throughout this Guide.

Note:

1. PoE ports can also connect to non-PoE devices, but only transmit data.

2. LS105LP/ LS106LP can supply up to 30 W for each PoE port and 41 W for all PoE ports.

3. LS109P can supply up to 30 W for each PoE port and 63 W for all PoE ports.

4. LS109P has an uplink port (RJ45 port), which typically connects to uplink devices like routers.

IP Camera AP IP Phone

Router

LAN Port WAN Port

Internet

PoE Ports (1-4)

PoE Devices

Switches Explanation

Isolation (For LS109P)

O: Ports can transmit data with each other.

On: The corresponding ports cannot transmit data with other downlink ports. They can transmit data

only with the uplink port.

Extend (For LS105LP/LS106LP/LS109P)

O: The corresponding ports run at 10/100 Mbps and support PoE power supply up to 100 m away.

On: The corresponding ports run at 10 Mbps and support PoE power supply up to 250 m away.

Recovery (For LS105LP/LS106LP/LS109P)

O: The PoE Auto Recovery function is disabled.

On: The switch will constantly detect the working status of a PoE powered device (PD). When the switch

nds that the PD works abnormally, the switch will reboot it.

Note: The numbers in brackets indicate the ports where the feature takes eect. For example, when Extend (Port 1-4) is toggled to On, the Extend mode will be enabled for ports 1-4.

LED Explanation

Power PoE Status

On: Providing PoE power

Flashing: Current-overload/Short-circuit

O: Not providing PoE power

On: Power on

O: Power o

Link/Act; Uplink

On:

Running at 10/100 Mbps, but no activity.

Flashing:

Running at Mbps and is transmitting 10/100
