Side 1/3
English
28
GB
ELECTRICAL CONNECTION AND OPERATION
This appliance has been designed, built and marketed in
compliance with:
- the safety targets of the “Low Voltage” EEC Directive
72/23;
- the protection requirements of the “EMC” EEC Directive
89/336 amended by EEC Directive 93/68.
Check that the voltage on the rating plate, situated at the right
hand side of the crisper corresponds to the voltage in your home
(Fig. 6).
The earthing of this appliance is compulsory by law. The
manufacturer will accept no liability for injury to persons
or damage to objects arising from the non-observance of
this requirement.
If the plug and the wall socket do not comply, have the socket re-
placed by a qualified electrician.
He should also check that the section of the socket wires can
withstand the power absorbed by the appliance. The use of adap-
ters, multiple sockets and extension cords is not advisable.
If absolutely necessary, use simple or multiple adapters and exten-
son cords in compliance with local safety regulations, paying at-
tention not to exceed the maximum amperage, which is marked
on the simple adaptors and on extension cords and that of the
total power marked on the multiple adapters. With the appliance
plugged in, the interior light should come on when the refrigera-
tor door is opened, unless the thermostat control knob is set to
●
symbol.
Adjust the thermostat control knob as suggested in the next
chapter. The refrigerator is ready for use.
For Great Britain only:
ELECTRICAL INFORMATION
WARNING - THIS APPLIANCE MUST BE EARTHED

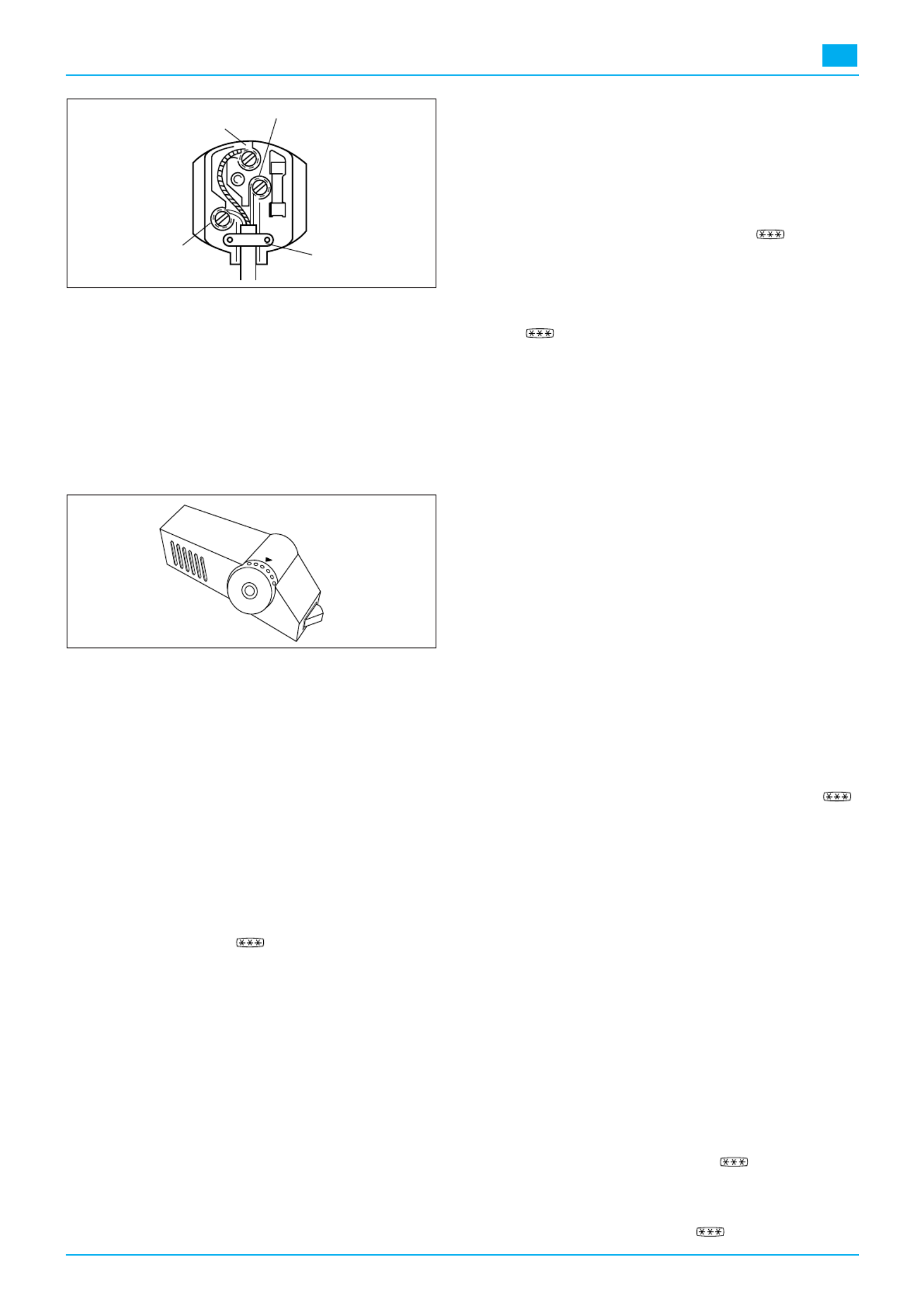

Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13
amp fused plug, to change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and proceed as follows:
1. Remove the fuse cover (A) and
fuse (B)
2. Fit replacement 13A fuse into fu-
se cover
3. Refit both into plug.
IMPORTANT: The fuse cover must
be refitted when changing a fuse
and if the fuse cover is lost the plug
must not be used until a correct re-
placement is fitted.
Correct replacements are identified by the colour insert or the
colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
CONNECTION TO A REWIREABLE PLUG
If the fitted plug is not suitable for your socket outlet, then it
should be cut off and disposed of in order to avoid a possible
shock hazard should it be inserted into a 13A socket elsewhere.
A suitable alternative plug should then be fitted to the cable. The
wires in this mains lead are coloured in accordance with the fol-
lowing code:
BLUE "NEUTRAL" ("N")
BROWN "LIVE" ("L")
GREEN AND YELLOW "EARTH" ("E)
1. The GREEN AND YELLOW wire must be connected to the ter-
minal in the plug which is marked with the letter "E" or by the
Earth symbol or coloured green or green and yellow.
2. The BLUE wire must be connected to the terminal which is
marked with the letter "N" or coloured black.
3. The BROWN wire must be connected to the terminal which is
marked with the letter "L" or coloured red.
ENVIRONMENTAL HINTS
Packing
Do not throw the packing into the garbage: first sort out the dif-
ferent materials (i.e.: steel, cardboard, polystyrene) following local
regulations.
Conformity declaration
This appliance incorporates parts intended to come into contact
with foodstuffs in compliance with EEC Directive 89/109/CEE.
Information
This appliance is free of CFC’s (refrigerant circuit contains R134a) or
free of HFC’s (refrigerant circuit contains R600a - Isobutane).
For more details, please refer to the rating plate on the appliance.
For appliances with Isobutane (R600a)
The refrigerant Isobutane is a natural gas of high environmental
compatibility but which si inflammable. Therefore, it is essential
to ensure that the ducts of the refrigerant circuit do not get da-
maged.
KNOW YOUR APPLIANCE
The appliance you have just bought allows, dependent on mo-
dels, the storage of fresh foods and if it is equipped with the low
temperature compartment marked by a symbol , the free-
zing-in of small quantities of foods, the storage of commercially
frozen foods and the production of ice cubes.
The appliance fitted with super insulation have been designed to
grant high performances with a reduced energy consumption.
Please read these instructions carefully, you will find the descrip-
tion of your appliance and the useful hints to obtain the best
performance to store foods.
DESCRIPTION OF THE APPLIANCE (Fig. 1)
1) Temperature control knob of both compartments (thermostat)
2) Light switch
3) Low temperature compartment
4) Grids (adjustable in height)
5) Separator
6) Crispers
7) Inner door liner with racks
8) Butter and eggs compartment
INSTALLATION
Please ensure that the appliance is undamaged. Transit dam-ages
must be reported to your delaer within 24 h of receipt of the ap-
pliance. We suggest you wait 1 hour approx, before connecting
the appliance to the mains to allow the refrigerant circuit to be
effective. The appliance should not be installed close to heat
sources, central heating, cookers, boilers, sunlight, etc. It must
however be located in a well ventilated dry space.
If the appliance is installed under a kitchen furniture, leave a
50mm air gap (Fig. 2). Ensure that the appliance is level; adjust, if
required, the front foot (Fig. 3).
Fit the spacers (if provided) on the top of the condenser (Fig. 4).
To ensure free air circulation, ensure that the ventilation grid si-
tuated above the appliance is not obstructed (Fig. 5).
Clean the interior with a sponge dampened in a solution of warm
water and bicarbonate of soda or vinegar.
INSTALLATION OF THE APPLIANCE UNDER
A WORKTOP
This appliance can be installed under a worktop, situated at a di-
stance of 850 mm from the floor. Proceed as follows:
- Remove screws 9 and 10 (at the front and rear) and remove the
worktop of the appliance (Fig. 16).
- Cut a ventilation opening in the worktop (Fig. 17).
- Install the appliance under the worktop and fix it at the front by
means of the screws 10 previously removed from the worktop of
the appliance.
- Mantain the distance from the rear wall as shown (Fig. 17).
B
A
