User Guide

Zebra® GC420d™

Desktop Thermal Printer

P1052685-001 GC420d™ User Guide 5/23/2012

iii

5/23/2012 GC420d™ User Guide P1052685-001

ZebraDesigner, ZebraNet, EPL, EPL2, ZPL, ZPL II, OpenACCESS and all product names

and numbers are Zebra trademarks, and Zebra, the Zebra head graphic, ZPL, ZPL II,

Element Energy Equalizer circuit, E3 Circuitand, and ZebraNet are registered trademarks

owners.

This product may contain ZPL®, ZPL II®, and ZebraLink™ programs; Element Energy

Equalizer™ Circuit; E3®; and Monotype Imaging fonts. Software ©ZIH corp. All rights

reserved worldwide.

Monotype Imaging, Inc. registered in the United States Patent and Trademark Office and

may be registered in certain jurisdictions.

CG Triumvirate is a trademark of Monotype Imaging, Inc. and may be registered in some

jurisdictions.

TrueType® is a trademark of Apple Computer, Inc. registered in the United States Patent

and Trademark Office and may be registered in certancertain jurisdictions.

Proprietary Statement

This manual contains proprietary information of Zebra Technologies Corporation and its

subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of

parties operating and maintaining the equipment described herein. Such proprietary

information may not be used, reproduced, or disclosed to any other parties for any other

purpose without the express written permission of Zebra Technologies.

Product Improvements

Continuous improvement of products is a policy of Zebra Technologies. All specifications

and designs are subject to change without notice.

Liability Disclaimer

Zebra Technologies takes steps to ensure that its published Engineering specifications and

manuals are correct; however, errors do occur. Zebra Technologies reserves the right to

correct any such errors and disclaims liability resulting therefrom.

Limitation of Liability

In no event shall Zebra Technologies or anyone else involved in the creation, production,

or delivery of the accompanying product (including hardware and software) be liable for

any damages whatsoever (including, without limitation, consequential damages including

loss of business profits, business interruption, or loss of business information) arising out

of the use of, the results of use of, or inability to use such product, even if Zebra

Technologies has been advised of the possibility of such damages. Some jurisdictions do

not allow the exclusion or limitation of incidental or consequential damages, so the above

limitation or exclusion may not apply to you.

Canadian DOC Compliance Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

P1052685-001 GC420d™ User Guide 5/23/2012

FCC Compliance Statement

This device complies with Part 15 rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for Class B Digital

Devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a residential

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the product manuals, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television

reception, the user is encouraged to do one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced RF service technician for help.

The user is cautioned that any changes or modifications not expressly approved by Zebra

Technologies could void the user’s authority to operate the equipment. To ensure compliance,

this printer must be used with fully shielded communication cables.

Environmental Management

Do not dispose of this product in unsorted municipal waste. This product is recyclable, and

should be recycled according to your local standards.

For more information, please see our website at:

Web address: www.zebra.com/environment

5/23/2012 GC420d™ User Guide P1052685-001

About This Document

This section provides you with contact information, document structure and organization, and

additional reference documents.

Contents

Who Should Use This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

Who Should Use This Document

P1052685-001 GC420d™ User Guide 5/23/2012

Who Should Use This Document

This User Guide is intended for use by any person who needs to operate or to troubleshoot

problems with the printer.

How This Document Is Organized

The User Guide is set up as follows:

Section Description

Introduction on page 1 This section describes what you get in your

shipping box and provides an overview of printer

features. This section also has procedures that

describe how to open and close the printer and

report any problems.

Getting Started on page 9 This section describes how to set up your printer

for the first time and use the most common

operating procedures for loading media.

Print Operations on page 25 This section provides media and print handling,

font and language support, and the set up of less

common printer configurations.

Printer Options on page 39 This section covers the common printer options

and accessories with brief descriptions and how to

get you started using or configuring your printer

option or accessory.

Maintenance on page 47 This section provides routine cleaning and

maintenance procedures.

Troubleshooting on page 59 This section provides information about printer

error reporting that you might need for printer

troubleshooting. Assorted diagnostic tests are

included.

Appendix: Interface Wiring

on page 73

This section provides additional interface

information and wiring diagrams to assist with

printer to host system integration (typically a PC).

Appendix: Dimensions on page 77 This section provides external printer dimensions

for the standard printer and printer with options.

Appendix: ZPL Configuration

on page 81

This section briefly covers printer configuration

and includes a cross-reference to ZPL printer

configuration commands.

vii

Contacts

5/23/2012 GC420d™ User Guide P1052685-001

Contacts

Technical Support via the Internet is available 24 hours per day, 365 days per year.

Web Site: www.zebra.com

E-mail Back Technical Library:

E-mail address: emb@zebra.com

Subject line: Emaillist

Self Service Knowledge Base: www.zebra.com/knowledgebase

Online Case Registration: www.zebra.com/techrequest

Which Department

Do You Need? The Americas Europe, Middle East,

and Africa

Asia Pacific

and India

Regional Headquarters Zebra Technologies Corporation

475 Half Day Road, Suite 500

Lincolnshire, IL 60069 USA

T: +1 847 634 6700

Toll-free +1 866 230 9494

F: +1 847 913 8766

Zebra Technologies Europe

Limited

Dukes Meadow

Millboard Road

Bourne End

Buckinghamshire, SL8 5XF

United Kingdom

T: +44 (0) 1628 556000

F: +44 (0) 1628 556001

Zebra Technologies Asia Pacific

Pte. Ltd.

120 Robinson Road

#06-01 Parakou Building

Singapore 068913

T: + 65 6858 0722

F: +65 6885 0838

Technical Support

For questions on the

operation of Zebra

equipment and software,

please call your distributor.

For additional assistance,

Please have your model and

serial numbers available.

T: +1 877 ASK ZEBRA (275 9327)

F: +1 847 913 2578

Hardware: ts1@zebra.com

Software: ts3@zebra.com

Kiosk printers:

T: +1 866 322 5202

E: kiosksupport@zebra.com

T: +44 (0) 1628 556039

F: +44 (0) 1628 556003

E: Tseurope@zebra.com

T: +65 6858 0722

F: +65 6885 0838

E: China: tschina@zebra.com

All other areas:

tsasiapacific@zebra.com

Repair Service

Department

For back-to-base service

and repair.

T: +1 877 ASK ZEBRA (275 9327)

F: +1 847 821 1797

E: repair@zebra.com

To request a repair in the U.S.,

go to www.zebra.com/repair.

T: +44 (0) 1772 693069

F: +44 (0) 1772 693046

New requests: ukrma@zebra.com

Status updates:

repairupdate@zebra.com

T: +65 6858 0722

F: +65 6885 0838

E: China: tschina@zebra.com

All other areas:

tsasiapacific@zebra.com

Technical Training

Department

For Zebra product training

courses.

T: +1 847 793 6868

T: +1 847 793 6864

F: +1 847 913 2578

E: ttamerica@zebra.com

T: +44 (0) 1628 556000

F: +44 (0) 1628 556001

E: Eurtraining@zebra.com

T: + 65 6858 0722

F: +65 6885 0838

E: China: tschina@zebra.com

All other areas:

tsasiapacific@zebra.com

Inquiry Department

For product literature and

distributor and dealer

information.

T: +1 877 ASK ZEBRA (275 9327)

E: inquiry4@zebra.com

T: +44 (0) 1628 556037

F: +44 (0) 1628 556005

E: mseurope@zebra.com

E: China:

GCmarketing@zebra.com

All other areas:

APACChannelmarketing@zebra.c

Customer Service

Department (US)

Internal Sales

Department (UK)

For printers, parts, media,

and ribbon, please call your

distributor or contact us.

T: +1 877 ASK ZEBRA (275 9327)

E: clientcare@zebra.com

T: +44 (0) 1628 556032

F: +44 (0) 1628 556001

E: cseurope@zebra.com

T: +65 6858 0722

F: +65 6885 0836

E: China: order-csr@zebra.com

All other areas:

csasiapacific@zebra.com

Key: T: Telephone

F: Facsimile

E: E-mail

Document Conventions

viii

P1052685-001 GC420d™ User Guide 5/23/2012

Document Conventions

The following conventions are used throughout this document to convey certain information.

Alternate Color (online only) Cross-references contain hot links to other sections in this

guide. If you are viewing this guide online in .pdf format, you can click the cross-reference

(blue text) to jump directly to its location.

Command Line Examples Command line examples appear in Courier New font. For

example, type ZTools to get to the Post-Install scripts in the bin directory.

Files and Directories File names and directories appear in Courier New font. For

example, the Zebra<version number>.tar file and the /root directory.

Icons Used

Caution • Warns you of the potential for electrostatic discharge.

Caution • Warns you of a potential electric shock situation.

Caution • Warns you of a situation where excessive heat could cause a burn.

Caution • Advises you that failure to take or avoid a specific action could result in physical

harm to you.

Caution • (No icon) Advises you that failure to take or avoid a specific action could result in

physical harm to the hardware.

Important • Advises you of information that is essential to complete a task.

Note • Indicates neutral or positive information that emphasizes or supplements important

points of the main text.

Example • Provides an example, often a scenario, to better clarify a section of text.

5/23/2012 GC420d™ User Guide P1052685-001

Contents

• About This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Who Should Use This Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

How This Document Is Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

Document Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

• Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix

1 • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

GC420d™ Thermal Printers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Printer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operator Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2 • Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Attaching Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Loading Roll Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Preparing Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Placing the Roll in the Media Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Printing a Test (Printer Configuration) Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Pre-install Windows® Printer Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting your Printer to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Interface Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

After Your Printer is Connected. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

3 • Print Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Determining Printer Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

P1052685-001 GC420d™ User Guide 5/23/2012

Long Term Printer In-activity or Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Thermal Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Modes of Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Print Media Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Determining Thermal Media Types. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Replacing Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Adjusting the Print Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Adjusting the Print Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Media Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Printing on Fan-Fold Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Printing with Externally Mounted Roll Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Fonts and Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Localizing the Printer with Code Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Identifying Fonts in Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Stand Alone Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Sending Files to the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Print Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

EPL Line Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4 • Printer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Label Dispenser Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Zebra® KDU — Printer Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

KDU Plus™ — Printer Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

ZBI 2.0™ — Zebra Basic Interpreter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

5 • Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Cleaning the Printhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Media Path Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Platen Cleaning and Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Other Printer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Replacing the Printhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

6 • Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Status Light Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Status Light Error Resolutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Manual Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

5/23/2012 GC420d™ User Guide P1052685-001

Troubleshooting Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Printing a Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Recalibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Resetting the Factory Default Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Communications Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Feed Button Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

A • Appendix: Interface Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Universal Serial Bus (USB) Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Parallel Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Ethernet Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Serial Port Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

B • Appendix: Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

External GK Printer Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

C • Appendix: ZPL Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Managing Printer Configuration with ZPL Programming. . . . . . . . . . . . . . . . . . . . . . . . . . 92

ZPL Configuration Status to Command Cross-reference . . . . . . . . . . . . . . . . . . . . . . . . . 93

Printer Memory Management and Related Status Reports . . . . . . . . . . . . . . . . . . . . . . . 96

ZPL Programming for Memory Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

xii

P1052685-001 GC420d™ User Guide 5/23/2012

Notes • ___________________________________________________________________

__________________________________________________________________________

5/23/2012 GC420d™ User Guide P1052685-001

Introduction

This section describes what you get in your shipping box and provides an overview of printer

features. This includes procedures that describe how to open and close the printer and report

any problems.

Contents

GC420d™ Thermal Printers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What’s in the Box? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Printer Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Operator Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

GC420d™ Thermal Printers

P1052685-001 GC420d™ User Guide 5/23/2012

GC420d™ Thermal Printers

The Zebra® GC420d™ model is the best value in a desktop thermal printer. The GC420d™

printer provides direct thermal printing at speeds up to 4 ips (inches per second) at a 203 dpi

(dots per inch) print density. The GC420d™ supports both ZPL™ and EPL™ Zebra printer

programming languages and a wide variety of interface and feature options.

The GC420 printers feature:

• Automatic printer language detection and switching between ZPL and EPL

programming and label formats.

• OpenAccess™ design for simplified media loading.

• Color-coded operator controls and media guides.

• Zebra™ Global Printing Solution – supports Microsoft Windows keyboard encoding

(and ANSI), Unicode UTF-8 and UTF 16 (Unicode Transformation Formats), XML,

ASCII (7 and 8 bit used by legacy programs and systems), basic single and double

byte font encoding, Hexadecimal encoding, and custom character maps (DAT table

creation, font linking, and character remapping).

• Improved printer performance: faster print speeds and a 32-bit processor.

• A complete suite of free software applications and drivers to configure printer

settings, design and print labels and receipts, get printer status, import graphics and

fonts, send programming commands, update firmware, and download files. Clone

printer settings and send graphics, files, fonts, and firmware (updates) to one or more

Zebra® Ethernet and locally connected printers with ZebraNet™ Bridge.

• Maintenance reporting enabled and customizable by the user.

• The GC420 direct thermal printer models also include support for Line Mode printing

to support EPL1 legacy programming based printing applications.

The GC420 printers offer these basic printer options:

• Label Dispense (Peel-Off).

• Zebra® ZBI 2.0™ (Zebra BASIC Interpreter) programming language. ZBI™ allows

you to create custom printer operations that can automate processes, use peripherals

(i.e. scanners, scales, keyboards, Zebra® KDU or KDU Plus™, etc.) all without being

attached to a PC or network.

This user’s guide provides all the information you need to operate your printer on a daily basis.

To create label formats, refer to your programming guides or label design applications such as

ZebraDesigner™.

Your printer, when connected to a host computer, functions as a complete system for printing

labels and tags.

Note • Many printer settings may also be controlled by your printer’s driver or label design

software. Refer to the driver or software documentation for more information.

What’s in the Box?

5/23/2012 GC420d™ User Guide P1052685-001

What’s in the Box?

Save the carton and all packing materials in case you need to ship or store the printer later.

After unpacking, make sure you have all parts. Follow the procedures for inspecting the

printer to familiarize yourself with printer parts so you can follow the instructions in this book.

Unpack and Inspect the Printer

When you receive the printer, immediately unpack it and inspect for shipping damage.

• Save all packing materials.

• Check all exterior surfaces for damage.

• Open the printer and inspect the media compartment for damage to components.

If you discover shipping damage upon inspection:

• Immediately notify the shipping company and file a damage report. Zebra

Technologies Corporation is not responsible for any damage to the printer incurred

during shipment, and will not cover the repair of this damage under its warranty

policy.

• Keep all packaging material for shipping company inspection.

• Notify your authorized Zebra

® reseller.

Power Cord

varies by locale or region

Documentation

and Software

Power

Supply

Printer

What’s in the Box?

P1052685-001 GC420d™ User Guide 5/23/2012

Your Printer

Opening the printer

To access the media compartment, you must open the printer. Pull the release latches towards

you and lift the cover. Check the media compartment for loose or damaged components.

Interface

Connectors

Feed

Button

Status

Light

Release

Latches

Release

Latches

DC Power

Receptacle

Power

Switch

Fan-Fold Media Entry Slot

Caution • The discharge of electrostatic energy that accumulates on the surface of the

human body or other surfaces can damage or destroy the printhead or electronic

components used in this device. You must observe static-safe procedures when working

with the printhead or the electronic components under the top cover.

What’s in the Box?

5/23/2012 GC420d™ User Guide P1052685-001

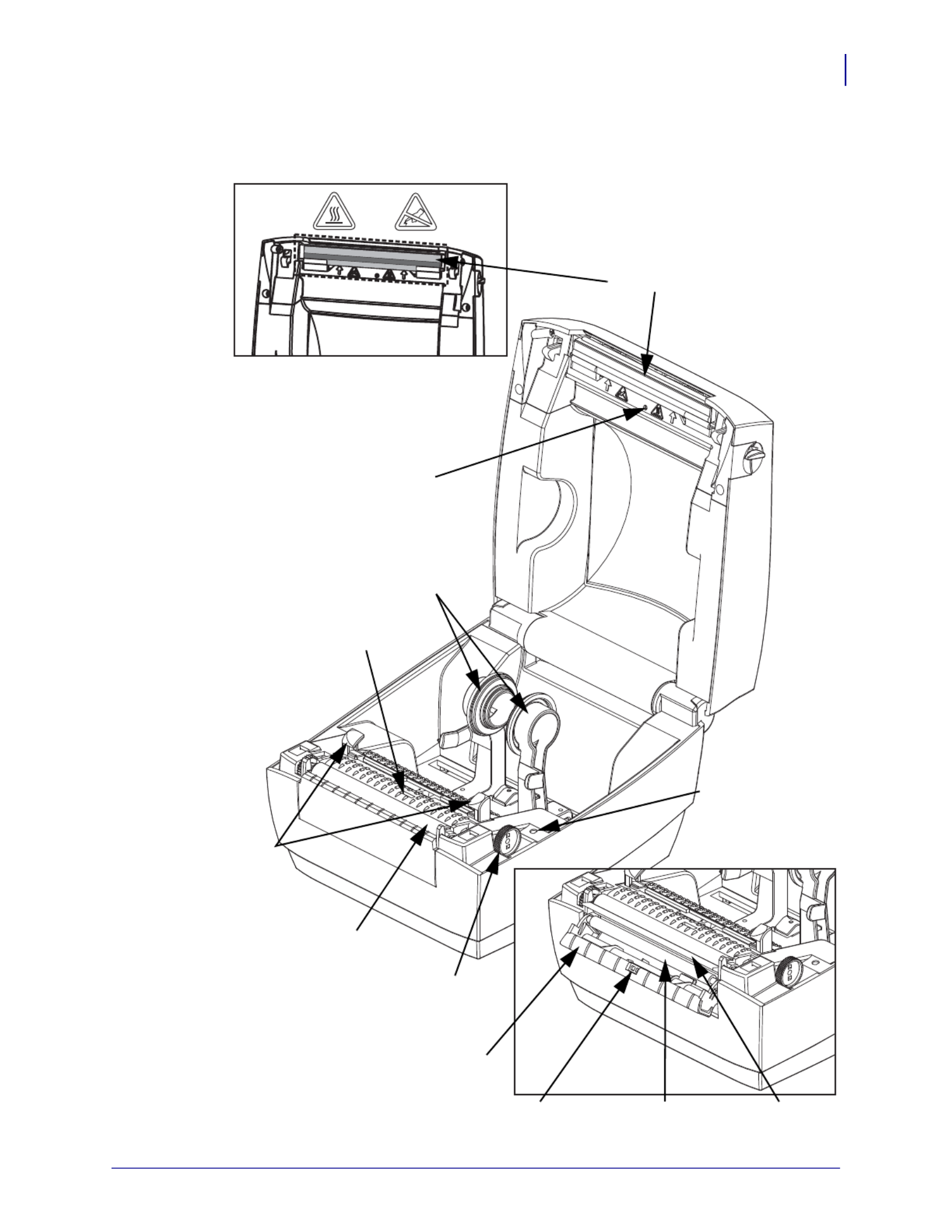

Printer Features

Label-Taken

Sensor

Peel Bar

Platen

Roller

Dispenser Option

BlackLine

Sensor

Gap

Sensor

Roll Holder and

Media Guides

Head-Up Sensor

(inside)

Pinch Roller

Dispenser Door

(open)

Printhead

Media

Guides

Media Guide

Adjustment

What’s in the Box?

P1052685-001 GC420d™ User Guide 5/23/2012

Operator Controls

Power Switch

Press up to turn ON or down to turn OFF the printer.

Feed Button

• Tap the Feed button once to force the printer to feed one blank label.

• Press the Feed button to take the printer out of a “pause” condition. The printer is put into

“pause” by either a programming command or an error condition. See What the Status

Light is Telling You on page 60 in the Troubleshooting chapter.

• Use the Feed button for printer setup and status (see Feed Button Modes on page 70 in the

Troubleshooting chapter).

Caution • The printer power should be turned off before connecting or disconnecting the

communications and power cables.

Power OFF Power ON

Power Switch

What’s in the Box?

5/23/2012 GC420d™ User Guide P1052685-001

Status Light

Located on the top case next to the feed button, the status light functions as a printer

operational indicator (see Status Light Descriptions on page 60).

Feed

Button

Status

Light

What’s in the Box?

P1052685-001 GC420d™ User Guide 5/23/2012

Closing the printer

1. Lower the top cover.

2. Press down until the cover snaps closed.

5/23/2012 GC420d™ User Guide P1052685-001

Getting Started

This section describes how to set up your printer for the first time and use the most common

operating procedures for loading media.

Contents

Attaching Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Loading Roll Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Printing a Test (Printer Configuration) Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Pre-install Windows® Printer Drivers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting your Printer to a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

After Your Printer is Connected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Attaching Power

P1052685-001 GC420d™ User Guide 5/23/2012

Attaching Power

1. Make sure the printer’s power switch is in the off position (down).

2. Insert the AC power cord into the power supply.

3. Plug the other end of the cord into an appropriate AC electrical outlet. Note: The active

power light will go on if power is on at the AC outlet.

4. Insert the power supply’s power connector into the printer’s power receptacle.

Important • Set up your printer so that you can handle the power cord easily if needed. To

make certain the printer cannot carry electrical current, you must separate the power cord

from the power supply receptacle or AC electrical outlet.

Caution • Never operate the printer and power supply in an area where they can get wet.

Serious personal injury could result!

Power

Connector

Power

Switch

Plug Varies

by Country

Active Power

Light

Power

Receptacle

Power

Cord

Printer

Power

Supply

IEC 60320-C5

Note • Ensure the appropriate power cord with a three (3) prong plug and an

IEC 60320-C5 connector are used at all times. These power cords must bear the

relevant certification mark of the country in which the product is being used.

Loading Roll Media

5/23/2012 GC420d™ User Guide P1052685-001

Loading Roll Media

When you load media, you must place the roll onto the media hangers.

You must use the correct media for the type of printing you require.

Preparing Media

Whether your roll media is inside or outside wound, you load it into the printer the same way.

• Remove the outside length of media. During shipment, handling, or storage, the roll may

become dirty or dusty. Removing the outside length of media avoids dragging adhesive or

dirty media between the printhead and platen.

Loading Roll Media

P1052685-001 GC420d™ User Guide 5/23/2012

Placing the Roll in the Media Compartment

1. Open the printer. Remember that you need to pull the release latch levers toward the front

of the printer.

2. Open the media guides by turning the media guide adjustment knob toward the rear of the

printer.

Loading Roll Media

5/23/2012 GC420d™ User Guide P1052685-001

3. Pull the media roll holders open with your free hand and place the media roll on the roll

holders and release. Orient the media roll so that its printing surface will face up as it

passes over the platen (drive) roller.

Loading Roll Media

P1052685-001 GC420d™ User Guide 5/23/2012

4. Pull the media so that it extends out of the front of the printer. Thread the media under the

media guides.Verify the roll turns freely. The roll must not sit in the bottom of the media

compartment. Verify that the media’s printing surface is facing up.

5. Close the media guides by turning the guide adjuster knob to the front. They should just

touch, but not restrict. the edges of the media.

6. Close the printer. Press down until the cover snaps closed.

Printing a Test (Printer Configuration) Label

5/23/2012 GC420d™ User Guide P1052685-001

Printing a Test (Printer Configuration) Label

Before you connect the printer to your computer, make sure that the printer is in proper

working order.

You can do this by printing a configuration status label.

1. Make sure the media is properly loaded and the top cover of the printer is closed. Then,

turn the printer power on if you have not already done so. If the printer initializes with the

status light blinking green (pause mode), press the Feed button once to set the printer in

Ready (to print) mode. See the Troubleshooting on page 59 if the printer’s status light

does not turn solid green (Ready).

2. Press the Feed button two to three times to allow the printer to calibrate the printer for the

installed media. The printer may feed several labels during this process.

3. When the status light is solid green, press and hold the Feed button until the status light

flashes once.

4. Release the Feed button. A configuration label will print.

If you cannot get this label to print, refer to Getting Started on page 9.

Pre-install Windows® Printer Drivers

P1052685-001 GC420d™ User Guide 5/23/2012

Pre-install Windows® Printer Drivers

Zebra is changing the way you install and use your printer with your Windows based PC

systems. We recommend that at minimum, the ZebraDesigner™ Windows® driver be pre-

installed to take advantage of the advancements in ease of use and simplicity of the Windows

operating systems since the release of Windows XP® SP2.

Zebra provides the Zebra Setup Utilities (ZSU); a suite of Zebra® printer drivers, utilities, and

communications and installation tools for use with most Windows PC operating systems.

Zebra Setup Utilities and Zebra Windows printer drivers are available on the user’s CD and the

Zebra web site (www.zebra.com) for latest versions.

ZebraDesigner™ Driver and Zebra Setup Utilities (includes the driver): Supports Windows

7®, Windows Vista®, Windows XP®, Windows® 2000®, Windows Server® 2008, and

Windows Server® 2003 operating systems. The driver supports 32 bit and 64 bit Windows

operating systems and is Microsoft Certified. Zebra Setup Utilities and the ZebraDesigner

driver support the following printer communication interfaces: USB, parallel, serial, Wired

and Wireless Ethernet and Bluetooth (using a Bluetooth virtual printer port).

Install the Zebra Setup Utilities before applying power to the printer connected to the PC

(running a Zebra driver supported Windows operating system). The Zebra Setup Utility will

prompt you to apply the printer power. Continue to follow the instructions to complete your

printer installation.

Plug’N’Play (PnP) Printer Detection and Windows® operating systems

More recent Windows operating systems automatically detect the printer when it is connected

via the USB interface. Depending on the hardware configuration and the Windows version,

your printer may be Plug-and-Play (PnP) detected when connecting to the USB, parallel, or

serial port interfaces. The printer drivers do not support serial port PnP installation at this

time.The printer’s PC interface configuration for the parallel port must support and have

bidirectional communications for PnP operations.

The operating system automatically starts a “Add new hardware’ wizard when connecting the

printer for the first time to the PC. If you have pre-loaded the driver suite with the Zebra Setup

Utility, then the printer driver will automatically install. Go to your Windows printer directory

and right-click and select ‘Properties’. Click on the ‘Print test page’ button to verify a

successful installation.

The Windows operating system will detect and re-link a previously installed printer if it is

reconnected to the USB interface or if printer power is turned on after the PC has finished its

restart of the operating system. Ignore the new device detected warnings and close the Task bar

prompts. Wait several seconds for the operating system to match the printer to the driver

software. The warnings will quit and the printer now should be ready to begin printing.

Connecting your Printer to a Computer

P1052685-001 GC420d™ User Guide 5/23/2012

Connecting your Printer to a Computer

The printer support a variety of interface options and configurations. These include: Universal

Serial Bus (USB) interface, RS232 Serial and Parallel (IEEE 1284.4).

• USB, Serial and Parallel

The Zebra Setup Utility is designed to assist you with installing these interfaces. The

cabling and unique parameters for each of these physical printer communication interfaces is

discussed in the following pages to assist you with making configuration setup choices prior to

and immediately following applying power. The Zebra Setup Utilities configuration wizards

will instruct you to turn the printer’s power on at the appropriate time to complete the

installation of your printer.

Interface Cable Requirements

Data cables must be of fully shielded construction and fitted with metal or metallized

connector shells. Shielded cables and connectors are required to prevent radiation and

reception of electrical noise.

To minimize electrical noise pickup in the cable:

• Keep data cables as short as possible (6 foot [1.83 m] recommended).

• Do not tightly bundle the data cables with power cords.

• Do not tie the data cables to power wire conduits.

Caution • Keep the power switch in the OFF position when attaching the interface cable.

The power cord must be inserted into the power supply and the power receptacle on the

back of the printer before connecting or disconnecting the communications cables.

Important • This printer complies with FCC “Rules and Regulations,” Part 15, for Class B

Equipment, using fully shielded data cables. Use of un-shielded cables may increase radiated

emissions above the Class B limits.

Connecting your Printer to a Computer

5/23/2012 GC420d™ User Guide P1052685-001

USB Interface Requirements

Universal Serial Bus (version 2.0 compliant) provides a fast interface that is compatible with

your existing PC hardware. USB’s “plug and play” design makes installation easy. Multiple

printers can share a single USB port/hub.

When using a USB cable (not supplied with your printer), verify that the cable or cable

packaging bears the “Certified USB™” mark (see below) to guarantee USB 2.0 compliance.

USB Cable

Connecting your Printer to a Computer

P1052685-001 GC420d™ User Guide 5/23/2012

Serial Communications

The GK888 has a DCE serial communication port for hardware compatibility with legacy 888

printers. The required cable must have a nine-pin “D” type (DB-9P) male connector on one

end which plugs into the mating (DB-9S) serial port located on the back of the printer. The

other end of this signal interface cable connects to a serial port on the host computer. The cable

is a Null-Modem (cross-over signal connections) cable. For pinout information, refer to

Appendix A.

The serial port communication settings between the printer and host (typically a PC) must

match for reliable communication. The Bits per second (or Baud rate) and Flow control are the

most common settings that get changed. The host (typically a Windows PC) needs to have the

data Flow control changed to match the printer’s default communication method: Hardware

and is noted by the Host Handshake setting DTR/Xon/Xoff. This combined hardware

(DTR) and software (Xon/Xoff) mode may need to change depending upon use with non-

Zebra application software or the serial cable variation in use.

Serial communications between the printer and the host computer can be set by:

• Autobaud synchronization

• ZPL programming ^SC command

• EPL programming Y command

• Resetting the printer to its default printer configuration.

Autobaud

Autobaud synchronization allows the printer to automatically match the communication

parameters of the host computer. To autobaud:

1. Press and hold the feed button until the green status LED flashes once, twice, and then

three times.

2. While the status LED flashes, send the ^XA^XZ command sequence to the printer.

3. When the printer and host are synchronized, the LED changes to solid green. (No labels

will print during autobaud synchronization.)

ZPL ^SC Command

Use the Set Communications (^SC) command to change the communications settings on the

printer.

1. With the host computer set at the same communications settings as the printer, send the

^SC command to change the printer to the desired settings.

2. Change the host computer settings to match the new printer settings.

Refer to the ZPL Programming Guide for more information about this command.

Connecting your Printer to a Computer

5/23/2012 GC420d™ User Guide P1052685-001

EPL Y Command

Use the serial port setup (Y) command to change the communications settings on the printer.

1. With the host computer set at the same communications settings as the printer, send the

Y command to change the printer to the desired settings. Note: the Y command does not

support setting the data flow control, use the Xon/Xoff setting.

2. Change the host computer settings to match the new printer settings.

Refer to the EPL Page Mode Programming Guide for more information about this command.

Resetting the Default Serial Port Parameters

Do the following to reset the communications parameters on the printer to the factory defaults

(serial communication settings are: 9600 8 NO baud, bit word length, parity, 1 stop bit, and

DTR/XON/XOFF data flow control).

1. Press and hold the feed button until the green status LED flashes once, waits a moment

and flashes twice, and then waits again before flashing three times (release

immediately).

2. While the status LED rapidly flashes amber and green, press the feed button. Serial

communications between the printer and the host computer can be set by the ZPL ^SC

command or the EPL Y command.

Note • Early models of Zebra ® printers running the EPL programming language had 9600

baud, NO

parity, 8 data bits, 1 stop bit and a HARDWARE and SOFTWARE (merged) data

control (essentially DTR/Xon/Xoff) as the default serial port settings. The Windows operating

system flow control setting was Hardware for most applications.

Serial Cable

Connecting your Printer to a Computer

P1052685-001 GC420d™ User Guide 5/23/2012

Parallel Port

The required cable must have a 25 pin “D” type (DB-25P) male connector (host) on one end

and a Centronics (printer) on the other end (IEEE 1284 A-B parallel interface specification).

Parallel Cable

After Your Printer is Connected

5/23/2012 GC420d™ User Guide P1052685-001

After Your Printer is Connected

Now that you have basic communication to your printer, you may want to test printer

communications and then install other printer related applications, drivers or utilities.

Testing Communications by Printing

Verifying the print system’s operation is a relatively simple process. For Windows operating

systems, the Zebra Setup Utility or the Windows ‘Printers and Faxes’ Control Panel to access

and print a test label. For non-Windows operation systems, copying a basic ASCII text file

with a single command (~WC) to the printer will print a configuration status label.

Test Printing with Zebra Setup Utility:

1. Open the Zebra Setup Utility.

2. Click on the newly installed printer’s icon to select the printer and activate the printer

configuration buttons below it in the window.

3. Click the ‘Open Printer Tools’ button.

4. In the ‘Print’ tab window, click on the ‘Print configuration label’ line and click on the

‘Send’ button. The printer should print a configuration status label.

Test Printing with Windows ‘Printer and Faxes’ menu:

1. Click on the Windows ‘Start’ menu button, to access the ‘Printers and Faxes’ menu or

‘Control Panel’ to access the ‘Printers and Faxes’ menu. Open the menu.

2. Select the newly installed printer’s icon to select the printer and right-click the mouse to

access the printer ‘Properties’ menu.

3. From the printer’s ‘General’ tab window, click on the ‘Print Test Page’ button. The printer

should print a Windows test print page.

Test Print with a Copied ZPL Command File for Non-Windows Operating Systems:

1. Create a text file with the following ASCII three characters: ~WC

2. Save the file as: TEST.ZPL (an arbitrary file name and extension name).

3. Copy the file to the printer. For DOS, a file sent to a printer connected to the system’s

parallel port would be as simple as:

COPY TEST.ZPL LPT1

Other interface connection types and operating systems will have different command

strings. See your operating system documentation for detailed instructions to copy to the

appropriate printer interface for this test.

After Your Printer is Connected

P1052685-001 GC420d™ User Guide 5/23/2012

Notes • ___________________________________________________________________

__________________________________________________________________________

5/23/2012 GC420d™ User Guide P1052685-001

Print Operations

This section provides media and print handling, font and language support, and the setup of

less common printer configurations.

Contents

Determining Printer Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Long Term Printer In-activity or Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Modes of Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Print Media Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Replacing Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Adjusting the Print Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Adjusting the Print Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Media Sensing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Printing on Fan-Fold Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Printing with Externally Mounted Roll Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Fonts and Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Stand Alone Printing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Sending Files to the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Print Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

EPL Line Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Determining Printer Configuration

P1052685-001 GC420d™ User Guide 5/23/2012

Determining Printer Configuration

The printer uses a ZPL printer configuration status label to report the printer’s configuration

status for both EPL and ZPL operations.The ZPL style label provides a more intuitive and

functionally descriptive naming conventions than the EPL style printer status label.

Operational status (darkness, speed, media type, etc.), installed printer options (network,

interface settings, cutter, etc.) and printer description information (serial number, model name,

firmware version, etc.) are all includes on the status label. See Printing a Test (Printer

Configuration) Label on page 15 to print this label. See Appendix: ZPL Configuration

on page 81 for details on printer configuration and the ZPL commands that control the printer

settings listed on the Printer Configuration Status Label.

To get an EPL style printer configuration status label, send the printer the EPL U command.

See the EPL programmer’s guide for more information on the various EPL U commands and

interpreting the settings displayed on these labels.

Long Term Printer In-activity or Storage

Overtime the printhead may stick to the platen (drive) roller. To prevent this, always store the

printer with a piece of media (a label or paper) between the printhead and platen roller. Do not

ship the printer with a roll of media installed or damage to the printer or media may result.

Thermal Printing

Caution • The printhead becomes hot while printing. To protect from damaging the

printhead and risk of personal injury, avoid touching the printhead. Only use the cleaning

pen to perform printhead maintenance.

Caution • The discharge of electrostatic energy that accumulates on the surface of the

human body or other surfaces can damage or destroy the printhead or electronic

components used in this device. You must observe static-safe procedures when working

with the printhead or the electronic components under the top cover.

Modes of Printing

5/23/2012 GC420d™ User Guide P1052685-001

Modes of Printing

You can operate this printer in many different modes and media configurations:

• Direct thermal printing (which uses heat sensitive media to print).

• Standard Tear-Off mode allows you to tear off each label (or batch print a strip of labels)

after it is printed.

• Label Dispense Mode: If an optional dispenser is installed, the backing material can be

peeled away from the label as it is printed. After this label is removed, the next one is

printed.

• Stand-alone: The printer can print without being connected to a computer using the

printer’s auto running label form feature (programming based) or by using a data input

device connected to the printer’s serial port. This mode accommodates data input devices,

such as scanners, weigh scales, Zebra® KDU Plus™ or Zebra® KDU (Keyboard Display

Unit), etc.

Print Media Types

Your printer can use various types of media:

• Standard media—Most standard (non-continuous) media uses an adhesive backing that

sticks individual labels or a continuous length of labels to a liner.

• Continuous roll media—Most continuous roll media is direct thermal media (similar to

FAX paper) and is used for receipt or ticket style printing.

• Tag stock—Tags are usually made from a heavy paper (up to 0.0075in./0.19mm thick).

Tag stock does not have adhesive or a liner, and it is typically perforated between tags.

For more information on basic media types, see Table 1.

The printer typically uses roll media, but you can use fan-fold or other continuous media too.

Use the correct media for the type of printing you require. You must use direct thermal media.

Important • Zebra strongly recommends the use of Zebra-brand supplies for continuous

high-quality printing. A wide range of paper, polypropylene, polyester, and vinyl stock has

been specifically engineered to enhance the printing capabilities of the printer and to prevent

premature printhead wear. To purchase supplies, go to http://www.zebra.com/howtobuy.

Print Media Types

P1052685-001 GC420d™ User Guide 5/23/2012

Table 1 • Types of Media Roll and Fanfold Media

Media Type How It Looks Description

Non-Continuous

Roll Media

Roll media is wound on a core that can be 0.5 to 1.5 in. (12.7 to

38.1 mm) in diameter. Labels have adhesive backing that sticks

them to a liner, and they are separated by gaps, holes, notches, or

black marks. Tags are separated by perforations. Individual labels

are separated by one or more of the following methods:

• Web media separates labels by gaps, holes, or notches.

• Black mark media uses pre-printed black marks on the back

side of the media to indicate label separations.

• Perforated media has perforations that allow the labels or tags

to be separated from each other easily. The media may also

have black marks or other separations between labels or tags.

Non-Continuous

Fanfold Media

Fan-Fold media is folded in a zigzag pattern. Fanfold media can

have the same label separations as non-continuous roll media.

The separations would fall on or near the folds.

Continuous

Roll Media

Roll media is wound on a core that can be 0.5 to 1.5 in. (12.7 to

38.1 mm) in diameter. Continuous roll media does not have gaps,

holes, notches, or black marks to indicate label separations. This

allows the image to be printed anywhere on the label. A cutter

can be used to cut apart individual labels. With continuous media,

use the transmissive (gap) sensor so the printer can detect when

the media runs out.

Replacing Supplies

5/23/2012 GC420d™ User Guide P1052685-001

Determining Thermal Media Types

Thermal transfer media requires ribbon for printing while direct thermal media does not.

To determine if ribbon must be used with a particular media, perform a media scratch test.

To perform a media scratch test, complete these steps:

1. Scratch the print surface of the media with a finger nail or pen cap. Press firmly and

quickly while dragging it across the media surface. Direct thermal media is chemically

treated to print (expose) when heat is applied. This test method uses friction heat to expose

the media.

2. Did a black mark appear on the media?

Replacing Supplies

If labels run out while printing, leave the printer power on while reloading (data loss results if

you turn off the printer). After you re-load media, press the Feed button to restart.

Always use high quality, approved labels and tags. If adhesive backed labels are used that

don’t lay flat on the backing liner, the exposed edges may stick to the label guides and rollers

inside the printer, causing the label to peel off from the liner and jam the printer.

Adjusting the Print Width

Print width must be set when:

• You are using the printer for the first time.

• There is a change in media width.

Print width may be set by:

• The Windows printer driver or application software such as ZebraDesigner™.

• The five-flash sequence in Feed Button Modes on page 70.

• Controlling printer operations with ZPL programming; refer to the Print Width (^PW)

command (consult your ZPL Programming Guide).

• Controlling printer operations with EPL Page Mode programming, refer to the Set Label

Width (q) command (consult your EPL Programmer’s Guide).

If a black mark... Then the media is...

Does not appear on the media Thermal transfer. A ribbon is required. Your printer

does not support this media.

Appears on the media Direct thermal. No ribbon is required.

Printing on Fan-Fold Media

P1052685-001 GC420d™ User Guide 5/23/2012

Printing on Fan-Fold Media

Printing on fan-fold media requires you to adjust the media roll holders’ stop position.

1. Open the top cover.

2. With a sample of your media, adjust the media roll holders to the width of the media. The

hangers should just touch, but not restrict, the edges of the media.Tighten the screw using

a small Phillips driver #1.

Printing on Fan-Fold Media

5/23/2012 GC420d™ User Guide P1052685-001

3. With a sample of your media, adjust the guides to the width of the media.The guides

should just touch, but not restrict, the edges of the media.

4. Run the media between the media guide and roll holders.

5. Close the top cover.

After printing or feeding several labels: If the media does not track down the center (moves

from side to side) or the sides of the media (liner, tag, paper, etc.) are frayed or damaged when

exiting the printer, then the media guides or roll holders may need further adjustment.

Fonts and Your Printer

5/23/2012 GC420d™ User Guide P1052685-001

Fonts and Your Printer

The GC420 printer supports your language and font requirements with a variety of internal

fonts, on-board font scaling, international font sets and character code page support, Unicode

support, and font download.

The GC420 printer’s font capabilities are programming language dependent. The EPL™

programming language provides for basic bitmapped fonts and international code pages. The

ZPL™ programming language provides advanced font mapping and scaling technology to

support outline fonts (TrueType™ or OpenType™) and Unicode character mapping as well as

basic bitmapped fonts and character code pages. ZPL and EPL programming guides describe

and document the fonts, code pages, character access, listing fonts, and limitations for their

respective printer programming languages. See the printer programming guides for

information on Text, Fonts and Character support.

The GC420 printer includes utilities and application software that support font download into

the printer for both printer programming languages.

Localizing the Printer with Code Pages

The GC420 printer supports two sets of language, region and character sets for permanent

fonts loaded into the printer for each printer programming language, ZPL and EPL. The printer

supports localization with common international character map code pages.

• For ZPL code page support, including Unicode, see the ^CI command in the ZPL

programmer’s guide.

• For EPL code page support, see the I command in the EPL programmer’s guide.

Produkt Specifikationer

Mærke:	Zebra
Kategori:	Etiketprinter
Model:	CG420d
Bredde:	201 mm
Dybde:	208 mm
Højde:	170 mm
Vægt:	1400 g
Produktfarve:	Hvid
Wi-Fi:	Ingen
Opbevaringstemperatur (T-T):	-40 - 60 °C
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Relativ luftfugtighed ved opbevaring (H-H):	5 - 95 %
Ethernet LAN:	Ingen
Driftstemperatur (T-T):	40 - 105 °F
Udskrivningsteknologi:	Direkte termisk/termisk overførsel
Maksimal opløsning:	203 x 203 dpi
Intern hukommelse:	8 MB
Udgangsspænding for vekselstrømsadapter:	20 V
Certificering:	CE, FCC
Harmoniseret systemkode (HS):	84433210
Effektkrav:	AC 100 - 240 V, 50 - 60 Hz
Sidebeskrivelsessprog:	EPL2,ZPL,ZPL II
Flashhukommelse:	8 MB
Vekselstrømsadapterens udgangsstrøm:	2.5 A
Indbygget processer:	32 bit RISC
Understøttet papirbredde:	104 mm
Udskrivningshastighed:	102 mm/sek.
RS-232-porte:	1
Maksimal udskrivningsbredde:	104 mm
Maksimal printstørrelse:	104 x 991 mm
Maksimal rullediameter:	127 mm
Medietykkelse:	0.08 - 0.18 mm
Indbyggede stregkoder:	CODABAR (NW-7),Code 128 (A/B/C),Code 39,Code 93,EAN128,EAN13,EAN8,Industrial 2/5,Interleaved 2/5,POSTNET,UPC-A,UPC-E
RS-232 grænseflade:	Ja
Båndbredde:	110 mm
Antal parallelle porte:	1
Båndlængde:	74 m
Antal USB 1.1-porte:	1
Maksimal medielængde:	990 mm
Medietykkelse (efter britisk standard):	0.003 - 0.007 "
Maksimal medielængde (efter britisk standard):	39 "
Supported paper width:	4.09 "
