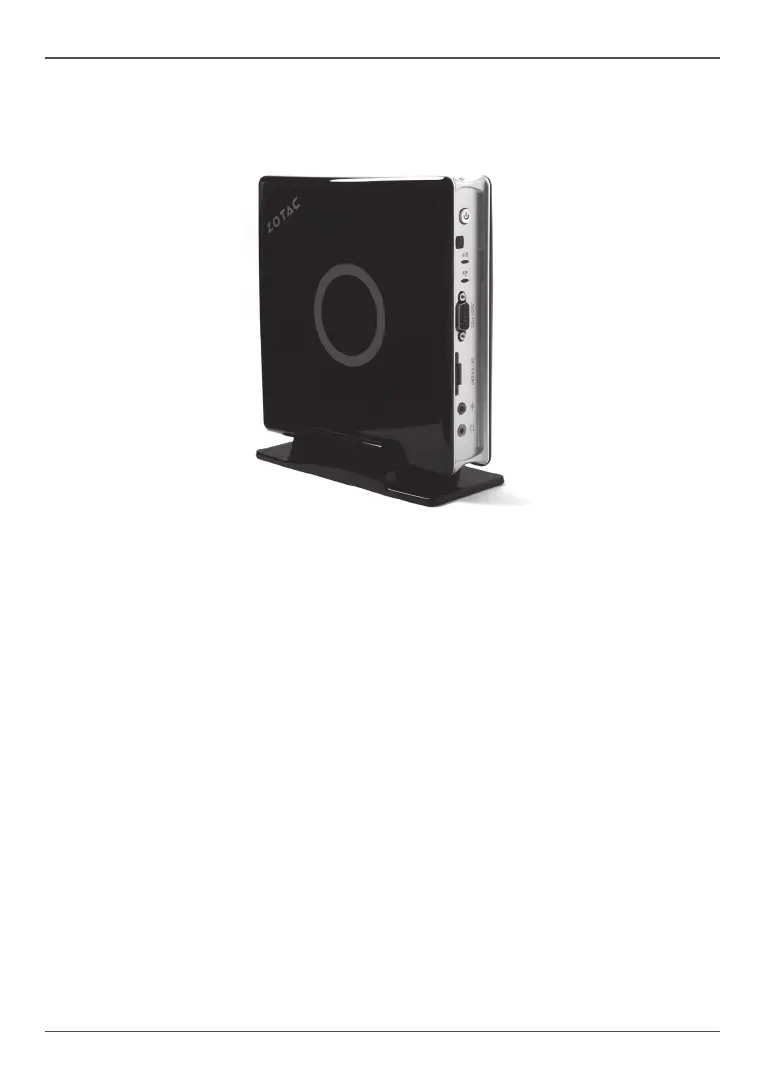

ZOTAC ZBOX
ZOTAC ZBOX
User’s Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language in any form or by any means,except documenta-
tion kept by the purchaser for backup purposes, without the express written
permission of ZOTAC.
Products and corporate names mentioned in this manual may not be reg-
istered trademarks or copyrights of their respective companies, and are
used for identication purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are cor-
rect and up to date. However, the manufacturer makes no guarantee regard-
ing the accuracy of its contents, and reserves the right to make changes
without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
2
ZOTAC ZBOX
Table of Contents
Product Specications -------------------------------------------------------------------------- 3
Safety information -------------------------------------------------------------------------------- 4
Setting up your system 4 -----------------------------------------------------------------------
Care during use 4 --------------------------------------------------------------------------------
Welcome --------------------------------------------------------------------------------------------- 5
Package contents 5 ------------------------------------------------------------------------------
Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6
Front view 6 ----------------------------------------------------------------------------------------
Rear view----------------------------------------------------------------------------------------- 7
How to disable the ring LED indicator ----------------------------------------------------- 8
Installing Hardware inside ZOTAC ZBOX ------------------------------------------------- 9
Installing a memory module 9 -----------------------------------------------------------------
Removing the memory module 10 -------------------------------------------------------------
Installing a hard disk -------------------------------------------------------------------------- 11
Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 13
Positioning your ZOTAC ZBOX --------------------------------------------------------------- 15
Installing the stand 15 -----------------------------------------------------------------------------
Installing your ZOTAC ZBOX to a monitor 15 -----------------------------------------------
Installing drivers and software --------------------------------------------------------------- 16
Installing an operating system 16 --------------------------------------------------------------
Installing system drivers 16 ----------------------------------------------------------------------
Using your ZOTAC ZBOX ----------------------------------------------------------------------- 17
Conguring wireless connection ----------------------------------------------------------- 17
Conguring wired connection --------------------------------------------------------------- 17
Using a static IP 17 ----------------------------------------------------------------------------
Using a dynamic IP (PPPoE connection) 18 --------------------------------------------
Conguring audio output via an HDMI /DP device ------------------------------------ 18
SATA RAID User Manual ------------------------------------------------------------------------ 19
19Creating a RAID set under UEFI Mode (Default) --------------------------------------
23Deleting a RAID set under UEFI Mode ---------------------------------------------------
Legacy OS Mode ------------------------------------------------------------------------------ 25
Entering the RAID BIOS utility 26 ---------------------------------------------------------
Creating a RAID set 26 -----------------------------------------------------------------------
Deleting a RAID set 27 -----------------------------------------------------------------------
4
ZOTAC ZBOX
Safety information
Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for infor-
mation technology equipment. However, to ensure your safety, it is important that you read
the following safety instructions.
Setting up your system
Read and follow all instructions in the documentation before you operate your system.
Do not use this product near water or a heat source such as a radiator.
Set up the system on a stable surface with the provided stand. Never use the system
alone without the stand.
Openings on the chassis are for ventilation. Do not block or cover these openings.
Make sure you leave plenty of space around the system for ventilation. Never insert
objects of any kind into the ventilation openings.
Use this product in environments with ambient temperatures between 0℃ ℃ and 35 .
If you use an extension cord, please use the UL listed cord and make sure that
the total ampere rating of the devices plugged into the extension cord does not
exceed its ampere rating.
Care during use
Do not walk on the power cord or allow anything to rest on it.
Do not spill water or any other liquids on your system.
When the system is turned off, a small amount of electrical current still ows. Always
unplug all power, modem, and network cables from the power outlets before cleaning
the system.
If you encounter the following technical problems with the product, unplug the power
cord and contact a qualied service technician or your retailer.
¾The power cord or plug is damaged.
¾Liquid has been spilled into the system.
¾The system does not function properly even if you follow the operating instructions.
¾The system was dropped or the cabinet is damaged.
¾The system performance changes.
5
ZOTAC ZBOX
Welcome
Congratulations on your purchase of the ZOTAC ZBOX. The following illustration displays
the package contents of your new ZOTAC ZBOX. If any of the below items is damaged or
missed, contact your retailer.
Package contents
• 1 x ZOTAC ZBOX
• 1 x Stand
• 1 x VESA mount
• 1 x AC Adapter
• 1 x Power Cord
• 2 x Antennas
• 1 x Driver DVD
• 1 x User Manual & Warranty Card
• 1 x Quick Start Guide
6
ZOTAC ZBOX
Getting to know your ZOTAC ZBOX
Front view
Refer to the diagram below to identify the components on this side of the system
1. Headphone/Audio Out jack
The stereo headphone jack (3.5mm) is used to connect the system’s audio out
signal to amplied speakers or headphones.
2. Microphone jack
The microphone jack is designed to connect the microphone used for video confer-
encing, voice narrations or simple audio recordings.
3. Combo USB 3.0 / Memory card slot
The combo USB 3.0 / memory card slot is compatible with USB 3.0 devices and
SD/SDHC/SDXC cards used in devices like digital cameras, MP3 players, mobile
phones and PDAs.
4. COM port
Use the COM port to connect serial devices such as mouse of fax/modems.
5. WiFi LED
The WiFi LED blinks when data is being transfered over WiFi.
6. Hard disk LED
The hard disk LED blinks when data is being written into or read from the hard disk
drive.
7. IR receiver
The integrated IR receiver is used to receive signals from the IR remote control.
8. Power switch
The power switch allows powering ON and OFF the system.
1 2 3 4 5 6 7 8
7
ZOTAC ZBOX
Rear view
Refer to the diagram below to identify the components on this side of the system.
1. WiFi antenna connector
The WiFi antenna connector supports WiFi antenna module.
2. LAN ports
The eight-pin RJ-45 LAN ports support standard Ethernet cables for connection to
a local network.
3. USB 3.0 port
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards
compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for
maximum performance with USB 3.0 compatible devices.
4. DisplayPort
DisplayPort supports both external (box-to-box) and internal (laptop LCD panel)
display connections.
5. HDMI port
The HDMI (High Denition Multimedia Interface) port supports a UHD device such
as an LCD TV or monitor to allow viewing on a larger external display.
6. Bluetooth antenna connector
The bluetooth antenna connector supports bluetooth antenna module.
7. Power input (DC19V)
The supplied power adapter converts AC power to DC power for use with this jack.
Power supplied through this jack supplies power to the PC. To prevent damage to
the PC, always use the supplied power adapter.
The power adapter may become warm to hot when in use. Do not cover the
adapter and keep it away from your body.
1 3 4 5 6 72
8
ZOTAC ZBOX
How to disable the ring LED indicator
1. Turn on the ZBOX mini-PC and press <Delete> to enter the BIOS SETUP
UTILITY.
2. Use the arrow keys to navigate to the menu and select Power Logo
Indicator.
3. Press <Enter> and select Turn off.
4. Press F10 to save the conguration and exit.
9
ZOTAC ZBOX
Installing Hardware inside ZOTAC ZBOX
Before installing hardware, please follow the instructions below to remove the cover
of your ZOTAC ZBOX.
1. Unscrew.
2. Gently remove the cover as the image below.
Installing a memory module
1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module
into the slot at a 45 degree angle.
Note:
1. Users please note that the SO-DIMM slots are under the HDD bracket.
2. When installing two SO-DIMM memory modules, please insert a module into the lower slot rst.
10
ZOTAC ZBOX
2. Gently press down on the memory module until it locks into place by the arms
of the memory slot.
Note: This ZOTAC ZBOX accomodates two DDR3 SO-DIMM memory modules. You must install at least
one module in one of the two slots.
Removing the memory module
1. Locate the SO-DIMM memory slot and gently press the two arms securing the
memory module outwards, as shown in the image below, to release the
memory module.
2. Remove the memory module from the slot at a 45-degree angle.
11
ZOTAC ZBOX
Installing a hard disk
1. Locate the 2.5-inch SATA hard disk and the hard disk bracket.
2. Install the hard disk to the hard disk bracket.
12
ZOTAC ZBOX
3. Insert the hard disk into the slot at a 45 degree angle and gently slide into the
connector.
4. Reinstall the thumb screw.
5. If you need, install the second hard disk as the above steps.
13
ZOTAC ZBOX
Setting up your ZOTAC ZBOX
You need to connect peripherals before using your ZOTAC ZBOX.
1. Connecting a WiFi antenna module
Connect a WiFi antenna module to the WiFi antenna connector.
2. Connecting to a network device
Connect one end of a network cable to the LAN port on the system rear panel and
the other End to a hub or switch.
3. Connecting to USB 3.0 devices
Connect USB 3.0 devices such as external hard drives, SSDs and ash drives to
the USB 3.0 port on the system rear panel.
4. Connecting a DisplayPort display
Connect the DisplayPort connector to the DP port.
1
34
5
6
7
2
14
ZOTAC ZBOX
5. Connecting to an HDMI display
Connect one end of an HDMI cable to the HDMI port on the system rear panel and
the other end to a HDMI-compatible display such as an HDTV or monitor.
6 Connecting a Bluetooth antenna module
Connect a bluetooth antenna module to the bluetooth antenna connector.
7. Turning on the system
Connect the supplied AC adapter to the DC IN jack on the system rear panel and
then press the power switch on the front panel to turn on the system.
When your ZOTAC ZBOX is not in use, unplug the power adapter or switch off the
AC outlet to save on power consumption.
15
ZOTAC ZBOX
Positioning your ZOTAC ZBOX
Do not position the ZOTAC ZBOX where the ventilation holes are covered. To
guarantee proper use, leave 4 inches (10 cm) spacing in front of the ventilation
holes.
ZOTAC mini-PC system provide ample connectivities in tiny space, please choose
connectors and cables in appropriate size to avoid interference.
Installing your ZOTAC ZBOX to a monitor
You can also install your ZOTAC ZBOX to the back of a monitor. To do so:
1. Secure the VESA mount to your monitor with four screws (HNM/M4x8).
2. Place your ZOTAC ZBOX on the VESA mount noting the correct alignment and
then secure the PC to the VESA mount with a coin.
To fasten the VESA mount, your monitor must comply with VESA75 Or VESA100
standard.
Mechanical Loading Stability - Mounting of the equipment on the backside of the
monitor should be lay this equipment on a reliable surface when install. A drop or
fall could cause injury.
If the total weight of your monitor and ZOTAC ZBOX is over 7kg, the system may
be unstable.
Installing the stand
Erect your ZOTAC ZBOX with the supplied stand. To do so :
1. Locate the screw hole on the bottom of the ZOTAC ZBOX.
2. Align the stand screw to the PC screw hole and then secure the Stand to the PC
with a coin.
Do not place your ZOTAC ZBOX on the desktop without the stand.
16
ZOTAC ZBOX
Installing drivers and software
Installing an operating system
The ZOTAC ZBOX does not ship with an operating system preinstalled. The user
must install the operating system before the ZOTAC ZBOX can be used. The
following operating systems are supported:
• Windows 7
• Windows 8
• Windows 8.1
Follow the instructions below to install an operating system:
1. Attach external DVD drive via USB 3.0
2. Insert disk for operating system (Windows or Linux).
3. Wait for the ZOTAC ZBOX to boot from the disk.
4. Follow the onscreen directions to install the operating system.
5. Install system drivers to gain full functionality of the ZOTAC ZBOX hardware and
features.
Installing system drivers
Before you can use the full features of the ZOTAC ZBOX, the system drivers must
be installed. The following types of operating systems are supported by the ZOTAC
ZBOX driver DVD:
• Windows 7
• Windows 8
• Windows 8.1
Follow the instructions below to install the system drivers:
1. Insert the ZOTAC ZBOX driver DVD. If autorun is enabled, the driver installation
main menu will show up automatically. If autorun is disabled, you may click the
le Launch.EXE to bring up the driver installation main menu.
2. The following drivers are available on the DVD:
• Intel Chipset Driver
• HDA Sound Driver
• Intel Graphics Driver
• Ethernet PCI-E Driver
• USB3.0 Controller Driver
• Intel Management Engine
• Wireless Network Driver
• CIR Driver
• Bluetooth Driver
• MassStorage Driver
• USB Charger (optional)
17
ZOTAC ZBOX
Note: If you want to use USB charger for iPhone/iPad, please install the driver
at (X: your driver disk letter).X:\Utility\Software\Usb Charger\setup.exe
Each driver must be installed individually to ensure proper operation of the
ZOTAC ZBOX.
3. Select the driver you want to install. The driver installer should launch.
4. Follow the onscreen instructions to install the drivers.
5. Restart the system.
Using your ZOTAC ZBOX
Conguring wireless connection
Please follow the instructions below to connect to a wireless network:
1. Double-click the wireless network icon (pic) in the notication
area.
2. Select the wireless network you want to connect to from the
list and click Connect.
3. After connection is established, you will see “Connected.”
Note 1: For security concerns, Do NOT connect to an unsecured network,
otherwise, the transmitted information without encryption might be visible to
others.
Note 2: Enter the network security key if necessary.
Conguring wired connection
Using a static IP
1. Right-click the network icon in the
notication area and select “Open
Network Connections”.
2. Right-click “Local Area Connection” and
select “Properties”.
3. Highlight “Internet Protocol (TCP/IP)”
and click “Properties”.
4. Select “Use the following IP address”.
5. Enter your IP address, subnet mask and
Default gateway.
6. Enter the preferred DNS server address if necessary.
7. After entering all of the related values, click “OK” to nish the conguration.
18
ZOTAC ZBOX
Using a dynamic IP (PPPoE connection)
1. Repeat Step 1-3 in the previous section.
2. Select “Obtain an IP address automatically” and click “OK”.
3. Click “Create a new connection” to start the NEW Connection Wizard.
4. Click “Next”.
5. Select “Connect to the Internet” and click “Next”.
6. Select “Set up my
connection manually”.
7. Select your connection
type and click “Next”.
8. Enter your ISP Name and
click “Next”.
9. Enter your User name and
Password. Click “Next”.
10. Click “Finish” to nish the
conguration.
11. Enter your user name and password. Click
“Connect” to connect to the internet.
Note: Contact your internet Service Provider (ISP) if you have problems connecting to the network.
Conguring audio output via an HDMI /DP device
Follow the steps below to enable audio output via HDMI /DP when connecting the
ZOTAC ZBOX to a TV or receiver via HDMI /DP.
1. Access the Sound settings via the system
Control Panel.
2. Under Playback devices, click the display
device that corresponds with your HDMI
/DP audio compatible display.
3. Click the “Set Default” button in the lower
right hand corner.
4. Click “OK” to exit the setup.
Produkt Specifikationer
| Mærke: | Zotac |
| Kategori: | Skrivebord |
| Model: | ZBOX RI323 |
Har du brug for hjælp?
Hvis du har brug for hjælp til Zotac ZBOX RI323 stil et spørgsmål nedenfor, og andre brugere vil svare dig
Skrivebord Zotac Manualer
19 November 2024
19 November 2024
11 November 2024
5 November 2024
5 November 2024
5 November 2024
21 August 2024
21 August 2024
21 August 2024
21 August 2024
Skrivebord Manualer
- Skrivebord Ikea
- Skrivebord Acer
- Skrivebord Sony
- Skrivebord Samsung
- Skrivebord Panasonic
- Skrivebord Apple
- Skrivebord Sharp
- Skrivebord HP
- Skrivebord Asus
- Skrivebord Gigabyte
- Skrivebord Toshiba
- Skrivebord InFocus
- Skrivebord Lenovo
- Skrivebord Asrock
- Skrivebord Butler
- Skrivebord Optoma
- Skrivebord Zaor
- Skrivebord JYSK
- Skrivebord Parisot
- Skrivebord United Office
- Skrivebord Razer
- Skrivebord Medion
- Skrivebord Haier
- Skrivebord Seagate
- Skrivebord Vtech
- Skrivebord Tripp Lite
- Skrivebord Packard Bell
- Skrivebord Microsoft
- Skrivebord Fellowes
- Skrivebord Digitus
- Skrivebord Genesis
- Skrivebord Techly
- Skrivebord Viewsonic
- Skrivebord Dell
- Skrivebord ELO
- Skrivebord Fujitsu
- Skrivebord Cooler Master
- Skrivebord MSI
- Skrivebord NEC
- Skrivebord Bush
- Skrivebord TrekStor
- Skrivebord ECS
- Skrivebord SPC
- Skrivebord ZTE
- Skrivebord Kobo
- Skrivebord Kramer
- Skrivebord Onyx
- Skrivebord Vorago
- Skrivebord EMachines
- Skrivebord Axis
- Skrivebord Faytech
- Skrivebord Intel
- Skrivebord Sharkoon
- Skrivebord Supermicro
- Skrivebord BDI
- Skrivebord Kogan
- Skrivebord LC-Power
- Skrivebord Planar
- Skrivebord Overdrive
- Skrivebord Moxa
- Skrivebord Alienware
- Skrivebord Aeris
- Skrivebord Maxdata
- Skrivebord Targa
- Skrivebord Peaq
- Skrivebord Shuttle
- Skrivebord Promethean
- Skrivebord Foxconn
- Skrivebord Ibm
- Skrivebord Advantech
- Skrivebord Pelco
- Skrivebord Xtech
- Skrivebord MP
- Skrivebord Elitegroup
- Skrivebord X Rocker
- Skrivebord Smart Things
- Skrivebord System76
- Skrivebord Zoostorm
- Skrivebord Bestar
- Skrivebord Cybernet
- Skrivebord Altra
- Skrivebord Dell Wyse
- Skrivebord AOpen
- Skrivebord ProDVX
- Skrivebord NComputing
- Skrivebord MvixUSA
- Skrivebord AIS
- Skrivebord Wyse
- Skrivebord Mount-It!
Nyeste Skrivebord Manualer
4 Marts 2025
18 Februar 2025
15 Februar 2025
14 Februar 2025
14 Februar 2025
14 Februar 2025
14 Februar 2025
10 Januar 2025
6 Januar 2025
6 Januar 2025
