AX MASTER OPTIONS VIA THE 6 PIN CONNECTOR
Brown V+ To Coax Core
Red V- To Coax Braid
Orange
Yellow
Green
Blue
+
-
PS-2420UL
RY-ES
White
Blue
Red
Black

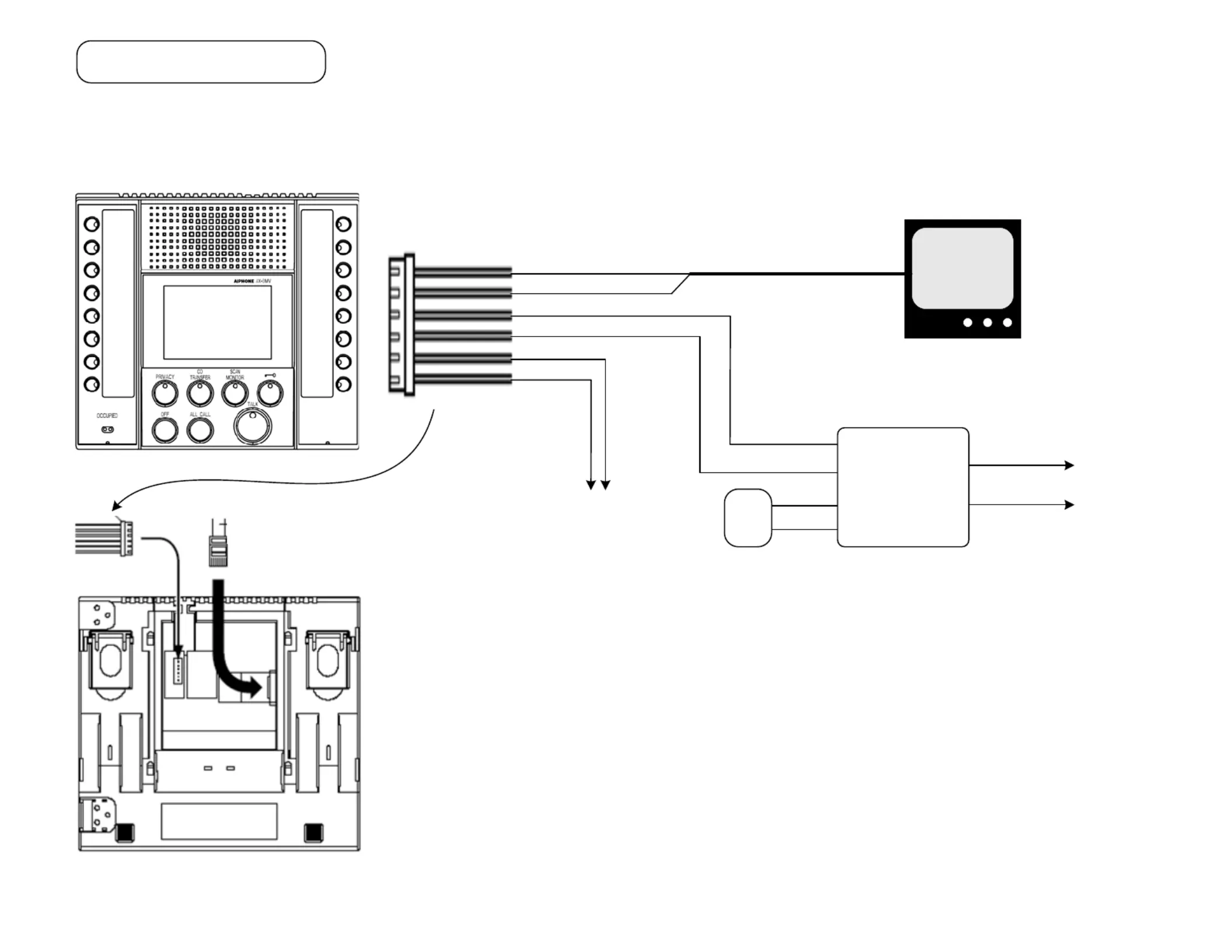

APPLICATION DIAGRAM
To Bell
& Power
Orange
Orange
1010JD-AX 6-pin options
AX-8M/AX-8MV Standard 9"
Monitor
5' Max
Normally Open
Dry Input
1. Connect Brown (V+) and Red (V-) to coax input of standard
monitor. Maximum wire run is 5'. Output is 1Vp-p 75ohm.
2. Connect Orange and Yellow wires to an IER-2 for chime
extension or to the White and Blue wires of the RY-ES for
external device signaling.
3. Connect the Green and Blue wires to any normally open dry
contact device. To be used in place of the talk button on
master. Contact device should be no more than 50' from the
master.
