20" I-BEAM MOUNT FAN
20" (50.8 cm) MODEL 9520
OPERATING INSTRUCTIONS & PARTS MANUAL
DESCRIPTION
The Air King® 20" (50.8 cm) I-Beam mount fan features 3-speed pull cord
operation and a 3-paddle fan blade. This fan has a permanently lubricated
motor with a 9 ft. (2.74 m) 18/3 cord set and is constructed of sturdy,
powder coated steel.
SPECIFICATIONS
Motor ...................................... 120 V, 50/60 Hz
Blade diameter ........................ 20" (50.8 cm) Model 9520
Speeds .................................... 3
Control ..................................... Pull Cord
Air ow distribution .................. 360°
Approvals................................. UL/ETL Listed. Close mesh fan guard
meets OSHA requirements.....................
GENERAL SAFETY INFORMATION
1. Make certain that the power source conforms to the electrical
require
ments of the fan.
2. The power cord is equipped with a three-prong grounded plug that
must be inserted into a matching receptacle. Under no circumstances
should the grounding prong be cut off the plug. Where a two-prong wall
receptacle is encountered, it must be replaced with a properly grounded
three-prong receptacle installed in accordance with the National Electrical
Code (NEC) and all applicable local codes and ordinances. This work
must be done only by a qualied electrician, using copper wire only.
WARNING: USE OF A THREE-PRONG TO TWO-PRONG ADAPTER IS
NOT RECOMMENDED. IMPROPER CONNECTION MAY CREATE THE
RISK OF ELECTRICAL SHOCK. USE OF SUCH ADAPTERS IS NOT
PERMITTED IN CANADA.
3. Where possible, avoid the use of extension cords. If they must be used,
minimize the risk of overheating by ensuring that they are UL listed and
of the proper gauge and length. Never use a single extension cord to
operate more than one fan.
4. Do not insert ngers or foreign objects into the fan. Do not block or
tamper with the fan in any manner while it is in operation. Do not touch
the fan while in operation or just after it has been turned off, as some
parts may be hot enough to cause injury.
5. Unplug power cord before installing or servicing the fan.
WARNING: DO NOT DEPEND UPON THE ON-OFF SWITCH AS THE
SOLE MEANS OF DISCONNECTING POWER WHEN INSTALLING OR
SERVICING THE FAN. ALWAYS UNPLUG THE POWER CORD.
6. This fan is intended for general use ONLY. It must NOT be used in
potentially dangerous locations such as ammable, explosive, chemical
laden or wet atmospheres.
7. DO NOT mount fan near windows or bay doors. Rain may create an
electrical hazard.
8. Completely reassemble fan, according to instructions before
reconnecting to power supply.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE
THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICE.
WARNING: THIS PLUG IS A SAFETY FEATURE, TO REDUCE THE RISK OF
FIRE, ELECTRIC SHOCK AND PERSONAL INJURY. DO NOT REMOVE, REPLACE,
REPAIR OR TAMPER WITH THE ORIGINALLY SUPPLIED PLUG. IF THE FAN DOES
NOT FUNCTION PROPERLY, IT MAY BE DUE TO THE SAFETY DEVICE INCOR-
PORATED IN THIS PLUG. RETURN TO AN AUTHORIZED SERVICE CENTER
OR CALL 800-233-0268, MONDAY - FRIDAY, BETWEEN 8:00 A.M. AND 5:00
P.M. EST. IF THE PLUG WARNING LABEL IS MISSING OR DAMAGED, CALL
THE TOLL FREE NUMBER FOR A REPLACEMENT LABEL.
MODEL
9520
SPEED
HIGH MED LOW
CFM 7510 5010 3735
M
3
/s 3.54 2.36 1.76
RPM 1560 1041 776
Amps 1.78 1.46 1.02
Watts 207 167 115
dB A 62 55 48
WARNING: BECAUSE OF SIZE AND WEIGHT OF THIS FAN, MAKE
SURE ALL PARTS ARE COMPLETELY ASSEMBLED ACCORDING TO
INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN FAN COMING
APART DURING OPERATION AND/OR PERSONAL INJURY.
I-BEAM MOUNT INSTALLATION
1. Locate the L-shaped pipe to the desired location on the I-Beam ange.
Install the 5/16 x 2" U-Bolt over the pipe and through the clamping plate
holes. The at part of the clamping plate ts on the I-Beam ange and
the end with the slight bend goes against the pipe. Install at washer,
lock washer and nuts. Finger tighten the nuts on the U-Bolt. (Figure 1)
2. Slide the clamping plate onto I-Beam ange until U-Bolts contact
ange.
3. Adjust L-shaped pipe so forward clamp plate is as close to the label
at the bend as possible.
4. Tighten nuts on bolt so pipe does not move.
5. Screw on the adapter mount as far as it will go on to the L-shaped
pipe. Tighten set screw in pipe coupling with provided allen key.
6. Align Yoke with grill mounting threads. Loosely attach one Grill Knob
and one Rubber Spacer to the Head Assembly. Attach the other Grill
Knob and Rubber Spacer to the Head Assembly and FIRMLY tighten.
Return to the rst Grill Knob and FIRMLY tighten. (Figure 2)
15084037Rev. A 9/07
5/16 Nut
5/16 Lock
Washer
5/16 Flat
Washer
1/4" Set Screw
Tighten
Bolt
Yoke
Fan Head

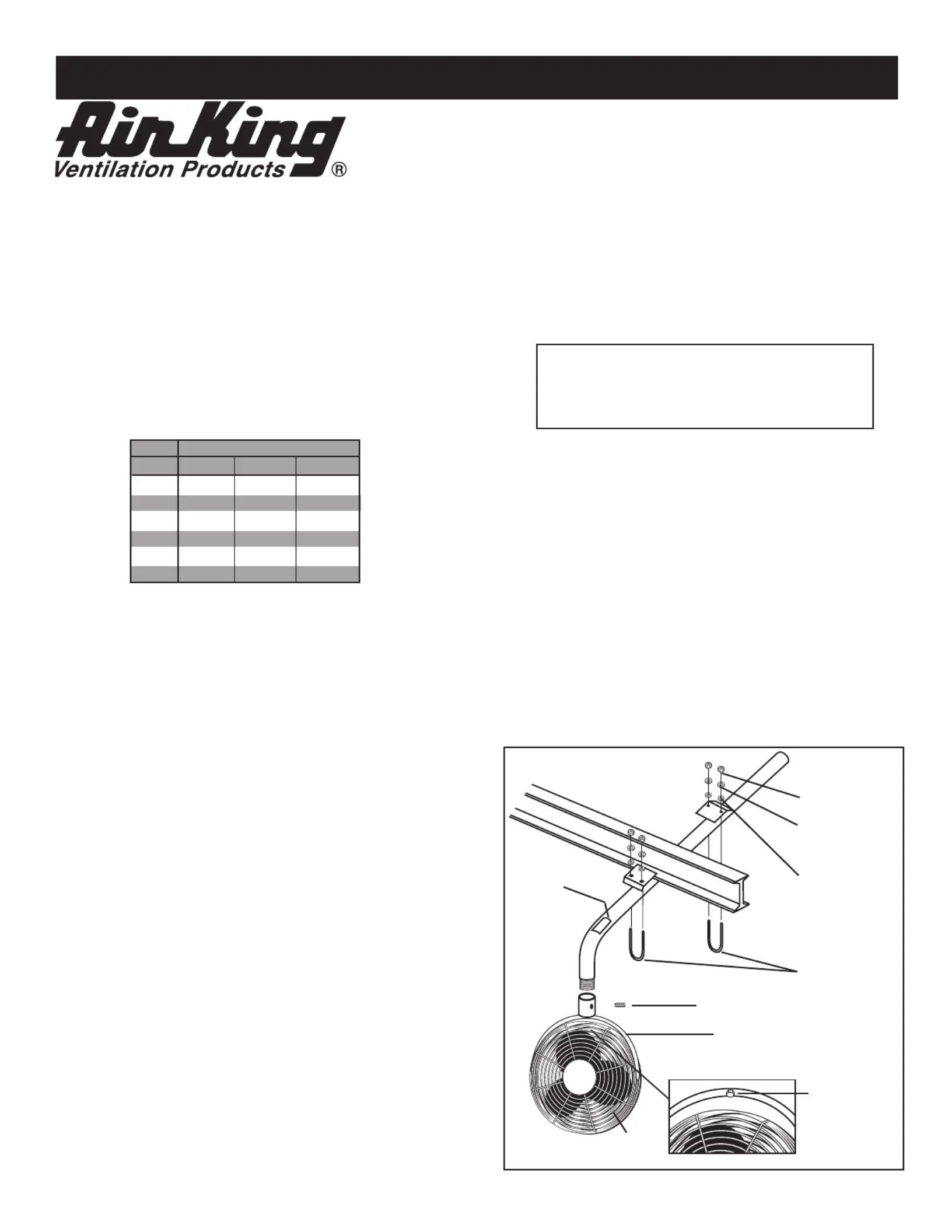

Figure 1
U-Bolts
Tighten Clamp
Plate Here
9. This Fan is not suitable for use in hazardous locations. Please refer to
National Electric Code (NEC) Article 500 or applicable state or local
codes or standards relating to electrical requirements for Hazardous
locations. THIS FAN DOES NOT MEET THE REQUIRMENTS OF
NEC ARTICLE 500 (2002).
Commerical Style Fan
WARNING: This fan should be used only in a clean, dry
environment. Mounting of this product in any way other then
specied in the instruction sheet will null and void the
manufacturer's warranty.
