Side 1/35

W11184584A

If you have any problems or questions, visit us at www.amana.com

Pour tout problème ou question, consulter www.amana.com

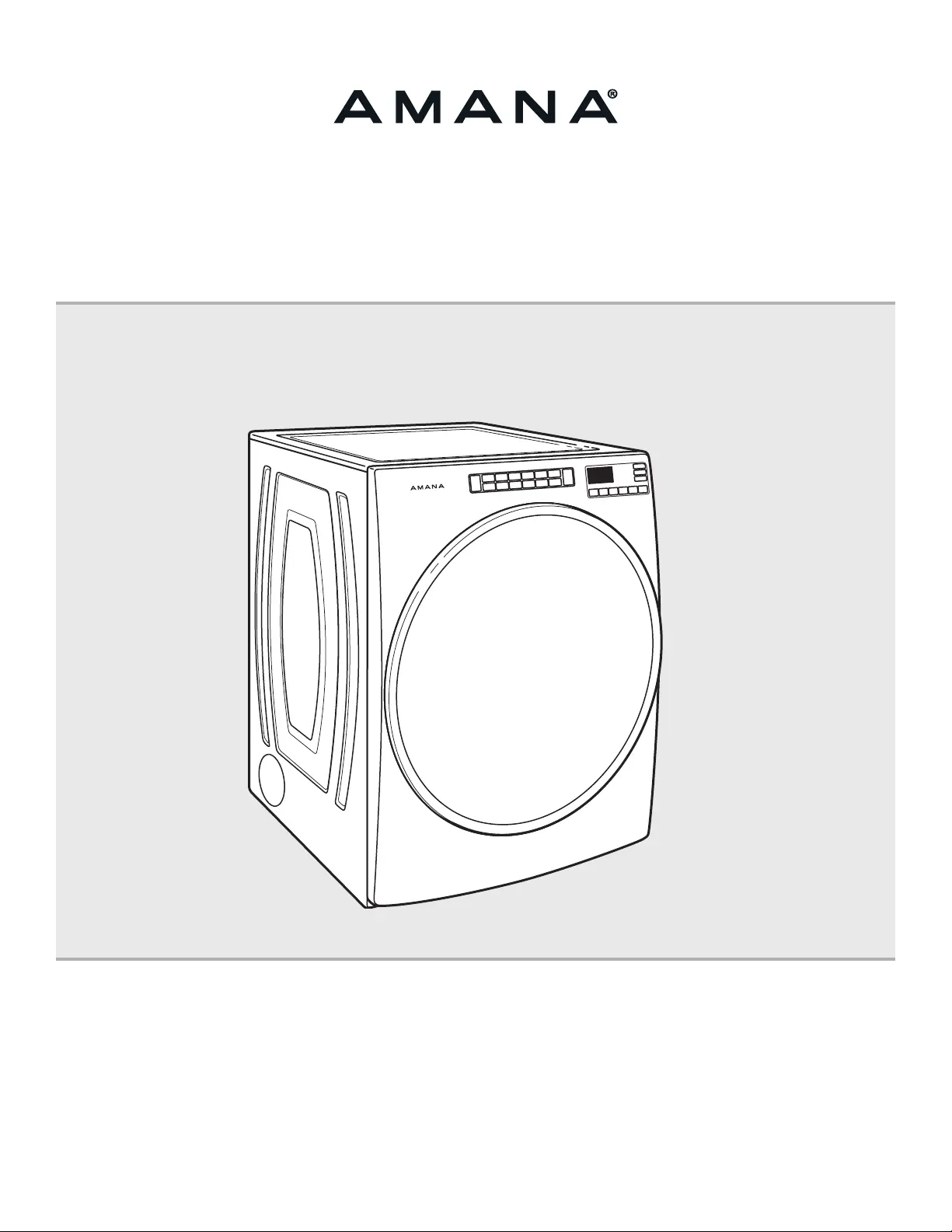

Use and Care Guide

Guide d’utilisation et d’entretien

Electronic Dryer

Sécheuse électronique

Para obtener acceso

al Manual de uso y

cuidado en español, o para

obtener información adicional

acerca de su producto, visite:

www.amana.com.

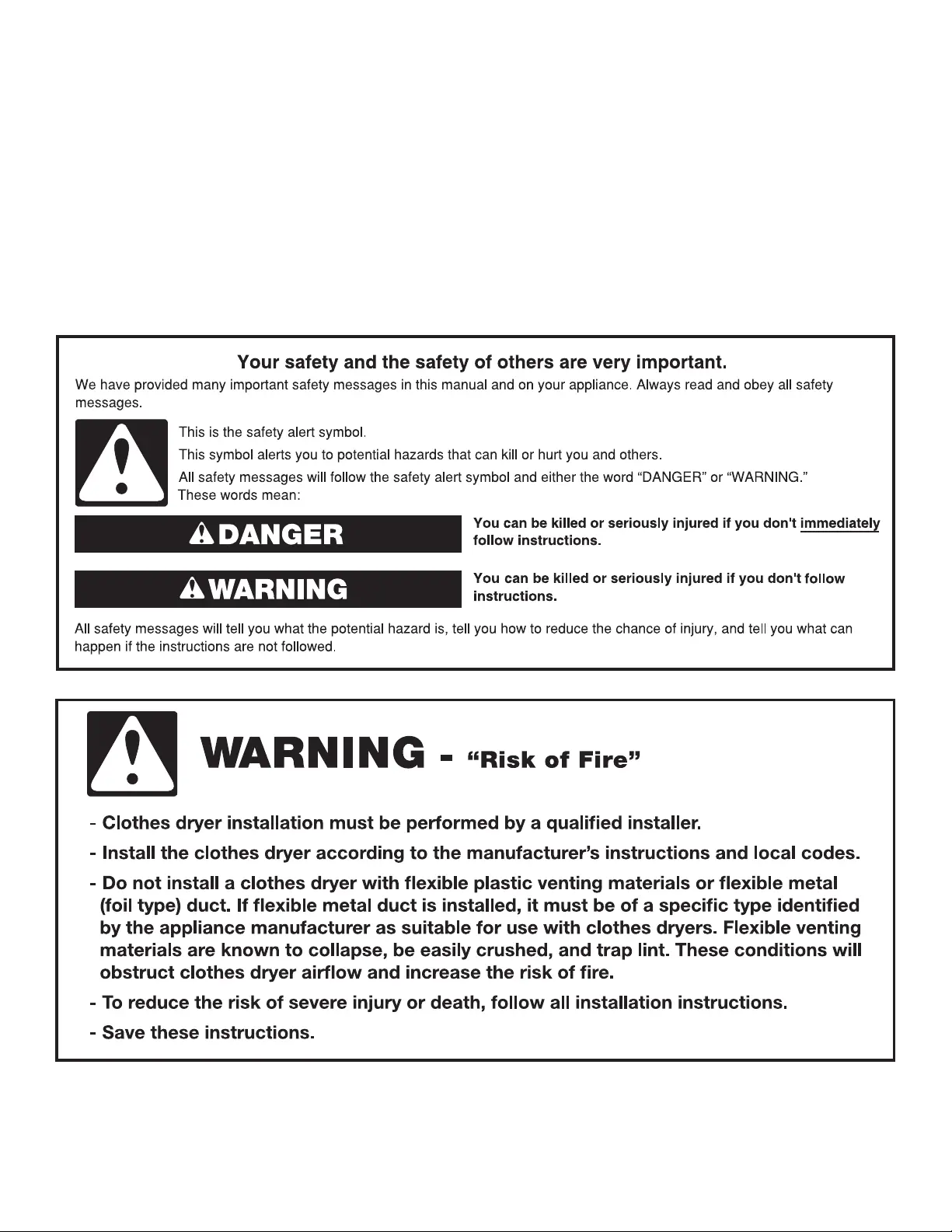

DRYER SAFETY

TABLE OF CONTENTS

DRYER SAFETY 2 .......................................................................

ACCESSORIES 4 ........................................................................

CHECK YOUR VENT SYSTEM FOR GOOD AIRFLOW 5 ............

CONTROL PANEL AND FEATURES 6 .........................................

CYCLE GUIDE 8 ..........................................................................

USING YOUR DRYER 10 ............................................................

ADDITIONAL FEATURES 12 .......................................................

DRYER CARE 12 .........................................................................

TROUBLESHOOTING 14 ............................................................

WARRANTY 17 ............................................................................

ASSISTANCE OR SERVICE Back Cover .....................................

TABLE DE MATIÈRES

SÉCURITÉ DE LA SÉCHEUSE 18 ...............................................

ACCESSOIRES 20 ......................................................................

VÉRIFICATION D’UNE CIRCULATION D’AIR ADÉQUATE

POUR LE SYSTÈME D’ÉVACUATION 21 ....................................

TABLEAU DE COMMANDE ET CARACTÉRISTIQUES 22 ..........

GUIDE DE PROGRAMMES 24 ....................................................

UTILISATION DE LA SÉCHEUSE 27 ...........................................

CARACTÉRISTIQUES SUPPLÉMENTAIRES 29 ..........................

ENTRETIEN DE LA SÉCHEUSE 30 .............................................

DÉPANNAGE 32 ..........................................................................

GARANTIE 35 ..............................................................................

ASSISTANCE OU SERVICE Couverture arrière ...........................

In the State of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gas fitter qualified or licensed by

the State of Massachusetts.

■ Acceptable Shut-off Devices: Gas Cocks and Ball Valves installed for use shall be listed.

■ A flexible gas connector, when used, must not exceed 4 feet (121.9 cm).

WARNING:

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property

damage.

Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this

or any other appliance.

–

–WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in your building.

•Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

•If you cannot reach your gas supplier, call the re department.

–Installation and service must be performed by a qualied installer, service agency, or

the gas supplier.

•Clear the room, building, or area of all occupants.

ACCESSORIES

15" Pedestal

Color-matched pedestals raise the washer

and dryer to a more comfortable working

height. The large drawer provides convenient

storage.

Stack Kit

If space is at a premium, the stack kit allows

the dryer to be installed on top of the washer.

Drying Rack

The Drying Rack provides a

stationary drying surface for

items such as sweaters and tennis

shoes. See the “Additional Features”

section for more information.

Customize your new washer and dryer with the following

genuine Whirlpool accessories. For more information on

options and ordering, call , or visit us at: 1-800-442-9991

www.amana.com/help.

In Canada, call or visit us at: 1-800-807-6777

www.amana.com/help

INSTALLATION & MAINTENANCE

ACCESSORIES

FACTORY CERTIFIED PARTS – these three

words represent quality parts and accessories

designed specically for your appliance.

Time tested engineering that meets

our strict quality specications.

Accessories designed for your appliance:

CHECK YOUR VENT SYSTEM FOR GOOD AIRFLOW

Good airow

Along with heat, dryers require good airow to efciently

dry laundry. Proper venting will reduce your drying times

and improve your energy savings. See Installation

Instructions.

The venting system attached to the dryer plays a big role

in good airow.

Service calls caused by improper venting are not covered

by the warranty and will be paid by the customer, regardless

of who installed the dryer.

Maintaining good airow

n Clean your lint screen before each load.

n Replace plastic or foil vent material

with 4" (102 mm) diameter heavy, rigid

vent material.

Good Better

n Use the shortest length of vent possible.

n Use no more than four 90° elbows in a vent system.

Each bend and curve reduces airow.

n Remove lint and debris from the exhaust hood.

n Remove lint from the entire length of the vent system

at least every 2 years. When cleaning is complete, be

sure to follow the Installation Instructions supplied with

your dryer for nal product check.

n Clear away items from the front of the dryer.

Eco Dry option

The Eco Dry option will default on only for the Normal cycle and is only available on that cycle.

This option allows you to increase your energy savings by using a slightly lower heat level. The Eco Dry option will increase

drying times by approximately 40 minutes, which will be reected on the LED Display. If optimal time is desired, touch ECO DRY

to turn off this option.

Use Sensor Cycles for better fabric care and energy savings

Use the Sensor Cycles to provide the most energy savings and enhanced fabric care from the dryer. During Sensor Cycles, drying

air temperature and moisture level are sensed in the load. This sensing occurs throughout the drying cycle and the dryer shuts off

when the load reaches the selected dryness. Use the Normal dryness level to provide optimal energy savings.

With Timed Dry, the dryer runs the amount of time set and sometimes results in shrinkage, wrinkling, and static due to overdrying.

Use Timed Dry for the occasional damp load that needs a little more drying time or when using the drying rack.

CONTROL PANEL AND FEATURES

POWER

Touch to turn the dryer on and off. Touch to stop/cancel

a cycle at any time.

CYCLES

Touch a button for the desired drying cycle. See “Cycle

Guide” for cycle details.

START/PAUSE

Touch and hold until LED counts down “3-2-1” and the

dryer starts; then let go to start a cycle, or touch once

while a cycle is in process to pause it.

MODIFIERS

Use to select available modiers for your dryer. Not all

cycles and options are available on all models.

Temp

When using Timed Dry/Quick Cycle, you may select

a dry temperature based on the type of load you are

drying. Use the warmest setting that is safe for the

garments in the load. Follow garment label instructions.

Dryness

You may adjust the Dryness on Sensor cycles (except

for the Sanitize cycle), if desired.

NOTE: Dryness is for use with Sensor cycles only.

More Time/Less Time Timed Dry Adjust

Touch MORE TIME or LESS TIME with the Timed Dry/

Quick cycle to increase or decrease the length of the

cycle.

OPTIONS

Use to select available options for your dryer. Not all cycles

and options are available on all models.

Wrinkle Prevent Option

If you will be unable to remove a load immediately,

touch WRINKLE PREVENT to add up to 150 minutes

of periodic tumbling to help reduce wrinkling.

NOTE: If you open the dryer door prior to the end

of the Wrinkle Prevent option, the dryer will go into

standby.

Cycle Signal

Use this option to turn the signal indicating the end

of a drying cycle to low, medium, high, or off. The

volume you select here will also be applied to the

Damp Dry Signal.

Not all features and cycles are available on all models.

NOTE: You may also turn off the tones that sound

when a feature, setting, or option is touched. Touch

and hold CYCLE SIGNAL for about 3 seconds to turn

sounds to low, medium, high, or off.

Damp Dry Signal

Touch to turn the Damp Dry Signal on or off. When

selected, a series of beeps will sound when the load

is damp, but not completely dry. This will allow you to

take clothes out of the load that do not need to dry

completely. This option is available on some cycles.

The Damp Dry signal is selected as a default for the

Bulky Items/Normal, Bulky Items/Wrinkle Control,

and Bulky Items/Heavy Duty cycles, as a reminder

to manually reposition bulky loads midway through

the cycle.

Control Lock

Use this option to lock the controls of the dryer

and avoid an accidental change in cycle options

or preferences during a drying cycle.

Touch and hold CONTROL LOCK for 3 seconds to

lock or unlock the controls of the dryer. During this

time, the LED Display will count down “3-2-1.”

Once the controls are locked, the LED Display

will display “Loc.”

NOTE: The Control Lock function may be enabled

when recovering from a power failure. To unlock the

control, touch and hold CONTROL LOCK for at least

3 seconds.

Eco Dry Option

The Eco Dry option will default on only for the Normal

cycle and is only available on that cycle. This option

allows you to increase your energy savings by using

a slightly lower heat level. The Eco Dry option will

increase drying times by approximately 40 minutes,

which will be reected on the LED Display. If optimal

time is desired, touch ECO DRY to turn off this option.

LED DISPLAY

When you select a cycle, its default settings will light up

and the Estimated Time Remaining (for Automatic Cycles)

will vary depending on the cycle selection, or actual time

remaining for Timed Dry cycles (for Manual Cycles) will be

displayed.

NOTE: The control panel features a sensitive surface that responds to a light touch of your nger. To ensure your selections are

registered, touch the control panel with your ngertip, not your ngernail. When selecting a setting or option, simply touch the

appropriate button.

1 2 3 6

4 5

CYCLE STATUS INDICATORS

The Cycle Status Indicators show the progress of a cycle.

Not all indicators are available on all models.

Sensing

The Sensing indicator will light periodically during Sensor

Cycles to indicate that the moisture sensor on the dryer is

operating. This indicator will not light during Timed Cycles

or options such as Wrinkle Prevent.

Wet

The load is still wet and/or the cycle just started.

Damp

This indicator shows that the load is partially dried and

items that you may wish to hang up or iron while still damp

may be removed.

Cool Down

The dryer has nished drying with heat and is now

tumbling the load without heat to cool it down.

Check Vent

The Check Vent indicator is a feature available for

Automatic cycles only. This indicator will show the status

of airow through the dryer and the dryer vent system

for the dryer’s life. During the sensing phase at the

beginning of the cycle, the Check Vent light will come on

if a blocked vent or low airow issue is detected. This light

will stay on for the entire cycle. Should the Check Vent

light illuminate, refer to the “Troubleshooting” section for

potential solutions to the issue.

The light will be cleared upon completion of the cycle,

touching Power, or opening the door. The Check Vent light

will continue to illuminate during the cycle unless the root

cause is resolved.

REMEMBER: The dryer will continue to operate even

while the indicator is lit, but poor airow can impact dry

times and overall performance. For more information on

maintaining good airow, see “Check Your Vent System

for Good Airow.”

NOTE: If there are other error issues during a cycle,

the Check Vent indicator will not light up. See the

“Troubleshooting” section.

End

This will indicate that the selected cycle has ended

and the load may be removed from the dryer. If Wrinkle

Prevent has been selected, the dryer may continue to

tumble the load, even if “End” is displayed.

Control Lock

This will illuminate once the controls are locked.

CYCLE GUIDE — SENSOR CYCLES

Settings and options shown in are default settings for that cycle.bold

If settings are changed, the new settings will be remembered. If there is a power failure, settings will return to the default.

Not all features and cycles are available on all models.

Not all settings and options are available on each cycle.

Load Size Recommendations

For best results, follow the wet load size recommendations

noted for each cycle.

Small load: Fill the dryer drum with 3–4 items, not more

than 1/4 full.

Medium load: Fill the dryer drum up to about 1/2 full.

Large load: Fill the dryer drum up to about 3/4 full.

Do not tightly pack. Items need to tumble freely.

Use Sensor Cycles for better fabric care and energy savings

The dryer senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level.

Use the Normal dryness level to provide optimal energy savings.

Items to dry: Cycle:

Drying

Temperature:

Dryness

Level:

Default

Time:

Available

Options: Cycle Details:

Shirts, blouses,

permanent

press, synthetics,

lightweight items

Regular High

Medium

Low

Air

Normal

Less

48 Wrinkle Prevent

Cycle Signal

Uses Medium heat to dry large loads

of mixed fabrics and items.

Work clothes,

casual wear,

mixed cottons,

sheets, corduroys

Normal High

Medium

Low

Air

Normal

Less

1:25 Wrinkle Prevent

Cycle Signal

Eco Dry

Uses Medium heat to dry large loads

of mixed fabrics and items. Normal

is the most efcient cycle.

Undergarments,

blouses, lingerie,

performance wear

Delicates High

Medium

Low

Air

Normal

Less

28 Wrinkle Prevent

Cycle Signal

Uses Low heat to gently dry delicate

items.

Shirts, blouses,

permanent

press, synthetics,

lightweight items

Wrinkle

Control

High

Medium

Low

Air

Normal

Less

35 Wrinkle

Prevent

Cycle Signal

Uses a stepped drying temperature

from Medium to Low for improved

moisture removal and enhanced

fabric care.

Jackets,

comforters,

pillows

Bulky Items High

Medium

Low

Air

Normal

Less

52 Wrinkle Prevent

Cycle Signal

Use for drying large, bulky items; do

not overll dryer drum. Partway through

the cycle, the signal will sound for 2

minutes to indicate when it is time to

rearrange items for optimal drying.

Heavyweight

items such as

towels or heavy

work clothes

Heavy Duty High

Medium

Low

Air

Normal

Less

57 Wrinkle Prevent

Cycle Signal

Offers stepped drying starting with

High heat followed by Medium heat

for enhanced fabric care and energy

savings.

White, sturdy

items

Whites High

Medium

Low

Air

Normal

Less

45 Wrinkle Prevent

Cycle Signal

Uses High heat to dry large loads

of white, sturdy fabrics and items.

Large loads of

heavyweight items

Sanitize Wrinkle Prevent This is a long cycle with high heat, High More 1:30

which has been proven to reduce

household bacteria. This cycle is not

recommended for all fabrics. Use for

large loads of heavyweight fabrics.

Bright or darkly

colored cottons,

linens, casual and

mixed loads

Colors High

Medium

Low

Air

Normal

Less

53 Wrinkle Prevent

Cycle Signal

Uses Medium heat to gently dry bright

or darkly colored items.

Large loads of

cotton towels,

heavyweight items

Towels High

Medium

Low

Air

Normal

Less

1:00 Wrinkle Prevent

Cycle Signal

This is a long cycle with high heat,

which has been proven to reduce

household bacteria. This cycle is not

recommended for all fabrics. Use for

large loads of heavyweight fabrics.

Items to dry: Cycle:

Drying

Temperature:

Default

Time:

Available

Options: Cycle Details:

Any load

NOTE: Select Air

to dry foam,

rubber, plastic,

or heat-sensitive

fabrics.

Timed Dry High

Medium

Low

Air

40 Wrinkle Prevent Use to dry items to a damp level for items that do

not require an entire drying cycle. Select a drying

temperature based on the type of fabrics in your load.

If you are unsure of the temperature to select for a

load, select the lower setting rather than the higher

setting.

Small loads

and sportswear

Quick High

Medium

Low

Air

15 Wrinkle Prevent For small loads of 3–4 items.

CYCLE GUIDE — TIMED CYCLES

Settings and options shown in are default settings for that cycle.bold

If settings are changed, the new settings will be remembered (except on Quick). If there is a power failure, settings will return

to the default.

Not all features and cycles are available on all models.

Not all settings and options are available on each cycle.

Load Size Recommendations

For best results, follow the load size recommendations noted

for each cycle.

Small load: Fill the dryer drum with 3–4 items, not more

than 1/4 full.

Medium load: Fill the dryer drum up to about 1/2 full.

Large load: Fill the dryer drum up to about 3/4 full.

Do not overload. Items need to tumble freely.

Adjusting drying time on Timed Cycles

When you select a Timed Cycle, the time

appears in the display. Use More Time

and Less Time to increase or decrease

the time in 5-minute increments.

The maximum dry time is 150 minutes.

Selecting the Drying Temperature

A High heat setting may be used for drying heavyweight items

such as towels and work clothes.

A Low to Medium heat setting may be used for drying

mediumweight items such as sheets, blouses, dresses,

underwear, permanent press fabrics, and some knits.

Use a no heat (air) setting for foam, rubber, plastic,

or heat-sensitive fabrics.

Line dry bonded or laminated fabrics.

NOTE: If you have questions about drying temperatures

for various loads, refer to the care label directions.

NOTE: Government energy certications for this model were based on the Normal Cycle, Highest Temperature Setting, Normal

Dryness Level, Eco Dry On. The as-shipped defaults were the same as the Government Energy Certication Settings except the

default Temperature Setting of Medium was adjusted to the Highest Temperature Setting.

Touch POWER

Touch POWER to turn on the dryer.

USING YOUR DRYER

Clean the lint screen

Clean the lint screen before each load. Pull the lint screen

straight up. Roll lint off the screen with your ngers. Do

not rinse or wash screen to remove lint. Wet lint is hard

to remove. Push the lint screen rmly back into place.

For additional cleaning information, see “Dryer Care.”

Load the dryer

Open the door by pulling on the handle. Place laundry in the

dryer. Add a dryer sheet to wet load, if desired. Close the door.

IMPORTANT: Do not tightly pack the dryer. Items need

to tumble freely. Tightly packing can lead to poor drying

performance and may increase wrinkling and tangling.

WARNING: To reduce the risk of re, electric shock, or injury

to persons, read the Important Safety Instructions before

operating this appliance.

Select desired cycle

Select the desired cycle for your load. See the “Cycle Guide”

for more information about each cycle.

Touch and hold START/PAUSE

to begin cycle

To begin the cycle, touch and hold START/PAUSE until the

display counts down “3-2-1” and the dryer starts.

8. Remove garments promptly

after cycle is nished

Promptly remove garments after cycle has completed

to reduce wrinkling. If you will be unable to remove the load

promptly, select the Wrinkle Prevent option.

Adjust cycle modiers, if desired

You may adjust different settings,

depending on whether you have selected

a Sensor Cycle or Timed Cycle. See the

“Cycle Guide” for detailed information.

NOTE: Not all options and settings are available with all cycles.

Not all cycles are on all models.

Sensor Cycles:

The temperature may be changed by touching Temp until

the desired dry temperature is lit. Once a cycle has started,

the temperature can be changed during the rst 5–8 minutes

of the cycle.

You can select a different dryness level, depending on

your load. Touch DRYNESS to scroll from Less to More to

automatically adjust the dryness level at which the dryer will

shut off. Once a dryness level is set, it can be changed during

the rst 5–8 minutes of the cycle.

Sensor cycles give the best drying in the shortest time.

Drying time varies based on fabric type, load size, and dryness

setting. Drying time is estimated and may change throughout

the cycle. Drying time cannot be changed on Sensor Cycles.

Timed Cycles:

When you select a Timed Cycle, the time appears in the

display. Touch MORE TIME or LESS TIME to increase or

decrease the time in 5-minute increments.

The temperature may be changed by touching Temp until

the desired dry temperature is lit. The temperature cannot

be changed if the temperature is started with Air.

Select any additional options

Add additional options such as Wrinkle Prevent and/or Eco

Dry by touching that option. If you will be unable to remove

the load promptly, select Wrinkle Prevent before touching

Start/Pause.

NOTE: Not all options and settings are available with all

cycles.

ADDITIONAL FEATURES

2. Align the two hooks on the front of the drying rack with

the holes in the dryer door opening and press down fully

into holes. Rest the rear support on the dryer back ledge.

USING THE DRYING RACK

To purchase a drying rack for your dryer, see “Accessories”

for more information. You will need your model and serial

number and the purchase date. Remove and discard any

packing material before use.

Use the drying rack for items that you do not want to tumble

dry, such as sweaters and tennis shoes. When you use the

drying rack, the drum continues to turn, but the rack remains

stationary.

The drying rack is intended for use with the Timed Dry cycle

only. The drying rack cannot be used with Sensor Cycles.

To use the drying rack:

IMPORTANT: Do not remove the lint screen.

1. Open dryer door.

3. Place wet items on top of the drying rack. Allow space

around items for air to circulate. The drying rack does

not move, but the drum will rotate; be sure to leave

adequate clearance between items and the inside

of the dryer drum. Make sure items do not hang

over the edges or between drying rack grille.

4. Close the door.

5. Select a Timed Dry cycle. Items containing foam, rubber,

or plastic must be dried on a clothesline or by using the

Air setting.

6. When the cycle is selected, the display shows the

default time. You can change the actual time in the cycle

by increasing or decreasing the cycle time.

7. Start the dryer.

NOTE: Check the lint screen and remove any lint

accumulated from items dried on the drying rack

after the cycle is nished.

DRYER CARE

CLEANING THE DRYER LOCATION

Keep dryer area clear and free from items that would

block the airow for proper dryer operation. This includes

clearing piles of laundry in front of the dryer.

CLEANING THE DRYER INTERIOR

To clean dryer drum:

1. Use a mild hand dish detergent mixed at a low

concentration with very warm water, and rub with

a soft cloth.

2. Rinse well with a wet sponge or towel.

3. Tumble a load of clean clothes or towels to dry drum

Use a microber cloth and hot water in a spray bottle

to clean the drum and a second microber towel to dry.

NOTE: Garments that contain unstable dyes, such as

denim blue jeans or brightly colored cotton items, may

discolor the rear of the dryer interior. These stains are not

harmful to your dryer and will not stain future loads of

clothes. Dry unstable dye items inside out to avoid transfer

of dye.

REMOVING ACCUMULATED LINT

From Inside the Dryer Cabinet

Lint should be removed every 2 years, or more often,

depending on dryer usage. Cleaning should be done

by a qualied appliance servicer.

From the Exhaust Vent

Lint should be removed every 2 years, or more often,

depending on dryer usage.

Produkt Specifikationer

Mærke:	Amana
Kategori:	Tørretumbler
Model:	NED5800HW

Har du brug for hjælp?

Hvis du har brug for hjælp til Amana NED5800HW stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Tørretumbler Amana Manualer

Amana NDE5800AYW Manual

20 August 2024

Amana NED5100TQ Manual

16 August 2024

Amana NDE2330AYW Manual

15 August 2024

Amana NGD5800HW Manual

13 August 2024

Amana NED5800HW Manual

13 August 2024

Amana NGD5200TQ0 Manual

13 August 2024

Amana NGD5800TQ0 Manual

13 August 2024

Amana NDE7800AYW Manual

13 August 2024

Amana YNED4600YQ Manual

12 August 2024

Amana NEC3240FW Manual

12 August 2024

Tørretumbler Manualer

Nyeste Tørretumbler Manualer

Arçelik 901 KMP I Manual

6 April 2025

Arçelik 901 KMP IG Manual

6 April 2025

Bosch WQB235B40 Manual

30 Marts 2025

Whirlpool C WSD 74M WBS ES Manual

24 Marts 2025

Whirlpool C WSD 83M WBS ES Manual

24 Marts 2025

Whirlpool C WD 104M WBS SPT Manual

24 Marts 2025

Profilo KM8612HTR Manual

21 Marts 2025

Onix ON-VD6W Manual

15 Marts 2025

Bosch WQH245BWSN Manual

15 Marts 2025

Bosch WTH85V0MSN Manual

15 Marts 2025
