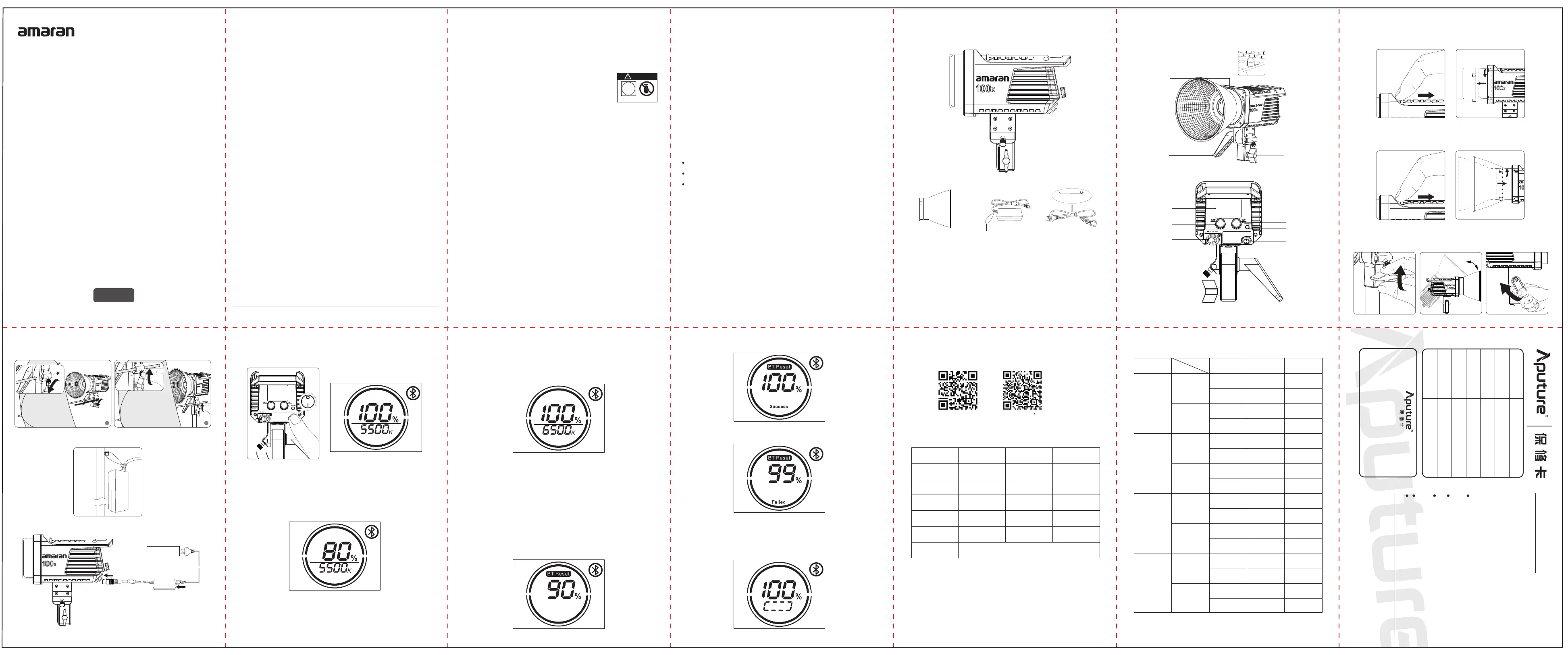

Amaran 100x
-3- -4- -5- -6--1- -2-
Product Details Installations
1. Light
DC-in connector
Bowens Mount
Release Latch
Bowens Mount
55° Reflector
COB LED
Tie Down
Locking handle
Neutrik® powerCON AC
Power Cable (1.5m) (1 pc)
Cable Tie
1. Attaching/detaching the protection cover
2. Installation and removal of 55° Reflector
Push the lever handle according to the arrow direction shown in the picture, and rotate the
55° Reflector into it.Rotating in the opposite direction pulls out the 55° Reflector.
* Notice: Always remove the protection cover prior to turning on the light. Always re-install the
cover when packing it away.
Soft light
umbrella hole
CCT adjusting knob INT adjusting knob
OLED Display
Bluetooth Reset key
Power switch button
3. Setting up the Light
Adjust the lamp body to the appropriate height, rotate tie-down to fix the lamp body on the tripod,
then adjust the lamp body to the required angel, and tighten the lock handle.
DC 48V
207.5x154x164.8mm
2.7A
2.4GHz
2700K-6500K
≥96
≤100m
TLCI
≥95CRI
1m 3m 5m
229 fc 27 fc
279 fc
10 fc
2470 lux 290 lux 110 lux
2090 fc 214 fc 74 fc
22500 lux 2300 lux 800 lux
2587 fc 264 fc 93 fc
27850 lux 2840 lux 1000 lux
3187 fc 325 fc 114 fc
34300 lux 3500 lux 1230 lux
2889 fc 293 fc 102 fc
31100 lux 3150 lux 1100 lux
33 fc 12 fc
3000 lux 350 lux 130 lux
344 fc 40 fc 16 fc
3700 lux 430 lux 170 lux
307 fc 36 fc 14 fc
3300 lux 390 lux 150 lux
5600K
Illumination
CCT
2700K
3200K
Steel wire
rope (1 pc)
Adapter
(1 pc)
-7-
5. Adapter mounting
Run the wire rope through the adapter clasp and hang it on the bracket.
4. Soft light umbrella installation
Insert the soft light handle into the hole and lock the lock knob on the hole.
Powered by AC
The power supply
* Please press the spring-loaded lock button on the power cord to remove the power cord.
Do not pull it out forcibly.
* This is an averaged result, the number might be slightly different on each light.
AC 100V-240V
~
~
~
~
-8- -9- -10-
1. Press the power button to turn the light on and off
3. Wireless mode adjustment
2. Manual control
Operations
2.1 Brightness adjustment
A. Rotate the INT adjusting knob to adjust the brightness with 1% variable, and the brightness
change range is (0-100) %, and display the change of (0-100) % in real time on the LIGHT body
OLED display;
B. Click the INT adjustment knob to quickly switch the brightness level: 20% 40% 60% 80%→→→
→ →→→→→ → →→→100% 20% 40% 60% 80% 80% 40% 60% 80% 100% cycle switch.
2.2 CCTS adjustment
A. Rotate the CCT adjusting knob to increase or decrease with 100K as the change amount to
change the current CCT value (2700K-6500K), and display (2700K-6500K) CCT value in real time
on the light body display screen.
B. Click the CCT adjustment knob to quickly switch the color temperature shift: 2700K 3200K→
→→→→→→→→4300K 5500K 6500K 2700K 3200K 4300K 5500K 6500K cycle switch.
The user can connect the light body named Amaran 100x-xxxxxx through the bluetooth of the
mobile phone or tablet (Bluetooth serial number). At this time, the light body can be controlled
wirelessly through the mobile phone or tablet.When the light effect is controlled by APP, the
word "FX" is displayed in the upper left corner of LCD.
In wireless mode, 9 lighting effects can be controlled through App: paparazzi, fireworks, faulty
bulb, lightning, TV, pulse, flash, explosion and Fire. And App can control all kinds of light effect
CCT, brightness, frequency.
5. OTA mode
Firmware updates can be updated online via the Sidus Link app for OTA updates.
4. Reset Bluetooth
4.1 Long press the Bluetooth Reset button to reset bluetooth.
4.2 During the Reset process, the LCD displays BT Reset and the Bluetooth icon is flashing, and
the percentage shows the current Reset progress (1%-50%-100%).
4.3 The LCD will display [Success] 2 seconds after the Bluetooth reset is successful.
4.4 If the Bluetooth reset is unsuccessful, the LCD will display [Failure] and disappear after 2
seconds.
4.5 After resetting the light's Bluetooth connection, your mobile phone or tablet will be able to
connect to and control the light.
-12-
Specifications
-11-
Detailed product manual can be found on www.aputure.com .
Product Manual
English
折页方式：
折页成型（英文在正面）：
为折线(不印刷) 175 说明书 AP-175-PR-01
20201021
版 本 V1.0
Ingrid
深圳市爱图仕影像器材有限公司
70g 书纸，正反两面印刷
料号：
682.5*280mm 折页尺寸：97.5*140mm
Aputure Imaging Industries Co., Ltd.
Add: F/3, Building 21, Longjun industrial estate,
HePing West Road, Shenzhen, Guangdong
E-MAIL: cs@aputure.com
Sales Contact: (86)0755-83285569-613
Aputure Imaging Industries Co., Ltd. warrants the original consumer purchaser
from defects in material and workmanship for a period of one (1) year after the
date of purchase. For more details of warranty visit www.aputure.com
Serial No.
Item Name
Purchase Date
Buyer Name
Buyer Phone
Buyer Add
Franchiser Seal
Add F/3, Building 21, Longjun Industrial Estate, Heping West Road, Shenzhen, Guangdong:
Aputure Imaging Industries Co.,Ltd.
Inspection: Qualified
IMPORTANT SAFETY INSTRUCTIONS
When using this unit, basic safety precautions should always be
followed, including the following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any fixture is used by or
near children. Do not leave the fixture unattended while in use.
3. Care must be taken as burns can occur from touching hot
surfaces.
4. Do not operate the fixture if a cord is damaged, or if the
fixture has been dropped or damaged, until it has been
examined by qualified service personnel.
5. Position any power cables such that they will not be tripped
over, pulled, or put into contact with hot surfaces.
6. If an extension cord is necessary, a cord with an amperage
rating at least equal to that of the fixture should be used.
Cords rated for less amperage than the fixture may overheat.
7. Always unplug the lighting fixture from the electrical outlet
before cleaning and servicing, or when not in use. Never yank
the cord to remove the plug from the outlet.
Thank you for purchasing Aputure "Amaran" series of LED
photography lights - Amaran 100X.
Foreword
Amaran 100x is Amaran series of newly designed high cost
performance lamps.Compact structure design, compact and
light, excellent texture.Has a high performance level, such as
high brightness, high indication, can adjust the brightness,
etc.It can be used with the existing Bowens Mount lighting
accessories to achieve a variety of lighting effects and enrich
product usage patterns.So that the product to meet the needs
of different occasions light control, easy to achieve professional
level photography.
CAUTION
DO NOT TOUCH LED
Light Source Surface
8. Let the lighting fixture cool completely before storing.
9. To reduce the risk of electric shock, do not immerse this
fixture in water or any other liquids.
10. To reduce the risk of fire or electric shock, do not
disassemble this fixture. Contact cs@aputure.com or take
it to qualified service personnel when service or repair
work is required. Incorrect reassembly may cause electric
shock when the lighting fixture is in use.
11. The use of an accessory attachment not recommended
by the manufacturer may increase the risk of fire, electric
shock, or injury to any persons operating the fixture.
12. Power this fixture by connecting it to a grounded outlet.
13. Please remove the protective cover before powering on
the light.
14. Please remove the protection cover before using the
reflector.
15. Please do not block the ventilation and do
not look at the light directly when it is
powered on.
16. Please do not place the LED lighting fixture near any
liquids or other flammable objects.
17. Only use a dry microfiber cloth to clean the product.
18. Please have the product checked by an authorized
service personnel agent if your product has a problem.
19. The malfunctions caused by unauthorized disassembly
are not covered under the warranty.
20. We recommend only using the original Aputure cable
accessories. Please note that our warranty for this
product does not apply to any repairs required due to
any malfunctions of unauthorized Aputure accessories,
although you may request such repairs for a fee.
FCC Compliance Statement
21. This product is certified by RoHS, CE, KC, PSE, and FCC.
Please operate the product in full compliance with the
operation standards. Please note that this warranty does
not apply to repairs arising from malfunctions, although
you may request such repairs on a chargeable basis.
22. The instructions and information in this manual are
based on thorough, controlled company testing
procedures. Further notice will not be given if the design
or specifications change.
SAVE THESE INSTRUCTIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Warning:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a different circuit than the receiver is
connected to.
Consult the dealer or an experienced radio/TV technician for help.
This device has been evaluated to meet general RF exposure requirements.
RF Warning Statement:
Check list
When you unbox the product, please make sure all the items listed below are included.
Otherwise, please contact the seller immediately
100x Lamp
Head (1 pc)
55° Hyper-Reflector
(1 pc)
Protection
Cover (1 pc)
Push the handle of the lever in the direction of the arrow shown in the picture, and rotate the cover
to pull it out.Reverse rotation will put the protective cover into.
6. Using the Sidus Link APP
You can download the Sidus Link app from the iOS App Store or Google Play Store for
enhancing the functionality of the light. Please visit sidus.link/app/help for more details
regarding how to use the app to control your Aputure lights.
Sidus.link/app/help
Power Consumption
Cooling Mode Active Cooling
130W maximum
Light Operating
Current
Light Power Supply
AC 100~240V
50/60Hz
Adapter Power Supply
Color Temperature
APP Control Type Bluetooth
Radio Frequency
Remote Ability
Sizes
(L*W*H)
Distance
Bare Bulb
Hyper-Reflector
Bare Bulb
Hyper-Reflector
Bare Bulb
Hyper-Reflector
6500K
Bare Bulb
Hyper-Reflector
Photometrics
2
1

Produkt Specifikationer

Mærke: Amaran
Kategori: niet gecategoriseerd
Model: 100x

Har du brug for hjælp?

Hvis du har brug for hjælp til Amaran 100x stil et spørgsmål nedenfor, og andre brugere vil svare dig


niet gecategoriseerd Amaran Manualer

Amaran

Amaran P60x Manual

27 August 2024
Amaran

Amaran F22c Manual

27 August 2024
Amaran

Amaran 100x Manual

27 August 2024
Amaran

Amaran 200x Manual

27 August 2024
Amaran

Amaran T2c Manual

26 August 2024
Amaran

Amaran T4c Manual

26 August 2024

niet gecategoriseerd Manualer

Nyeste niet gecategoriseerd Manualer

Pioneer

Pioneer CA-R-CG.001 Manual

18 September 2024
Pioneer

Pioneer CA-R-MAC.001 Manual

18 September 2024
Pioneer

Pioneer CA-R-PI.187 Manual

18 September 2024
NEC

NEC LED-FE019i3 Manual

18 September 2024
Exquisit

Exquisit EKS180-4-060E Manual

18 September 2024
Smeg

Smeg SA661X Manual

18 September 2024
Pioneer

Pioneer CA-R-TOY.003AE Manual

18 September 2024
Pioneer

Pioneer CA-R-LA.001 Manual

18 September 2024
SereneLife

SereneLife SLTLWS550 Manual

18 September 2024
SereneLife

SereneLife SLTLWS650 Manual

18 September 2024
