Installation Guide
MXA-UENET Video Acceleration Cable
Overview
The MXA-UENET Video Acceleration accessory cable ( ) plugs into a USB port of FG5968-75
the Modero X Series® Touch Panel and routes Ethernet traffic into the Modero X Series USB
subsystem, which has been optimized to further accelerate streaming video performance
(FIG. 1).
Within the Modero X Series touch panels, streaming video is optimized via the use of the
MXA-MPL Multi Preview Live (FG5968-10). If using an MXA-MPL is not an option, the
MXA-UENET video acceleration cable may be used to connect streaming video feeds to the
MXT/D-1000 and MXT/D-700 touch panels.
Specifications
Installation for Tabletop Touch Panels
To connect your MXT-1000 or MXT-700 tabletop touch panel to the network via the MXA-
UENET:
1. On a soft surface, turn the touch panel face-down to access the bottom of the device.
2. Remove the clamp holding the Ethernet cable (FIG. 2) until the Ethernet cable moves
freely.
3. Remove the Ethernet cable connector and pull the cable out of the clamp. Discard this
cable.
4. Press the Ethernet connector cable on the MXA-UENET (FIG. 1) into the clamp. Do
NOT tighten the clamp at this time.
5. Using a nonconductive item such as a wooden stick, insert the Ethernet cable
connector into the device. Use the stick to ensure that the connector is properly
seated.
6. Tighten the clamp to secure the Ethernet cable. Make sure the clamp is around the
bundled black cable, not the individual wires.
7. Insert the USB connector into one of the USB ports on the rear of the touch panel.
8. Connect the RJ45 connector to its incoming Ethernet cable.
9. Turn the touch panel upright and apply power.
NOTE: For more information on installing your touch panel, please refer to the MXT/D-1000
Operation Reference Guide or the MXT/D-700 Operation Reference Guide, available at
www.amx.com.
Installation for Wall/Flush Mount Touch Panels
To connect your MXD-1000 or MXD-700 wall/flush mount touch panel to the network via the
MXA-UENET:
NOTE: If the touch panel has already been installed in the wall or mounting surface, the
touch panel and the back box must be removed from the mounting surface to install the
MXA-UENET. Thread the connecting CAT5 Ethernet cable through the back box hole before
installing the MXA-UENET. In new installations, separate the back box from the touch panel,
as the back box must have the MXA-UENET threaded through it before the touch panel can
be installed.
NOTE: In solid-wall installations, make sure to have clearance within the wall for the Ethernet
port jack and the excess cable before starting the installation.
1. The USB connector on the MXA-UENET must be connected to the USB port on the
top of the touch panel (one on the MXD-1000 and two on the MXD-700). To facilitate
this, when looking at the front of the back box as it installs into the wall, remove the top
left knockout in the back box (FIG. 3).
2. Thread the MXA-UENET through the knockout hole, and install the back box into the
wall or mounting surface (FIG. 4). Lock down the back box using the back box’s
locking tabs for drywall installations or with screws (not included) for solid-wall or
rough-in box installations.

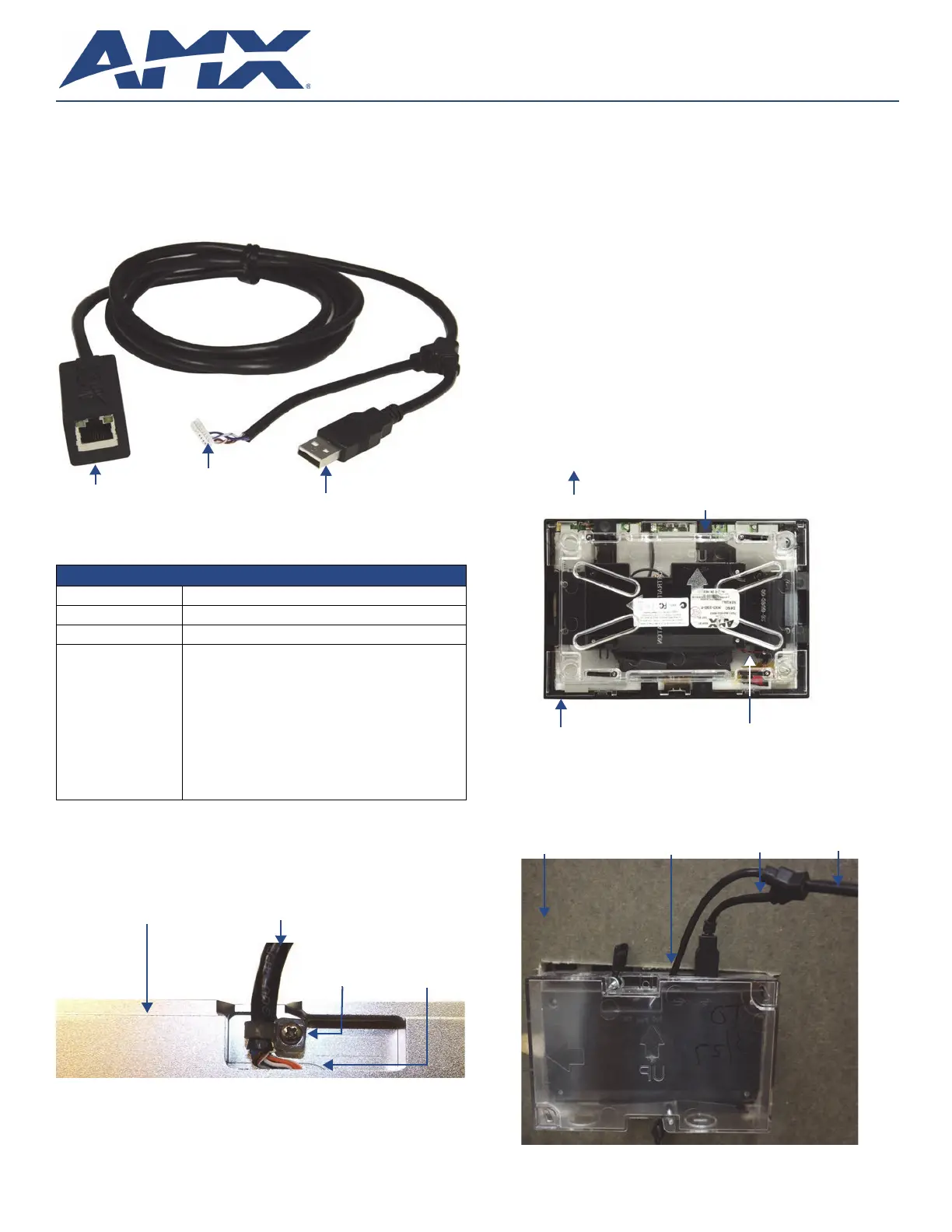

FIG. 1 MXA-UENET
MXA-UENET (FG5968-75) Specifications
Length: 6.10 ft (1.86 m)
Weight: 0.25 lbs (113.40 g)
Included Accessories: MXA-UENET Installation Guide (93-5968-75)
Other AMX Equipment: • MXT-1000 10.1" Modero X® Series Tabletop Touch Panel
( )FG5968-03
• MXT-700 7" Modero X® Series Tabletop Touch Panel
( )FG5968-04
• MXD-1000-L 10.1" Modero X® Series Wall/Flush Mount
Touch Panel, Landscape (FG5968-13)
• MXD-1000-P 10.1" Modero X® Series Wall/Flush Mount
Touch Panel, Portrait (FG5968-07)
• MXD-700-L 7" Modero X® Series Wall/Flush Mount Touch
Panel, Landscape (FG5968-14)
• MXD-700-P 7" Modero X® Series Wall/Flush Mount Touch
Panel, Portrait (FG5968-08)
FIG. 2 Touch panel bottom, displaying the Ethernet cable.
Ethernet USB
Connector
Port
Ethernet
Connector
Ethernet Cable
Connector
Clamp
MXT-1000

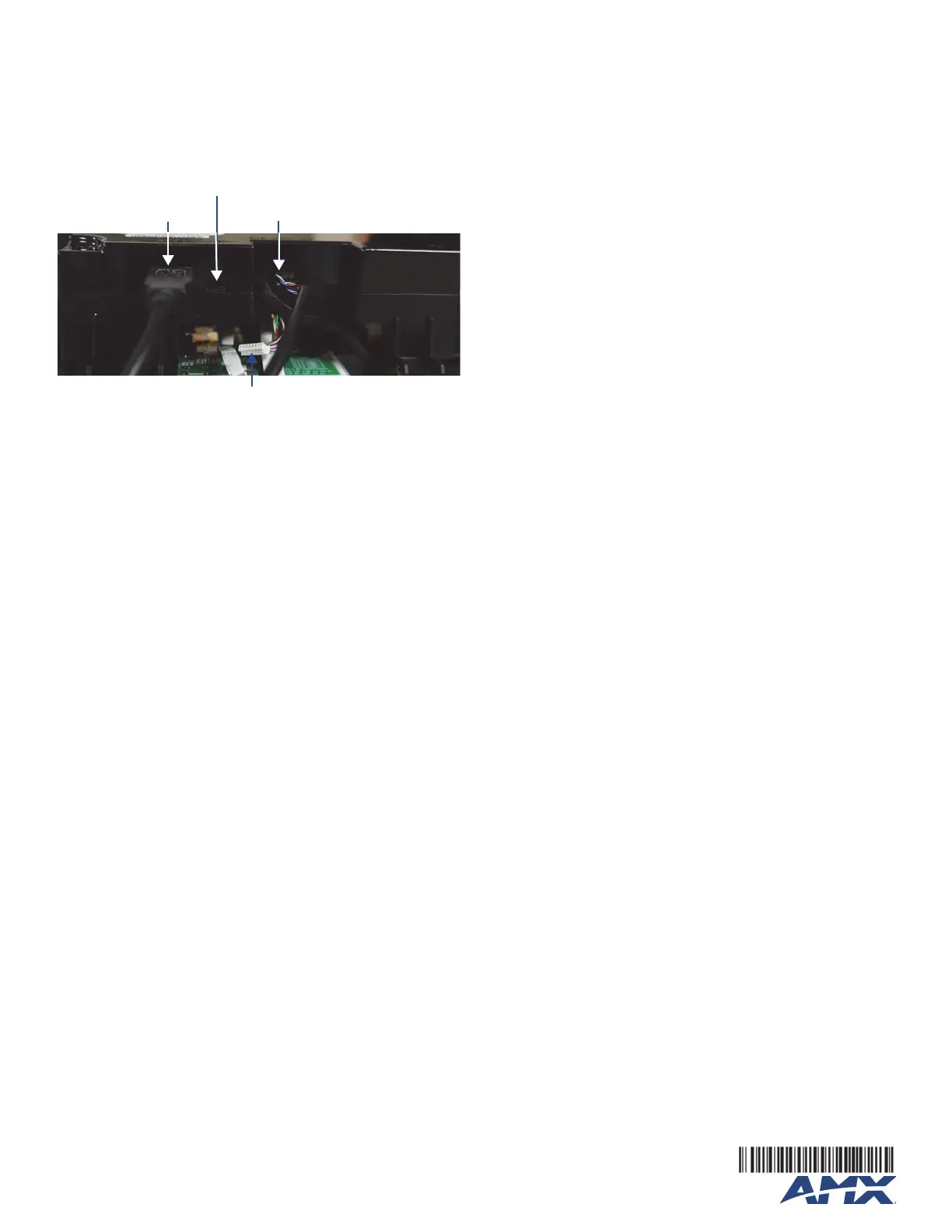

FIG. 3 Rear of MXD-700 touch panel, showing back box
FIG. 4 Installation of the MXA-UENET into an MXD-700 back box
Touch panel Back box
Top
Entry knockout for
MXA-UENET
connector
MXA-UENET
Backside
of wall USB connector
cable
Ethernet connector
cable
