Installation Guide
NXD-435 4.3" Modero® Wall/Flush Mount Touch Panel
For more detailed installation, configuration, programming, file transfer, and operating
instructions, refer to the NXD-430/435 Operation/Reference Guide, available online at
www.amx.com.
Overview
The NXD-435 Modero ® Wall/Flush Mount Touch Panel includes a mini-USB port for
programming, and five NetLinx-programmable buttons. All power is supplied via
Power Over Ethernet (PoE), utilizing a PS-POE-AF PoE Injector (FG423-80) or
equivalent PoE device.The NXD-435 comes in black (FG2262-03) and white
(FG2262-04).
Specifications
Panel Connectors and Wiring
FIG. 2 shows the connectors located on the NXD-435 Modero panel. The mini-USB
port is used for programming the touch panel.
For more information on connection and use of the Panel Connectors, as well as
information on programming, please refer to the NXD-430/435 Operation/Reference
Guide, available at www.amx.com.
Capacitive Touch Buttons
The NXD-435 has one main button on the front of the device, in the center of the
bezel, and two smaller buttons on each side. This button has several uses:
• Press the button once to start a previously programmed function, or to turn off
the display if not previously programmed.
• Press and hold the button for 6 seconds to put the device into Setup Mode.
• Press and hold the button for 9 seconds to enter Calibration Mode.
• Press and hold the button for 20 seconds to reboot the panel.
The NXD-435 also has four smaller buttons, two on either side of the front button, that
may be programmed for individual functions.
All five buttons on the NXD-435 utilize capacitive touch, which detects the electrical
conductivity of human skin and reacts directly to touch. This allows the button to resist
wear and dirt, as the button does not have any actual physical button to depress.

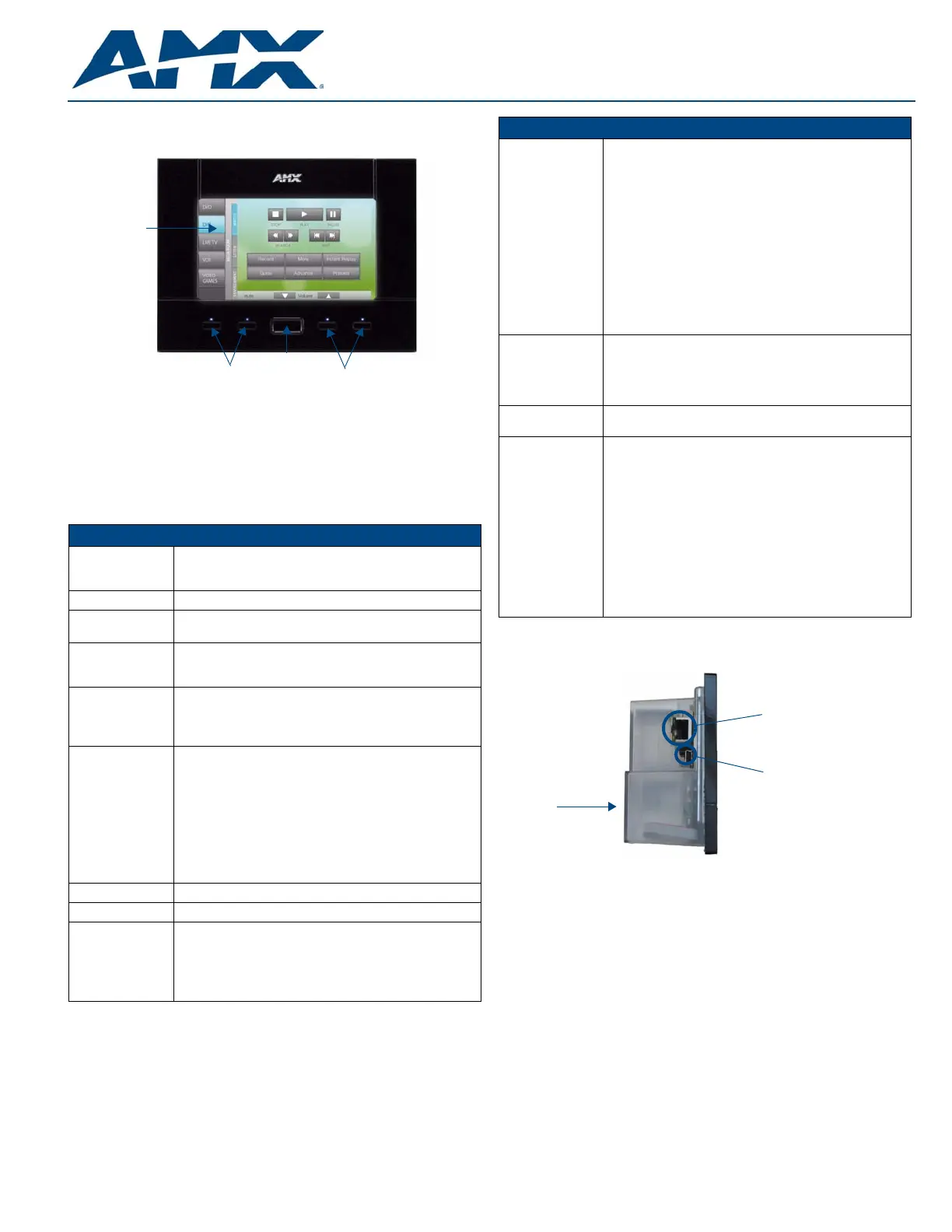

FIG. 1 NXD-435 4.3" Modero Wall/Flush Mount Touch Panel - Black
NXD-435 (FG2262-03/04) Specifications
Dimensions (HWD): • NXD-435: 4.13" x 5.5” x 2.13" (10.48 cm x 13.97 cm x 5.40 cm)
• CB-TP5 Rough-In/Wallbox (optional): 4.27" x 5.14" x 3.40"
(10.86 cm x 13.06 cm x 8.64 cm)
Weight: • 0.65 lbs (0.29 kg)
Power
Requirements:
• PoE Powered - No local Power Supply needed
• Max power draw: 5.5W.
Memory (Factory
default): • 128 MB SDRAM
• 256 MB integrated Flash Memory (not upgradeable - factory
programmed)
Certifications: • FCC Part 15 Class B
• CE
• IEC 60950
• RoHS
Panel LCD
Parameters: • Aspect ratio: 16 x 9
• Minimum brightness (luminance): 280 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 250:1
• Display colors: 256 thousand colors (18-bit color depth)
• Dot/pixel pitch: 0.14 mm
• Panel type: WQVGA
• Screen resolution: 480 x 272 pixels (HV) @ 60 Hz frame
frequency
• Viewing dimensions: 2 3/16" x 3 13/16" (5.56 cm x 9.68 cm)
Active Screen Area: • 2 1/8" x 3 3/4” (5.40 cm x 9.53 cm)
Viewing Angles: • Left/Right/Up/Down: 80/80/60/80
Front Panel
Components: •Center Button: Capacitive touch button provides both access to
the Setup and Calibration pages and toggles the panel between
a "sleep" or "wake" state. This button is also user-
programmable.
•Capacitive Touch Buttons: four user-programmable buttons, two
on either side of the Center Button.
Center Button
Touch screen
Capacitive Touch Buttons
NXD-435 Specifications (Cont.)
Side Panel
Connectors: • Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps
communication. The Ethernet port automatically negotiates the
connection speed (10 Mbps or 100 Mbps), and whether to use
half duplex or full duplex mode. Power is supplied through
Power Over Internet (PoE). NXD-435 panels communicate with
the NetLinx Master using the ICSP protocol over Ethernet. LEDs
show communication activity, connections, speeds, and mode
information:
L/A-link/activity - Yellow LED lights On when the Ethernet cables
are connected and terminated correctly and then blinks when
receiving Ethernet data packets.
SPD-speed - Green LED lights On when the connection speed is
100 Mbps and turns Off when the speed is 10 Mbps.
• Mini-USB Connector: 5-pin Mini-USB connector used for
programming, firmware update, and touch panel file transfer
between the PC and the target panel.
Operating /Storage
Environments: • Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 5% - 85% relative humidity
(non-condensing)
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included
Accessories:
• NXD-435 Installation Guide (93-2262-03)
Other AMX
Equipment: • CB-TP5i Rough-In/Wallbox (FG038-11)
• Back Cover for the CB-TP5i Rough-In/Wallbox (FG038-12)
• PS-POE-AF PoE Injector (FG423-80)
• NXA-BEZP-435-BL Black Portrait Bezel Kit for the NXD-435
( )FG2262-12
• NXA-BEZP-435-WH White Portrait Bezel Kit for the NXD-435
( )FG2262-13
• CC-USB Type-A to Mini-B 5-wire programming cable
( )FG10-5965
• NXA-RK5 Rack Mount Kit for 5" Wall Mount panels (FG2904-55):
- 5" Rackmount
- Four Screws, #10-32 x.625, PH Truss, BLK
- Four Washers, #10, Black Nylon
- Three Screws, #4-40 x.250, PPH, BLK
FIG. 2 Connector layout on the NXD-435 Modero Wall/Flush Touch Panel
Ethernet 10/100 port
Mini-USB port
Back box
