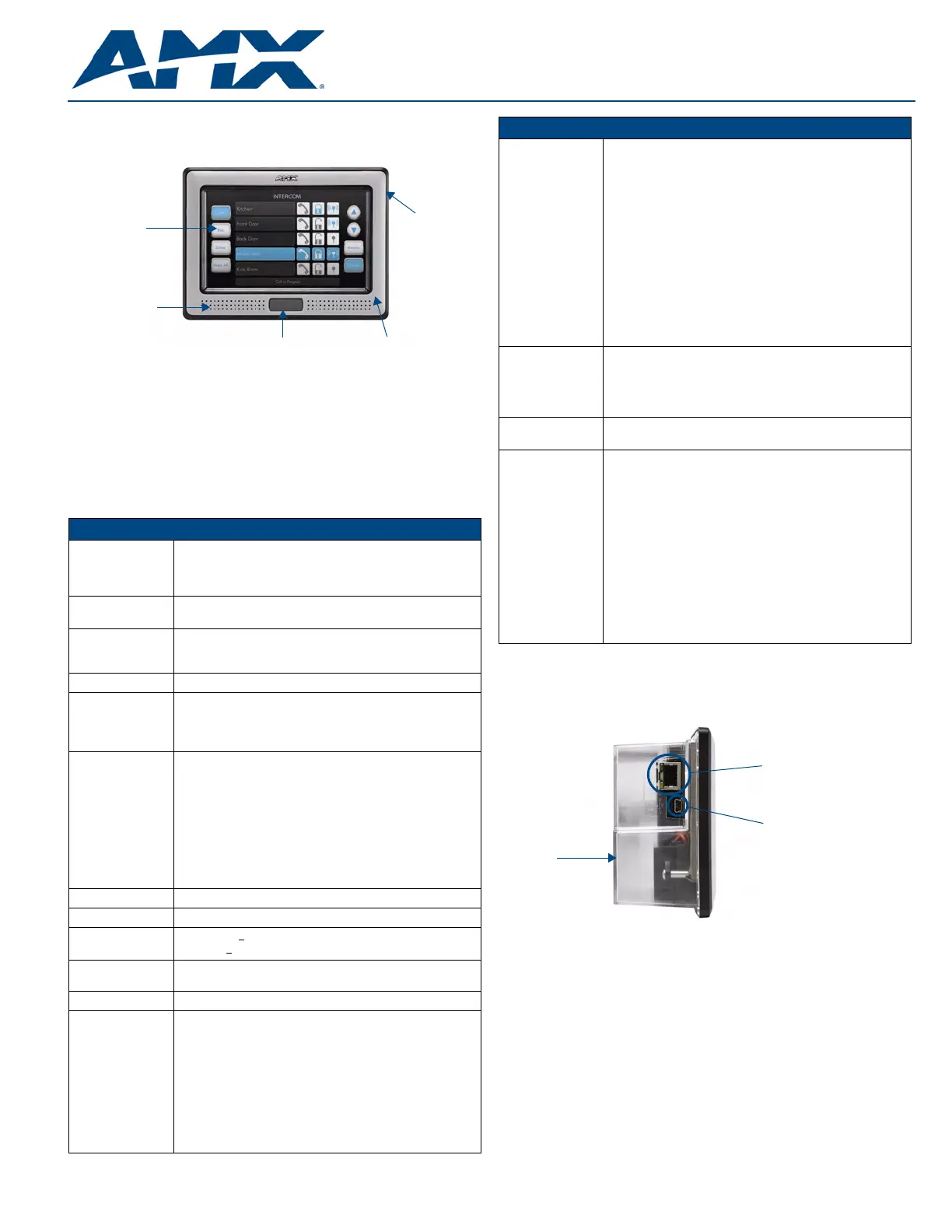

Installation Guide
NXD-500i 5" Modero Wall/Flush Mount Touch Panel
For more detailed installation, configuration, programming, file transfer, and operating
instructions, refer to the NXD-500i Operation/Reference Guide, available online at
www.amx.com.
Overview
The NXD-500i (FG2261-02) widescreen color panel includes a built-in microphone,
speakers, a mini-USB port for programming and audio output, and one
NetLinx-programmable button. All power is supplied via Power Over Ethernet (PoE),
utilizing a PS-POE-AF PoE Injector (FG423-80) or equivalent PoE device.
The NXD-500i supports Intercom functionality, which allows two communicating
panels (controlled by the NetLinx Master) to transmit full-duplex audio signals over a
network in order to be used as an Intercom system.
Specifications
Panel Connectors and Wiring
FIG. 2 shows the connectors located on the NXD-500i Modero panel. The mini-USB
port is used both for programming the touch panel and for audio output. The mini-USB
port automatically detects the presence of a headphone adaptor, allowing the port to
be used for headphone connectivity.
For more information on connection and use of the Panel Connectors, as well as
information on programming and headphone connectivity, please refer to the
NXD-500i Operation/Reference Guide, available at www.amx.com.
Front Bezel Button
The NXD-500i has only one button on the front of the device, in the center of the
button trim ring. This button has several uses:
• Press the button once to start a previously programmed function, or to turn off
the display if not previously programmed.
• Press and hold the button for 6 seconds to put the device into Setup Mode.
• Press and hold the button for 9 seconds to enter Calibration Mode.
• Press and hold the button for 20 seconds to reboot the panel.
NXD-500i Setup and System Connection
1. Carefully remove the panel from the shipping box, peel the protective plastic
cover from the LCD, and apply power to the panel via the PoE Injector.
FIG. 1 NXD-500i 5" Modero Widescreen WallMount Touch Panel
NXD-500i (FG2261-02) Specifications
Dimensions (HWD): • NXD-500i (with faceplate): 4.15" x 5.59" x 1.97"
(10.50 cm x 14.20 cm x 5 cm)
• CB-TP5 Rough-In/Wallbox (optional): 4.27" x 5.14" x 3.40"
(10.86 cm x 13.06 cm x 8.64 cm)
Power
Requirements:
• PoE Powered - No local Power Supply needed
• Max power draw: 5.5W.
Memory (Factory
default):
• 128 MB SDRAM
• 256 MB integrated Flash Memory (not upgradeable - factory
programmed)
Weight: • 0.80 lbs (0.36 kg)
Certifications: • FCC Part 15 Class B
• CE
• IEC 60950
• RoHS
Panel LCD
Parameters:
• Aspect ratio: 16 x 9
• Maximum brightness (luminance): 200 cd/m2
• Channel transparency: 8-bit Alpha blending
• Contrast ratio: 250:1
• Display colors: 256 thousand colors (18-bit color depth)
• Dot/pixel pitch: 0.14 mm
• Panel type: TFT Color Active-Matrix
• Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame
frequency
• Viewing dimensions: 4.3" x 2.58" (109.2 mm x 65.2 mm)
Active Screen Area: • 4.25” x 2.55” (10.80cm x 6.48cm)
Viewing Angles: • Up/Down/Left/Right: 85/85/85/85
IR Reception Angle: • Horizontal: + 25° (left and right from center)
• Vertical: + 15° (up and down from center)
Supported Audio
Sample Rates:
• 48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz,
12000Hz, 11025Hz, and 8000Hz.
Intercom: • Full duplex VoIP capabilities.
Front Panel
Components:
•Light Sensor: Photosensitive light detector for automatic
adjustment of the panel brightness
•Motion Sensor (PIR): Proximity Infrared Detector to wake the
panel when panel is approached.
•Front Bezel Button: Provides both access to the Setup and
Calibration pages and toggles the panel between a "sleep" or
"wake" state. This button is also user-programmable.
•Microphone: Frequency response of 300 to 3400Hz; used for
intercom applications.
•Speaker: Output of 4Ohm, 2 Watts, with a 300Hz low cutoff
frequency.
Front Bezel Button Button Trim Ring
Speaker
Touch screen
Microphone
NXD-500i Specifications (Cont.)
Side Panel
Connectors:
• Ethernet 10/100 Port: RJ-45 port for 10/100 Mbps
communication. The Ethernet port automatically negotiates the
connection speed (10 Mbps or 100 Mbps), and whether to use
half duplex or full duplex mode. Power is supplied through
Power Over Internet (PoE). NXD-500i panels communicate with
the NetLinx Master using the ICSP protocol over Ethernet. LEDs
show communication activity, connections, speeds, and mode
information:
L/A-link/activity - Yellow LED lights On when the Ethernet cables
are connected and terminated correctly and then blinks when
receiving Ethernet data packets.
SPD-speed - Green LED lights On when the connection speed is
100 Mbps and turns Off when the speed is 10 Mbps.
• Mini-USB Connector: 5-pin Mini-USB connector used for
programming, firmware update, and touch panel file transfer
between the PC and the target panel. The connector is also
used for providing audio output for external speakers.
Operating /Storage
Environments:
• Operating Temperature: 0° C (32° F) to 40° C (104° F)
• Operating Humidity: 5% - 85% relative humidity
(non-condensing)
• Storage Temperature: -20° C (-4° F) to 60° C (140° F)
• Storage Humidity: 5% - 85% RH
Included
Accessories:
• NXD-500i Installation Guide (93-2261-02)
• Front Bezel (60-2261-11)
Other AMX
Equipment:
• CB-TP5i Rough-In/Wallbox (FG038-11)
• Back Cover for the CB-TP5i Rough-In/Wallbox (FG038-12)
• PS-POE-AF PoE Injector (FG423-80)
• CC-USB Type-A to Mini-B 5-wire programming cable
( )FG10-5965
• USB to Headphone Adaptor (FG5966-23)
• NXA-BEZP-500-BL Black Portrait Bezel Kit for NXD-500i
( )FG2261-10
• NXA-BEZP-500-SL Silver Portrait Bezel Kit for NXD-500i
(FG2261-11)
• NXA-RK5 Rack Mount Kit for 5" Wall Mount panels (FG2904-55):
- 5" Rackmount
- Four Screws, #10-32 x.625, PH Truss, BLK
- Four Washers, #10, Black Nylon
- Three Screws, #4-40 x.250, PPH, BLK
FIG. 2 Connector layout on the NXD-500i Touch Panels
Ethernet 10/100 port
Mini-USB port
Back box
