Installation Guide

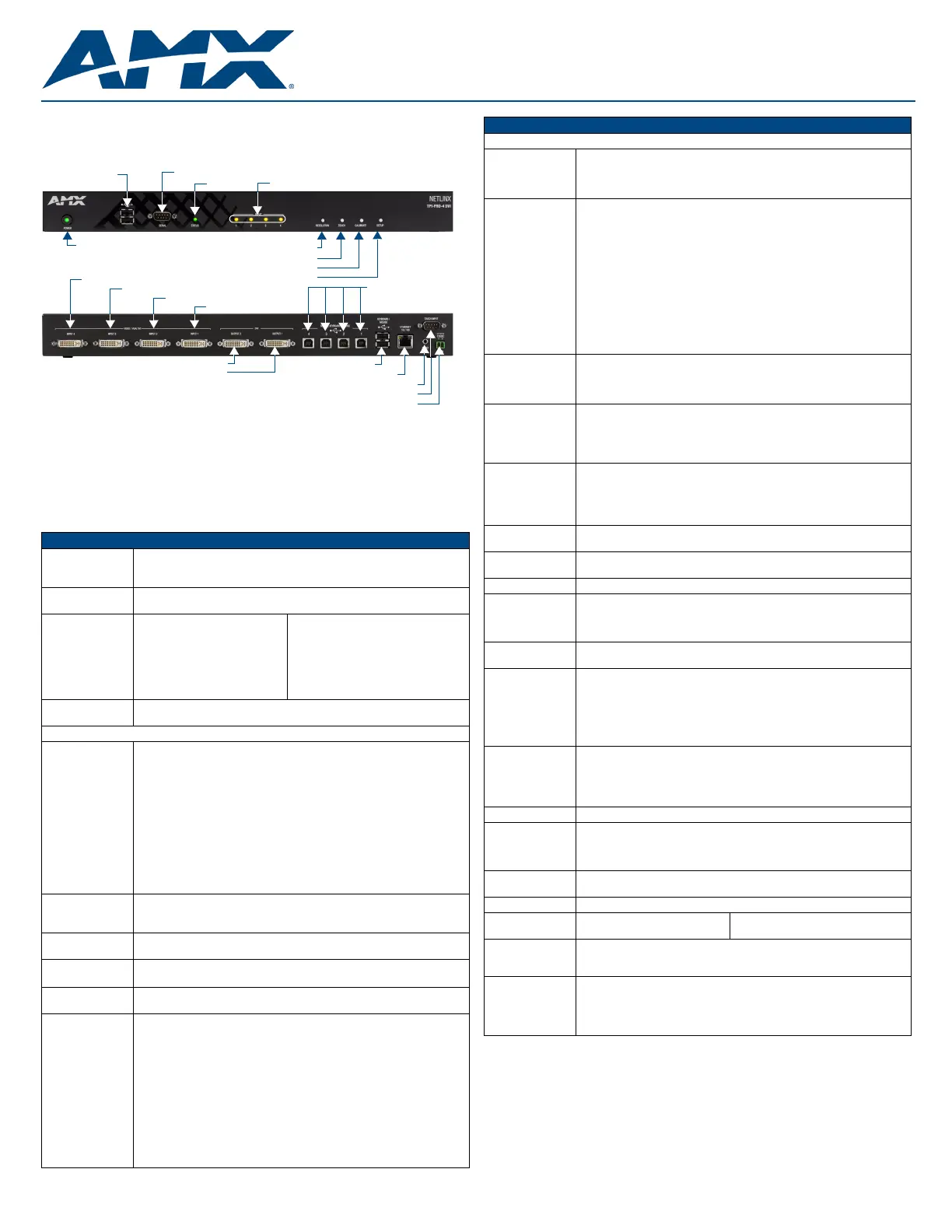

TPI-PRO-DVI-2/4 Total Presentation Interface with DVI

Overview

The TPI-PRO-DVI Presentation Interface with DVI displays up to 4 fully-scalable video windows,

each supporting Composite, S-Video, Component, VGA and DVI signals on third party touch

monitors (FIG. 1).

There are two versions of the TPI-PRO-DVI available:

• The TPI-PRO-DVI-2 (FG2275-112) supports up to two DVI inputs.

• The TPI-PRO-DVI-4 (FG2275-114) supports up to four DVI inputs.

Product Specifications

The following table lists the specifications for the TPI-PRO-DVI-2 and TPI-PRO-DVI-4. Note that

the primary difference between the TPI-PRO-DVI-2 and TPI-PRO-DVI-4 is in the number of

inputs. In terms of functionality and specifications, they are otherwise identical.

The specifications listed below apply to both versions, unless specifically noted.

Before You Start

The TPI-PRO-DVI has been factory setup with specific touch panel pages. The first splash

screen that appears indicates the TPI is receiving power, loading firmware, and preparing to

display the default touch panel page.

When the panel is ready, the AMX Splash Screen is replaced by the initial Panel Setup page.

• Verify you are using the latest NetLinx Master firmware.

• Verify you are using the latest TPI-PRO-DVI firmware.

• Verify the NetLinx Studio program you are using is version 2.8 or higher.

• Verify the TPDesign4 program you are using is version 2.11 or higher.

FIG. 1 TPI-PRO-2/4-DVI (TPI-PRO-4-DVI shown)

TPI-PRO-DVI Specifications

• Power

Requirements:

• Constant current draw: 2.6 A @ 12 VDC

• The PSN6.5 Power Supply (FG423-41 - not included) is recommended, to

accommodate all possible configurations and respective power draws.

• Memory: • 256 MB SDRAM

• 256 MB disk memory

• Supported Video

Resolutions:

Input DVI Video:

• up to 1920 x 1200

• single-link DVI only

Input Component Video:

• NTSC 480i, 480p

• PAL 576i, 576p

• 720p, 1080i, 1080p

Input Composite Video and S-Video:

• NTSC M/J

• NTSC 4.43

• PAL B/D/I/G/H

• PAL 60

• PAL M / N / Nc

• SECAM B/D/G/K/L

• Supported Audio

Sample Rates:

48000Hz, 44100Hz, 32000Hz, 24000Hz, 22050Hz, 16000Hz, 12000Hz,

11025Hz, and 8000Hz.

Front Panel Components

• Power

switch/LED:

Toggles the unit off and on.

• Light Off: Power to the unit is either not plugged in, below approximately

10VDC, above approximately 19VDC, or cross-wired.

• Constant Green: Power to the unit is within nominal voltage limits (between

10VDC and 19VDC, approximately), the unit is on, and all internal power

supplies are operating normally.

• Constant Yellow: Power to the unit is within nominal voltage limits (between

10VDC and 19VDC, approximately) and the unit has been turned off by

pressing the power switch for more than two seconds.

• Flashing Yellow: Power to the unit is within nominal voltage limits (between

10VDC and 19VDC, approximately), but one or more of the internal power

supplies are not operating correctly. The unit needs to be serviced. Contact

AMX Technical Support for further instructions.

• USB Type-A

Host ports:

2 USB Type A ports for connecting up to one annotation touch monitor and up

to one keyboard/mouse.

Note: Do not use a USB hub to connect multiple USB devices to the PI.

• Serial port: DB9 connector (male) connects to a DB9 serial port on a PC, for serial

communication.

• Status LED: • Constant ON: No communication with the NetLinx Master

• Blinking: In communication with the NetLinx Master

• Input LEDs: Yellow LEDs indicate a valid input signal on each source input

(1-4 on the TPI-PRO-DVI-4, 1-2 on the TPI-PRO-DVI-2).

• Buttons: Four white buttons provide access to the following configuration options:

• RESOLUTION: Opens a screen used to select the TPI-PRO-DVI output

video signal resolution, ranging from 640 x 480@60Hz to

1920 x 1200@60Hz.

Note: This output resolution setting must not be greater than the resolution

on the connected panel.

• TOUCH: Opens the Panel Information page, where you can select from a

series of serial touch panel drivers, and select the driver that corresponds to

the serial touch panel connected to the TPI-PRO-DVI (via the TOUCH

INPUT connector).

• CALIBRATE: Opens the Calibration page, displaying a series of crosshairs.

These crosshairs are used to calibrate the touch device being used.

• SETUP: Opens the TPI-PRO-DVI firmware setup menu.

Power switch/LED

Status LED

2 USB (Type-A)

Input 1-4 LEDs

Serial (Configuration) port

Input ports

Button - RESOLUTION

Button - TOUCH

Button - CALIBRATE

Button - SETUP

RS-232 Touch Input port

Audio (Stereo) Output

Ethernet (RJ-45) port

Power Connector

VIDEO/VGA/DVI Input 4

VIDEO/VGA/DVI Input 3

VIDEO/VGA/DVI Input 2

VIDEO/VGA/DVI Input 1

DVI Output 2

DVI Output 1

USB (Type-B) Source

Keyboard/Mouse

Ports 1-4

USB (Type-A) Inputs

TPI-PRO-DVI Specifications (Cont.)

Rear Panel Components

• DVI-I Inputs: DVI-I input connectors, one per input source (1-4 on the TPI-PRO-DVI-4,

1-2 on the TPI-PRO-DVI-2).

Each input connector supports DVI, VGA graphics, S-video, composite, and

component video.

• DVI-I Outputs: 2 DVI-I (VESA/EIA compatible) output connectors. Both outputs support DVI-D

and analog VGA (RGBHV) outputs.

• Maximum output resolution = 1920 x 1200@60 Hz

• Default output resolution = 1280 x 1024@60 Hz

Note: Refer to the TPI-PRO-DVI Operation/Reference Guide for a listing of

Supported Pixel Display and Refresh Rates.

These connectors display video feeds, G4 graphics and external windowed

video/graphics inputs.

The DVI-I Outputs can be connected to either:

• The touch-panel control display

• The public-view non-touch monitor

Note: The TPI-PRO-DVI does not provide Component (YPbPr) or Interlaced

outputs.

• Source TOUCH,

KEYBOARD/

MOUSE

USB ports:

2 or 4 USB Type-B device ports, one per source computer—for source USB

Touch Monitor, mouse/keyboard control (1-4 on the TPI-PRO-DVI-4, 1-2 on the

TPI-PRO-DVI-2).

Note: Do not use a USB hub to connect multiple USB devices to the TPI.

• Host USB Touch

Monitor

KEYBOARD/

MOUSE

USB ports:

2 USB Type-A ports that can be used for a keyboard, mouse, external storage

unit, or USB-capable touch panel interface.

Note: Do not use a USB hub to connect multiple USB devices to the TPI.

• ETHERNET

10/100 port:

RJ-45 port provides 10/100 Mbps communication with the NetLinx Master (via

ICSP protocol over Ethernet).

• The Ethernet port automatically negotiates the connection speed (10 Mbps or

100 Mbps), and whether to use half duplex or full duplex mode.

• This communication is reflected via the front ICSP LED.

• TOUCH INPUT

port:

RS-232 (DB9) 9-pin serial port provides connectivity to a pointer device (i.e.

touch screen) that requires a serial connection.

• AUDIO OUT

connector:

3.5mm mini-jack provides stereo output - for use with line-level (0.707 VRMS)

non-amplified stereo output only.

• Power connector: 2-pin 3.5 mm mini-Phoenix connector.

• Serial Touch

Drivers:

Go to http://www.amx.com//techdocs/TPI-PRO.Supported.Touch.Monitors.xls

to view/download the most recent List of Touch Monitors and USB Touch

Drivers Tested with the TPI-PRO-DVI (including the most current listing of

tested serial touch panel drivers).

• USB Drivers: USB Touch drivers are automatically loaded when the USB Touch Monitor is

detected.

• Button

Assignments:

Button assignments can be modified in TPD4 (not on the TPI-PRO-DVIs.)

• Button channel range: 1 - 4000 button push & feedback (per address port)

• Button variable text range: 1 - 4000 (per address port)

• Button states range: 1 - 256 (General Button; 1 = Off State, 2 = On State)

• Level range: 1 - 600 (Default level value 0-255, can be set up to 1-65535)

• Address port range: 1 - 100

• Communication/

Programming:

Master communication and programming is available via an Ethernet

connection. There are several methods of TPI-PRO-DVI communication and

programming available, including DHCP, Static IP, URL, Listen, Auto, NPD

(UPD) and URL (UPD).

Refer to the TPI-PRO-DVI Operation/Reference Guide for details.

• Enclosure: Metal with black matte finish

• Operating/

Storage

Environment:

• Operating Temperature: 0° C (32° F) to 40° C (104° F)

• Operating Humidity: 5% to 85% RH Non-Condensing

• Storage Temperature: -10° C (14° F) to 70° C (158° F)

• Storage Humidity: 0% to 85% RH Non-Condensing

• Dimensions

(HWD):

• 1.72" x 17.00" x 10.54"

(4.37 cm x 43.18 cm x 26.77 cm)

• Weight: 8.25 lbs (3.74 kg)

• Certifications: • RoHS

• FCC (Class B)

• CE

• IEC/EN60950

• Included

Accessories:

• 2-pin PWR connector (41-5025)

• Assembly Kit - Four screws and washers (KA0001)

• Rack Ear brackets (60-0900-03)

• Other AMX

Equipment:

• PSN6.5: Power Supply with 3.5 mm mini-Phoenix connector (FG423-41)

• CC-DVI-5BNCM: DVI-to-5 BNC Male Adapter Cable (FG10-2170-08)

• CC-DVI-RCA3M: DVI-to-3 RCA Male Adapter Cable (FG10-2170-09)

• CC-DVI-SVID: DVI-to-S-Video Adapter Cable (FG10-2170-10)

• CC-DVIM-VGAF: DVI-to-VGA Adapter Cable (FG10-2170-13)
